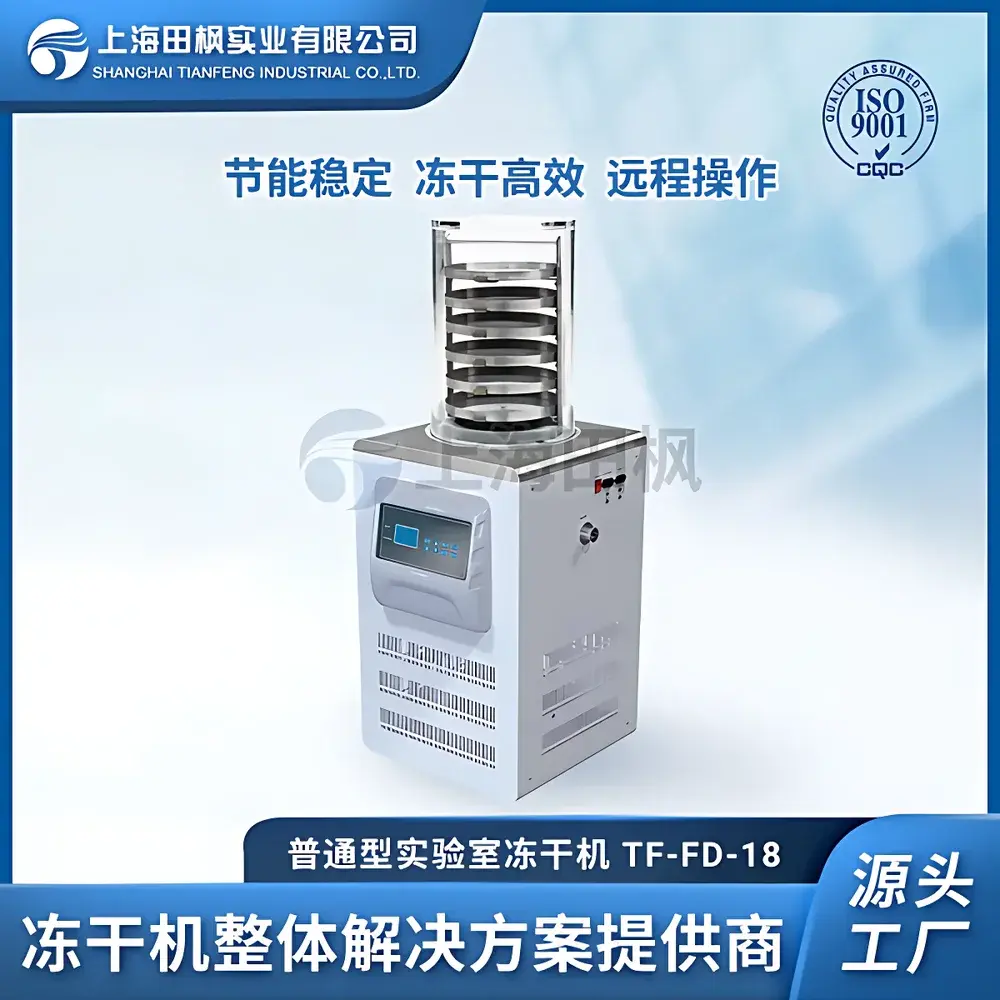

Tianfeng TF-FD-18 Standard Benchtop Freeze Dryer

Overview

The Tianfeng TF-FD-18 Standard Benchtop Freeze Dryer is a laboratory-scale lyophilization system engineered for reproducible, controlled freeze-drying of thermolabile biologicals, pharmaceuticals, and research samples. It operates on the principle of sublimation—removing water from frozen materials under deep vacuum while maintaining product integrity through precise thermal management. Unlike conventional drying methods conducted above 0 °C, this system performs primary drying at cryogenic temperatures (typically −40 °C to −60 °C) and secondary drying below 60 °C, preserving structural morphology, enzymatic activity, immunogenicity, and reconstitution fidelity. Its design complies with core principles outlined in USP , ISO 22042, and ICH Q5C guidelines for biopharmaceutical stability and sterility assurance. The unit integrates a cascade refrigeration architecture with a high-efficiency condenser capable of continuous ice capture at ≤−60 °C, enabling reliable processing of aqueous solutions, suspensions, and viscous formulations across diverse R&D and QC workflows.

Key Features

• Four-tier stainless steel shelves (Φ240 mm each) with uniform silicone oil heating/cooling—ensuring ±1 °C temperature consistency across all layers for homogeneous drying kinetics.
• Real-time touchscreen interface displaying dynamic drying curves (shelf temperature, chamber pressure, condenser temperature), supporting protocol-based parameter logging and deviation alerts.
• Cascade refrigeration system with dual-stage compressors—delivering rapid pre-freezing (<30 min to −50 °C), high condensing capacity (6 kg ice/24 h), and low acoustic emission (<62 dB(A)).
• Optical-grade transparent acrylic chamber door with integrated observation window—allowing non-invasive visual monitoring of ice formation, sublimation front progression, and cake structure development.
• In-chamber inert gas inlet valve (standard)—enabling nitrogen or argon backfilling post-drying to prevent oxidation and support aseptic handling under ISO Class 5 conditions.
• Full 304 stainless steel interior (chamber, shelves, condenser housing)—resistant to corrosion from organic solvents, buffers, and acidic/basic excipients; compatible with validated cleaning-in-place (CIP) protocols.
• Onboard PID temperature regulation with programmable ramp-hold profiles—supporting complex multi-step cycles including annealing, primary drying ramping, and desorption hold phases.

Sample Compatibility & Compliance

The TF-FD-18 accommodates vials (10–30 mL), serum bottles, petri dishes, and custom trays up to 240 mm diameter per shelf layer. It is routinely employed for lyophilizing monoclonal antibodies, plasmid DNA, viral vectors, bacterial lysates, diagnostic reagents, and botanical extracts. All operational parameters—including shelf temperature setpoints, vacuum ramp rates, and endpoint detection thresholds—are fully configurable to meet requirements defined in ASTM F2373 (Standard Practice for Lyophilization Process Development), FDA Guidance for Industry on Container Closure Integrity Testing, and EU Annex 1 (Manufacture of Sterile Medicinal Products). Data integrity is maintained via optional 21 CFR Part 11-compliant electronic signatures and audit-trail-enabled temperature recording modules.

Software & Data Management

Embedded firmware supports export of time-stamped CSV files containing shelf temperature, chamber pressure, condenser temperature, and elapsed cycle time—formatted for direct import into LIMS, ELN, or statistical process control (SPC) platforms. Optional data loggers provide GLP-compliant traceability with user-defined sampling intervals (1–60 s), password-protected configuration, and encrypted local storage (≥30 days of continuous operation). Remote monitoring via Ethernet or RS485 enables integration with building management systems (BMS) and centralized lab infrastructure dashboards. Firmware updates are delivered via USB without requiring factory service intervention.

Applications

• Pharmaceutical R&D: Formulation screening of lyoprotectants, optimization of collapse temperature (T_c) and eutectic melting point (T_eu), stability-indicating method development per ICH Q1A–Q5E.
• Vaccine manufacturing: Stabilization of live-attenuated and subunit vaccines; preservation of adjuvant–antigen complexes without aggregation or epitope masking.
• Cell and gene therapy: Cryopreservation of CAR-T cells, mesenchymal stem cells, and exosome preparations with minimal loss of viability and functional potency.
• Diagnostic reagent production: Long-term stabilization of enzyme-conjugated antibodies, PCR master mixes, and lateral flow assay components.
• Academic research: Structural biology sample preparation (e.g., membrane proteins for cryo-EM), metabolomics sample archiving, and paleoclimatology ice-core analysis.

FAQ

What is the maximum batch volume supported by the TF-FD-18?
The unit supports up to 0.18 m² of lyophilization surface area across four shelves, accommodating approximately 1,200 standard 10-mL vials (filled to 5 mL) or equivalent volumes in open trays.
Does the system support in-situ freezing without external ultra-low temperature freezers?
Yes—the integrated cascade refrigeration system achieves shelf temperatures ≤−60 °C within 30 minutes, eliminating the need for pre-freezing in −80 °C freezers and reducing contamination risk during transfer.
Is the vacuum system oil-free?
No—it utilizes a dual-stage rotary vane vacuum pump with hydrocarbon oil; however, an optional oil mist filter and cold trap are available to minimize oil backstreaming into the chamber.
Can the TF-FD-18 be validated for GMP environments?
Yes—its modular architecture, calibrated sensors (traceable to NIST standards), and data logging capabilities support IQ/OQ/PQ execution per ASTM E2500 and EU GMP Annex 15. Full validation documentation packages are available upon request.
What maintenance intervals are recommended?
Vacuum pump oil replacement every 500 operating hours; condenser defrosting after each full ice load (6 kg); annual calibration of temperature and pressure transducers using certified reference standards.
