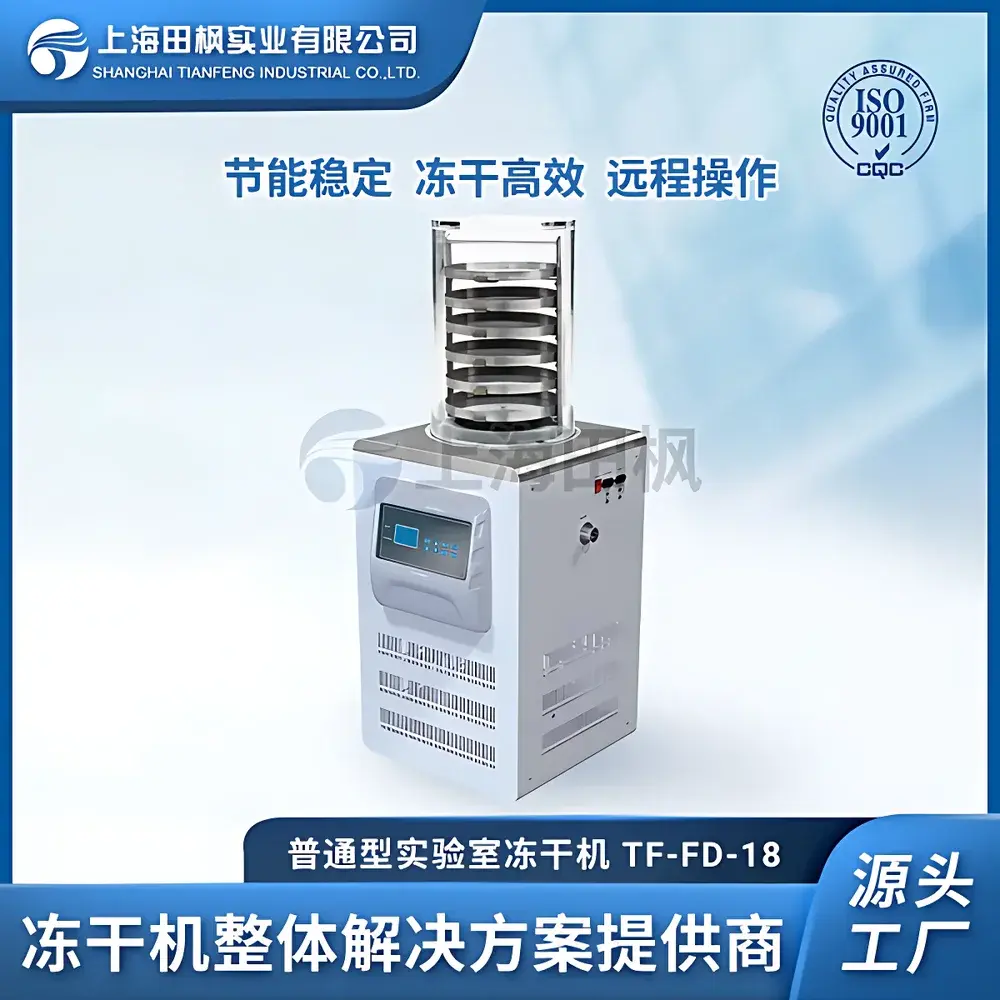

Tianfeng TF-FD-18 Standard Vertical Laboratory Freeze Dryer

Overview

The Tianfeng TF-FD-18 Standard Vertical Laboratory Freeze Dryer is a purpose-engineered lyophilization system designed for reproducible, scalable freeze-drying of heat-sensitive biological and pharmaceutical samples in academic, clinical, and industrial R&D laboratories. It operates on the fundamental principle of sublimation—removing water from frozen materials under high vacuum while maintaining product integrity through precise thermal control. Unlike conventional drying methods that apply elevated temperatures and cause denaturation, shrinkage, or oxidation, this unit performs primary drying at sub-zero shelf temperatures and secondary drying below 60 °C, preserving native conformation, enzymatic activity, immunogenicity, and reconstitution fidelity. Its vertical architecture integrates a high-efficiency air-cooled cascade refrigeration system, enabling rapid pre-freezing directly within the condenser chamber—a feature critical for minimizing thermal history variability and ensuring uniform ice nucleation across sample batches.

Key Features

• Vertical stainless steel construction with electropolished 304-grade internal surfaces and a transparent acrylic observation door for real-time visual monitoring of cake formation, collapse, and drying front progression.
• In-situ pre-freezing capability: Samples are frozen directly on shelves or in the condenser chamber prior to vacuum application—eliminating manual transfer and reducing contamination risk.
• Touchscreen HMI with embedded PID temperature and vacuum control algorithms; displays real-time drying curves (shelf temperature, condenser temperature, chamber pressure) and allows user-defined ramp/hold profiles.
• Air-cooled dual-stage cascade refrigeration system delivering stable condenser temperatures ≤ −60 °C, optimized for efficient water vapor capture—even from formulations containing low-boiling-point solvents such as ethanol or acetone.
• 0.18 m² effective lyophilization area accommodates four standard Φ240 mm stainless steel trays, supporting batch sizes up to 1.5 L total volume per cycle under typical loading conditions.
• Robust vacuum performance: Achieves <15 Pa ultimate pressure (empty chamber) using an oil-lubricated dual-stage rotary vane pump (pump not included), compatible with optional oil-free alternatives for GMP-aligned environments.
• Integrated inert gas purge valve (N₂ or argon) enables controlled backfilling post-drying to prevent oxidation and support aseptic handling under laminar flow hoods.

Sample Compatibility & Compliance

The TF-FD-18 is validated for processing a broad spectrum of thermolabile matrices—including monoclonal antibodies, plasmid DNA, viral vectors, probiotic cultures, peptide-based therapeutics (e.g., oligopeptide fast-dissolving tablets), vaccine candidates, and botanical extracts. Its design adheres to core engineering requirements referenced in ISO 22042:2021 (freeze dryer performance qualification), ASTM F2476–22 (standard guide for lyophilization process development), and supports alignment with USP , ICH Q5C, and FDA 21 CFR Part 11 when paired with compliant data logging software. The unit’s all-stainless-steel fluid path, smooth welds, and absence of crevices meet basic hygienic design principles for GLP-compliant laboratories. While not certified for sterile manufacturing, its modular architecture permits integration into Class A/B cleanroom workflows via isolator coupling or glovebox linkage.

Software & Data Management

The built-in control system records timestamped process parameters—including shelf temperature, condenser temperature, chamber pressure, and elapsed time—at user-selectable intervals (1–60 s). Data export is supported via USB drive in CSV format for offline analysis in MATLAB, Python, or commercial CQV platforms. An optional FDA 21 CFR Part 11-compliant data logger (model TF-DL-2000) provides electronic signatures, audit trails, role-based access control, and encrypted storage—enabling full traceability for regulatory submissions. All firmware updates are performed locally via secure USB interface; no cloud connectivity is implemented, ensuring data sovereignty and network isolation in sensitive research environments.

Applications

This freeze dryer serves as a platform instrument for method development and small-scale production across multiple domains: formulation optimization of oligopeptide oral disintegrating tablets (ODTs); stabilization of labile mRNA-LNP complexes; preparation of reference standards for biopharmaceutical analytics; lyophilization of microbial cultures for strain banking; dehydration of enzyme immobilization scaffolds; and pilot-scale processing of nutraceutical actives (e.g., anthocyanins, glucosinolates). Its consistent condenser performance and predictable sublimation kinetics make it particularly suitable for establishing first-principles drying models used in scale-up to production-scale systems (e.g., 10–50 m² units). Academic users routinely employ it for teaching lyophilization thermodynamics, mass transfer modeling, and critical quality attribute (CQA) mapping.

FAQ

Can the TF-FD-18 be used for organic solvent-containing formulations?
Yes—the condenser temperature of <−60 °C and large surface-area cold trap provide effective capture of common co-solvents including methanol, ethanol, and acetonitrile, though extended exposure to highly volatile solvents may require periodic condenser defrosting.
Is in-chamber pre-freezing supported?
Yes—samples can be frozen directly on the shelves using the integrated shelf cooling function (available on TF-FD-18S variant) or pre-frozen in the condenser chamber prior to vacuum initiation.
What vacuum pump is recommended?
A 4–6 m³/h dual-stage oil-sealed rotary vane pump is standard; for solvent-rich applications or GMP settings, a dry scroll or diaphragm pump rated for chemical resistance is advised.
Does the system support automated stoppering?
The base TF-FD-18 model does not include stoppering; however, the TF-FD-18P (press-fit) and TF-FD-18S (hydraulic stoppering) variants are available for vial-based workflows.
Is IQ/OQ documentation provided?
Tianfeng supplies factory test reports (FAT) and basic operational qualification templates; full GMP-compliant IQ/OQ/PQ protocols must be developed in-house or by a qualified third-party service provider.
