Tianfeng TF-FD-18S Benchtop Programmable Freeze Dryer with Shelf Heating

Overview

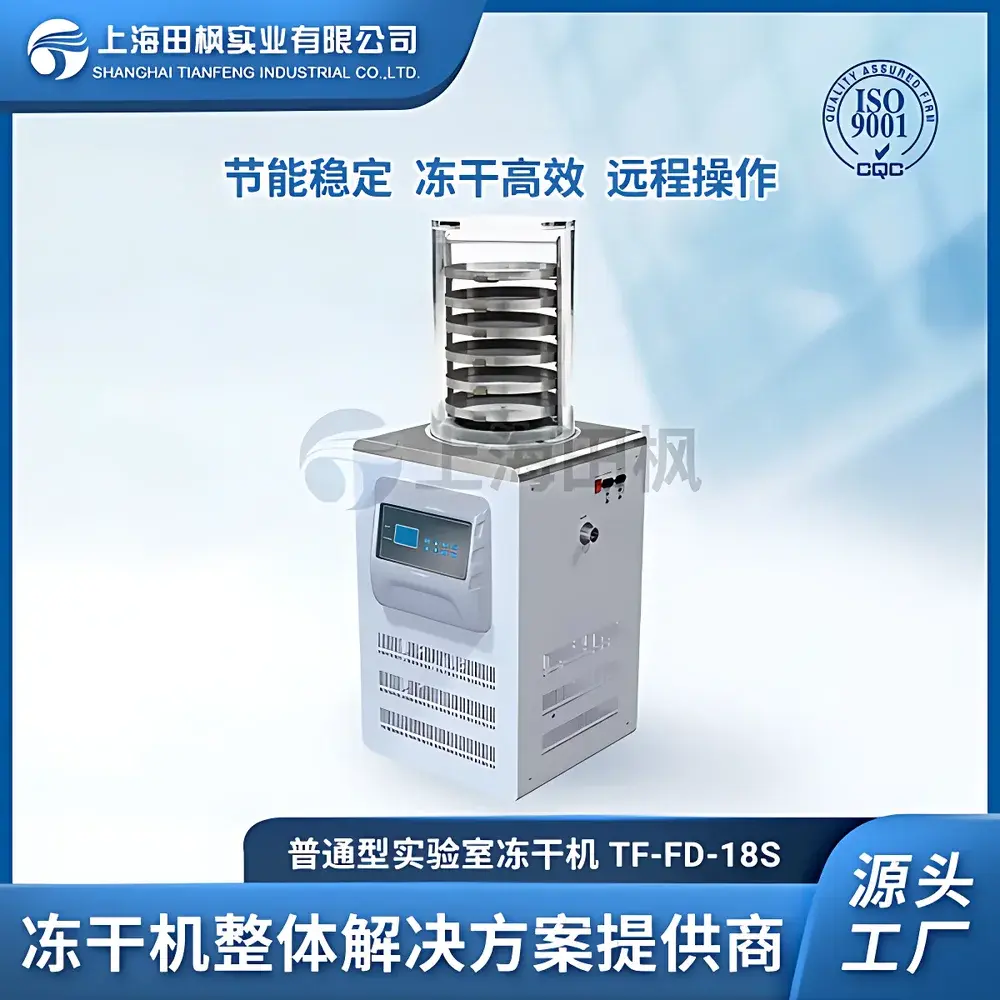

The Tianfeng TF-FD-18S is a benchtop programmable freeze dryer engineered for precise, reproducible lyophilization of heat-sensitive biological and pharmaceutical samples in research laboratories and pilot-scale development environments. It operates on the fundamental principle of sublimation—removing water from frozen materials under deep vacuum while maintaining product integrity below the eutectic temperature. Unlike conventional drying methods conducted above 0 °C, this process preserves native conformation, enzymatic activity, immunogenicity, and long-term stability of labile biomolecules including proteins, enzymes, monoclonal antibodies, vaccines, and cell-based therapeutics. The TF-FD-18S integrates a dual-stage refrigeration system capable of achieving condenser temperatures below −60 °C, ensuring efficient vapor capture even during extended primary drying phases. Its 0.18 m² shelf area accommodates up to four standard Φ240 mm stainless steel trays, supporting batch processing of vials, serum bottles, or bulk formulations without cross-contamination.

Key Features

• Programmable electric shelf heating with adjustable ramp/soak profiles—enables controlled secondary drying and optimization of residual moisture content per ICH Q5C guidelines.
• High-resolution touchscreen interface with real-time graphical display of shelf temperature, chamber pressure, condenser temperature, and time-based drying curves.
• Robust 304 stainless steel construction for condenser, chamber, and shelves—resistant to corrosion from acidic/basic buffers and organic solvent residues (e.g., acetonitrile, ethanol).
• Optical-grade acrylic viewing door providing unobstructed visual monitoring throughout freezing, primary drying, and desorption stages.
• Integrated inert gas purge valve compatible with nitrogen or argon—supports oxygen-sensitive formulations and facilitates sterile transfer under positive pressure.
• PID-controlled vacuum regulation with feedback loop—maintains stable pressure setpoints between 1–15 Pa during critical phase transitions.
• Onboard data logging capability (optional GLP-compliant module available)—records timestamped parameters at user-defined intervals for audit-ready documentation.

Sample Compatibility & Compliance

The TF-FD-18S is validated for use with aqueous and low-concentration organic-aqueous solutions commonly encountered in biopharmaceutical R&D—including protein formulations (e.g., lysozyme, BSA), enzyme preparations (e.g., trypsin, alkaline phosphatase), viral vectors, plasmid DNA, and small-molecule APIs. Its −60 °C condenser provides sufficient cold sink capacity for solvents with vapor pressures up to ~10 Pa at −20 °C (e.g., tert-butanol, methanol/water mixtures). All wetted surfaces comply with USP Class VI and ISO 10993-5 cytotoxicity standards. The system supports compliance with FDA 21 CFR Part 11 when equipped with password-protected user accounts, electronic signatures, and tamper-evident audit trails via optional software modules. Design adheres to ISO 22042:2017 (freeze dryer performance qualification) and aligns with ASTM F2476-21 (standard practice for lyophilization cycle development).

Software & Data Management

The embedded control firmware supports export of raw sensor data in CSV format for offline analysis in MATLAB, Python, or JMP. Optional Tianfeng LyoControl™ software enables remote monitoring via Ethernet/Wi-Fi, automated report generation (PDF/Excel), and integration with LIMS platforms through OPC UA protocol. All parameter changes are logged with operator ID, timestamp, and reason-for-change fields—meeting ALCOA+ principles for data integrity. Calibration certificates for temperature sensors (±0.5 °C accuracy) and vacuum transducers (±2% full scale) are provided with each unit, traceable to NIST standards.

Applications

• Stabilization of recombinant enzymes and diagnostic reagents for shelf life extension (≥24 months at 2–8 °C post-lyophilization).
• Development of lyophilized mRNA-LNP formulations requiring strict thermal history control.
• Preparation of reference standards for HPLC and mass spectrometry calibration.
• Drying of microbial cultures (bacteria, yeasts) for cryopreservation and strain banking.
• Processing of botanical extracts (e.g., ginseng, cordyceps) while retaining thermolabile glycosides and polyphenols.
• Supporting DOE-based cycle development per QbD frameworks—enabling systematic variation of shelf temperature, chamber pressure, and hold times.

FAQ

What is the maximum sample volume per batch?
With four Φ240 mm trays and typical fill depth of 10 mm, the system accommodates up to 1.8 L of aqueous solution (assuming 100% ice conversion density).

Can the TF-FD-18S handle solvents other than water?
Yes—its −60 °C condenser effectively traps common co-solvents such as ethanol, isopropanol, and tert-butanol; however, high-volatility solvents (e.g., acetone, DMSO) require optional −80 °C upgrade kits.

Is validation support available?
Tianfeng provides IQ/OQ documentation templates, installation checklists, and on-site operational qualification assistance upon request—aligned with EU Annex 15 and FDA Process Validation Guidance.

Does the system meet GMP requirements for early-phase clinical manufacturing?
While classified as a laboratory-scale instrument, its design basis—including stainless steel contact surfaces, closed-loop pressure control, and data integrity features—supports use in non-sterile API processing and Phase I/II clinical trial material preparation under appropriate quality oversight.
