Tianfeng TF-FD-1PF Benchtop Freeze Dryer with Stoppering Function

Overview

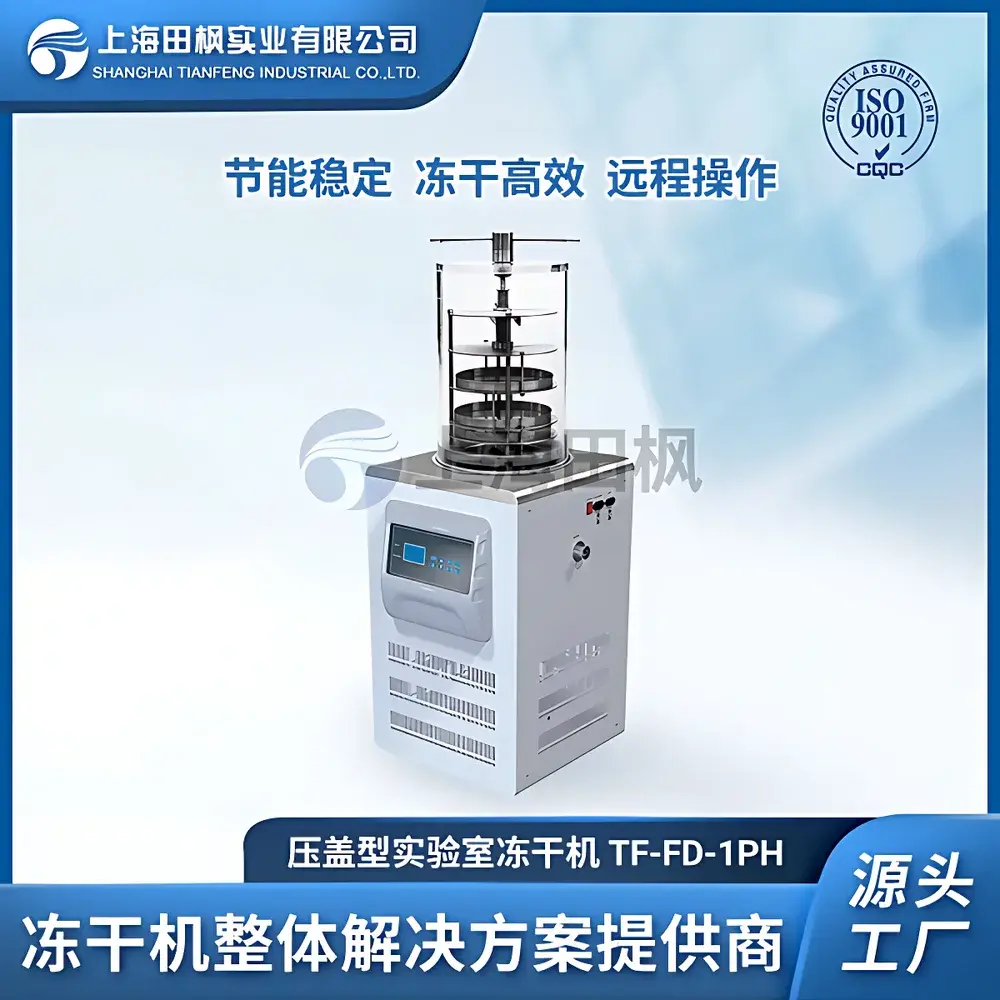

The Tianfeng TF-FD-1PF is a compact, vertically oriented benchtop freeze dryer engineered for precise lyophilization of heat-sensitive biological, pharmaceutical, and cosmetic formulations in laboratory environments. It operates on the fundamental principle of sublimation—removing water from frozen samples under deep vacuum while maintaining temperatures below the eutectic point to preserve structural integrity and bioactivity. Unlike conventional drying methods that apply thermal energy above 0 °C—inducing denaturation, oxidation, or collapse—the TF-FD-1PF executes primary drying at ≤−55 °C and secondary drying at controlled shelf temperatures up to 60 °C, ensuring minimal thermal stress and high fidelity restoration upon reconstitution. Its integrated cold trap serves dual functions: pre-freezing samples directly on the shelf (in-situ freezing) and capturing sublimated water vapor as ice, eliminating the need for external cryogenic units. This architecture supports reproducible batch processing of vials, serum bottles, or shallow trays—ideal for R&D-scale development of lyophilized vaccines, enzyme preparations, probiotic powders, and cosmetic actives such as hyaluronic acid or peptide complexes.

Key Features

• In-situ pre-freezing capability: Shelf-mounted cooling enables direct sample freezing inside the drying chamber, minimizing handling and contamination risk while improving ice nucleation uniformity.
• High-efficiency dual-stage condensation: Optimized refrigeration circuit achieves stable condenser temperatures ≤−55 °C, ensuring robust capture of both water and low-volatility solvents (e.g., ethanol, acetone) commonly used in cosmetic and biopharmaceutical formulations.
• PID-controlled touchscreen interface: Real-time graphical display of shelf temperature, chamber pressure, condenser temperature, and drying time; programmable ramp-soak profiles support method development and process validation.
• 304 stainless steel construction: Corrosion-resistant chamber, shelves, and condenser housing ensure long-term durability and compliance with cleaning-in-place (CIP) protocols required in GLP/GMP-aligned labs.
• Optical observation window: High-transparency acrylic door allows unobstructed visual monitoring of cake formation, collapse events, and drying front progression without breaking vacuum.
• Stoppering functionality: Integrated hydraulic or pneumatic stopper actuation system enables sterile sealing of vials under vacuum or inert gas (N₂/Ar), critical for oxygen-sensitive APIs and cosmetic serums.
• Modular expandability: Compatible with optional eutectic point measurement probes, 21 CFR Part 11-compliant data loggers, and inert gas purge kits for enhanced process control and audit readiness.

Sample Compatibility & Compliance

The TF-FD-1PF accommodates standard Ø180 mm sample trays across three shelf levels, supporting typical lab formats including 10–20 mL vials, multi-well plates, and custom molds for cosmetic sheet masks. Its 0.07 m² shelf area and 3 kg/24 h ice capacity are validated for batches up to 500 g total mass per cycle—sufficient for formulation screening, stability studies, and pilot-scale production of lyophilized cosmetics (e.g., vitamin C serums, collagen patches) and diagnostic reagents. The system meets ISO 22042:2016 requirements for laboratory freeze dryers and aligns with ASTM F2375-22 guidelines for lyophilization process characterization. When equipped with an FDA 21 CFR Part 11-compliant data logger and electronic signature module, it satisfies documentation requirements for regulated pharmaceutical development under ICH Q5C and USP <1211>. All wetted surfaces comply with USP Class VI biocompatibility standards.

Software & Data Management

Embedded firmware supports real-time acquisition of up to eight analog channels (shelf temp, chamber pressure, condenser temp, vacuum gauge output, etc.) at 1-second intervals. Exportable CSV files include timestamped process metadata, enabling post-run analysis in MATLAB, Python, or JMP. Optional validation packages provide IQ/OQ documentation templates compliant with ISO 9001:2015 and GAMP5 principles. Audit trails record all user actions—including parameter changes, cycle starts/stops, and alarm acknowledgments—with immutable timestamps and operator IDs. Remote monitoring via Ethernet or Wi-Fi (with optional module) permits cross-site supervision without compromising local network security.

Applications

• Biopharmaceutical R&D: Stabilization of monoclonal antibodies, mRNA-LNPs, and viral vectors; optimization of annealing steps and collapse temperature mapping.
• Cosmetic formulation: Production of water-free, preservative-free facial sheets, eye patches, and powdered serums retaining volatile terpenes and unstable antioxidants (e.g., ferulic acid, resveratrol).
• Diagnostic reagents: Lyophilization of ELISA kits, lateral flow assay components, and PCR master mixes requiring room-temperature storage stability.
• Academic research: Cryopreservation of microbial cultures, plant tissue explants, and nanocellulose aerogels for materials science applications.
• Food science: Pilot-scale dehydration of probiotics, enzymes, and fruit extracts while preserving enzymatic activity and sensory volatiles.

FAQ

What is the maximum vial size supported by the TF-FD-1PF’s stoppering mechanism?

Standard compatibility includes 10–30 mL serum vials with rubber stoppers meeting ISO 8536-1 specifications; custom tooling available for non-standard diameters.
Can this unit handle organic solvent-based formulations?

Yes—the ≤−55 °C condenser temperature ensures efficient trapping of methanol, ethanol, and acetonitrile; consult technical support for solvent-specific condenser load calculations.
Is in-chamber shelf heating available on this model?

No—TF-FD-1PF is a passive-shelf design optimized for low-heat-input lyophilization; active shelf heating requires the TF-FD-18S or TF-FD-1SL series.
Does the system include validation documentation?

Factory-installed IQ/OQ templates are provided; full 3Q validation support (including PQ execution) is available through Tianfeng’s certified service engineers.
What maintenance intervals are recommended for optimal performance?

Oil change every 2,000 operating hours; vacuum pump oil replacement every 500 hours; annual calibration of pressure transducers and PT100 sensors per ISO/IEC 17025 guidelines.
