Tianfeng TF-FD-1PF Multi-Manifold Stoppering Laboratory Freeze Dryer

Overview

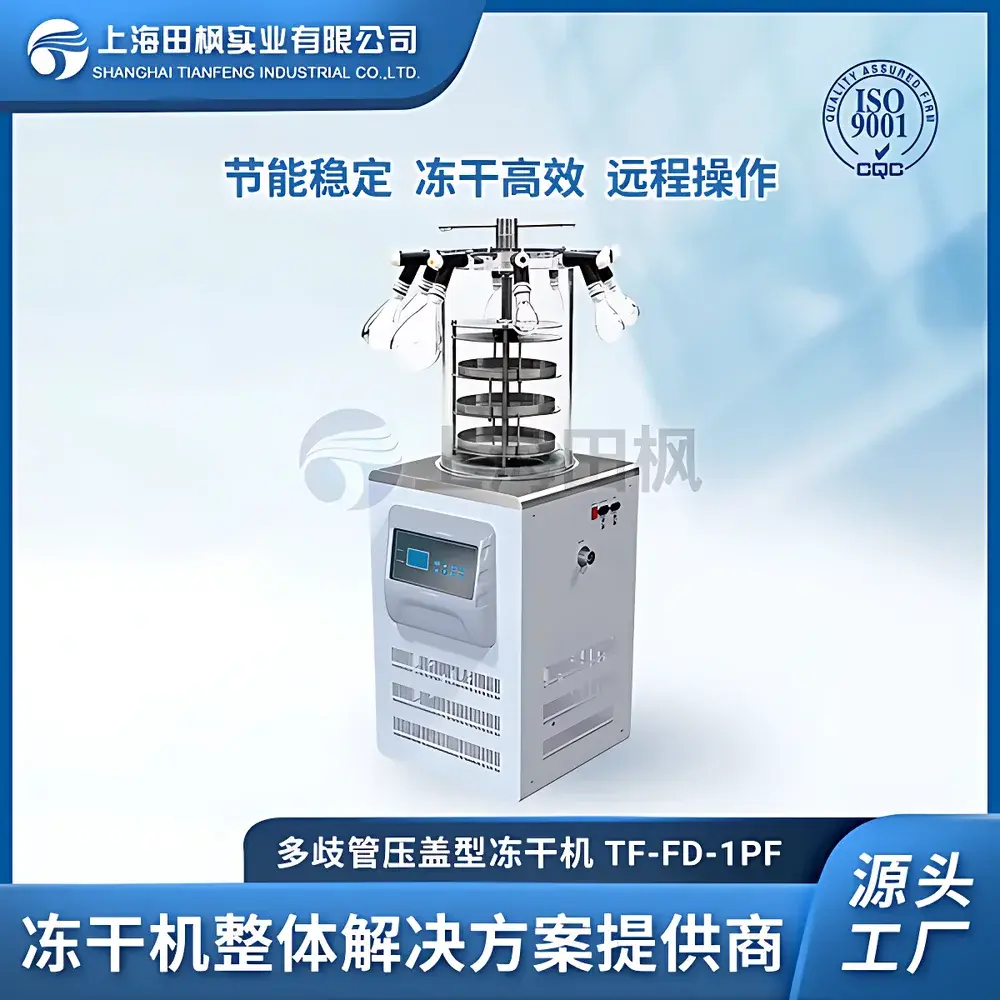

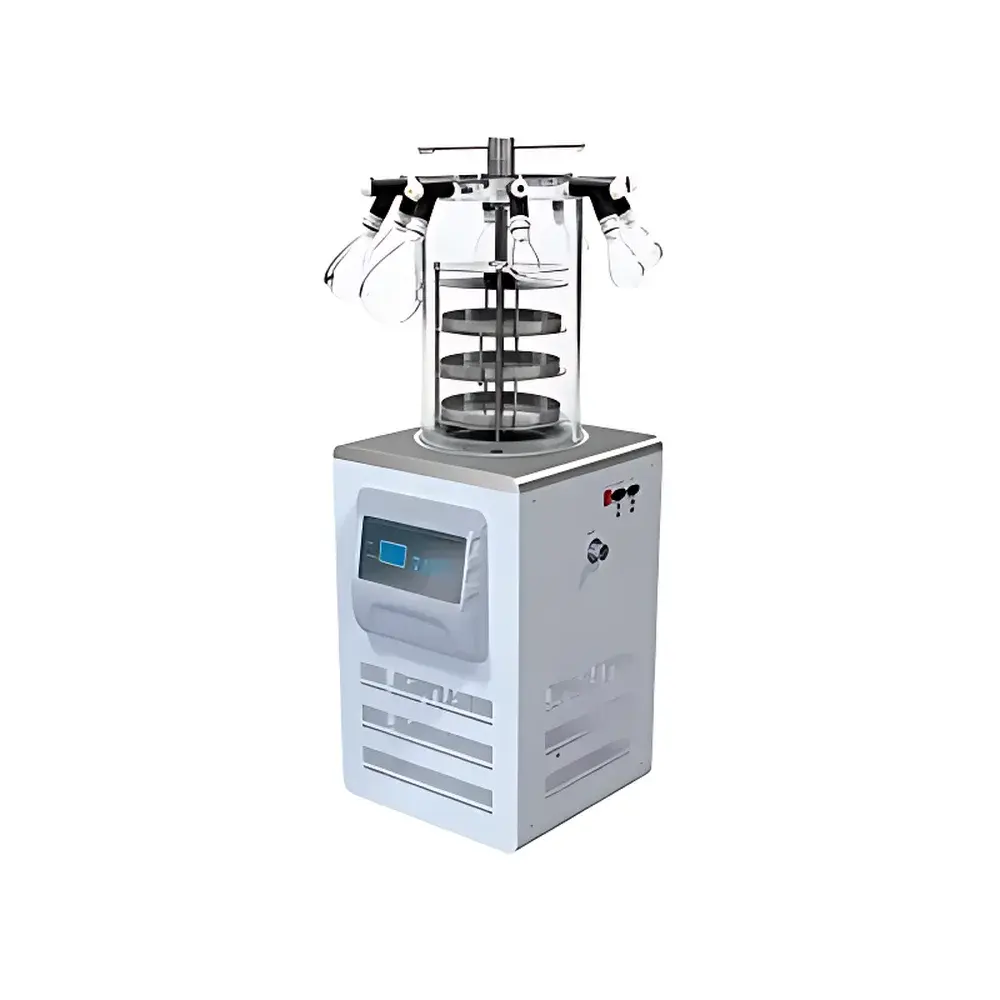

The Tianfeng TF-FD-1PF is a compact, vertically oriented laboratory freeze dryer engineered for reliable lyophilization of heat-sensitive biological and pharmaceutical samples under controlled vacuum and sub-zero conditions. Based on the fundamental principle of sublimation—where ice transitions directly from solid to vapor phase without passing through liquid—the system preserves structural integrity, bioactivity, and chemical stability of labile substances including enzymes, vaccines, monoclonal antibodies, plasma derivatives, and herbal extracts such as hirudin. Unlike conventional thermal drying methods that induce denaturation, oxidation, or collapse, freeze drying maintains the original porous matrix formed during primary freezing, enabling rapid reconstitution with minimal loss of functionality. The TF-FD-1PF integrates a dual-stage air-cooled refrigeration system with a stainless steel condenser capable of reaching ≤−50 °C, ensuring efficient water vapor capture and stable process performance across diverse sample matrices.

Key Features

• Multi-manifold stoppering configuration enables simultaneous lyophilization of up to eight flasks (50–1000 mL) with individual valve control, facilitating parallel processing and post-drying hermetic sealing under vacuum.
• Touchscreen LCD interface with real-time graphical display of chamber pressure, condenser temperature, and shelf temperature (if equipped), supporting full-cycle monitoring and reproducible protocol execution.
• PID-controlled refrigeration system ensures precise thermal regulation and minimizes temperature overshoot during pre-freezing and primary drying phases.
• High-transparency acrylic drying chamber with integrated observation window allows unobstructed visual assessment of ice morphology, sublimation front progression, and cake formation throughout the cycle.
• 304 stainless steel construction—including condenser, manifold, and internal chamber surfaces—provides corrosion resistance, ease of cleaning, and compliance with GLP laboratory hygiene standards.
• Optional inert gas purge valve supports nitrogen or argon backfilling prior to venting, mitigating oxidative degradation in oxygen-sensitive compounds.
• Modular design accommodates optional accessories: eutectic point measurement kit for accurate formulation-specific cycle development; temperature data logger with configurable sampling intervals for 21 CFR Part 11-compliant audit trails.

Sample Compatibility & Compliance

The TF-FD-1PF is validated for use with aqueous and low-concentration organic solvent-based formulations commonly encountered in biopharmaceutical R&D, including buffer systems containing ethanol, acetone, or tert-butanol (within safe operational limits). Its −50 °C condenser temperature provides sufficient cold sink capacity for standard pharmaceutical excipients (e.g., mannitol, sucrose, trehalose) and supports lyophilization of small-molecule APIs, recombinant proteins, and microbial cultures. While not rated for high-boiling-point solvents (e.g., DMSO, DMF), the unit meets ISO 9001:2015 quality management requirements and adheres to general principles outlined in USP , ISO 22042, and ASTM F2476 for laboratory-scale freeze dryer qualification. All electrical components conform to IEC 61010-1 safety standards for laboratory equipment.

Software & Data Management

The embedded control firmware records time-stamped process variables—including vacuum pressure, condenser temperature, and shelf surface temperature—at user-defined intervals (default: 30-second resolution). Data export is supported via USB flash drive in CSV format for offline analysis in Excel or MATLAB. When paired with the optional temperature data logger, the system generates timestamped, tamper-evident log files compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures—enabling secure archiving, version control, and audit-ready documentation for QC/QA workflows. No cloud connectivity or remote access features are included, preserving data sovereignty and network security in regulated environments.

Applications

This freeze dryer serves critical roles across academic research laboratories, contract development and manufacturing organizations (CDMOs), and early-phase biotech facilities. Typical applications include: stabilization of hirudin and other anticoagulant peptides for long-term storage; lyophilization of cell lysates and purified enzymes prior to activity assays; preparation of reference standards for HPLC and mass spectrometry; drying of botanical extracts (e.g., ginseng, cordyceps, and traditional Chinese medicinal herbs) while retaining glycosidic and polyphenolic structures; and formulation optimization studies for parenteral dosage forms requiring sterile, powder-based delivery. Its multi-manifold architecture also supports method development for vial-based processes prior to scale-up on production-grade lyophilizers.

FAQ

What is the maximum sample volume per flask supported by the TF-FD-1PF manifold?
The system accepts standard conical flasks up to 1000 mL; however, optimal drying uniformity is achieved with fill volumes ≤30% of flask capacity (e.g., ≤300 mL in a 1000 mL flask) to ensure adequate surface area-to-volume ratio.
Can the unit perform in-situ pre-freezing of samples?
No—the TF-FD-1PF does not feature shelf refrigeration; samples must be pre-frozen externally at ≤−40 °C prior to loading into flasks.
Is the condenser designed for continuous operation over 24 hours?
Yes—rated for sustained ice accumulation up to 3 kg within 24 hours, provided ambient room temperature remains ≤25 °C and relative humidity ≤60% to maintain nominal cooling efficiency.
Does the system support automated cycle programming?
Basic preset cycles (e.g., “Standard Biologics”, “Herbal Extract”) are available; custom ramp-hold profiles require manual stage-by-stage parameter entry via touchscreen interface.
What maintenance intervals are recommended for long-term reliability?
Oil change for the vacuum pump every 500 operating hours; annual inspection of refrigerant charge and O-ring integrity; quarterly cleaning of condenser fins and chamber gasket surfaces using isopropyl alcohol and lint-free wipes.
