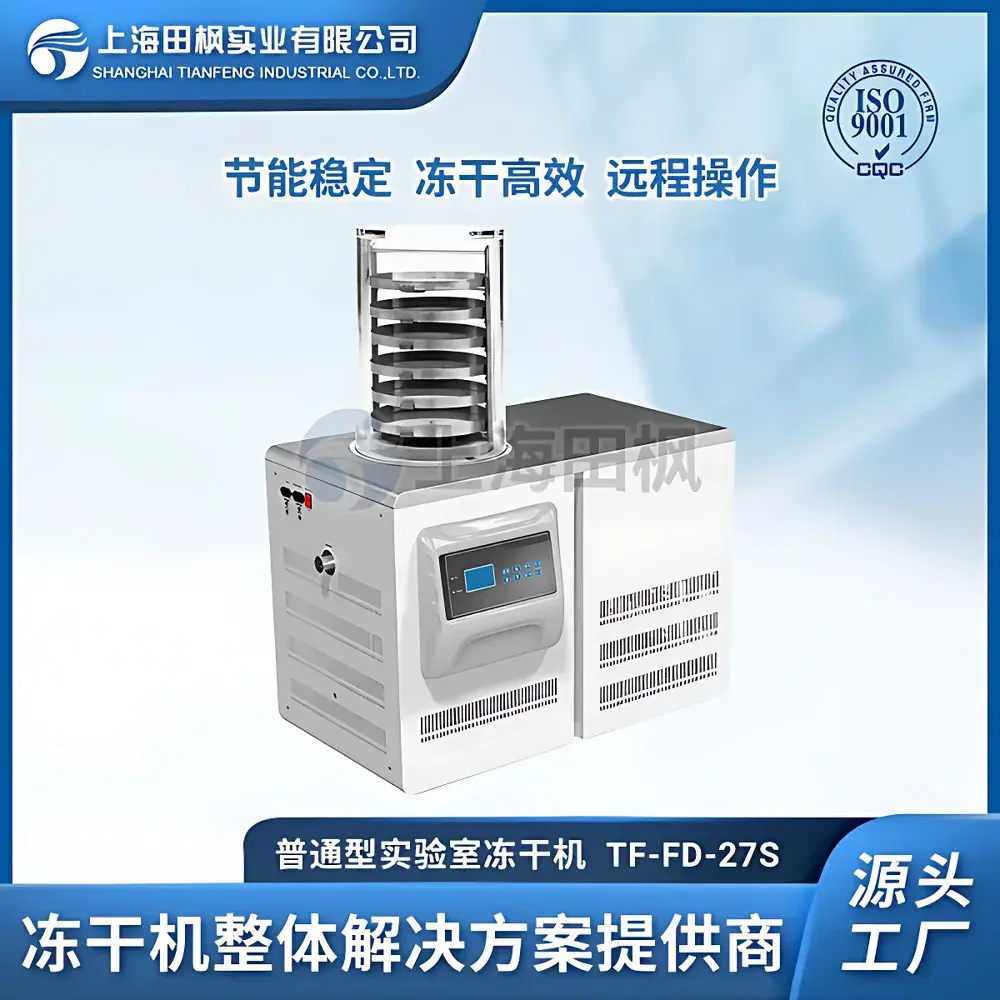

Tianfeng TF-FD-27S Benchtop Freeze Dryer – Manifold Configuration

Overview

The Tianfeng TF-FD-27S is a benchtop manifold freeze dryer engineered for precision lyophilization of heat-sensitive biological, pharmaceutical, and cosmetic formulations in laboratory environments. It operates on the fundamental principle of sublimation—removing water from frozen samples under high vacuum while maintaining temperatures below the eutectic point—thereby preserving structural integrity, bioactivity, and reconstitution fidelity. Designed for applications ranging from R&D-scale optimization of freeze-drying cycles to small-batch production of lyophilized powders (e.g., beauty-grade active ingredients, enzyme-based cosmetics, or sterile pharmaceutical intermediates), the TF-FD-27S integrates a dual-stage cascade refrigeration system capable of sustaining condenser temperatures at ≤ −80 °C. This enables efficient capture of volatile solvents—including low-boiling-point organics commonly used in cosmetic emulsion stabilization—while delivering stable vacuum performance (<15 Pa at no-load) and a validated shelf area of 0.27 m². Its manifold configuration supports simultaneous processing of up to eight independent flask-mounted samples, facilitating comparative studies across formulation variants without cross-contamination.

Key Features

• Dual-stage cascade refrigeration system with high-efficiency compressors ensures rapid pre-freezing and sustained condenser temperature ≤ −80 °C—critical for capturing acetone, ethanol, and other low-volatility solvents.
• Manifold design with eight stainless-steel ports accommodates standard Ø24 mm glass flasks; each port includes individual valve control for selective isolation during drying.
• Touchscreen HMI with real-time graphical display of shelf temperature, chamber pressure, and time-stamped process curves—enabling cycle validation and GLP-compliant documentation.
• 304 stainless steel interior chamber and condenser housing provide corrosion resistance, ease of cleaning, and long-term reliability under repeated sterilization protocols.
• Integrated pressure regulation valve allows controlled inert gas backfill (e.g., nitrogen or argon) post-drying to protect oxygen-sensitive actives such as peptides, antioxidants, or botanical extracts.
• Compliance-ready architecture: optional data logger with audit trail, electronic signatures, and timestamped event logs meets FDA 21 CFR Part 11 requirements for regulated laboratories.

Sample Compatibility & Compliance

The TF-FD-27S is routinely deployed for lyophilizing aqueous and partially organic solvent-based solutions common in cosmetic science (e.g., hyaluronic acid, collagen peptides, vitamin C derivatives) and biopharmaceutical development (e.g., monoclonal antibody formulations, plasmid DNA, viral vectors). Its ≤ −80 °C condenser provides sufficient cold sink capacity to trap solvents with vapor pressures up to ~10 Pa at −40 °C—covering methanol, acetonitrile, and ethyl acetate within typical freeze-drying protocols. The system conforms to ISO 22042:2019 (freeze dryer performance qualification), ASTM F2373 (standard guide for lyophilization process development), and supports IQ/OQ/PQ execution per GMP Annex 15. All wetted surfaces are electropolished 304 SS, fully compatible with SIP (steam-in-place) and CIP (clean-in-place) procedures when integrated into modular lab infrastructure.

Software & Data Management

The embedded control software records all critical process parameters—including condenser temperature, chamber pressure, elapsed time, and manifold valve status—at user-defined intervals (1–60 sec resolution). Exportable CSV files support integration with LIMS platforms and statistical process control (SPC) tools. Optional firmware upgrade enables automated cycle scripting with conditional logic (e.g., “hold shelf temp at −30 °C until pressure stabilizes below 20 Pa”). Data integrity safeguards include password-protected user roles, immutable audit trails, and encrypted local storage—fully aligned with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Development and scale-down validation of lyophilization cycles for dermal delivery systems (e.g., freeze-dried microneedle patches, liposomal serums).
• Stabilization of thermolabile cosmetic actives—including growth factors, plant stem cell extracts, and fermented metabolites—without degradation or Maillard reaction.
• Preparation of reference standards for HPLC and LC-MS quantification, where residual moisture content must remain <1.0% w/w per USP <751>.
• Routine preservation of microbial cultures, bacteriophages, and CRISPR-Cas reagents requiring long-term viability at ambient storage conditions.
• Academic research in food science (e.g., probiotic powder formulation), materials engineering (aerogel synthesis), and nanomedicine (PLGA nanoparticle lyophilization).

FAQ

What types of solvents can be safely processed in the TF-FD-27S?
The ≤ −80 °C condenser efficiently captures water, methanol, ethanol, acetone, and acetonitrile. Solvents with boiling points >100 °C (e.g., DMSO, glycerol) require pre-concentration or co-solvent dilution to avoid condenser overload.
Is in-chamber pre-freezing supported?
Yes—the manifold configuration permits direct freezing of samples in flasks inside the drying chamber using the built-in refrigeration system, eliminating external ultra-low temperature freezers.
Can the system be validated for GMP use?
With optional IQ/OQ documentation packages and 21 CFR Part 11–compliant data logging, the TF-FD-27S supports full qualification under EU GMP Annex 15 and WHO TRS 986.
What maintenance intervals are recommended?
Oil change every 2,000 operating hours; vacuum pump oil replacement every 500 hours; condenser coil inspection quarterly; full system leak test annually.
Does the unit support remote monitoring?
Via optional Ethernet/Wi-Fi module, users can access live process data, receive SMS/email alerts on vacuum loss or temperature deviation, and download historical logs through secure HTTPS interface.
