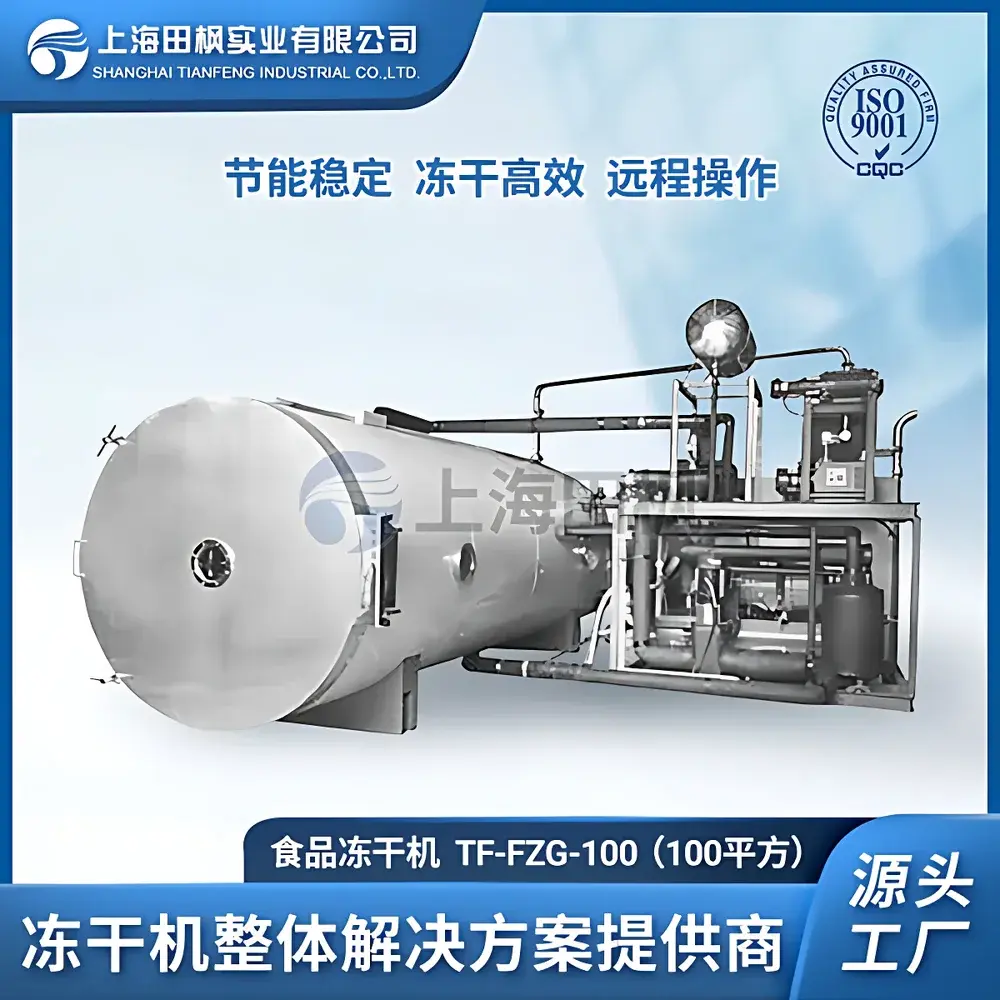

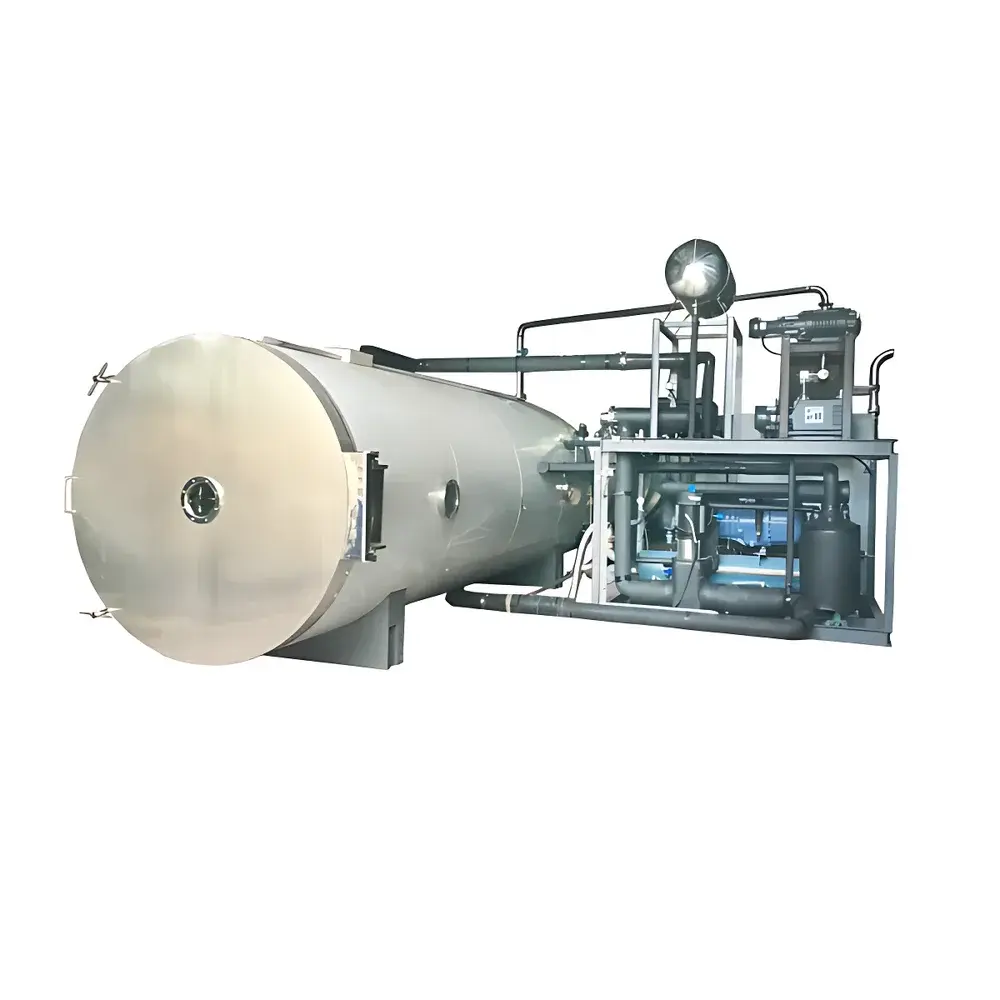

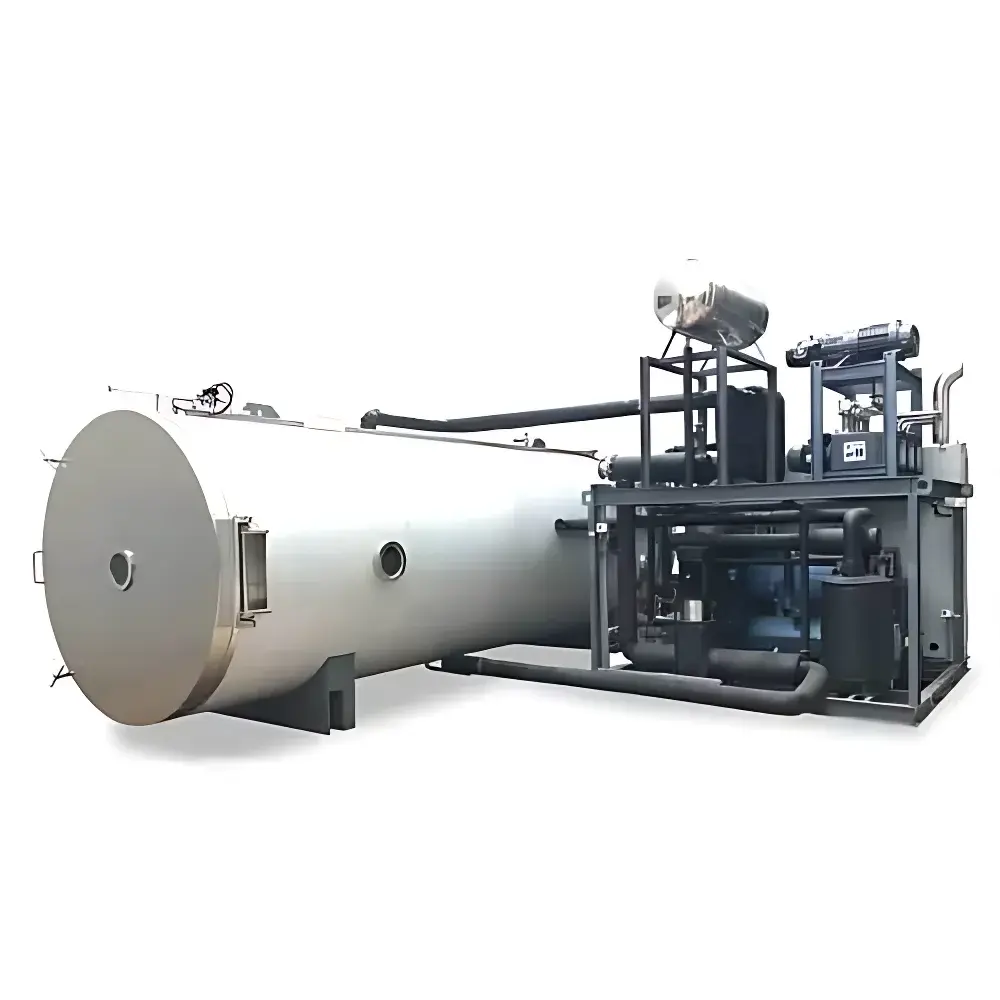

Tianfeng TF-FZG-100 Industrial-Scale Freeze Dryer

Overview

The Tianfeng TF-FZG-100 is an industrial-scale shelf-type freeze dryer engineered for continuous, high-capacity lyophilization of heat-sensitive food matrices, botanical extracts (e.g., tea polyphenols), nutraceuticals, pet food, marine products, and functional foods. It operates on the fundamental principle of sublimation—removing water from frozen material under deep vacuum while maintaining product integrity. Unlike conventional thermal drying methods (e.g., hot-air convection or spray drying), which induce structural collapse, oxidation, and degradation of thermolabile compounds, freeze drying preserves native conformation, bioactivity, reconstitution kinetics, and sensory attributes. The TF-FZG-100 achieves this through a rigorously controlled three-phase process: pre-freezing (to eutectic or glass transition temperature), primary drying (sublimation under ≤2.7 Pa vacuum), and secondary drying (desorption of bound water at elevated shelf temperatures up to +70 °C). Its integrated chamber–condenser architecture ensures minimal thermal lag and uniform pressure distribution across the full 100 m² drying surface.

Key Features

• GMP-compliant construction: Chamber and shelves fabricated from electropolished AISI 304 stainless steel, mirror-finished interior surfaces, zero dead-leg geometry, and fully drainable design to meet hygiene-critical food and botanical processing requirements.
• Modular shelf configuration: 15+1 adjustable shelves (65 mm spacing); optional aluminum extrusion (high thermal conductivity, smooth surface) or 304 stainless steel (enhanced cleanability, corrosion resistance).
• High-efficiency condensing system: Integral coil-type condenser with ≤−65 °C operating temperature and 1500 kg/24h ice capture capacity, constructed from pharmaceutical-grade stainless steel tubing.
• Robust refrigeration architecture: High-performance imported compressors and expansion components ensure rapid cooldown (<2 h from ambient to −45 °C) and stable thermal control during extended cycles.
• Dual-mode PLC automation: Omron-based control system supporting both fully automated recipe execution and manual step-by-step operation; up to 99 customizable drying protocols with real-time parameter adjustment and step-jump functionality.
• Intelligent defrost management: Selectable immersion or steam-assisted defrost cycles minimize downtime and eliminate residual ice without manual intervention or internal contamination risk.
• Human-centric ergonomics: Front-loading chamber with large observation window, built-in LED illumination, and seamless access for CIP validation and routine inspection.

Sample Compatibility & Compliance

The TF-FZG-100 accommodates heterogeneous solid and semi-solid feedstocks—including sliced fruits/vegetables, pulverized herbs, concentrated tea polyphenol extracts, freeze-concentrated broths, minced meat, seafood fillets, and ready-to-eat meal components—without requiring pre-formulation into vials or trays. Its large-format shelf layout supports direct tray loading (standard 600 × 400 mm or custom dimensions) and enables batch processing of >1000 L bulk solution per cycle. All wetted surfaces comply with FDA-recommended material standards for food contact (21 CFR §178.3570) and conform to ISO 22000:2018 hygiene design principles. Structural welds undergo 100% dye-penetrant testing; surface roughness (Ra) is maintained below 0.8 µm across all process zones. Documentation packages support IQ/OQ/PQ validation and are compatible with GLP/GMP audit trails per 21 CFR Part 11 when paired with optional electronic signature modules.

Software & Data Management

The embedded Omron NJ-series PLC provides deterministic real-time control with millisecond-level I/O response and synchronized data logging at configurable intervals (1–60 seconds). Process variables—including shelf temperature (±0.3 °C accuracy), chamber pressure (capacitance manometer, ±0.1 Pa), condenser temperature, and refrigerant suction/discharge pressures—are recorded continuously and stored locally on industrial-grade SSD media with ≥10-year retention. Export formats include CSV and PDF reports compliant with ALCOA+ data integrity criteria (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Optional Ethernet/IP or Modbus TCP interfaces enable integration into MES/SCADA environments and remote monitoring via secure TLS 1.2–encrypted connections. Audit trail functionality records all user actions, parameter changes, and alarm events with immutable timestamps.

Applications

This system serves as a production-grade platform for commercial freeze-drying operations in regulated food manufacturing environments. Key applications include: stabilization of green tea catechins and other polyphenolic antioxidants without epimerization or polymerization; production of lightweight, shelf-stable pet nutrition products retaining enzymatic activity and palatability; dehydration of delicate marine collagen peptides and hydrolysates; preservation of probiotic cultures in functional beverages and supplements; and development of instant rehydratable emergency rations and military field meals. It also supports pilot-scale process development for FDA-submitted IND/NDA dossiers where lyophilization is critical to stability and dissolution performance.

FAQ

What is the maximum allowable load per shelf cycle?
Each shelf supports up to 65 kg/m² uniformly distributed load; total nominal capacity is ~1000 L of aqueous solution or ~8–12 tons of solid biomass depending on density and porosity.
Does the system support automatic cycle validation?
Yes—predefined validation templates align with ASTM F2699-21 (Standard Practice for Validation of Freeze Drying Processes) and include hold-time verification, leak-rate testing, and endpoint determination via pressure-rise analysis.
Can the control system be integrated with enterprise resource planning (ERP) software?
Via optional OPC UA server module, real-time KPIs (cycle time, energy consumption per kg dried, vacuum stability index) can be streamed to SAP, Oracle, or custom ERP dashboards.
Is on-site installation and commissioning included?
Tianfeng provides turnkey services including foundation review, utility interface verification, mechanical completion, FAT/SAT documentation, and operator training aligned with ISO/IEC 17025 competency frameworks.
What maintenance intervals are recommended for sustained GMP compliance?
Daily visual inspection of O-rings and condenser drain lines; quarterly calibration of pressure and temperature sensors traceable to NIST standards; annual full refrigerant circuit analysis and vacuum pump oil replacement per manufacturer specifications.
