Tianfeng TF-FZG-100 Industrial-Scale Freeze Dryer

Overview

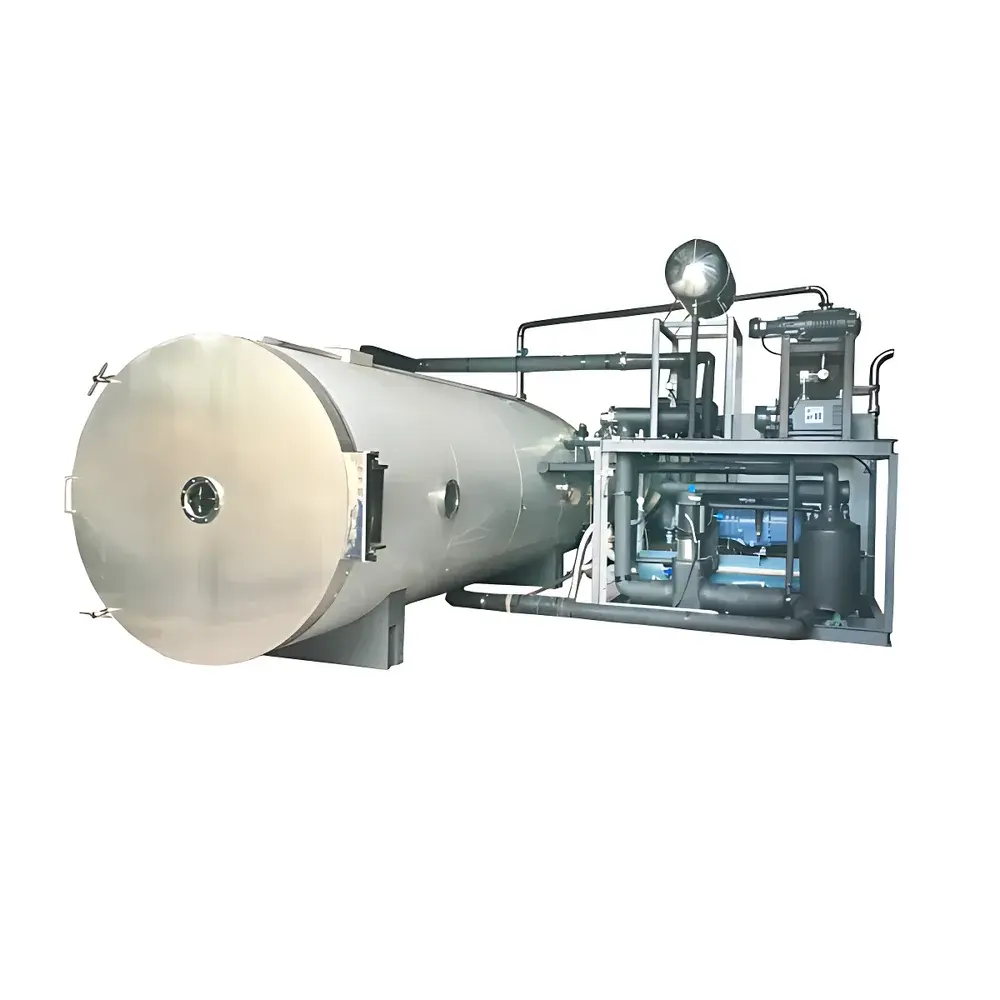

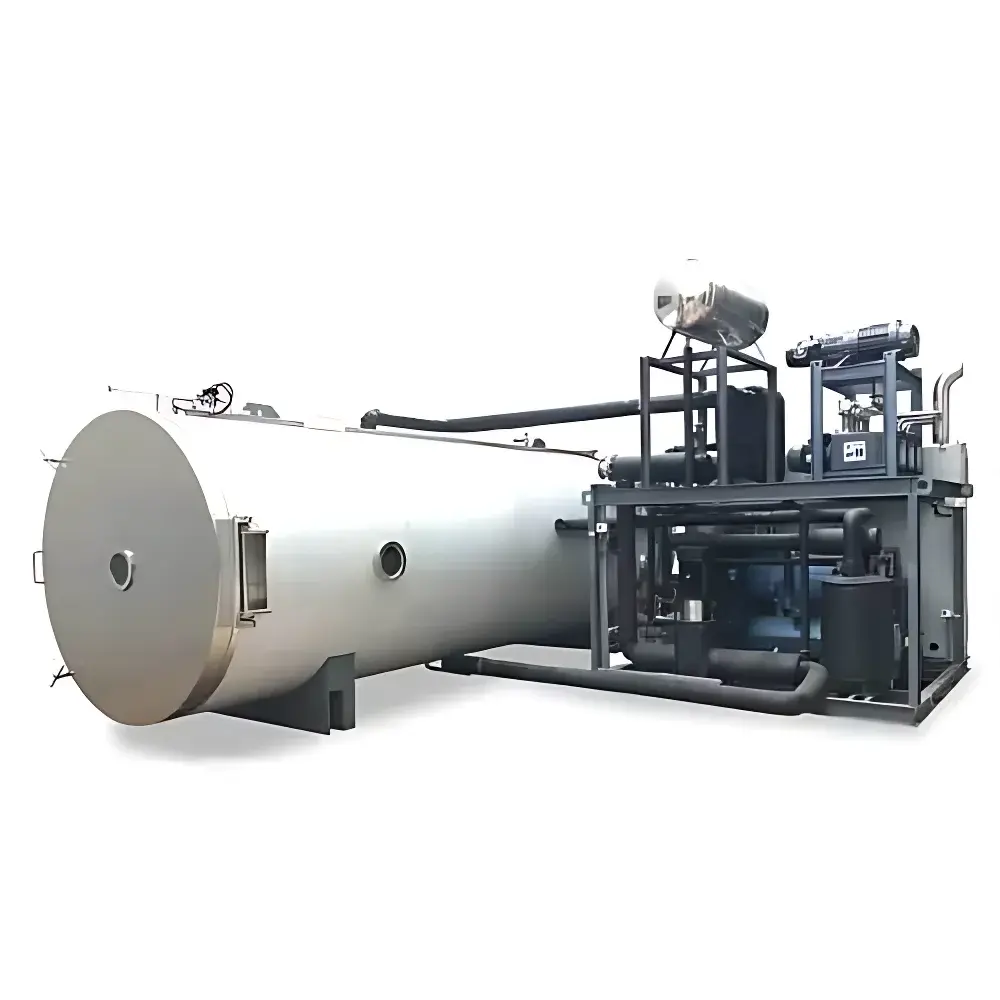

The Tianfeng TF-FZG-100 is an industrial-scale, microprocessor-controlled freeze dryer engineered for high-throughput lyophilization of heat-sensitive biological and food-grade materials—including Cordyceps sinensis (Dong Chong Xia Cao), fermented animal feed powders, botanical extracts, functional foods, pet nutrition formulations, and pharmaceutical intermediates. Based on the fundamental principles of sublimation under deep vacuum and controlled thermal input, this system removes water from frozen matrices by transitioning ice directly from solid to vapor phase—preserving structural integrity, bioactivity, enzymatic stability, and volatile compound profiles far more effectively than conventional hot-air or spray-drying methods. Designed for continuous batch processing in GMP-aligned production environments, the TF-FZG-100 integrates a cylindrical stainless-steel drying chamber (SUS 304), dual-stage refrigeration architecture with redundant condenser cooling pathways, and a robust mechanical vacuum system capable of sustaining ≤2.7 Pa during primary drying. Its 100 m² effective lyophilization area supports up to 1,000 kg per batch throughput, making it suitable for pilot-to-production scale transition in contract manufacturing organizations (CMOs), nutraceutical facilities, and veterinary bioprocessing units.

Key Features

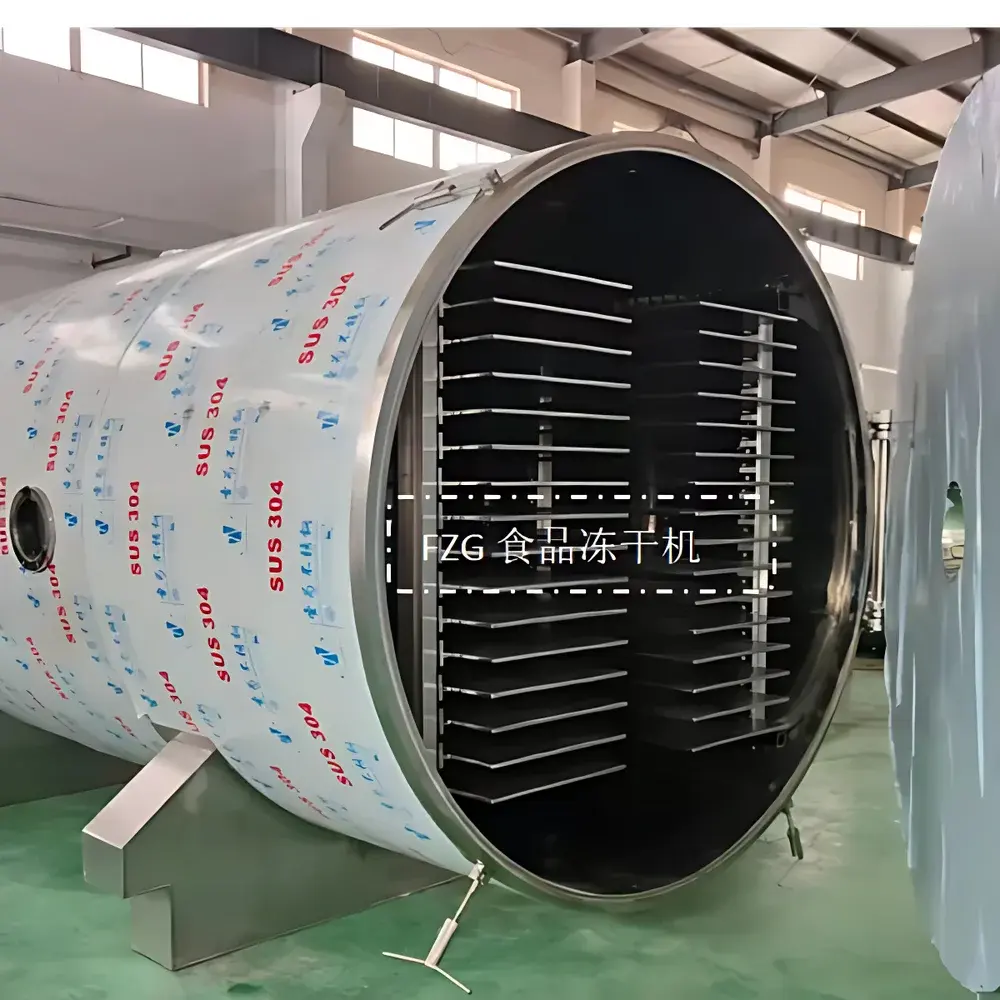

• Industrial-grade cylindrical chamber constructed entirely from electropolished SUS 304 stainless steel—compliant with FDA-recommended surface finish standards (Ra ≤ 0.8 µm) for cleanability and corrosion resistance.
• Dual-mode condenser design: hybrid natural convection + forced-air cooling ensures stable operation even under partial airflow restriction—minimizing compressor stress and extending service life.
• (15 + 1) × 2 adjustable shelf configuration with 77 mm spacing and radiant temperature-compensated top shelf—enabling uniform heat transfer across heterogeneous load distributions.
• Integrated Omron programmable logic controller (PLC) paired with a ruggedized touchscreen industrial PC running TFD-5000 process management software—supporting full-cycle recipe storage, real-time parameter logging, and audit-trail generation.
• Four independent internal doors with silicone gaskets and mechanical locking mechanisms—reducing cold loss during tray loading/unloading and improving energy efficiency.
• Eco-conscious refrigeration system utilizing non-ozone-depleting, low-GWP refrigerant blend—certified compliant with EU F-Gas Regulation (EU No. 517/2014) and China’s HCFC Phase-Out Management Plan.
• Acoustically optimized enclosure achieving ≤57 dB(A) at 1 m distance—meeting ISO 7779 noise emission requirements for shared laboratory-manufacturing spaces.
• Modular dust filtration unit with quick-release housing—designed for routine cleaning without tools, supporting ISO 14644-1 Class 8 (100,000) cleanroom-compatible maintenance protocols.

Sample Compatibility & Compliance

The TF-FZG-100 accommodates diverse sample formats including bulk trays (1,500 × 1,400 mm trolleys, 4 units standard), stacked stainless-steel pans, and custom-designed stainless carriers compatible with automated loading systems. It supports lyophilization of aqueous suspensions, viscous fermentation broths, colloidal dispersions, and powdered blends—provided initial freezing is performed externally at ≤−45 °C. Process validation documentation aligns with ICH Q5C (stability of biotechnological/biological products), USP (sterile processing), and ISO 20365:2017 (freeze-drying equipment qualification). The system meets mechanical safety requirements per EN 61000-6-2/6-4 (EMC), EN 60204-1 (electrical safety), and includes hardware-enforced interlocks for door sealing, vacuum integrity, and condenser overload protection—facilitating compliance with GLP and GMP Annex 15 verification frameworks.

Software & Data Management

TFD-5000 software provides full lifecycle data governance: from pre-programmed drying cycle templates (primary drying ramp rates, secondary drying hold times, pressure-controlled endpoint detection) to secure electronic records compliant with FDA 21 CFR Part 11 (audit trail, user authentication, electronic signatures). All process variables—including shelf temperature (±0.3 °C accuracy), chamber pressure (capacitance manometer, ±0.05 Pa resolution), condenser temperature, and vacuum pump status—are sampled at 1-second intervals and archived in encrypted SQLite databases. Remote monitoring via Ethernet/IP is supported; optional RS-232 serial interface enables integration with LIMS or MES platforms. Software updates are delivered free-of-charge via authenticated firmware portal—maintaining long-term regulatory alignment without hardware modification.

Applications

• Stabilization of thermolabile herbal actives (e.g., cordycepin, adenosine) in Ophiocordyceps sinensis extracts without degradation or Maillard browning.
• Production of probiotic-fermented livestock feed additives—retaining viable colony-forming units (CFU/g) >10⁹ after rehydration.
• Preservation of enzyme-rich dairy fermentation starters and microbial consortia used in silage inoculants.
• Manufacturing of ready-to-reconstitute pet nutrition powders with preserved palatability enhancers and omega-3 fatty acid profiles.
• Preparation of sterile excipient blends for oral dissolving films and fast-melt tablet formulations.
• Processing of botanical infusion concentrates for functional beverage concentrates—minimizing volatile oil loss and oxidation.

FAQ

What is the minimum batch size supported by the TF-FZG-100?

The system is optimized for batches ≥300 kg to ensure thermal mass stability and vacuum uniformity; smaller loads may require shelf masking or auxiliary thermal shielding.
Can the unit be validated for sterile processing?

Yes—when equipped with steam-in-place (SIP) and ethylene oxide (EtO) compatibility options, it supports full media fill and bioburden reduction validation per ISO 13408-1.
Is remote diagnostics available?

Standard Ethernet connectivity enables secure remote access for troubleshooting and performance benchmarking via TLS-encrypted VNC session.
Does the system support automatic recipe transfer between multiple units?

TFD-5000 supports cross-platform recipe synchronization through centralized network file sharing or USB import/export—ensuring consistency across multi-site manufacturing networks.
What utility connections are mandatory for installation?

Three-phase 380 V power, chilled water supply (70 m³/hr @ ≤28 °C), compressed air (120 L/min @ 4–8 bar), and dedicated floor drainage for defrost water discharge.
