Tianfeng TF-FZG-100 Industrial-Scale Freeze Dryer for Ginseng Powder and Food Production

Overview

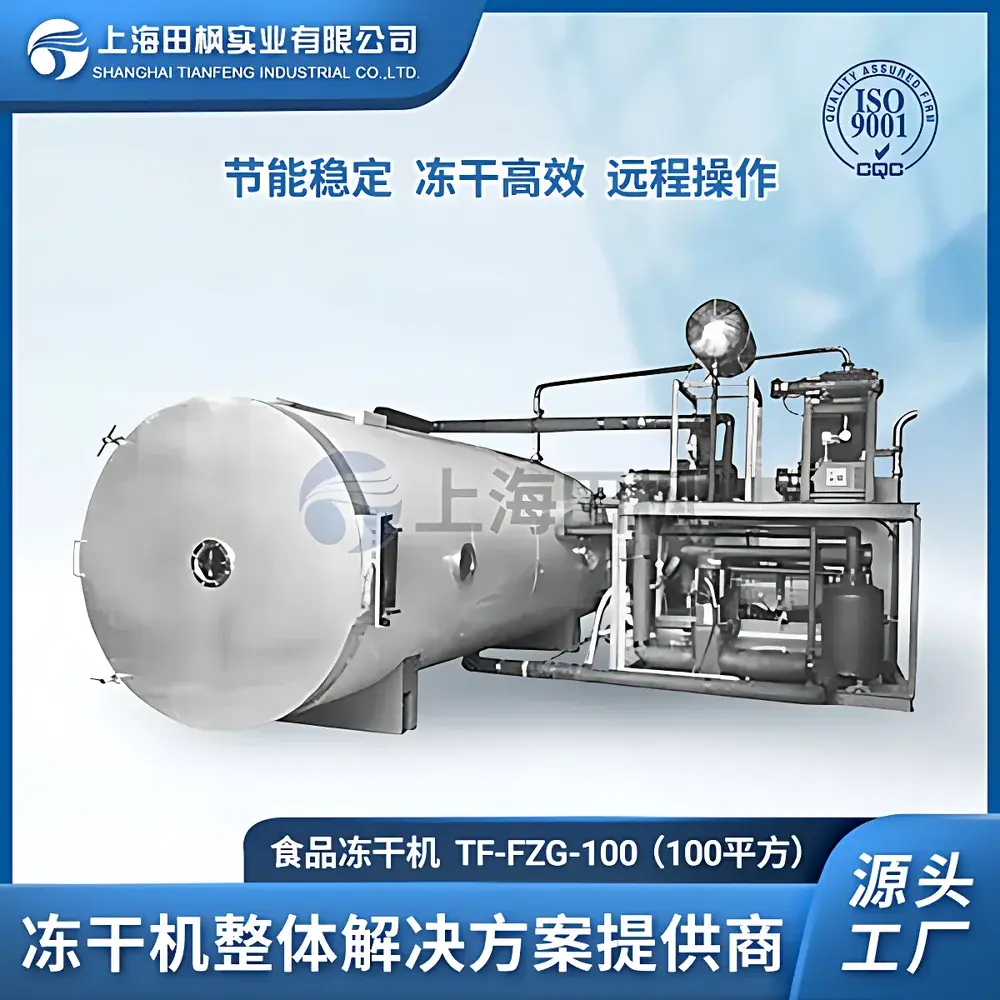

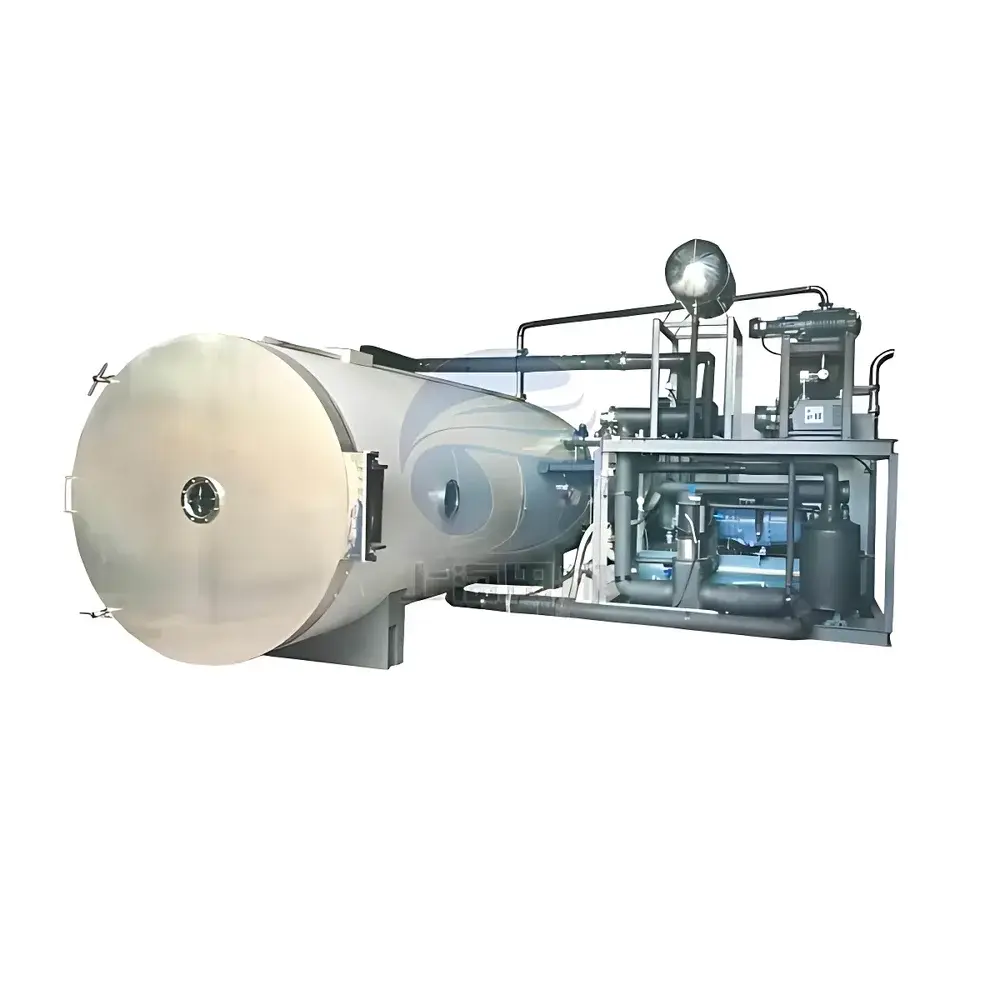

The Tianfeng TF-FZG-100 is an industrial-scale, in-situ freeze dryer engineered for continuous, high-capacity lyophilization of heat-sensitive biological and food-grade materials—including ginseng extract powder, herbal concentrates, probiotics, and functional food ingredients. It operates on the fundamental principle of sublimation: water is removed from frozen product under deep vacuum while maintaining the solid phase, thereby preserving structural integrity, enzymatic activity, volatile compounds, and microbiological stability. Unlike laboratory or pilot-scale systems, the TF-FZG-100 integrates primary drying, secondary drying, and controlled reconstitution readiness within a single, GMP-aligned architecture—designed for integration into ISO 22000-certified food production lines or WHO-GMP pharmaceutical manufacturing suites. Its cylindrical chamber, constructed from electropolished SUS 304 stainless steel, ensures corrosion resistance, cleanability, and compliance with ASME BPE surface finish standards (Ra ≤ 0.8 µm).

Key Features

• In-situ pre-freezing capability: Product freezing occurs directly on heated/cooled shelves—eliminating transfer losses, thermal shock, and contamination risk associated with external freezing.
• High-efficiency condenser system: Dual-stage refrigeration cascade achieves and maintains −65 °C cold trap temperature, enabling reliable capture of up to 1500 kg of ice per 24-hour cycle at ≤2.7×10⁻² mbar ultimate vacuum.
• Programmable shelf temperature control: 32 independently monitored and controlled shelves (30 active + 2 temperature-compensation shelves) support precise ramp-hold-dwell profiles across −50 °C to +80 °C.
• Real-time process monitoring & validation-ready interface: Integrated TFD-5000 software logs all critical parameters—including shelf temperature, chamber pressure, condenser temperature, and vacuum rate—with timestamped, audit-trail-enabled data storage compliant with FDA 21 CFR Part 11 requirements.
• Modular utility integration: Designed for seamless connection to centralized cooling water systems (70 m³/hr), compressed air networks (120 L/min, 4–8 bar), and high-pressure steam for sterile-in-place (SIP) cycles.
• GMP-compliant mechanical design: Fully welded chamber with zero dead-leg piping, drainable slopes ≥1%, and validated CIP/SIP compatibility using ≥80 °C hot water (≥3 bar).

Sample Compatibility & Compliance

The TF-FZG-100 accommodates bulk-loaded trays (1500 × 1400 mm), stainless steel trolleys, and custom-designed stainless steel pans—supporting lyophilization of viscous extracts, slurries, emulsions, and particulate suspensions. It is routinely deployed for ginseng saponin-rich powders, fermented botanical concentrates, microbial cultures, and injectable biologics intermediates. Regulatory alignment includes adherence to ISO 13485:2016 (medical device QMS), ISO 22000:2018 (food safety), and ICH Q5C (stability of biotechnological products). All process-critical sensors are calibrated traceable to NIST or CNAS-accredited laboratories; qualification documentation (DQ/IQ/OQ/PQ) is provided as standard deliverables.

Software & Data Management

The TFD-5000 control platform runs on an industrial-grade panel PC with redundant SSD storage and supports multi-user role-based access (Operator, Technician, QA, Administrator). It provides real-time graphical display of shelf temperature gradients, pressure transients, and mass flow trends via intuitive HMI. Batch records are automatically archived in PDF/A-2 and CSV formats, with optional integration into MES/SCADA systems via OPC UA or Modbus TCP. Software updates are delivered remotely and validated per change control SOPs—ensuring uninterrupted compliance during lifecycle maintenance.

Applications

• Pharmaceutical: Lyophilization of monoclonal antibody formulations, live attenuated vaccines, and traditional Chinese medicine (TCM) injectables (e.g., ginseng total saponins, notoginseng extract).
• Food & Nutraceuticals: Stabilization of probiotic strains (Bifidobacterium, Lactobacillus), enzyme powders (bromelain, papain), and antioxidant-rich fruit/vegetable concentrates.
• Bioresource Preservation: Long-term storage of stem cell monolayers, tissue-engineered constructs, and microbial seed banks.
• Agricultural Biotechnology: Drying of mycorrhizal inoculants, biopesticide spores (Bacillus thuringiensis), and plant-derived vaccine antigens.

FAQ

What is the validated shelf life extension achieved for ginseng powder using this system?
Typical residual moisture content post-lyophilization is 1.2–2.0 % w/w, supporting ≥24-month ambient storage stability for ginsenoside Rb1/Rg1 retention ≥94 % (per HPLC-UV assay per USP & Chinese Pharmacopoeia methods).
Can the system be validated for sterile processing?
Yes—the chamber, condenser, and piping are SIP-compatible using saturated steam at ≥121 °C for ≥30 min; full sterilization cycle validation (including biological indicators) is included in PQ scope.
Is remote monitoring and alarm notification supported?
TFD-5000 supports SNMP v3 and email/SMS alerting for critical deviations (e.g., vacuum loss >5×10⁻² mbar, shelf temp deviation >±1.5 °C), with configurable escalation protocols.
What utility infrastructure is required for installation?
A dedicated 380 V / 278 kW electrical supply, chilled water loop (70 m³/hr, ΔT=5 K), compressed air (120 L/min, 4–8 bar), and floor drainage rated for ≥10 tons/hour are mandatory prerequisites.
Does the system comply with EU Annex 1 requirements for aseptic processing?
While primarily designed for non-sterile food and intermediate pharma applications, the TF-FZG-100 can be upgraded with HEPA-filtered chamber air purge, isolator integration, and particle monitoring ports to meet Annex 1 Grade A/B environmental specifications.
