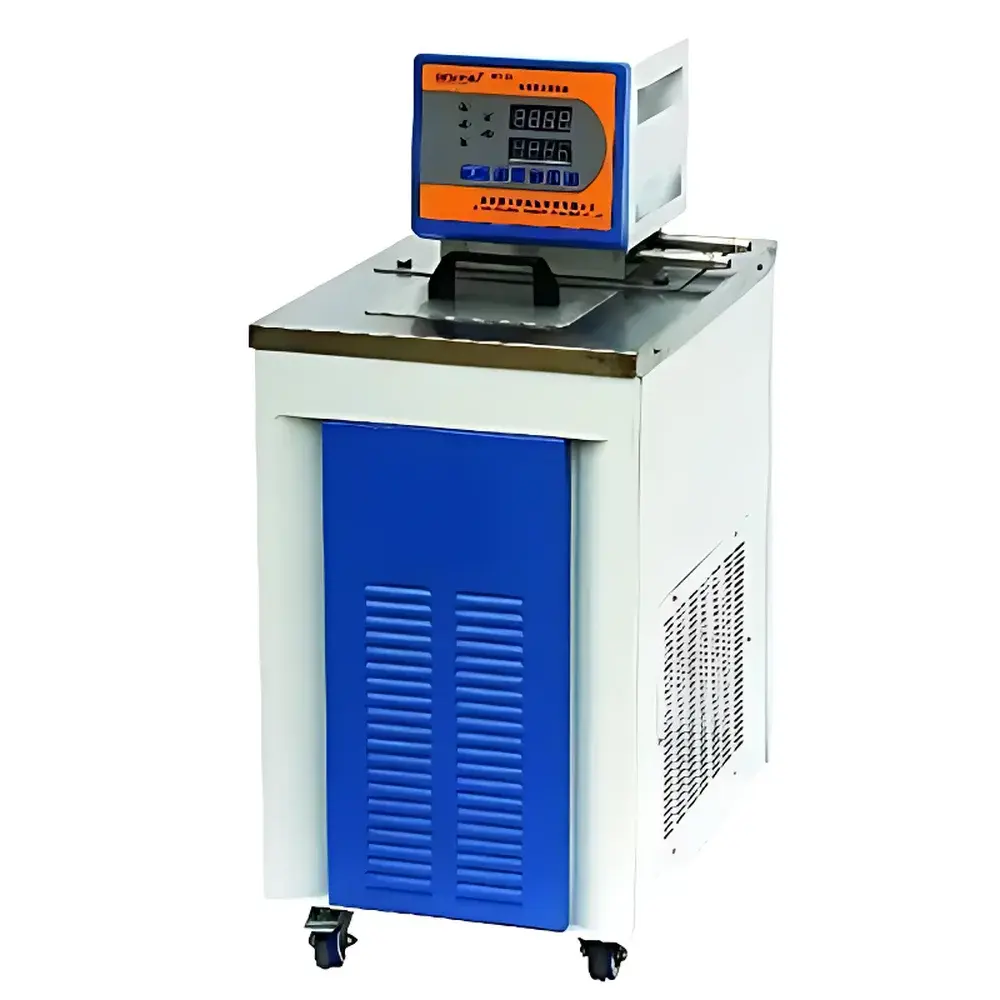

Tianfeng TF-HX-20F Precision Circulating Chiller/Heater Bath

Overview

The Tianfeng TF-HX-20F Precision Circulating Chiller/Heater Bath is a dual-mode, compressor-based thermal control system engineered for high-stability temperature regulation across demanding laboratory and R&D environments. Unlike passive water baths or basic heating circulators, the TF-HX-20F integrates a high-efficiency air-cooled hermetic refrigeration circuit with precision resistive heating and advanced PID feedback control—enabling continuous, bidirectional thermal management from −60 °C to +99 °C within a 20-liter stainless-steel bath chamber. Its core function is to serve as a stable, externally referenced thermal source: it maintains uniform bath temperature with ±0.1 °C stability (at setpoint, under no-load static conditions), while simultaneously supporting closed-loop external circulation to supply conditioned fluid to peripheral instruments such as rotary evaporators, viscometers, electrophoresis units, cryogenic medical devices (e.g., cooling caps or hypothermia blankets), and vacuum pumps. The unit’s design adheres to fundamental thermodynamic principles of forced convection heat transfer and dynamic thermal equilibrium—leveraging an optimized evaporator geometry and low-turbulence internal flow path to minimize radial and axial temperature gradients. This architecture ensures reproducible thermal delivery critical for kinetic studies, material property characterization, and process validation.

Key Features

• Wide operational range: −60 °C to +99 °C, enabled by imported high-capacity compressors and optimized refrigerant charge
• Dual circulation mode: Independent internal recirculation for bath homogeneity and external port-driven flow (up to 15 L/min, pressure-rated to 0.3 MPa) for remote thermal coupling
• PID-controlled digital temperature regulation with real-time display of setpoint, actual bath temperature, and elapsed operation time
• Stainless-steel 304 bath tank with corrosion-resistant finish and seamless weld construction for long-term chemical compatibility
• Intelligent safety architecture: Over-temperature alarm, differential-temperature deviation alert, compressor overheat protection, and automatic shutdown on sensor failure
• Programmable timer functions: Delayed start and scheduled shutdown to support unattended overnight operation
• Tactile soft-touch interface with ESD-protected membrane keys and backlit LCD for low-light lab environments
• Compact footprint with service-accessible rear panel for routine maintenance and refrigerant diagnostics

Sample Compatibility & Compliance

The TF-HX-20F accommodates a broad spectrum of thermal media—including deionized water, silicone oil (e.g., Dow Corning 200 Fluid), ethylene glycol/water mixtures, and low-viscosity synthetic heat-transfer fluids—subject to user-defined flash point and pour-point constraints. Its stainless-steel wetted components comply with ASTM F838-22 (standard specification for materials in contact with pharmaceutical process fluids) and exhibit resistance to common solvents used in organic synthesis and analytical sample preparation. As a Class II laboratory thermal source, the unit meets IEC 61010-1:2010 safety requirements for electrical equipment for measurement, control, and laboratory use. Manufacturing quality assurance follows ISO 9001:2000 protocols, with full traceability of compressor batches, sensor calibration certificates (NIST-traceable reference), and final-system thermal mapping reports available upon request. While not intrinsically rated for hazardous area use, optional ATEX-compatible circulation pumps and explosion-proof external controllers may be integrated per customer specification.

Software & Data Management

The TF-HX-20F operates as a standalone instrument with embedded firmware; no proprietary software is required for basic operation. However, RS-232 and optional RS-485 interfaces enable integration into centralized lab automation networks via Modbus RTU protocol. Users may log temperature history at configurable intervals (1 s to 60 min) using third-party SCADA platforms (e.g., LabVIEW, Ignition, or Siemens Desigo CC). Audit trail functionality—including operator ID tagging, parameter change logs, and alarm event timestamps—is supported when connected to compliant data acquisition systems satisfying FDA 21 CFR Part 11 requirements. For GLP/GMP environments, raw temperature data can be exported in CSV format with metadata headers (date, time, setpoint, measured value, status flag), facilitating trend analysis and regulatory submission readiness.

Applications

• Controlled-rate cooling/heating of reaction vessels in fine chemical synthesis and polymerization kinetics
• Thermal conditioning of detectors and optical components in spectroscopy and microscopy systems
• Temperature stabilization of capillary electrophoresis modules and HPLC column ovens
• Cooling support for high-vacuum systems (diffusion pumps, ion pumps, cryo-traps) and electron microscopy stages
• Calibration of thermocouples, RTDs, and infrared thermometers against NIST-traceable references
• Material testing per ASTM D3418 (DSC), ISO 11357 (thermal analysis), and USP <1151> (pharmaceutical excipient stability)
• Biological sample preservation during centrifugation, electroporation, or enzymatic assays requiring sub-ambient temperatures

FAQ

What types of external equipment can be connected to the TF-HX-20F’s external circulation ports?
Rotary evaporators, viscometers, calorimeters, spectrophotometer Peltier cells, electrochemical workstations, and vacuum pump chillers are routinely interfaced using standard 1/2″–3/4″ reinforced silicone or fluoropolymer tubing.
Is the bath compatible with silicone oil for high-temperature operation above 80 °C?
Yes—provided the selected oil has a flash point ≥200 °C and viscosity ≤100 cSt at operating temperature; bath temperature stability remains ±0.1 °C up to 99 °C with appropriate fluid selection.
Does the unit support remote monitoring via Ethernet or Wi-Fi?
Not natively; however, industrial protocol gateways (e.g., Moxa EDS-G205A) can bridge RS-485 to TCP/IP networks for web-based status viewing and limited command control.
What maintenance is required to sustain ±0.1 °C stability over time?
Annual verification of PT100 sensor calibration, compressor oil level inspection, condenser coil cleaning (every 6 months in dusty environments), and refrigerant pressure profiling per manufacturer service manual.
Can the TF-HX-20F be integrated into a GMP-compliant quality system?
Yes—when deployed with validated data logging hardware, electronic signatures, and documented change control procedures, it satisfies Annex 11 and ALCOA+ data integrity criteria for thermal process equipment.
