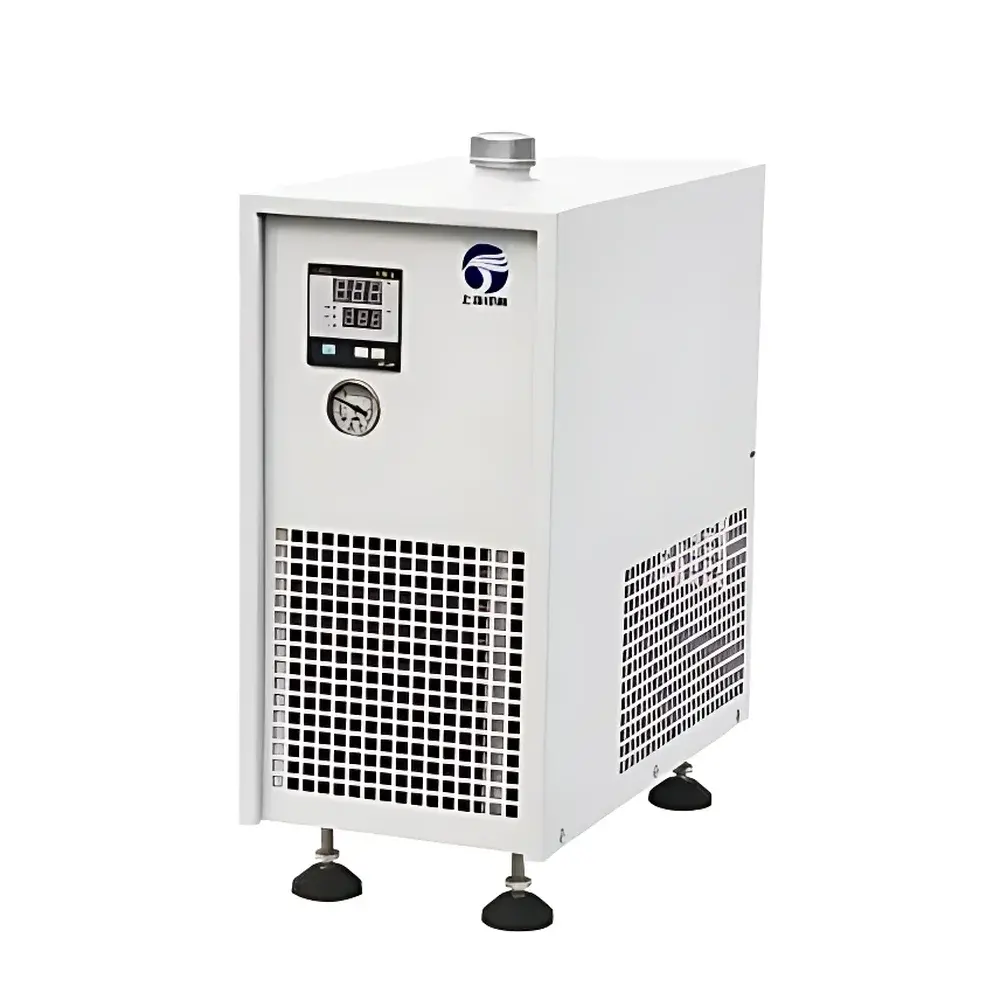

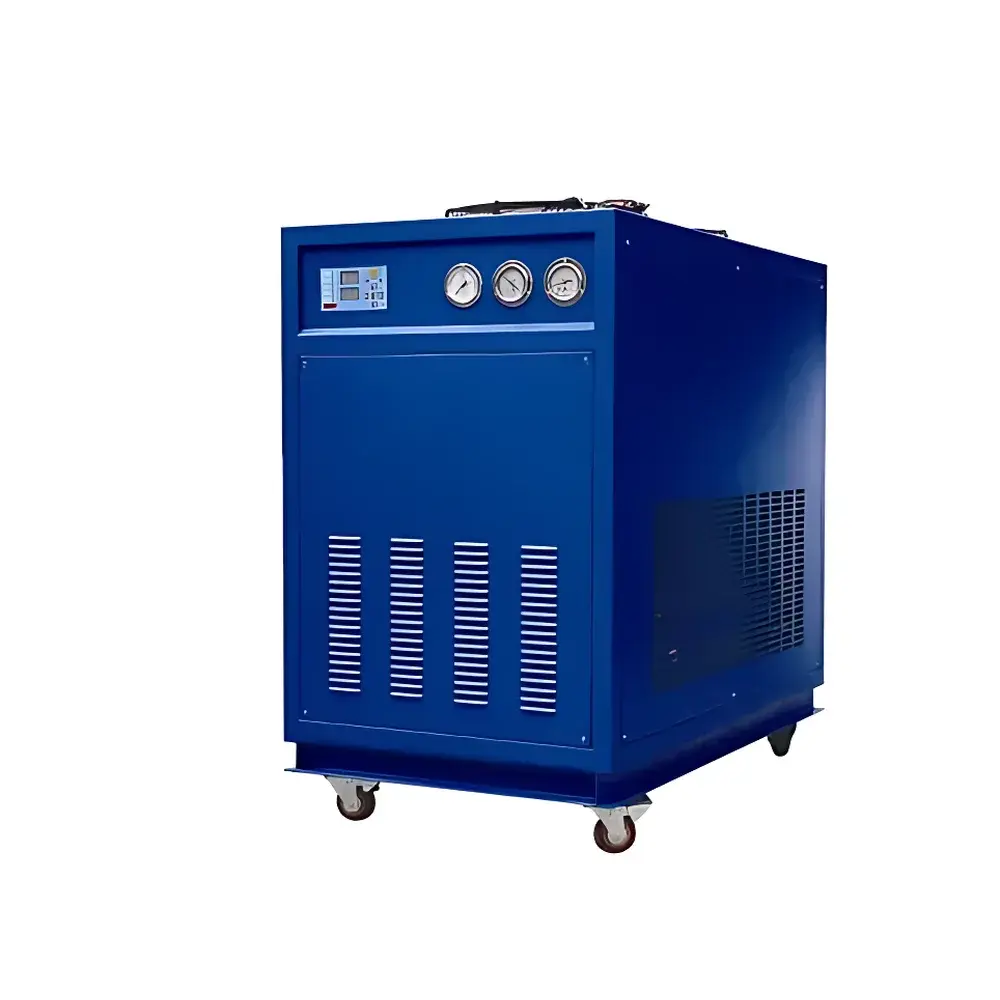

Tianfeng TF-LS-10000W Industrial Circulating Chiller

Overview

The Tianfeng TF-LS-10000W Industrial Circulating Chiller is a precision-engineered, integrated water-cooling system designed for continuous-duty thermal management of high-heat-load laboratory and industrial equipment. It operates on a vapor-compression refrigeration cycle, utilizing a high-efficiency scroll compressor, thermostatically regulated expansion valve, and optimized condenser/evaporator heat exchange architecture. The chiller maintains stable coolant temperatures between 0 °C and 10 °C with a tight stability of ±0.1 °C—critical for applications requiring thermal consistency over extended operational cycles. Its 10 kW nominal refrigeration capacity (measured at 12 °C inlet / 7 °C outlet chilled water, 30 °C ambient inlet / 40 °C outlet cooling water) supports demanding instrumentation such as graphite furnace atomic absorption spectrometers (GFAAS), inductively coupled plasma optical emission spectrometers (ICP-OES), ICP-mass spectrometers (ICP-MS), X-ray fluorescence (XRF) and X-ray diffraction (XRD) systems, scanning electron microscopes (SEM), and transmission electron microscopes (TEM). Unlike batch-mode chillers, the TF-LS-10000W is engineered for uninterrupted 24/7 operation under controlled environmental conditions, making it suitable for GLP-compliant laboratories and ISO 17025-accredited testing facilities.

Key Features

• Integrated compact design with footprint of 1350 × 800 mm and height of 1500 mm—optimized for limited floor space in instrument rooms and cleanrooms.
• Stainless steel reservoir (80 L capacity) and corrosion-resistant circulation pump ensure long-term fluid integrity and compatibility with deionized water, glycol-water mixtures, and low-conductivity coolants.
• Digital PID temperature controller with real-time display, programmable setpoint ramping, and user-adjustable hysteresis—supports both fixed-temperature and intelligent adaptive control modes.
• Multi-layer safety architecture: high/low refrigerant pressure monitoring, compressor winding overtemperature detection, phase-loss and overcurrent protection, and independent overtemperature alarm output (dry contact signal).
• Low-noise scroll compressor paired with acoustic insulation and vibration-dampened mounting—operating noise <65 dB(A) at 1 m distance.
• Modular electrical cabinet featuring CE-certified components from Siemens, Schneider Electric, and Omron—ensuring EMC compliance and long-term reliability under variable load conditions.
• Front-access service panel and standardized refrigerant service ports facilitate field maintenance and refrigerant recovery per EN 378 and EPA Section 608 requirements.

Sample Compatibility & Compliance

The TF-LS-10000W is compatible with all standard laboratory and industrial coolant loops requiring closed-loop recirculation at flow rates up to 2 L/min and delivery pressure up to 2.0 bar. It interfaces seamlessly with instruments equipped with DIN 2353 or SAE J1962-compatible quick-connect fittings. The unit complies with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) standards for electromagnetic compatibility. Its refrigerant selection (R410A or R407C) meets EU Regulation (EU) No 517/2014 (F-Gas Regulation) and aligns with ASHRAE Standard 34 safety classifications. For regulated environments, optional audit-trail-enabled controllers support 21 CFR Part 11-compliant electronic records when integrated with validated LIMS or SCADA systems. All structural materials conform to RoHS Directive 2011/65/EU and REACH Annex XVII restrictions.

Software & Data Management

While the base model features a standalone digital controller, optional RS485 Modbus RTU or Ethernet TCP/IP interface enables integration into centralized facility monitoring platforms (e.g., LabVantage, Thermo Fisher SampleManager, or custom BMS). The controller logs timestamped temperature, pressure, and fault events with retention ≥30 days—exportable via USB or serial dump for traceability. When deployed in GxP environments, optional firmware upgrades provide electronic signature capability, user role-based access control (admin/operator), and configurable alarm escalation protocols (email/SMS via gateway). Data export formats include CSV and XML, supporting automated ingestion into statistical process control (SPC) software per ASTM E2500 and ISO 9001:2015 clause 8.2.5.

Applications

• Advanced Analytical Instrumentation: Thermal stabilization of plasma sources (ICP), X-ray tubes (XRF/XRD), electron gun assemblies (SEM/TEM), and graphite furnaces (GFAAS) to minimize thermal drift and spectral baseline instability.
• Materials Processing: Mold temperature control in polymer characterization labs; cooling of laser ablation cells and pulsed laser deposition (PLD) targets.
• Electronics & Semiconductor Testing: Junction temperature regulation during accelerated life testing of power modules and RF components.
• Vacuum Systems: Condenser cooling for diffusion pumps and cryopanels in ultra-high vacuum (UHV) chambers.
• Pharmaceutical Development: Controlled cooling of reaction calorimeters (RC1) and lyophilizer condenser plates in formulation development labs.
• Mechanical Metrology: Thermal management of coordinate measuring machine (CMM) granite bases and air-bearing spindles to mitigate thermal expansion-induced measurement uncertainty.

FAQ

What is the maximum allowable return water temperature for continuous operation?
The chiller is rated for sustained operation with return coolant temperatures ≤40 °C. Exceeding this threshold accelerates compressor oil degradation and reduces volumetric efficiency—consult engineering specifications for derating curves above 35 °C ambient.
Can the unit be integrated into a building management system (BMS)?
Yes—via optional Modbus RTU (RS485) or BACnet/IP (Ethernet) communication modules. Protocol documentation and register maps are provided upon request for system integrators.
Is the reservoir compatible with 30% ethylene glycol solution?
Yes—the stainless steel tank, EPDM seals, and bronze impeller are fully compatible with aqueous glycol mixtures up to 40% concentration at operating temperatures between 0–10 °C.
Does the chiller meet CE marking requirements for export to the European Economic Area?
Yes—the unit carries full CE marking under the Machinery Directive 2006/42/EC, Low Voltage Directive 2014/35/EU, and EMC Directive 2014/30/EU, supported by an EC Declaration of Conformity and technical file available upon order confirmation.
What is the expected service interval for compressor oil and filter replacement?
Under continuous operation at rated load, scheduled maintenance is recommended every 8,000 operating hours or 24 months—whichever occurs first—per ISO 8573-1 Class 4 compressed air quality guidelines applied to refrigeration oil integrity.
