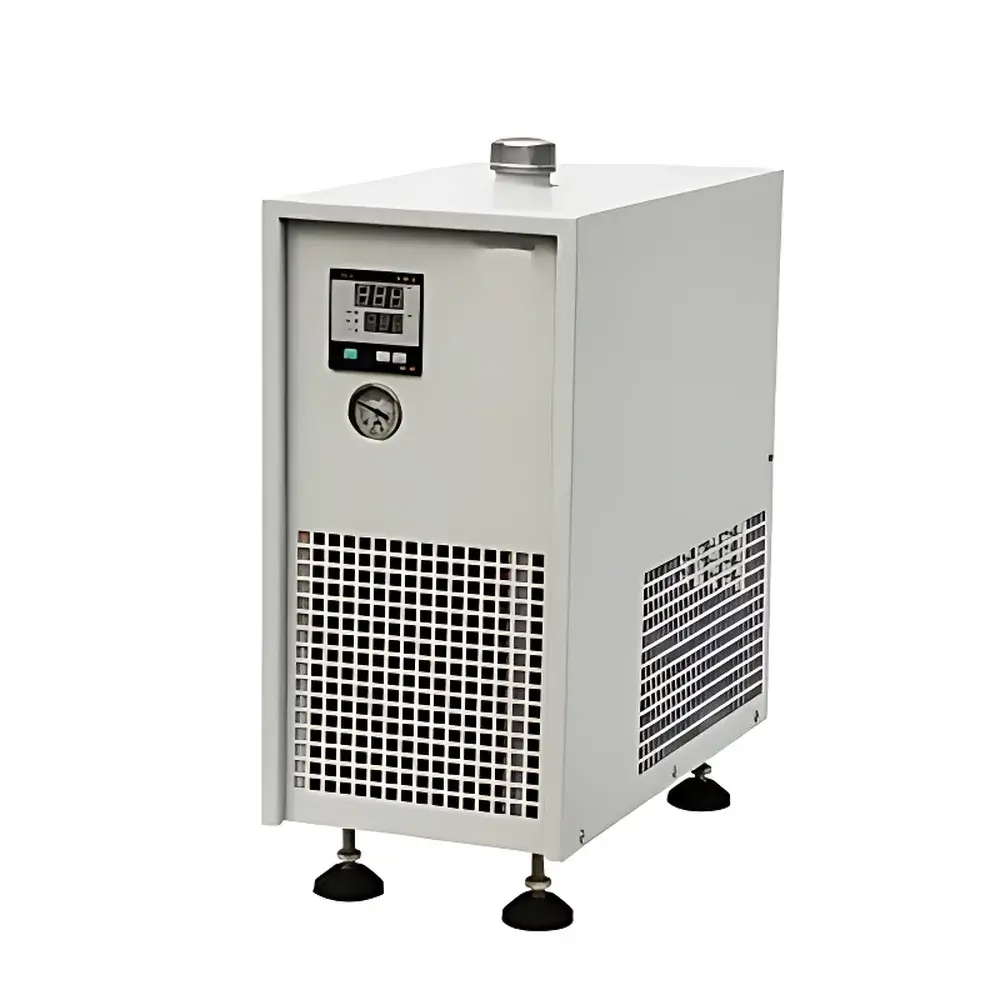

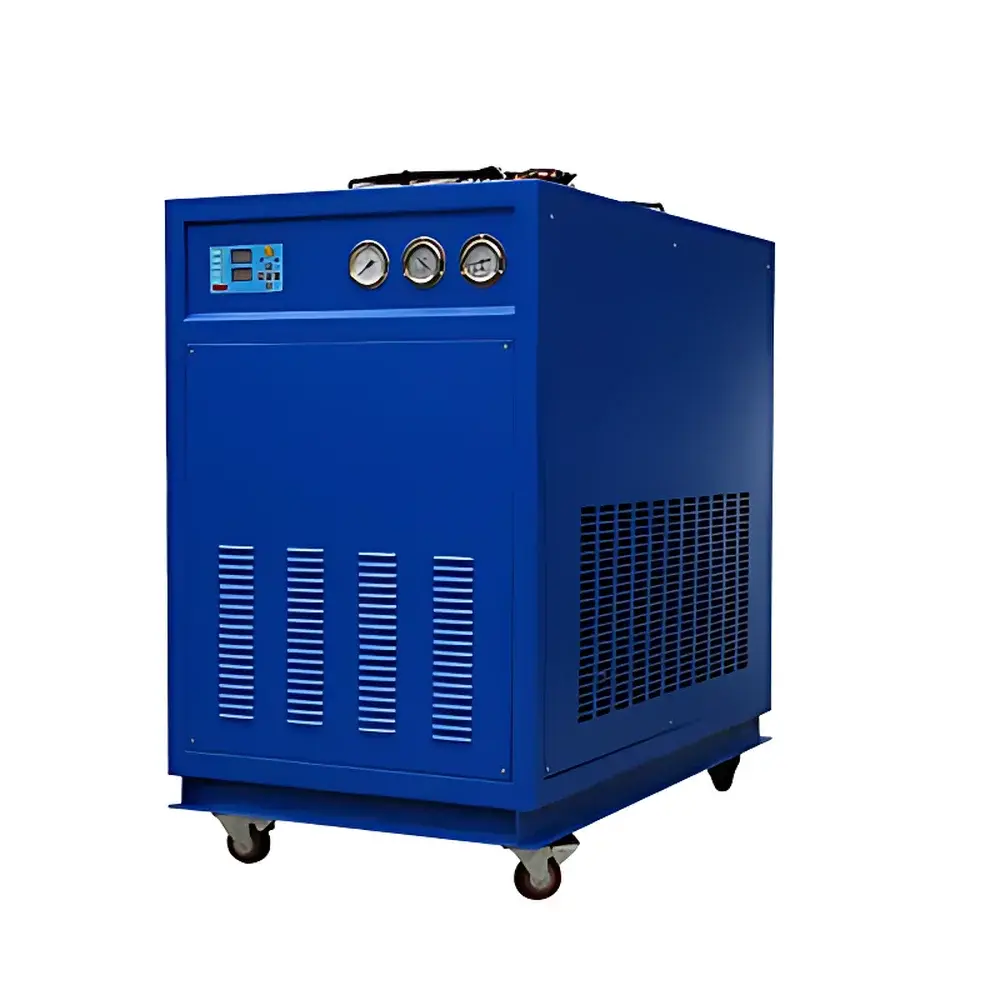

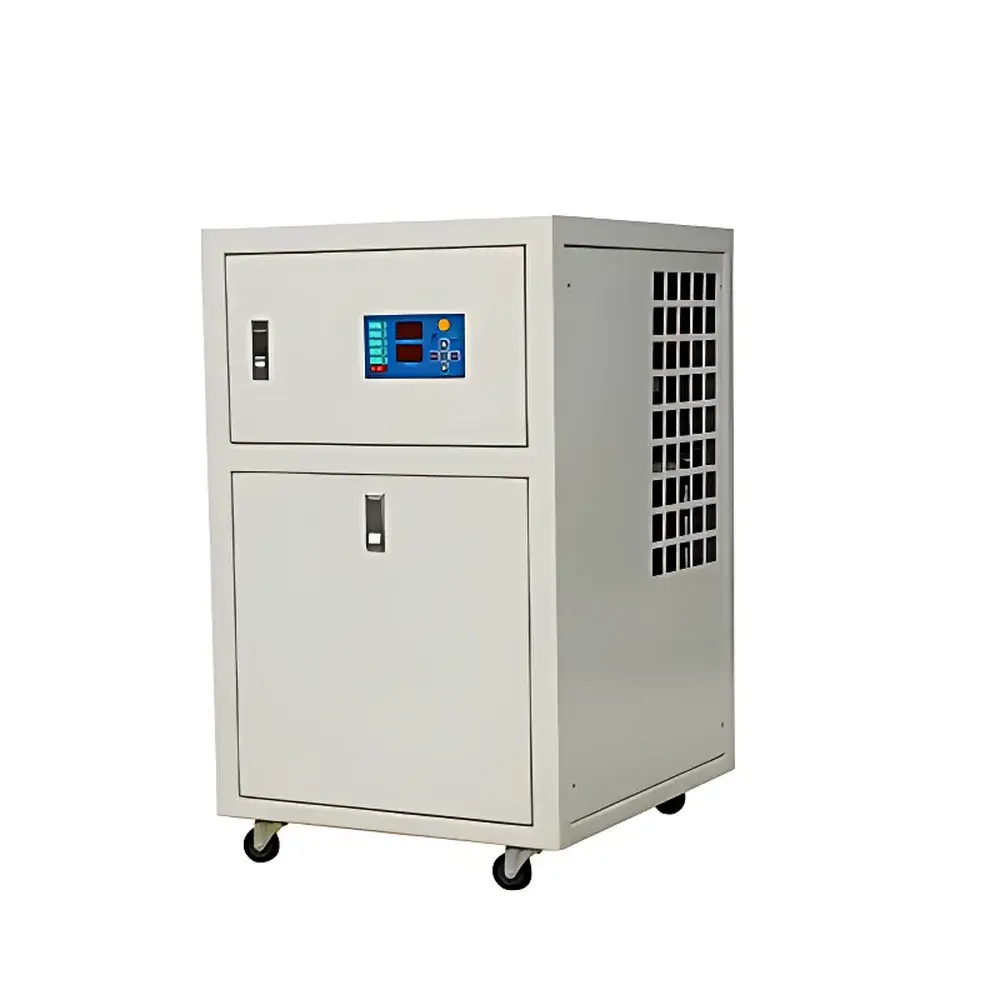

Tianfeng TF-LS-6HP Integrated Circulating Chiller

Overview

The Tianfeng TF-LS-6HP Integrated Circulating Chiller is a precision-engineered, water-cooled thermal management system designed for continuous-duty laboratory and industrial applications requiring stable, low-temperature coolant circulation. It operates on the vapor-compression refrigeration cycle, utilizing a high-efficiency scroll compressor, thermostatic expansion valve (TEV), and optimized condenser/evaporator heat exchange architecture to deliver consistent cooling performance within a tightly controlled temperature band of 0–10 °C. Engineered for reliability in demanding environments, the unit maintains ±0.1 °C temperature stability—critical for applications sensitive to thermal drift, such as analytical instrumentation cooling, laser source thermal regulation, and vacuum system condensation control. Its integrated design eliminates external piping complexity while supporting long-term unattended operation under full-load conditions.

Key Features

• Stainless steel reservoir (200 L capacity) and pump housing ensure corrosion resistance and compatibility with deionized water, glycol-water mixtures, and other non-aggressive coolants.
• Digital PID temperature controller with real-time display and programmable setpoint adjustment enables precise thermal setpoint management and adaptive response to load fluctuations.
• Scroll-type compressor delivers high volumetric efficiency, low mechanical vibration, and extended service life—reducing maintenance intervals and operational noise below 72 dB(A) at 1 m.
• Comprehensive safety architecture includes dual-stage pressure monitoring, motor overcurrent protection, evaporator freeze protection, and high-temperature cutoff to safeguard both equipment and process integrity.
• Modular electrical cabinet integrates CE-compliant components from Siemens, Schneider Electric, and Omron—ensuring electromagnetic compatibility (EMC), insulation integrity, and traceable component sourcing.
• Front-accessible service panels and standardized refrigerant service ports (R410A or R134a compatible per configuration) facilitate field diagnostics and refrigerant handling in accordance with EPA Section 608 and EU F-Gas Regulation compliance protocols.

Sample Compatibility & Compliance

The TF-LS-6HP is validated for use with a broad spectrum of laboratory and production equipment requiring active thermal stabilization, including graphite furnace atomic absorption spectrometers (GFAAS), inductively coupled plasma optical emission spectrometers (ICP-OES), ICP-mass spectrometers (ICP-MS), X-ray fluorescence (XRF) analyzers, X-ray diffractometers (XRD), scanning electron microscopes (SEM), and transmission electron microscopes (TEM). Its 2.0 bar maximum discharge pressure and 2 L/min flow rate meet OEM cooling interface specifications for most major instrument manufacturers. The unit complies with ISO 9001:2000 quality management requirements and conforms to IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) standards. For regulated environments, optional audit-trail-enabled controllers support 21 CFR Part 11 data integrity requirements when paired with validated software platforms.

Software & Data Management

While the base model features a standalone digital controller, optional RS485 Modbus RTU or Ethernet TCP/IP interfaces enable integration into centralized building management systems (BMS) or laboratory information management systems (LIMS). Logged parameters—including outlet temperature, inlet temperature, flow status, compressor run time, and fault codes—are timestamped and exportable via USB or serial connection for GLP/GMP documentation. Firmware supports configurable alarm thresholds, event-triggered email/SMS notifications (via external gateway), and password-protected parameter locking to prevent unauthorized setpoint changes—aligning with FDA guidance on computerized system validation (CSV) for critical infrastructure.

Applications

• Instrument Cooling: Maintains optimal operating temperatures for high-sensitivity detectors and plasma sources, minimizing thermal noise and signal drift in elemental analysis platforms.
• Laser Systems: Stabilizes diode-pumped solid-state (DPSS) and fiber laser heads, preventing wavelength shift and power degradation during extended operation.
• Vacuum & Thin-Film Deposition: Cools cryopumps, diffusion pumps, and sputtering targets to sustain ultra-high vacuum integrity and film uniformity.
• Materials Testing: Supports temperature-controlled tensile testing, rheometry, and DSC sample stages where ambient thermal coupling must be eliminated.
• Pharmaceutical Process Support: Provides chilled water loops for jacketed bioreactors, chromatography column ovens, and lyophilizer condenser plates in GMP-compliant facilities.

FAQ

What is the recommended maximum return water temperature for continuous operation?
For optimal compressor longevity and refrigerant cycle efficiency, the return coolant temperature should not exceed 40 °C. Sustained inlet temperatures above this threshold increase discharge pressure and oil degradation risk.
Can the chiller operate with 30% ethylene glycol solution?
Yes—the stainless steel wetted parts and scroll compressor are compatible with aqueous glycol mixtures up to 35% concentration. Viscosity and heat transfer coefficient adjustments must be factored into system design.
Is remote monitoring capability available without third-party hardware?
Standard models include analog 4–20 mA output for temperature and status signals. Full remote access requires optional communication module installation and network configuration.
Does the unit meet UL or CE safety certification requirements?
The TF-LS-6HP meets CE marking requirements under the Low Voltage Directive (2014/35/EU) and EMC Directive (2014/30/EU). UL listing is available upon request for specific configurations subject to additional testing.
What maintenance schedule is recommended for laboratory-grade reliability?
Quarterly inspection of refrigerant charge, filter-drier condition, and electrical connections is advised. Annual compressor oil analysis and condenser coil cleaning are required for uninterrupted 24/7 operation.
