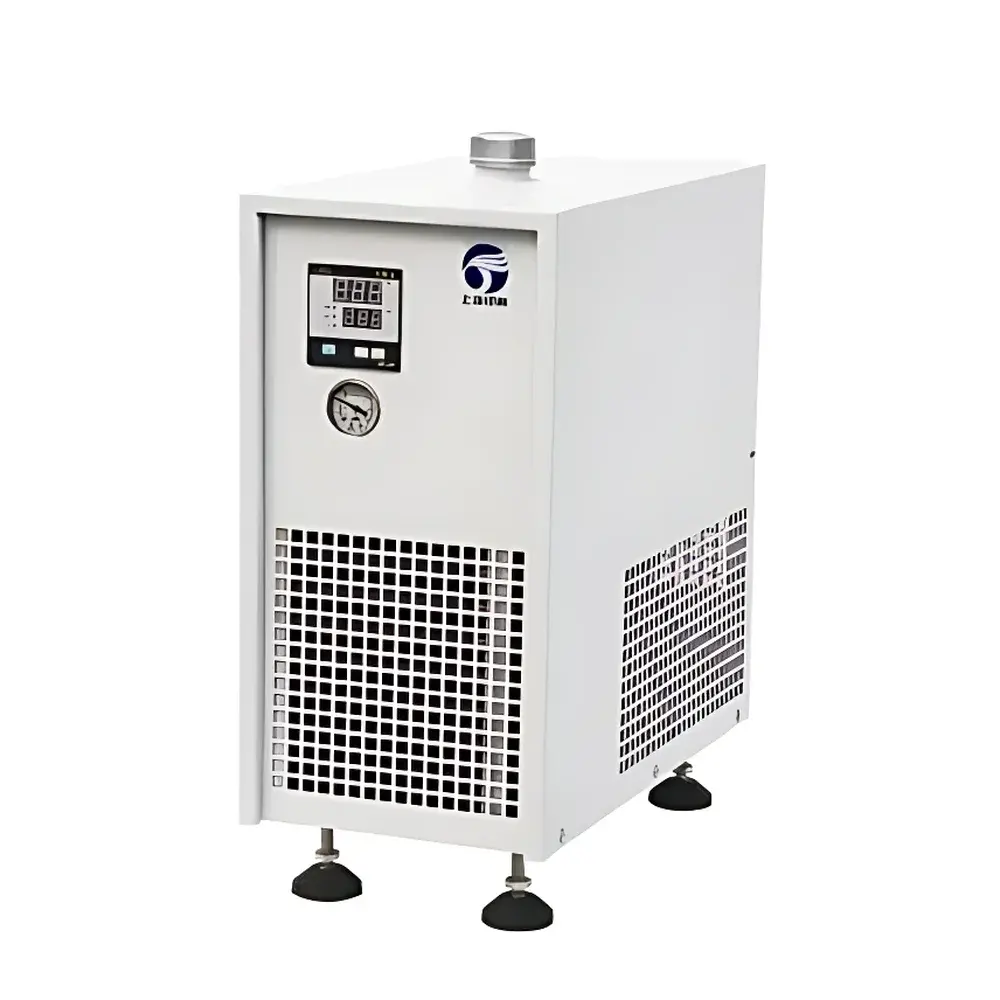

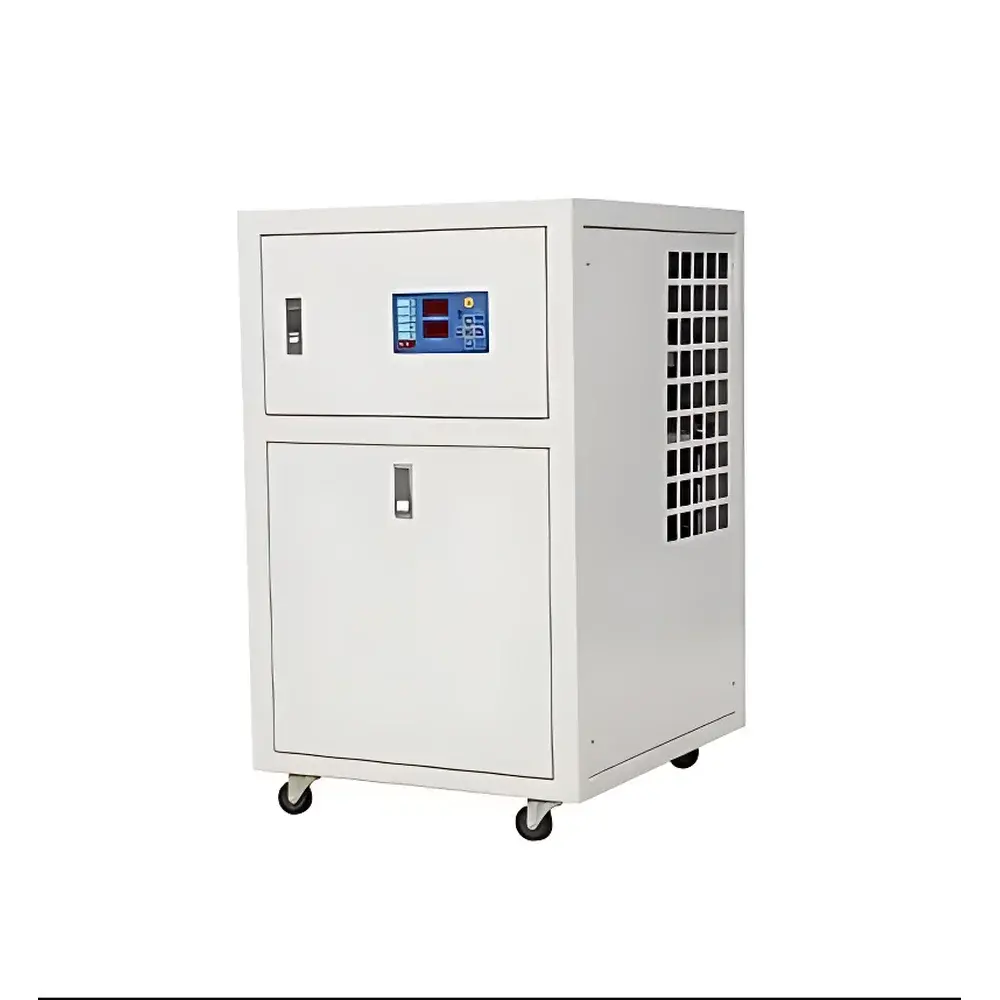

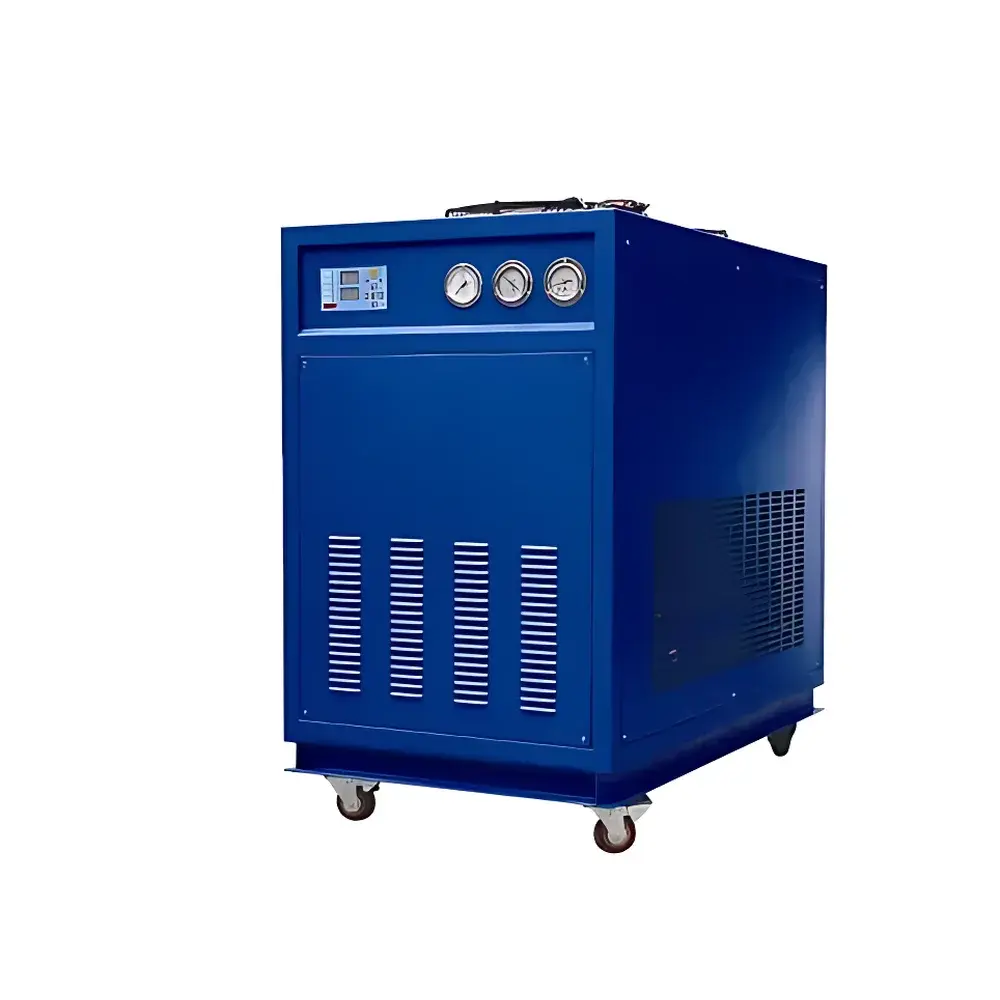

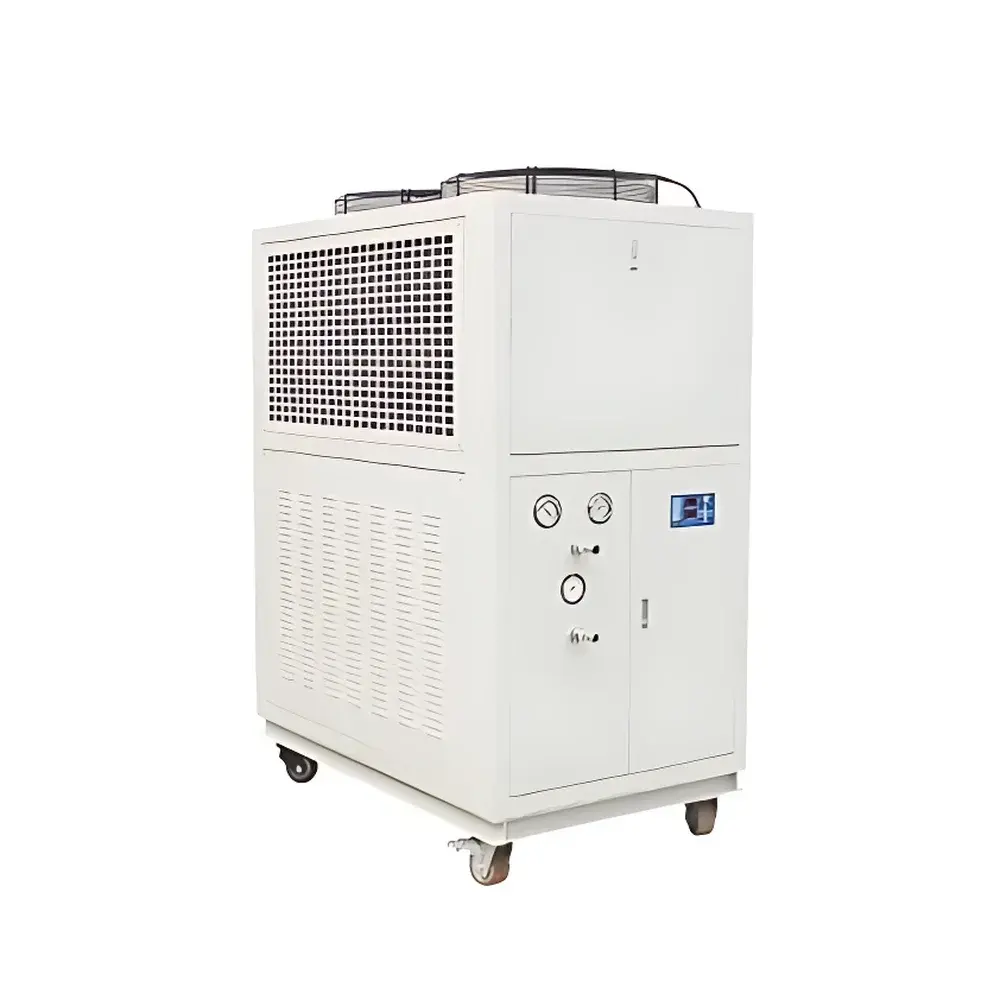

Tianfeng TF-LS-8HP Integrated Air-Cooled Circulating Chiller

Overview

The Tianfeng TF-LS-8HP Integrated Air-Cooled Circulating Chiller is a precision-engineered thermal management system designed for continuous-duty operation in demanding laboratory and industrial environments. It operates on the vapor-compression refrigeration cycle, utilizing a high-efficiency scroll compressor, imported thermostatic expansion valves, and optimized condenser/fan assemblies to deliver stable, low-noise cooling performance. The chiller maintains precise temperature control (±0.1 °C) across a wide operational range (0–50 °C), enabling reliable thermal regulation of heat-sensitive analytical instruments—including graphite furnace atomic absorption spectrometers (GFAAS), inductively coupled plasma optical emission spectrometers (ICP-OES), ICP-mass spectrometers (ICP-MS), X-ray fluorescence (XRF) and X-ray diffraction (XRD) systems, scanning electron microscopes (SEM), and transmission electron microscopes (TEM). Its integrated architecture eliminates external piping complexity, reduces footprint, and ensures rapid deployment—critical for space-constrained laboratories requiring reproducible thermal conditions per ISO/IEC 17025 and GLP-compliant workflows.

Key Features

• Stainless steel reservoir and circulation pump—resistant to corrosion and compatible with deionized, softened, or inhibited coolant solutions
• Digital PID temperature controller with real-time display, adjustable setpoint resolution of 0.1 °C, and programmable ramp-soak profiles
• Multi-layer safety architecture: high/low refrigerant pressure monitoring, compressor winding overtemperature detection, phase-loss and overcurrent protection, and independent high-limit thermal cutoff
• Adjustable flow and pressure output (0–60 m³/h, 0–2 bar) with built-in flow metering and pressure relief valve
• Air-cooled condensing system with axial fans and aluminum-fin copper coils—designed for ambient temperatures ≤35 °C and minimal acoustic signature (<65 dB(A) at 1 m)
• Modular electrical cabinet featuring CE-certified components from Siemens, Schneider Electric, and Omron—supporting long-term reliability under 24/7 operation
• Optional integration-ready analog (4–20 mA) and digital (RS485 Modbus RTU) I/O for centralized building management or LIMS synchronization

Sample Compatibility & Compliance

The TF-LS-8HP is validated for use with liquid-cooled instrumentation requiring stable heat rejection between 5 °C and 30 °C supply temperature, with recommended return water temperature ≤40 °C to prevent compressor degradation. It complies with IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and meets mechanical safety requirements per EN 60204-1. All fluid-contact surfaces are electropolished 316 stainless steel, certified non-leaching per USP for compatibility with ultra-pure water loops. The unit supports audit-ready operation under FDA 21 CFR Part 11 when paired with optional data-logging software featuring electronic signatures, change tracking, and secure user access levels.

Software & Data Management

While the base unit operates via front-panel PID interface, optional Tianfeng TCS-Link software enables remote monitoring and configuration via Ethernet or USB. The software logs temperature, flow, pressure, and alarm events with timestamped CSV export, supports configurable alert thresholds (email/SMS via gateway), and generates compliance reports aligned with ISO 17025 clause 5.9 (equipment monitoring). Audit trails include operator ID, parameter changes, and system status transitions—fully traceable for GLP/GMP validation. Firmware updates are delivered via signed .bin files with SHA-256 verification to ensure integrity.

Applications

• Laboratory analytics: Thermal stabilization of plasma sources, X-ray tubes, laser cavities, and detector cooling stages
• Materials characterization: Maintaining constant sample stage temperature during SEM/TEM imaging or XRD scanning
• Pharmaceutical QC: Precise temperature control in dissolution testers, HPLC column ovens, and stability chambers
• Electronics testing: Heat extraction from high-power RF amplifiers, semiconductor probe stations, and wafer-level test fixtures
• Biotechnology: Cooling of centrifuges, PCR cyclers, and bioreactor jacket loops requiring tight ΔT control
• Industrial R&D: Mold temperature regulation in polymer processing simulations and tribology test rigs

FAQ

What is the maximum allowable return water temperature for continuous operation?
The recommended maximum return water temperature is 40 °C. Exceeding this threshold increases discharge pressure and accelerates compressor oil breakdown, reducing service life.
Can the chiller be integrated into a facility’s BMS via Modbus?
Yes—RS485 Modbus RTU interface is standard; register maps for temperature, flow, alarms, and setpoints are provided in the technical manual.
Is the stainless steel reservoir suitable for deionized water applications?
Yes—316 SS construction and EPDM-free wetted seals prevent ion leaching; however, conductivity monitoring and periodic biocide dosing are advised for closed-loop DI water systems.
Does the unit support dual-temperature zone control?
No—the TF-LS-8HP is a single-circuit system. Dual-zone capability requires the modular TF-Multi series with independent evaporator circuits.
What maintenance intervals are recommended for laboratory-grade operation?
Compressor oil and filter dryer replacement every 12 months or 8,000 operating hours; condenser coil cleaning quarterly in dusty environments; full system leak check and refrigerant verification annually per ISO 5149-2.
