Tianfeng TF-LYO-30E Pharmaceutical-Grade Benchtop-to-Production Freeze Dryer

Overview

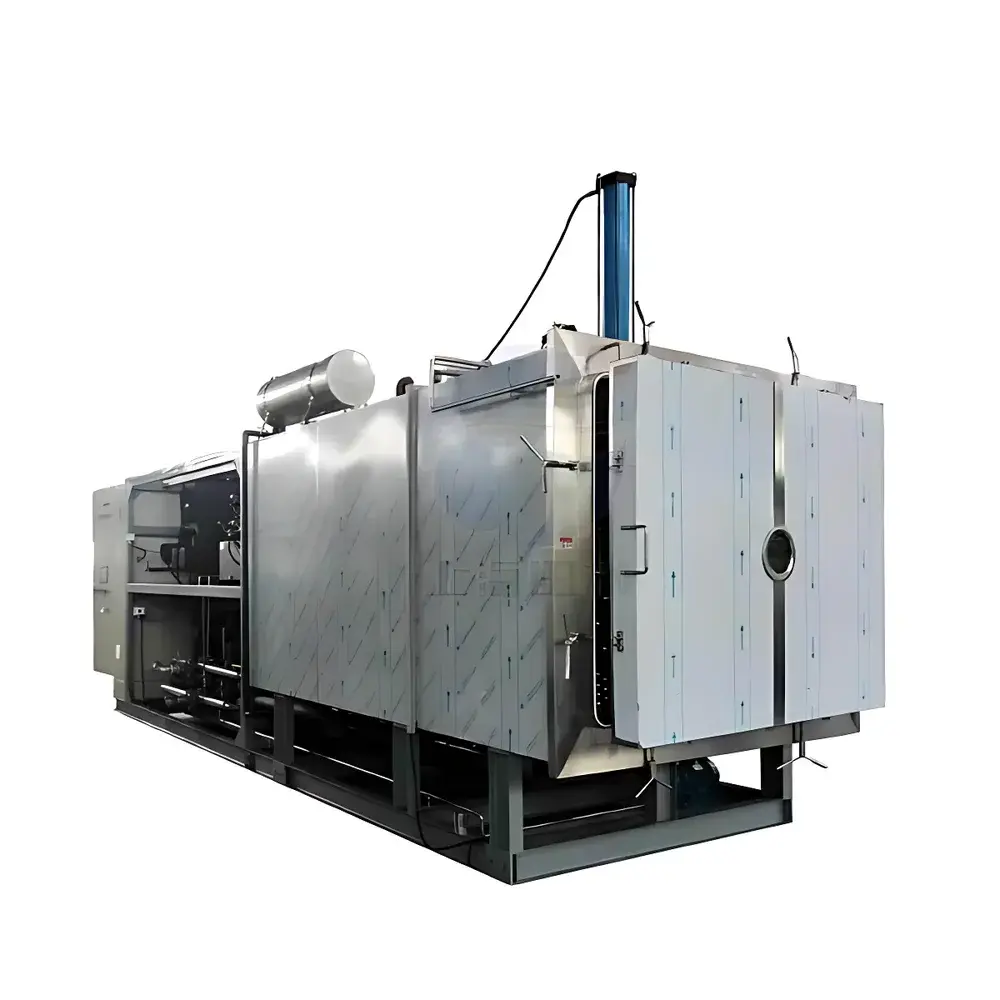

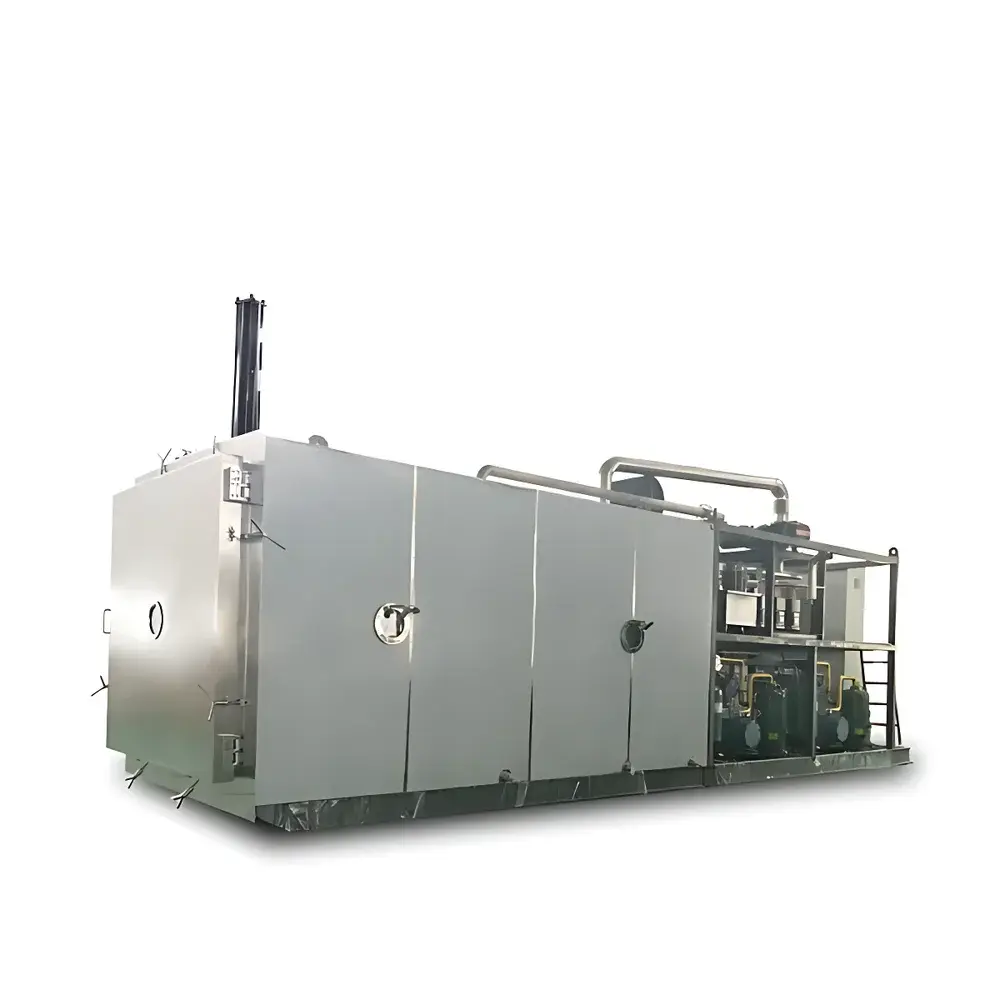

The Tianfeng TF-LYO-30E is a cGMP-compliant, pharmaceutical-grade freeze dryer engineered for scalable lyophilization of thermolabile biologics, herbal extracts (e.g., Lycium barbarum juice, Glycyrrhiza uralensis extract, and Auricularia auricula biomass), and sterile parenteral formulations. It operates on the fundamental principle of sublimation—removing water from frozen samples under deep vacuum while maintaining product integrity through precise thermal control. Designed for both pilot-scale process development and GMP-aligned production batches, the system integrates a rectangular stainless-steel drying chamber, electrically heated shelves with uniform silicone oil circulation, and a high-capacity dual-stage condenser capable of continuous ice trapping at −75 °C. Its architecture conforms to ISO 9001:2015 quality management standards and supports full validation readiness—including IQ/OQ/PQ documentation packages—making it suitable for regulated environments governed by FDA 21 CFR Part 11, EU Annex 1, and WHO TRS No. 986 requirements.

Key Features

• Shelves fabricated from uniformly heat-treated AISI 304 stainless steel with electropolished surfaces and zero-weld stress; flatness tolerance ≤±0.1 mm/m² ensures consistent heat transfer across all vial positions.
• Shelf temperature control range of −55 °C to +80 °C with ±0.5 °C stability, enabled by low-viscosity silicone oil as thermal medium and PID-regulated heating/cooling circuits.
• Condenser rated for 600 kg ice capacity over 24 hours, achieving ultimate vacuum ≤1 × 10⁻² mbar via a dual-stage Baosi vacuum pump paired with Bitzer semi-hermetic compressors.
• Hydraulic stoppering module (optional) compatible with 16 mm and 22 mm vials—supports up to 121,000 units per batch (16 mm) or 64,000 units (22 mm)—with force feedback and position logging.
• Omron PLC-based control system with touchscreen HMI, real-time data logging, alarm history, and password-protected user levels aligned with ALCOA+ data integrity principles.
• Full cGMP design compliance: internal chamber corners fully radiused (R ≥15 mm), all welds ground flush and passivated, no dead legs in fluid paths, and validated cleanability per ASTM E2656.

Sample Compatibility & Compliance

The TF-LYO-30E accommodates diverse sample formats including bulk solutions (e.g., polysaccharide-rich Auricularia suspensions), concentrated herbal tinctures, monoclonal antibody intermediates, and vaccine candidates. Its chamber geometry and shelf layout support standard ISO trays, stainless-steel pans, and nested vial racks. All wetted surfaces meet USP Class VI biocompatibility criteria. The system is prequalified for compliance with ICH Q5C (stability of biotechnological/biological products), USP (sterile processing), and ISO 22000 (food-grade applications). Documentation includes material traceability dossiers, FAT/SAT protocols, and optional 3Q (IQ/OQ/PQ) validation support packages.

Software & Data Management

The embedded control software records time-stamped, audit-trail-enabled process data—including shelf temperature, chamber pressure, condenser temperature, and vacuum ramp rates—at configurable intervals (1–60 sec). Data export is supported via USB, Ethernet, or OPC UA to LIMS or MES platforms. Electronic signatures, role-based access control, and automatic backup to redundant SD cards ensure adherence to FDA 21 CFR Part 11 and EU Annex 11. Batch reports include digital signatures, deviation flags, and integrated trending tools for comparative analysis across multiple cycles.

Applications

This freeze dryer serves critical functions across regulated sectors:

• Pharmaceutical R&D: Lyophilization of peptide APIs, lysozyme, and liposomal formulations requiring residual moisture <1.5% w/w.
• Traditional Medicine Processing: Stabilization of heat-sensitive phytochemicals in Glycyrrhiza glycyrrhizin and Lycium zeaxanthin without degradation.
• Biotherapeutics Manufacturing: Final formulation of recombinant proteins and viral vectors under nitrogen-purged, Class A airflow conditions (when integrated with isolator).
• Food & Nutraceutical Research: Preservation of probiotic cultures, mushroom polysaccharides, and enzymatically active botanical concentrates.

FAQ

Does the TF-LYO-30E support automated cycle development?
Yes—the PLC interface allows creation, storage, and recall of multi-step programs with conditional logic (e.g., pressure rise test triggers shelf warm-up).

Is remote monitoring available?
Standard Ethernet connectivity enables secure web-based supervision via authenticated HTTPS portal; optional MQTT integration for IIoT platforms.

What validation documentation is provided?
Factory Acceptance Test (FAT) report, User Requirement Specification (URS) cross-reference, and full 3Q protocol templates are included; site-specific execution support available.

Can the system be retrofitted for steam sterilization (SIP)?
No—this model is designed for aseptic processing only; SIP-capable variants (TF-LYO-30E-SIP) require separate engineering review.

What maintenance intervals are recommended for the Bitzer compressor?
Oil analysis every 2,000 operating hours; full service—including filter replacement and refrigerant charge verification—every 8,000 hours or annually, whichever occurs first.
