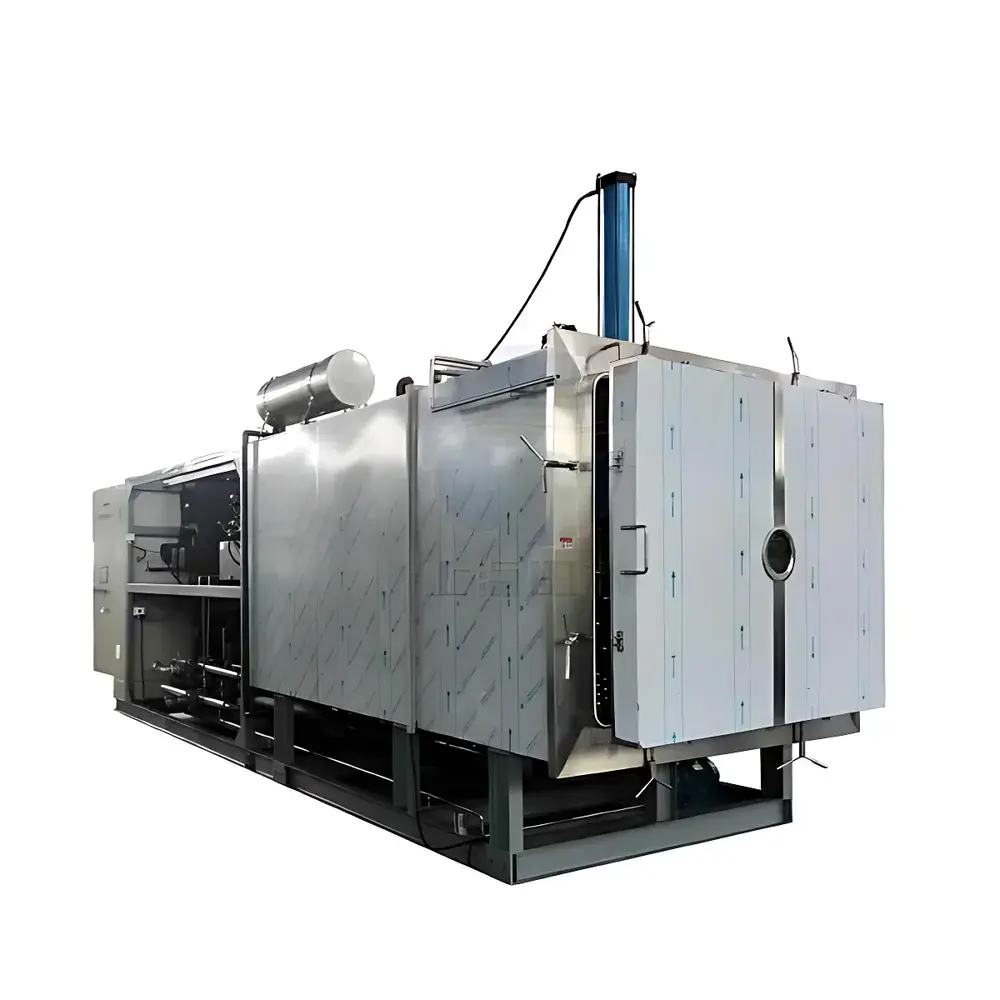

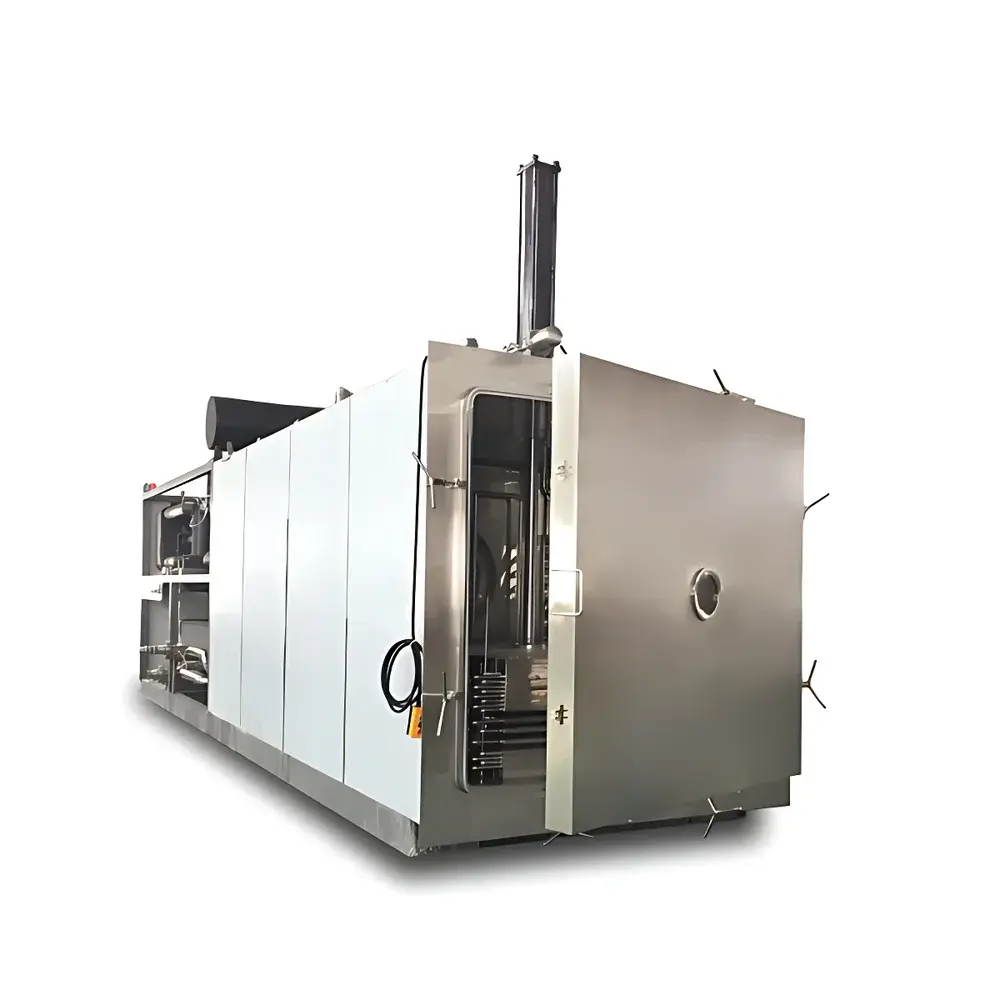

Tianfeng TF-SFD-30E Production-Scale Freeze Dryer

Overview

The Tianfeng TF-SFD-30E is a production-scale, shelf-type freeze dryer engineered for reliable, repeatable lyophilization of thermolabile pharmaceuticals, biologics, diagnostics, and high-value food matrices—including complex formulations such as tomato-egg soup concentrates—under strictly controlled GMP-aligned conditions. Operating on the fundamental principle of sublimation under deep vacuum, the system first freezes the product uniformly on temperature-controlled stainless steel shelves, then removes ice via primary drying (sublimation) and secondary drying (desorption) without passing through the liquid phase. This preserves structural integrity, biological activity, and reconstitution fidelity—critical for vaccines, monoclonal antibodies, enzyme preparations, herbal extracts, and functional food powders. Designed for continuous operation in regulated environments, the TF-SFD-30E integrates robust mechanical architecture, low-thermal-mass shelves, and a high-capacity cryogenic condenser to ensure consistent batch-to-batch performance across 35 m² of active drying surface.

Key Features

• AISI 304 stainless steel chamber with fully polished, zero-dead-angle internal geometry—minimizing microbial retention and facilitating CIP/SIP compatibility.
• 14 precisely leveled shelves (13 working + 1 reference), manufactured via uniform thermal stress-relief annealing to maintain flatness within ±0.1 mm/m—ensuring uniform heat transfer and cake homogeneity.
• Low-viscosity silicone oil circulation system enabling rapid, stable shelf temperature control from −55 °C to +70 °C with ≤±0.5 °C uniformity across all shelves.
• −75 °C dual-stage cascade refrigeration condenser with 750 kg/24 h ice-trapping capacity and ≤0.1 Pa·m³/s system leak rate—meeting stringent vacuum stability requirements for extended primary drying cycles.
• PLC-based automation platform compliant with IEC 61131-3 standards; supports recipe storage, real-time parameter logging, alarm management, and audit-trail-enabled operation per FDA 21 CFR Part 11 guidelines.
• Full cGMP design compliance: welded joints electropolished to Ra ≤0.4 µm, no crevices or threaded connections in product-contact zones, validated cleanability, and documented 3Q (IQ/OQ/PQ) readiness.

Sample Compatibility & Compliance

The TF-SFD-30E accommodates diverse sample formats including vials (Φ16 mm: up to 153,600 units/batch; Φ22 mm: up to 93,000 units), trays, and bulk solutions (up to 800 L). It supports lyophilization of sterile drug products, diagnostic reagents, probiotic cultures, botanical extracts (e.g., ginseng, cordyceps), and sensitive food systems requiring minimal Maillard reaction and oxidation. All wetted surfaces meet USP Class VI and ASTM F899 biocompatibility criteria. The system conforms to ISO 22000 (food safety), ISO 13485 (medical devices), and EU Annex 1 requirements for aseptic processing. Full documentation packages—including risk assessments (FMEA), material traceability records, and weld logs—are provided to support regulatory submissions (EMA, PMDA, NMPA, FDA).

Software & Data Management

Equipped with a validated SCADA-integrated HMI interface, the TF-SFD-30E records ≥100 process parameters at user-defined intervals (minimum 1 sec resolution), including shelf temperature, chamber pressure, condenser temperature, vacuum pump status, and refrigerant pressures. Data are stored redundantly on encrypted local SSD and networked NAS with automatic daily backup. Electronic signatures, role-based access control (RBAC), and full audit trail functionality satisfy 21 CFR Part 11 and EU Annex 11 requirements. Optional integration with MES/LIMS platforms via OPC UA or Modbus TCP enables seamless batch record generation and electronic batch reporting (EBR). Raw data files are exportable in CSV and PDF formats with embedded digital signatures and timestamping.

Applications

This system is deployed in pharmaceutical manufacturing for terminal sterilization-alternative processing of injectables (lyophilized antibiotics, interferons, checkpoint inhibitors); in biotech R&D for stabilization of viral vectors and CAR-T cell intermediates; in nutraceutical production for heat-sensitive phytochemicals and fermented broths; and in academic core facilities for long-term preservation of tissue scaffolds, bacterial consortia, and archaeological biomaterials. Its scalability bridges lab-scale optimization (e.g., using smaller Tianfeng benchtop models) to commercial fill-finish readiness—reducing tech-transfer risk and accelerating regulatory filing timelines.

FAQ

Does the TF-SFD-30E support automated cycle development and optimization?
Yes—integrated process analytical technology (PAT) inputs (e.g., capacitance manometers, IR moisture sensors) can be configured for real-time endpoint detection and adaptive ramping.
Is remote monitoring and troubleshooting supported?
Standard Ethernet connectivity enables secure VNC-based remote access for qualified engineers; optional 4G/LTE module available for offsite diagnostics.
Can the system be validated for sterile barrier integrity (SBI) testing?
Yes—the chamber and condenser are designed for helium leak testing per ISO 15883-5; validation protocols for SBI and filter integrity (e.g., bubble point, diffusion) are included in the OQ package.
What training and service options are available?
Tianfeng provides on-site installation qualification, operator certification (GMP-compliant SOPs), preventive maintenance contracts, and 24/7 technical hotline support with <4-hour onsite response for critical failures.
Are spare parts and consumables stocked globally?
Critical spares—including silicone oil, vacuum pump oils, O-rings (FKM/Viton), and pressure transducers—are maintained in regional hubs across North America, EU, and APAC to ensure ≤72-hour delivery.
