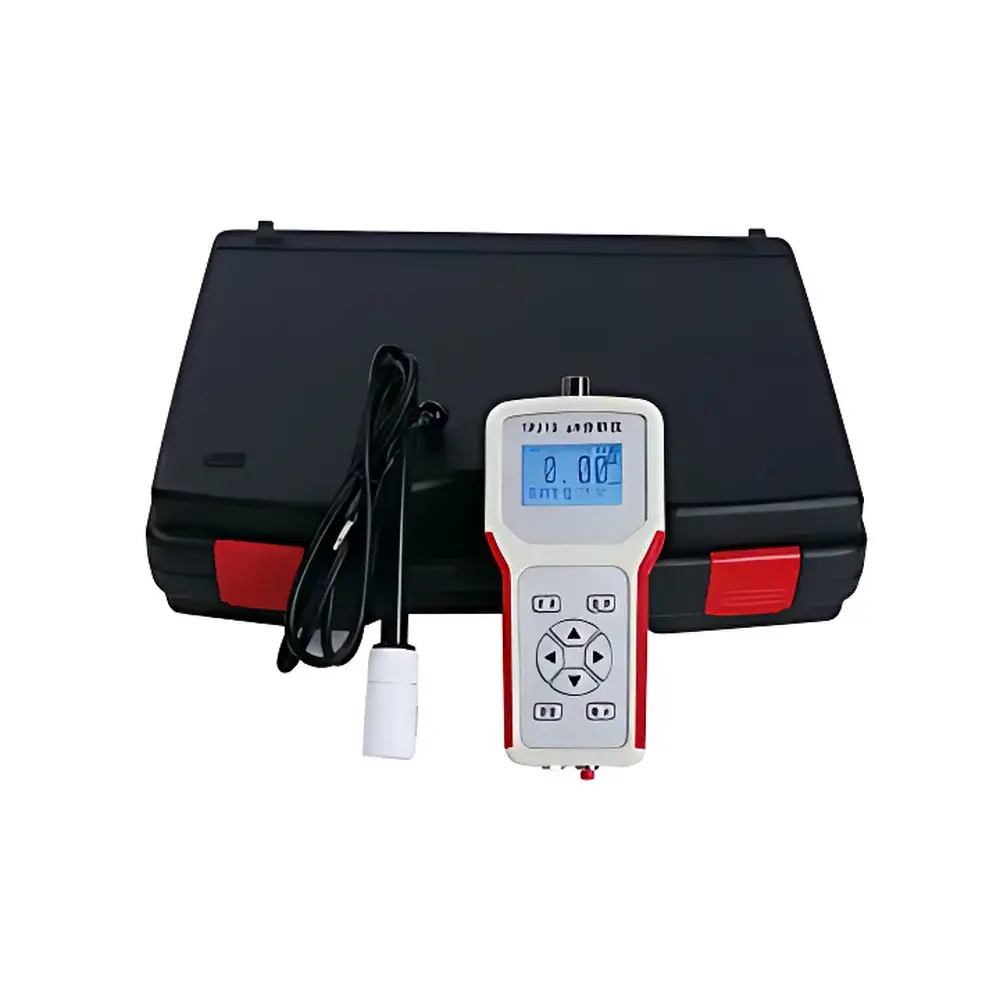

Timepower TP210 Portable pH Meter for Laboratory and Field Water Quality Analysis

Overview

The Timepower TP210 Portable pH Meter is a precision electrochemical instrument engineered for reliable, field-deployable and laboratory-grade pH measurement in aqueous solutions. It operates on the potentiometric principle: a galvanic cell is formed by a pH-sensitive glass electrode (indicator), a stable reference electrode (Ag/AgCl/KCl), and the sample solution. The measured electromotive force (EMF) of this cell correlates directly to hydrogen ion activity via the Nernst equation, enabling quantitative conversion of chemical potential into a calibrated electrical signal. Designed for robustness in variable environments—from municipal water treatment plants to biopharmaceutical cleanrooms—the TP210 delivers traceable accuracy under ISO/IEC 17025-aligned operating conditions. Its dual-role architecture supports both routine QC checks and method validation workflows where regulatory compliance (e.g., USP , ASTM D1293, ISO 10523) is required.

Key Features

• Triple-junction pH electrode architecture with integrated temperature sensor (Pt1000), minimizing liquid junction potential drift and enabling automatic temperature compensation across 0–60 °C.
• 24-bit high-resolution analog-to-digital conversion ensures minimal quantization error and superior signal fidelity, especially critical for low-conductivity samples such as ultrapure water and pharmaceutical process streams.
• Microcontroller-based platform with advanced surface-mount circuitry provides thermal stability, EMI resilience, and long-term calibration retention—validated over 4-hour stability tests per IEC 61000-4-3.
• Low-power design enables up to 8 hours of continuous operation on a single AC charge; standby current draw remains below 15 mA, reducing thermal load on sensitive electrode interfaces.
• Intuitive Chinese-language menu system with real-time auto-stabilization detection eliminates subjective endpoint judgment—measurement freezes only when signal drift falls below 0.002 pH/min for ≥10 seconds.
• Compact ergonomic housing (80 × 30 × 175 mm, 260 g) meets IP54 ingress protection requirements for dust and splash resistance during mobile deployment.

Sample Compatibility & Compliance

The TP210 accommodates a broad spectrum of aqueous matrices: deionized water (≥1 MΩ·cm), wastewater effluents (COD ≤ 500 mg/L), boiler feedwater (pH 8.5–9.5), and food-grade rinse solutions. Its ≥1×10¹² Ω input impedance prevents loading errors in high-resistivity samples. Electrode options include specialized low-conductivity probes for pure water applications and general-purpose triple-composite electrodes with ceramic junctions for turbid or particulate-laden media. The instrument complies with electromagnetic compatibility standards EN 61326-1 (industrial environment) and safety standard EN 61010-1. While not certified for intrinsic safety in hazardous locations, its design supports GLP/GMP documentation requirements—including audit trails for calibration history, operator ID logging (via optional USB export), and timestamped measurement records.

Software & Data Management

Data acquisition and reporting follow ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Internal cyclic memory stores ≥500 measurement entries with full metadata: date/time stamp, temperature, electrode status flag, and calibration coefficients. Upon overflow, oldest entries are overwritten without user intervention. All stored data persist for >12 months post-power-loss due to non-volatile EEPROM architecture. Export functionality supports CSV via micro-USB (optional PC software provided), enabling integration with LIMS platforms compliant with FDA 21 CFR Part 11 (electronic signatures and audit trail generation require external server configuration).

Applications

• Environmental monitoring: pH profiling in rivers, lakes, and wastewater influent/effluent channels per EPA Method 150.1.
• Power generation: Real-time boiler water alkalinity control and condensate pH verification in thermal and nuclear facilities.
• Pharmaceutical manufacturing: USP -compliant pH verification of purified water (PW) and water for injection (WFI) distribution loops.
• Food & beverage QA: Batch release testing of dairy processing rinses, brewing wort, and acidified sauces.
• Academic research: Teaching labs requiring NIST-traceable pH metrology with visual stabilization feedback and manual calibration verification protocols.

FAQ

What calibration buffers are recommended for daily use?
Standard NIST-traceable buffers at pH 4.01, 7.00, and 10.01 (25 °C) are advised for two-point or three-point calibration. Buffer selection must match expected sample pH range to minimize interpolation error.

Can the TP210 measure ORP or mV directly?
No—the TP210 is configured exclusively for pH and temperature measurement. It lacks redox electrode input circuitry and dedicated mV mode.

How often should the pH electrode be cleaned and reconditioned?
For routine use in clean water matrices, rinse with deionized water after each measurement. For fouling-prone samples (e.g., wastewater, protein-rich media), clean weekly with 0.1 M HCl (10 min) followed by thorough rinsing. Store hydrated in 3 M KCl solution—not dry or in distilled water.

Is the instrument suitable for ISO/IEC 17025 accredited laboratories?
Yes—when operated with documented procedures, certified reference materials, and periodic verification using secondary standards, the TP210 satisfies Clause 6.4 (Equipment) and Clause 7.7 (Uncertainty of Measurement) requirements.
