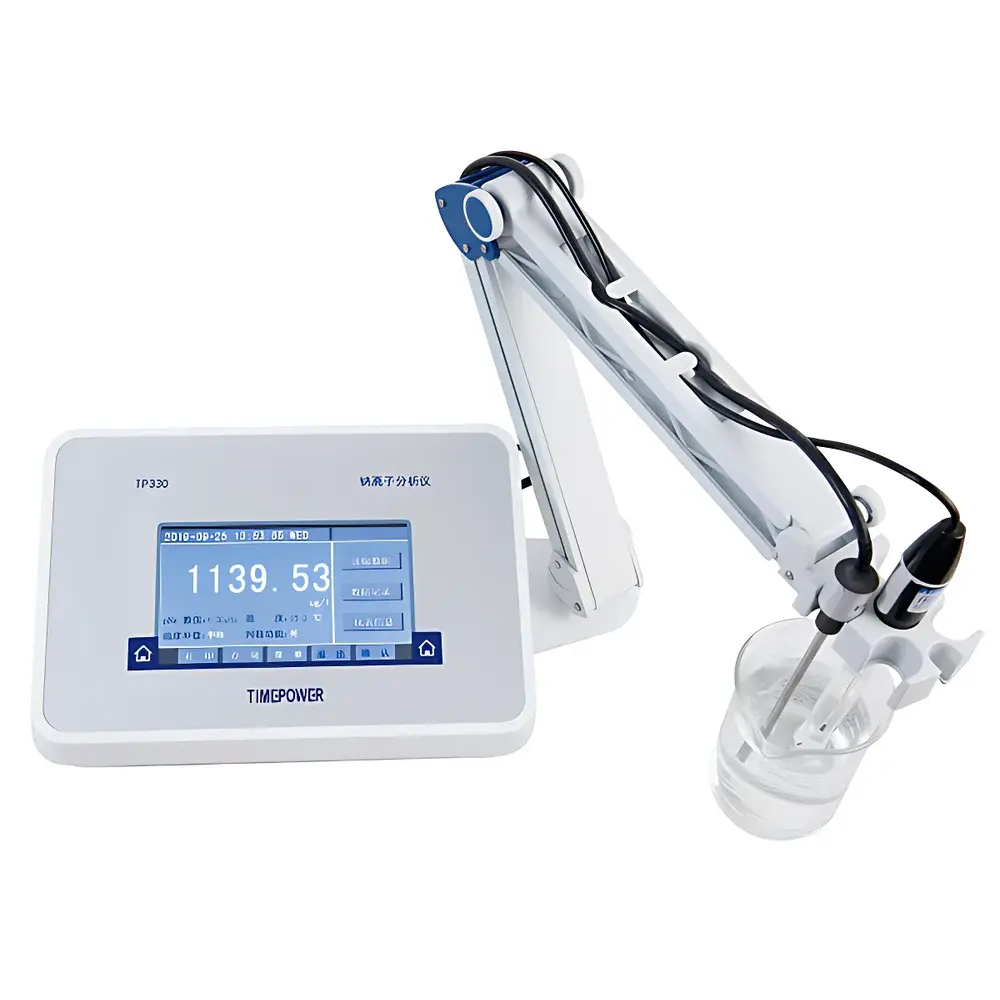

Timepower TP330 Benchtop Sodium Ion Analyzer

Overview

The Timepower TP330 Benchtop Sodium Ion Analyzer is a precision electrochemical measurement instrument engineered for reliable, trace-level sodium ion quantification in laboratory environments. It operates on the principle of potentiometric measurement using a sodium-selective ion electrode (ISE), grounded in the Nernst equation. At 25 °C, the theoretical electrode slope is 59.16 mV per decade change in Na⁺ activity; however, real-world electrode performance deviates due to membrane composition, hydration state, and junction potential effects. The TP330 implements a two-point calibration protocol—using certified Na⁺ standard solutions—to empirically determine both the actual electrode slope and asymmetry potential (zero point), ensuring metrological traceability and measurement consistency across the operational range. Designed for compliance with GB 12156–89 (“Methods for Analysis of Boiler and Cooling Water — Determination of Sodium — Static Method”), the analyzer supports quality control and method validation workflows in regulated industrial and research settings where low-concentration sodium monitoring is critical—particularly in high-purity water systems.

Key Features

• 5.0-inch capacitive touch color LCD with intuitive Chinese-language UI—designed for rapid parameter navigation and real-time data visualization.
• High-impedance input circuitry (≥1 × 10¹² Ω) optimized for stable signal acquisition from sodium-selective glass electrodes, minimizing leakage current and polarization errors.
• 24-bit analog-to-digital conversion ensures high-resolution digitization of mV-level electrode potentials, supporting accurate pNa and µg/L conversions.
• Integrated Pt1000 temperature sensor enables automatic temperature compensation across 0–60 °C, correcting for thermal drift in Nernstian response per ISO 17025-recommended practice.
• Robust single-chip microcontroller architecture with ultra-low power consumption (≤5 W) and embedded non-volatile memory for long-term data retention (>10 years after power loss).
• Compact benchtop form factor (215 × 150 × 85 mm; 1.0 kg) with modular electrode interface—compatible with standard BNC + mini-DIN connectors for sodium composite electrodes and temperature probes.

Sample Compatibility & Compliance

The TP330 is validated for aqueous samples within pH 4–11 and total dissolved solids (TDS) < 500 mg/L, typical of boiler feedwater, condensate, ultrapure water (UPW), pharmaceutical process water, and environmental effluents. Its measurement range spans 0.00–9.36 pNa (equivalent to 0.01 µg/L–23.0 g/L Na⁺), with accuracy specified as ±3 µg/L or ±0.03 pNa (whichever is greater), repeatability ≤±2.5%, and stability ≤±0.03 pNa over 4 hours. While not pre-certified to IEC 61000 or CE for export markets, its design adheres to fundamental EMC and safety principles aligned with GB/T 18268 (IEC 61326) for laboratory equipment. Users deploying it in GLP/GMP environments may configure audit trails manually via timestamped data export and maintain calibration logs per internal SOPs.

Software & Data Management

Data handling is implemented via on-device firmware without external PC dependency. All measurements—including raw mV, pNa, µg/L, temperature, date/time stamp, and calibration parameters—are stored in a circular buffer with automatic overwrite upon capacity exhaustion. Export is supported via USB host interface (FAT32-formatted flash drive) in CSV format for post-processing in Excel or LIMS-compatible platforms. Though no native software suite is provided, the structured ASCII output facilitates integration into third-party data aggregation tools. For regulated applications, users are advised to implement manual version-controlled calibration records and periodic verification against NIST-traceable standards (e.g., SRM 3194).

Applications

• Power generation: Monitoring sodium breakthrough in steam-cycle condensate and demineralized water to detect early-stage cation resin exhaustion or condenser tube leakage.
• Pharmaceutical manufacturing: Verifying sodium content in Water for Injection (WFI) and Purified Water per USP and EP 2.2.38 specifications.
• Microelectronics: Controlling Na⁺ contamination in UPW used in wafer cleaning—where sub-ppq levels impact gate oxide integrity.
• Academic research: Supporting ion transport studies, membrane selectivity characterization, and corrosion inhibitor efficacy testing in simulated cooling water matrices.
• Environmental labs: Quantifying sodium as a tracer for seawater intrusion or road-salt runoff in groundwater monitoring programs.

FAQ

What calibration standards are recommended for routine use?
Two-point calibration using certified Na⁺ standards at 0.01 µg/L (pNa 9.0) and 100 µg/L (pNa 6.0) is optimal for trace-range accuracy. Avoid chloride-rich buffers that may interfere with glass membrane response.
Can the TP330 measure sodium in high-ionic-strength samples?
No. Samples exceeding 500 mg/L TDS require matrix-matched dilution or use of ionic strength adjusters (ISA) to minimize activity coefficient deviation—otherwise, reported values reflect concentration, not activity.
Is the electrode compatible with automatic sample changers?
Not natively. The TP330 lacks RS-232/485 or Ethernet ports for remote triggering; manual electrode immersion remains the standard operational mode.
How often should the sodium electrode be cleaned and reconditioned?
Daily rinsing with deionized water is mandatory. Weekly cleaning with 0.1 M HCl followed by 30-minute rehydration in 10⁻³ M NaCl restores membrane hydration and minimizes hysteresis.
Does the instrument support FDA 21 CFR Part 11 compliance?
No. The TP330 does not include electronic signatures, audit trails, or role-based access control—users must supplement with procedural controls for regulated submissions.
