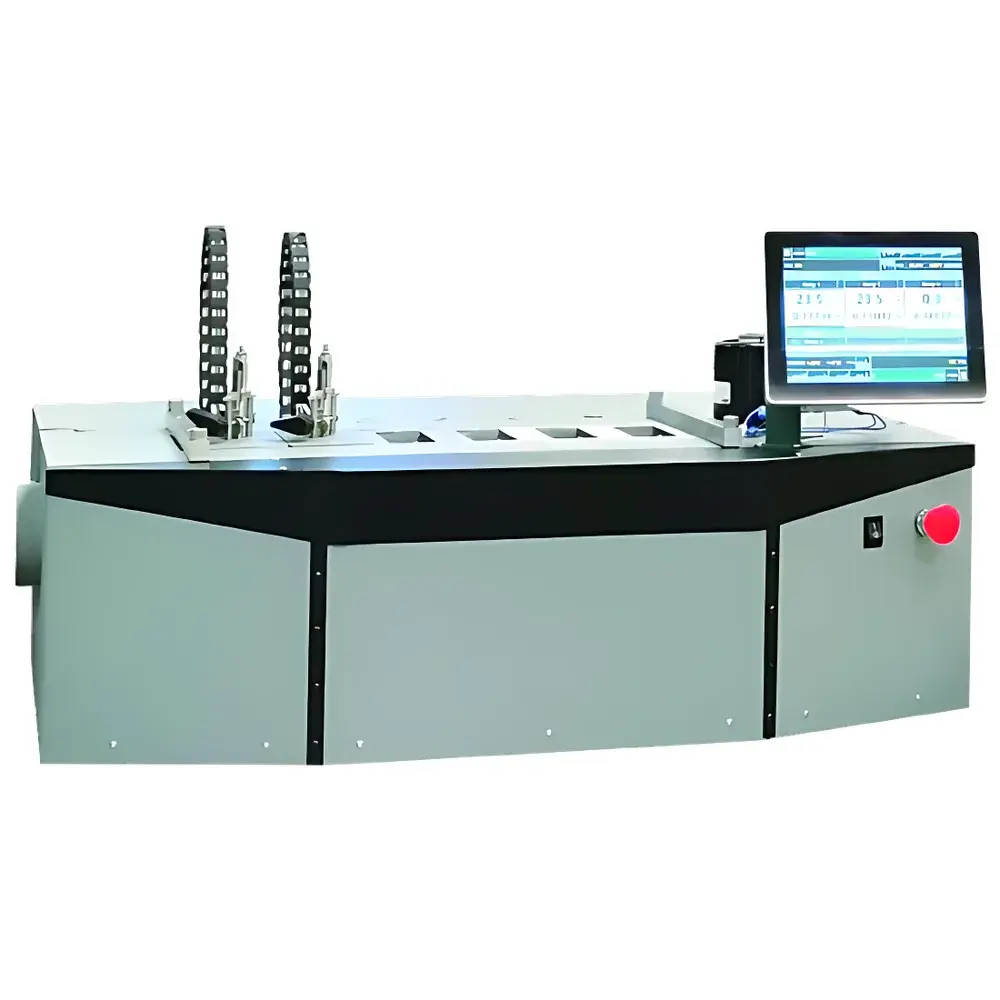

Tinius Olsen 603HDTV & 303HDTV Automated Heat Deflection Temperature (HDT) and Vicat Softening Point Tester

Overview

The Tinius Olsen 603HDTV and 303HDTV are fully automated, microprocessor-controlled instruments engineered for precise determination of Heat Deflection Temperature (HDT) per ISO 75-1/2 and ASTM D648, and Vicat Softening Temperature (VST) per ISO 306 and ASTM D1525. These systems operate on the principle of controlled thermal ramping under defined flexural load or axial penetration, measuring the temperature at which standardized polymer specimens undergo specified deformation—either deflection under three-point bending (HDT) or needle penetration under constant load (Vicat). Designed for high-throughput quality control laboratories in plastics compounding, automotive component validation, and regulatory compliance testing, both models eliminate manual intervention across heating, loading, immersion, data acquisition, and reporting phases. The architecture integrates thermally stable oil bath environments, pneumatically actuated test position lifting mechanisms, and real-time displacement feedback via high-resolution linear variable differential transformers (LVDTs), ensuring repeatability within ±0.2°C across repeated determinations under identical test conditions.

Key Features

• Fully automated test cycle execution—from specimen loading to final report generation—with single-button pneumatic actuation via handheld terminal
• Modular test station design: 603HDTV supports up to six independent test positions (base configuration: 2 stations + 4 expandable); 303HDTV supports up to three (base: 2 stations + 1 expandable)
• Dual-capability test heads configurable for either HDT (with 64 mm or 100 mm support span fixtures) or Vicat (with standardized 1 mm² or 30 mm² needles and calibrated weights)
• Air-bearing guided load rods ensure frictionless, vertically aligned force application—critical for maintaining ISO-specified stress uniformity (e.g., 0.45 MPa for HDT Type A, 1.0 MPa/5.0 MPa for Vicat)
• Integrated oil bath ventilation system actively evacuates thermal decomposition byproducts, minimizing cross-contamination and preserving bath fluid integrity over extended operation
• Real-time thermal expansion compensation algorithm automatically corrects for mechanical drift in fixture geometry during ramped heating cycles
• Heat exchanger–equipped rapid cooling module (603HDTV only) reduces post-test cooldown time by >40% versus passive oil bath recovery
• Pre-drilled mounting interfaces on test stations accommodate standardized HDT span fixtures and Vicat load assemblies without tooling adjustments

Sample Compatibility & Compliance

The 603HDTV and 303HDTV accept standard ISO/ASTM-compliant rectangular plastic specimens (e.g., 80 × 10 × 4 mm for HDT; 10 × 10 × 3–4 mm for Vicat), including rigid thermoplastics (PP, ABS, PC, PEEK), thermosets (epoxy, phenolic), and filled composites. Both models are validated for conformance with ISO 75-1:2013, ISO 75-2:2013, ISO 306:2013, ASTM D648–22, and ASTM D1525–21. Instrument qualification documentation—including Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) protocols—is available upon request. When configured with Horizon HDV software and enabled audit trail functionality, the system supports GLP and GMP environments compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures.

Software & Data Management

Horizon HDV is a Windows-based, database-driven software platform enabling full instrument control, method configuration, live monitoring, statistical process control (SPC), and regulatory-grade data management. It provides real-time plotting of temperature vs. deflection/penetration for each active test station, automatic calculation of HDT/VST endpoints per selected standard criteria, and customizable report templates exportable in HTML, PDF, or CSV formats. Built-in SPC tools generate X-bar/R charts, frequency distribution histograms, and capability indices (Cp/Cpk) directly from test result histories. The software maintains immutable audit trails for all user actions—including method edits, result overrides, and calibration events—and supports role-based access control through dual-tier password authentication (operator vs. administrator). Database maintenance functions include query-by-batch-ID, date range filtering, and secure archival export.

Applications

These testers serve critical roles in incoming raw material verification, in-process formulation screening, final product release testing, and failure analysis investigations. Typical use cases include comparative thermal stability assessment of polyamide variants under automotive under-hood conditions; qualification of flame-retardant additives in halogen-free cable jacket compounds; validation of heat resistance in medical device housings per ISO 10993-12; and supplier qualification audits requiring third-party traceable HDT/VST certification. Laboratories performing accredited testing to ISO/IEC 17025 maintain full measurement uncertainty budgets using the documented repeatability and reproducibility performance of these systems under controlled environmental conditions (23 ± 2°C, 50 ± 10% RH).

FAQ

What standards does the 603HDTV/303HDTV support?
ISO 75-1/2 (HDT), ISO 306 (Vicat), ASTM D648, and ASTM D1525 — with full parameter configurability for all load types, heating rates, and endpoint definitions.
Can the same test station perform both HDT and Vicat tests?
Yes — interchangeable load heads and fixtures allow reconfiguration between HDT three-point bending and Vicat needle penetration modes without hardware modification.
Is Horizon HDV compliant with FDA 21 CFR Part 11?
Yes — when deployed with enabled electronic signature workflows, audit trail logging, and user access controls, it meets core technical requirements for regulated environments.
What is the displacement resolution and how is it verified?
0.001 mm resolution is achieved via calibrated LVDT sensors; verification is performed during annual metrological calibration using NIST-traceable gauge blocks and thermal shims.
How does the system handle thermal expansion of fixtures during long-duration tests?
An embedded thermal drift compensation algorithm continuously adjusts displacement baselines using reference thermocouple inputs from fixture mounting points.
Are spare parts and service support available globally?
Yes — Tinius Olsen maintains authorized service centers across North America, Europe, and Asia-Pacific, with certified field engineers and guaranteed 72-hour response for critical hardware issues.
