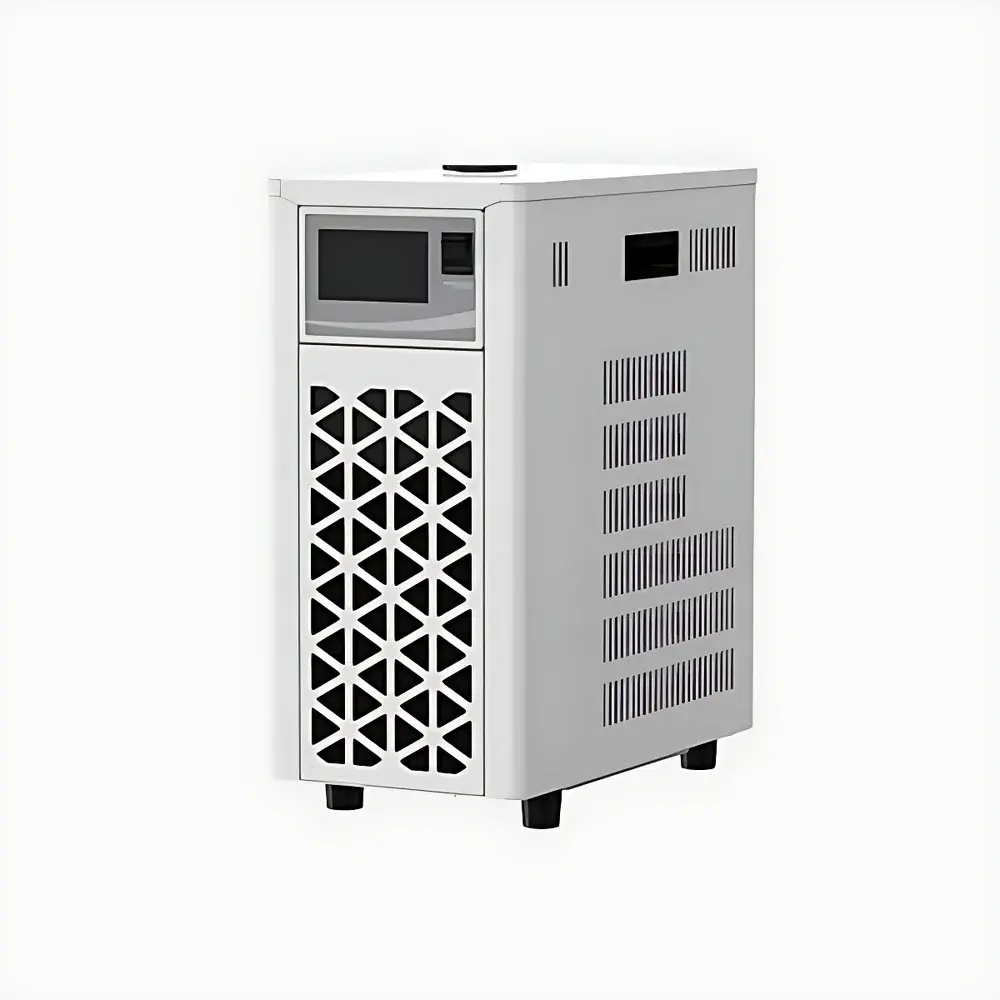

Titan HLT-0540 Integrated Low-Temperature to High-Temperature Circulating Chiller
| Brand | Titan |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | HLT-0540 |
| Instrument Type | Integrated Circulating Chiller |
| Cooling Method | Water-Cooled |
| Temperature Range | −40 °C to +100 °C |
| Refrigeration Capacity | 800 W (Heating Capacity: 1500 W) |
| Temperature Stability | ±0.05 °C |
| Pump Pressure | 0.3 bar (discharge) / 0.2 bar (suction) |
| Flow Rate | 22 L/min |
| Reservoir Volume | 4.5 L |
| Operation Mode | Continuous Duty |
Overview
The Titan HLT-0540 is an integrated low-temperature to high-temperature circulating chiller engineered for precision thermal control in demanding laboratory and industrial R&D environments. Utilizing a dual-mode refrigeration-heating system with cascade compressor architecture and PID-controlled electric heating elements, the unit maintains stable bath temperatures across a wide operational span—from cryogenic −40 °C up to +100 °C—without requiring external heat exchangers or auxiliary cooling circuits. Its water-cooled condenser design ensures consistent performance under variable ambient conditions, making it suitable for integration with calorimeters, spectrophotometers, rotary evaporators, laser systems, and material testing platforms where thermal drift must remain below ±0.05 °C over extended periods.
Key Features
- Wide temperature range of −40 °C to +100 °C with independent refrigeration and heating circuits for rapid ramping and overshoot suppression
- High-stability temperature control achieved via dual-sensor feedback loop and adaptive PID algorithm with auto-tuning capability
- Integrated water-cooled condenser with flow interlock protection, eliminating dependency on ambient air temperature fluctuations
- Stainless-steel reservoir (4.5 L capacity) with level sensor, overflow protection, and corrosion-resistant internal wetted parts compatible with aqueous and glycol-based heat transfer fluids
- High-flow circulation pump delivering 22 L/min at 0.3 bar discharge pressure and 0.2 bar suction lift—optimized for low-pressure-drop external loops up to 30 m tubing length
- Continuous-duty operation rated for 24/7 use; thermally insulated cabinet with IP20-rated electrical enclosure and CE-compliant safety circuitry
Sample Compatibility & Compliance
The HLT-0540 supports compatibility with standard laboratory heat exchange interfaces including 1/4″–3/8″ NPT and G1/4″ ports. Its fluid path is chemically inert to deionized water, 30–50% ethylene glycol/water mixtures, and silicone oil formulations commonly used in low-temperature applications. The unit conforms to IEC 61000-6-3 (EMC emission standards), IEC 61000-6-2 (immunity), and EN 61010-1:2010 for laboratory electrical equipment safety. While not certified for Class I Division 1 hazardous locations, its design meets general-purpose requirements for GLP-compliant laboratories performing method validation, stability studies, and process qualification per ISO/IEC 17025 guidelines.
Software & Data Management
The built-in digital controller features a backlit LCD interface with real-time display of setpoint, actual bath temperature, refrigeration load, pump status, and alarm history. Optional RS485 Modbus RTU communication enables integration into centralized lab monitoring systems (e.g., LabVantage, Siemens Desigo, or custom SCADA). Data logging is supported at user-defined intervals (1 s to 60 min), with timestamped CSV export via USB port. Audit trail functionality—including operator ID tagging, parameter change logs, and event timestamps—is available in firmware version 2.3+, supporting FDA 21 CFR Part 11 compliance when deployed with validated access controls and electronic signature protocols.
Applications
- Temperature stabilization of analytical instruments including HPLC column ovens, FTIR sample compartments, and XRD goniometers
- Cooling of high-power LED arrays, semiconductor test fixtures, and vacuum chamber thermal shrouds
- Controlled-rate crystallization studies and polymer processing simulations requiring precise sub-zero ramp profiles
- Calibration of thermocouples, RTDs, and infrared sensors across extended thermal ranges
- Support of accelerated aging tests per ASTM D3045 and ISO 2812-3, where thermal uniformity and repeatability are critical pass/fail criteria
FAQ
What heat transfer fluids are recommended for operation below −20 °C?
Ethylene glycol/water mixtures (40:60 v/v) or specialized low-viscosity silicone oils (e.g., DC200 series) are recommended. Avoid methanol or ethanol due to volatility and material compatibility risks.
Can the HLT-0540 be used with open-bath external systems?
Yes, provided the external loop includes a closed expansion tank and air purge valve to prevent cavitation and vapor lock at elevated temperatures.
Is remote monitoring possible without third-party software?
Basic status readout and setpoint adjustment are supported via Modbus RTU using industry-standard serial terminal emulators; full data visualization requires integration with host SCADA or LIMS platforms.
What maintenance intervals are specified for continuous operation?
Condenser cleaning every 6 months (or per facility water quality log), refrigerant leak inspection annually, and pump seal integrity verification every 24 months under typical lab usage.
Does the unit comply with energy efficiency standards such as EU ErP Directive 2019/2023?
Yes—the HLT-0540 meets Tier 2 efficiency thresholds for liquid chillers under ErP Lot 20, with measured seasonal coefficient of performance (SCOP) ≥ 2.8 at 30 °C ambient and −20 °C delivery temperature.
