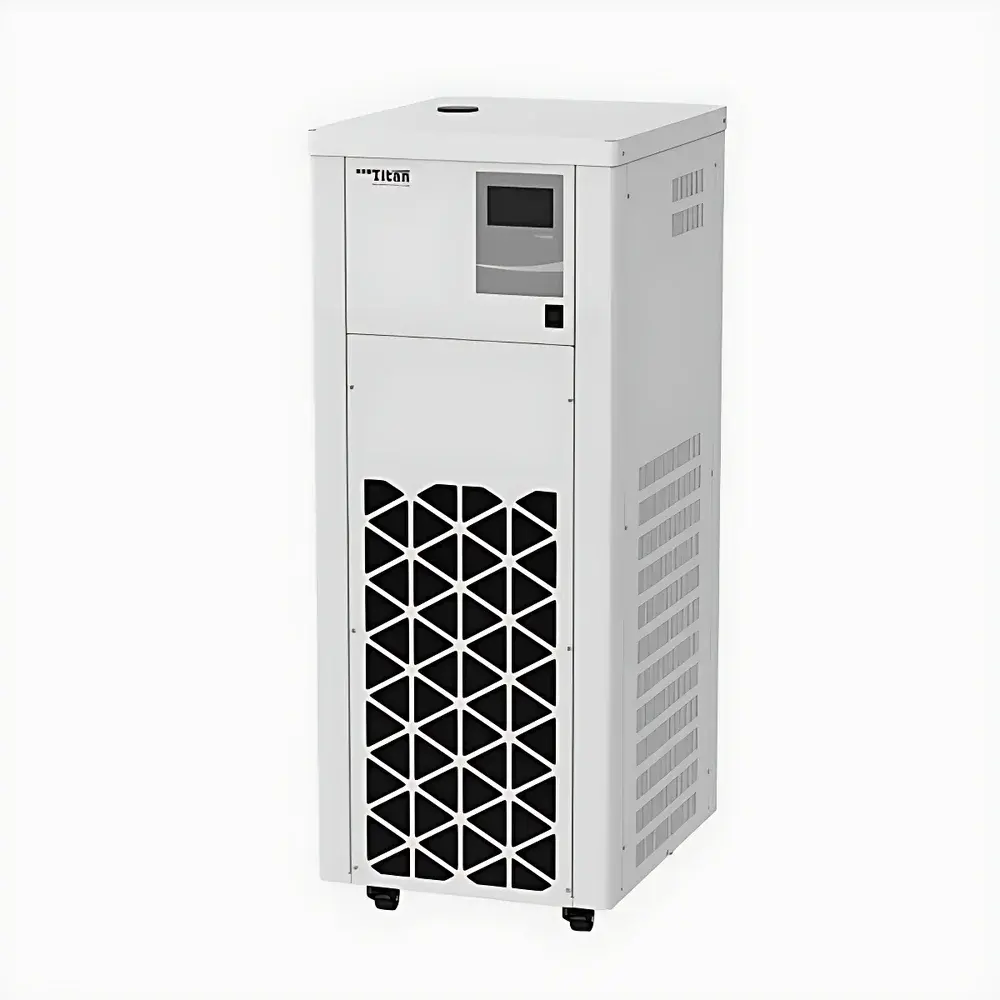

Titan HLT-2040E Integrated Circulating Chiller with Wide-Temperature Range (-40 °C to +100 °C)

Overview

The Titan HLT-2040E is an integrated wide-temperature circulating chiller engineered for high-precision thermal control in demanding laboratory and industrial R&D environments. It employs a dual-mode refrigeration-heating system based on a cascade compressor architecture combined with electric resistance heating, enabling seamless operation across a continuous range from –40 °C to +100 °C. Unlike single-stage chillers limited to sub-zero or ambient-plus ranges, the HLT-2040E maintains thermodynamic stability through active heat rejection via water-cooled condensation—making it suitable for installations where ambient air cooling is impractical or insufficient. Its closed-loop circulation design delivers consistent temperature uniformity and flow integrity to external equipment such as spectrometers, calorimeters, reactor jackets, and laser systems. The unit is constructed with corrosion-resistant stainless steel reservoirs, EPDM-compatible fluid pathways, and a fully insulated cabinet to minimize thermal drift and condensation risks during low-temperature operation.

Key Features

• Integrated design eliminates need for external pump or auxiliary controllers—reducing footprint and interconnection complexity.
• Water-cooled condenser enables stable performance in high-ambient-temperature environments (up to 40 °C inlet water at 30 °C).
• Dual PID-controlled heating and cooling circuits ensure rapid thermal response and minimal overshoot during setpoint transitions.
• High-flow, low-pulsation centrifugal circulation pump delivers up to 33.3 L/min at 0.7 bar discharge pressure—compatible with long tubing runs and high-backpressure applications.
• Temperature stability of ±0.05 °C (at 25 °C, load-independent) verified per ASTM E742-22 guidelines for thermal stability testing.
• Intelligent safety architecture includes dry-run protection, over-temperature cutoff, high/low pressure alarms, and leak detection via level sensor redundancy.

Sample Compatibility & Compliance

The HLT-2040E circulates standard heat-transfer fluids—including deionized water, 30% ethylene glycol/water mixtures, and silicone oils (viscosity ≤ 50 cSt)—without degradation of pump seals or thermal efficiency. All wetted materials comply with USP Class VI biocompatibility standards and are compatible with ISO 8573-1:2010 Class 3 compressed air interfaces when used in conjunction with external pneumatic actuators. The unit meets IEC 61010-1:2010 for electrical safety in laboratory equipment and carries CE marking under the EU Machinery Directive 2006/42/EC. Optional calibration certificates traceable to NIM (National Institute of Metrology, China) are available upon request for GLP/GMP-aligned validation protocols.

Software & Data Management

Equipped with a 5.7-inch TFT touchscreen interface, the HLT-2040E supports real-time monitoring of temperature, flow rate, pressure differential, compressor duty cycle, and fluid level. Data logging is performed at user-selectable intervals (1–300 seconds) and stored internally for up to 30 days. USB export enables CSV-formatted time-series data transfer for post-processing in MATLAB, Python, or LIMS platforms. For networked environments, optional Ethernet (TCP/IP) or RS485 Modbus RTU connectivity allows integration into centralized SCADA or MES systems. Audit trail functionality complies with FDA 21 CFR Part 11 requirements when paired with Titan’s optional SecureLog module, providing electronic signatures, user role-based access control, and immutable event logs.

Applications

• Temperature stabilization of UV-Vis, FTIR, and fluorescence spectrophotometers requiring sub-ambient detector cooling.
• Thermal conditioning of DSC, TGA, and DMA sample stages under controlled ramping and isothermal conditions.
• Circulating coolant supply for high-power laser diodes and fiber amplifiers operating between –20 °C and +80 °C.
• Process jacket cooling/heating in pilot-scale chemical reactors and crystallization vessels.
• Environmental stress screening (ESS) chambers where precise thermal cycling profiles must be maintained over extended durations.
• Calibration laboratories performing thermometer and RTD verification per ISO/IEC 17025:2017 Annex B.3.

FAQ

What fluids are recommended for operation below –20 °C?
Ethylene glycol/water (30/70 v/v) or specialized low-temperature synthetic heat-transfer fluids (e.g., Dowtherm J) are recommended. Avoid pure water below 0 °C.
Can the unit operate continuously at –40 °C ambient intake water temperature?
No—the water-cooled condenser requires inlet cooling water between 10 °C and 30 °C. Ambient water temperature outside this range compromises condensation efficiency and may trigger thermal shutdown.
Is remote start/stop and setpoint adjustment supported via digital interface?
Yes—Modbus RTU and Ethernet TCP/IP protocols support full parameter read/write access, including temperature setpoint, pump speed, and alarm thresholds.
Does the 20 L reservoir include expansion volume for thermal expansion of fluid?
Yes—the tank is rated for 20 L nominal capacity with 15% headspace reserved for volumetric expansion across the full operating range.
What maintenance intervals are specified for compressor oil and filter replacement?
Compressor oil and dryer filter replacement is required every 12 months or 4,000 operating hours—whichever occurs first—under normal laboratory usage conditions.
