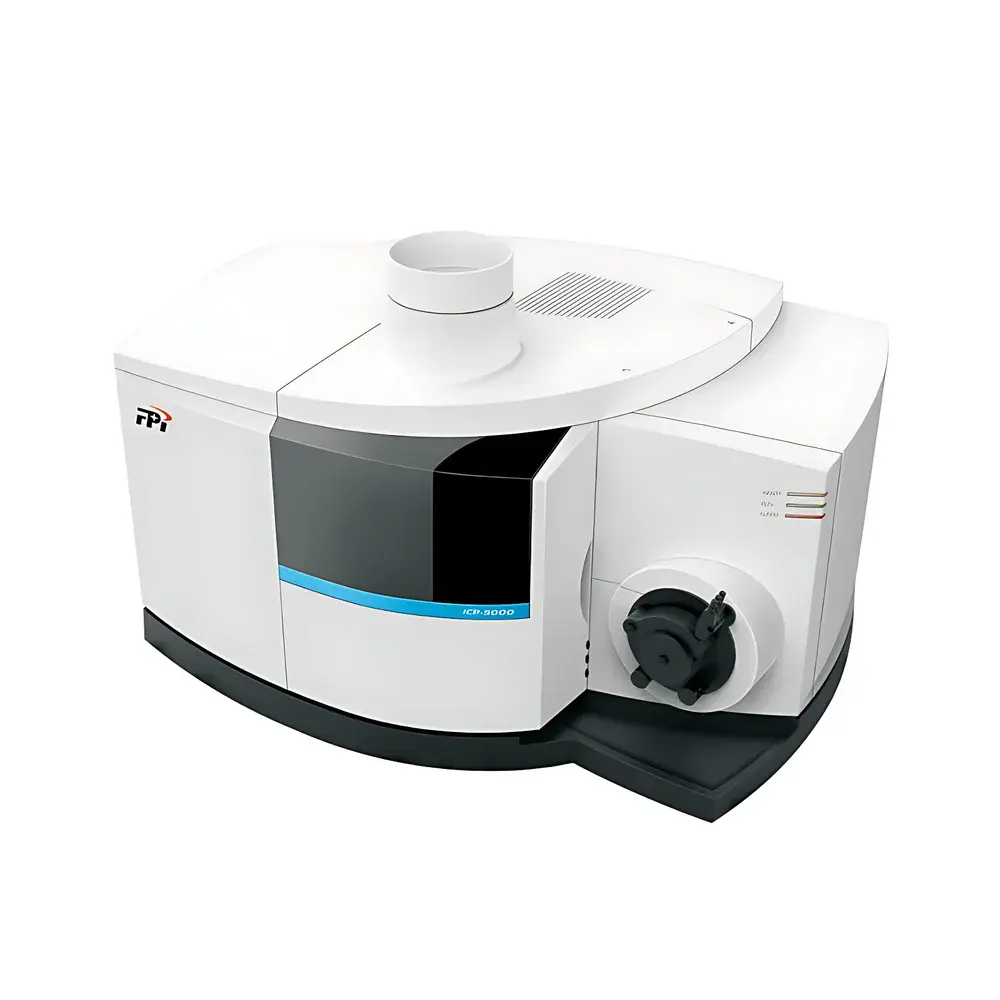

Titan Instruments ICP-5000 Inductively Coupled Plasma Optical Emission Spectrometer (ICP-OES)

Overview

The Titan Instruments ICP-5000 is a full-spectrum direct-reading inductively coupled plasma optical emission spectrometer (ICP-OES) engineered for high-throughput, multi-element quantitative analysis in regulated and research laboratory environments. It employs a robust echelle-based two-dimensional dispersion optical system coupled with a self-excited all-solid-state RF generator (27.12 MHz) and a scientific-grade, back-illuminated CCD detector. This architecture enables simultaneous acquisition across the entire spectral range (165–870 nm), supporting concurrent quantification of up to 72 elements—including alkali metals, transition metals, rare earths, and non-metals such as P, S, and Cl—without sequential wavelength scanning. The instrument operates on the fundamental principle of atomic emission spectroscopy: sample aerosols are nebulized, desolvated, atomized, and excited within a high-temperature argon plasma (~6,000–10,000 K), where element-specific emission lines are resolved by the echelle grating and detected with sub-nanometer spectral fidelity. Its design targets laboratories requiring regulatory-compliant elemental analysis with high reproducibility, low operational overhead, and long-term measurement stability.

Key Features

• Echelle optical system with cross-dispersion prism for true two-dimensional spectral separation, delivering high resolving power (≤ 0.007 nm at 200 nm) and minimal spectral overlap.
• Back-illuminated, UV-enhanced CCD detector with >90% quantum efficiency in the far-UV (165–200 nm), eliminating phosphor-coated fluorescence layers and extending detector service life.
• All-fixed optical path: no moving gratings, mirrors, or slits—ensuring mechanical stability and long-term wavelength calibration integrity.
• Integrated mass-flow-controlled argon delivery system with real-time pressure and flow monitoring; supports both coolant and auxiliary gas regulation with closed-loop feedback.
• Modular, quick-release torch assembly with motorized auto-alignment and plasma optimization routines—reducing setup time and operator dependency.
• Patented low-flow purge system for the sealed optical chamber, reducing argon consumption by up to 40% versus conventional purged spectrometers without compromising spectral signal-to-noise ratio.

Sample Compatibility & Compliance

The ICP-5000 accommodates liquid samples introduced via concentric glass or V-groove nebulizers, with optional integration of ultrasonic nebulization (USN), hydride generation (HG), or laser ablation (LA) modules for solid sampling. It meets core performance criteria outlined in ASTM D1976, ISO 11885, EPA Method 200.7 and 200.8, and GB/T 30432–2013 (Chinese national standard for ICP-OES). While not pre-certified for 21 CFR Part 11, its software architecture supports audit-trail-enabled user authentication, electronic signatures, and version-controlled method storage—facilitating alignment with GLP and GMP documentation requirements during internal validation.

Software & Data Management

The Titan ICP Analysis Suite provides a hierarchical interface: novice users access guided workflows with embedded QC checks (e.g., drift correction, internal standard normalization), while advanced users configure custom spectral windows, multi-line integration, and matrix-matched calibration curves. All methods are stored in versioned archives with metadata tagging (date, operator, instrument ID, calibration status). Raw spectral data (.spe) and processed results (.csv/.xlsx) are exportable with full traceability. The software logs all instrument events—including plasma ignition, gas flow deviations, and detector saturation alerts—in a tamper-evident event log compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Environmental Monitoring: Quantification of trace metals (As, Cd, Cr, Pb, Hg) in wastewater, soil extracts, and drinking water per EPA regulatory thresholds.
• Geological & Mining: Multi-element profiling of rock digests and ore concentrates for exploration geochemistry and grade control.
• Food & Agriculture: Screening for toxic elements (e.g., Cd in rice, As in apple juice) and nutrient minerals (Ca, Mg, Fe, Zn) in compliance with Codex Alimentarius and EU Regulation No. 1881/2006.
• Materials Science: Impurity verification in high-purity metals, catalysts, and semiconductor precursors at sub-ppb levels.
• Clinical & Biological Research: Elemental mapping in tissue digests and cell culture media—particularly for essential (Cu, Zn, Se) and toxic (Al, Ni) metals.

FAQ

Does the ICP-5000 support regulatory compliance for pharmaceutical or clinical labs?
It provides foundational capabilities required for elemental impurity testing (e.g., ICH Q3D), but final compliance depends on site-specific validation per USP , EP 2.4.20, and internal SOPs. Titan offers IQ/OQ documentation templates and on-site protocol assistance.

What maintenance intervals are recommended for the RF generator and nebulizer?
The solid-state RF generator requires no routine maintenance beyond annual power output verification. Nebulizers should be inspected weekly and replaced every 3–6 months depending on sample matrix acidity and suspended solids content.

Can the system analyze HF-digested samples without corrosion risk?
Yes—the sample introduction system includes PFA and quartz components rated for hydrofluoric acid exposure; however, post-run rinsing with 1% HNO₃ and DI water is mandatory to prevent residue buildup.
