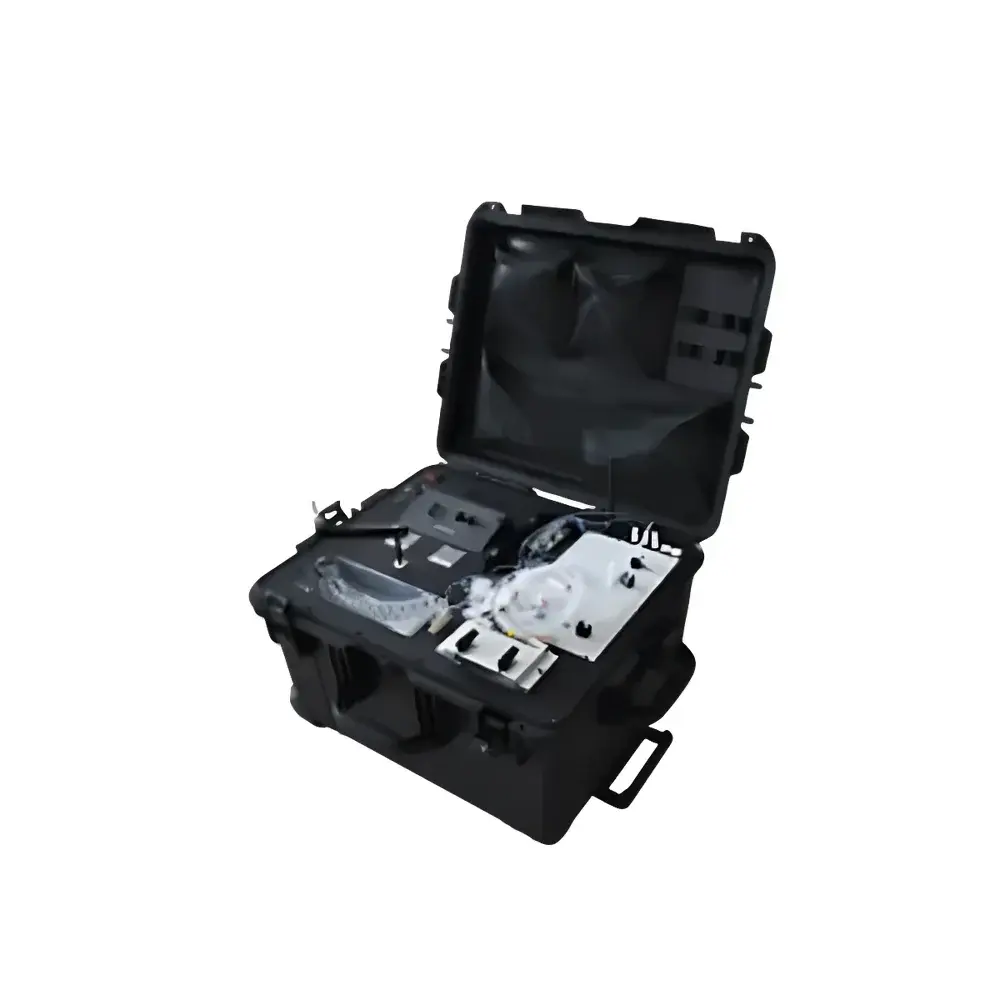

Titan Instruments M-lab iFIA5+ Portable Flow Injection Analyzer

Overview

The Titan Instruments M-lab iFIA5+ Portable Flow Injection Analyzer is a field-deployable analytical platform engineered for rapid, reliable quantification of priority water quality parameters in environmental emergency response scenarios. It implements the well-established flow injection analysis (FIA) technique—where discrete sample zones are introduced into a continuous carrier stream, segmented by air bubbles or immiscible barriers—and couples it with dual-beam spectrophotometric detection. This configuration minimizes baseline drift, compensates for lamp intensity fluctuations and cuvette fouling, and ensures high photometric stability under variable ambient conditions. Unlike conventional benchtop FIA systems, the M-lab iFIA5+ integrates all core fluidic, optical, thermal, and control subsystems into a single ruggedized transport case compliant with IEC 60529 IP67 and IK08 impact resistance standards. Its modular architecture supports immediate deployment from emergency response vehicles, mobile laboratories, or unpowered field sites, eliminating dependency on fixed infrastructure while maintaining metrological integrity traceable to NIST-certified reference materials.

Key Features

• Integrated portable chassis: Custom-molded roll-alloy case with telescopic handle, shoulder strap anchors, and TSA-approved lockable latches; certified for air travel and submersion to 1 m for ≥30 minutes.
• Intelligent flow path management: Microprocessor-controlled solenoid valves and pressure-regulated peristaltic pump modules enable precise segment timing, reproducible injection volumes (±0.5% RSD), and stable flow rates across temperature gradients from –10 °C to +45 °C.
• On-board pre-treatment capability: Integrated thermal digestion (up to 120 °C), steam distillation, and solvent extraction modules eliminate manual sample preparation, reducing analyst exposure and turnaround time per sample to under 90 seconds for most EPA-listed analytes.
• Dual-beam optical detection system: Compact, vibration-damped monochromator with thermally stabilized deuterium/tungsten light sources and matched photodiode detectors; spectral bandwidth ≤2.5 nm, absorbance range 0–3.0 AU with <0.001 AU baseline noise.
• Embedded analytical software: Preloaded with validated methods per ASTM D3869 (cyanide), ISO 15681-2 (phosphate), and EPA Method 354.1 (nitrate); includes real-time chromatogram visualization, automatic peak integration, calibration curve fitting (linear/log-linear), and electronic signature-enabled data export compliant with 21 CFR Part 11 requirements.

Sample Compatibility & Compliance

The M-lab iFIA5+ accepts raw, filtered, or centrifuged aqueous samples—including surface water, groundwater, wastewater effluents, and drinking water—with minimal pretreatment. Its chemically resistant PTFE/PFA fluidic pathways and corrosion-resistant stainless-steel manifolds tolerate chloride concentrations up to 20,000 mg/L and pH ranges from 2.0 to 12.0. The system meets design criteria for GLP and GMP environments: full audit trail logging (user actions, method changes, calibration events), password-protected access levels, and timestamped raw data archiving. All onboard chemistry modules adhere to ISO/IEC 17025 validation protocols, and method performance data—including MDL, LOD, precision (RSD <3%), and spike recovery (85–115%)—are documented in the instrument’s Certificate of Conformance.

Software & Data Management

The Titan iFIA Control Suite runs on an embedded Linux OS with a responsive touchscreen interface. It features hierarchical navigation, context-sensitive help, and automated diagnostics that identify blockages, air bubble formation, or photometric saturation before analysis begins. Data files are stored in vendor-neutral CSV and XML formats, supporting direct import into LIMS platforms via secure FTP or TLS-encrypted Wi-Fi. Remote firmware updates, method synchronization across multiple units, and centralized fleet monitoring are supported through Titan’s CloudConnect portal—accessible via browser without proprietary client installation. All user interactions generate immutable logs meeting FDA 21 CFR Part 11 Annex 11 requirements for electronic records and signatures.

Applications

The M-lab iFIA5+ delivers regulatory-grade results for field-based compliance monitoring and incident response. Key applications include: real-time assessment of cyanide releases following industrial accidents; tracking phenol plumes near petrochemical facilities; quantifying nutrient loads (NH₄⁺, NO₃⁻/NO₂⁻, PO₄³⁻) during algal bloom events; verifying Cr(VI) remediation efficiency at brownfield sites; and screening for anionic surfactants in municipal wastewater discharges. Its modularity also supports custom method development for emerging contaminants—such as glyphosate or microcystins—using derivatization chemistries compatible with FIA hyphenation.

FAQ

What power sources does the M-lab iFIA5+ support?
It operates on 100–240 V AC (50/60 Hz) or optional hot-swappable Li-ion battery packs (≥8 h runtime at 25 °C).
Can the system be calibrated remotely?
Yes—calibration curves can be uploaded wirelessly, and multi-point standardizations may be initiated and verified via the cloud dashboard.
Is method validation documentation provided?
Each shipped unit includes a complete validation package: MDL studies, interlaboratory precision reports, and traceability statements aligned with ISO/IEC 17025 Clause 7.7.
How is maintenance tracked?
The system logs pump tube usage hours, valve actuation cycles, and lamp operating time; alerts trigger at predefined service thresholds and auto-generate work orders in Titan’s ServiceLink portal.
Does it support third-party autosamplers?
It interfaces natively with Titan’s AS-200 series (50–300 positions) via RS-485; non-Titan samplers require Modbus RTU protocol compatibility verification.
