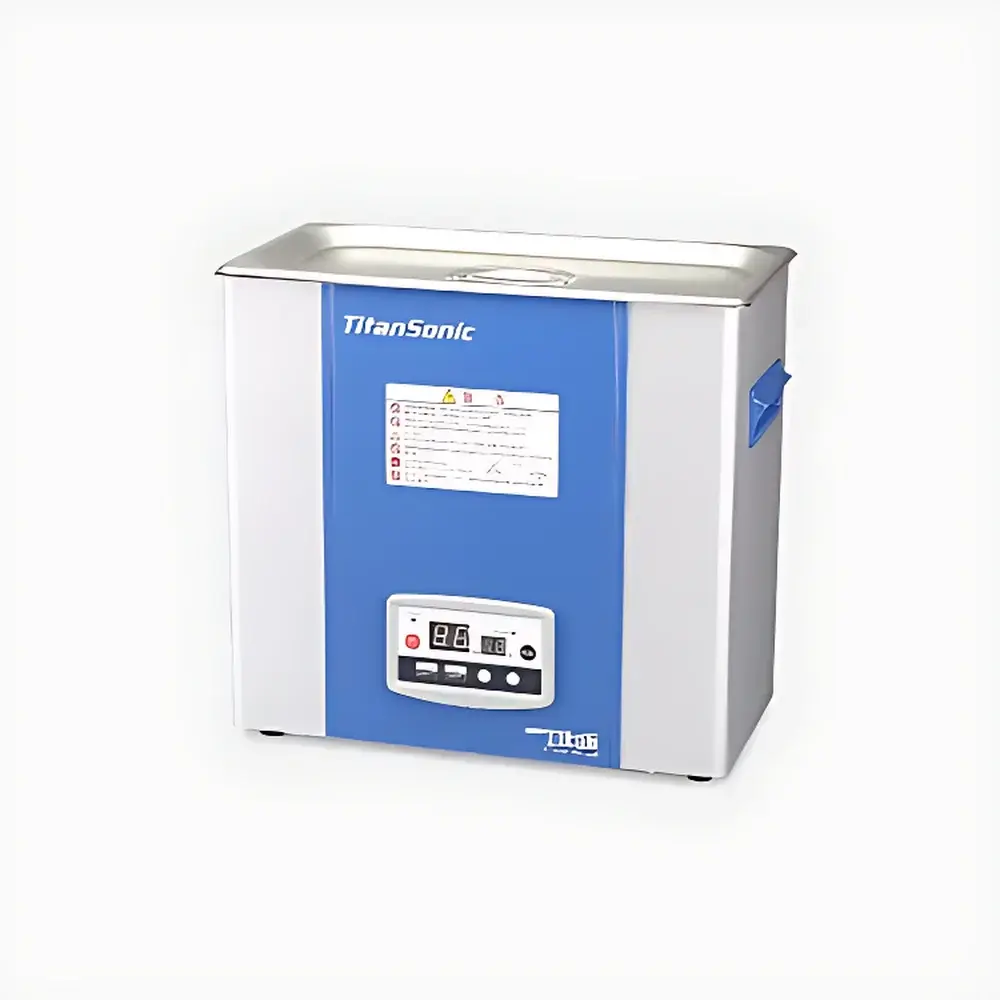

Titan UC-6H 6L Heated Ultrasonic Cleaner

Overview

The Titan UC-6H is a benchtop heated ultrasonic cleaner engineered for precision cleaning of delicate laboratory components—including glassware, pipette tips, surgical instruments, optical lenses, and microfluidic devices—where particulate removal, solvent-assisted degreasing, and gentle yet effective cavitation are required. It operates on the principle of piezoelectric transduction: high-frequency electrical signals (35 kHz) drive ceramic transducers bonded to the stainless-steel tank bottom, generating controlled acoustic pressure waves in the cleaning medium. These waves produce transient microcavitation bubbles that collapse near surfaces, releasing localized energy sufficient to dislodge sub-micron contaminants without mechanical abrasion. Integrated heating enables temperature-controlled cleaning protocols critical for enhancing detergent efficacy, reducing surface tension, and accelerating dissolution of organic residues—particularly relevant in QC labs, semiconductor R&D, and medical device reprocessing workflows.

Key Features

• Stainless-steel tank (304 grade) with 6 L usable capacity—optimized for uniform energy distribution and corrosion resistance in aqueous and mild solvent-based solutions.
• Precise digital control interface with independent adjustment of ultrasonic power (100% fixed at 180 W), temperature (20–69 °C in 1 °C increments), and timer (1–99 minutes in 1-minute steps).

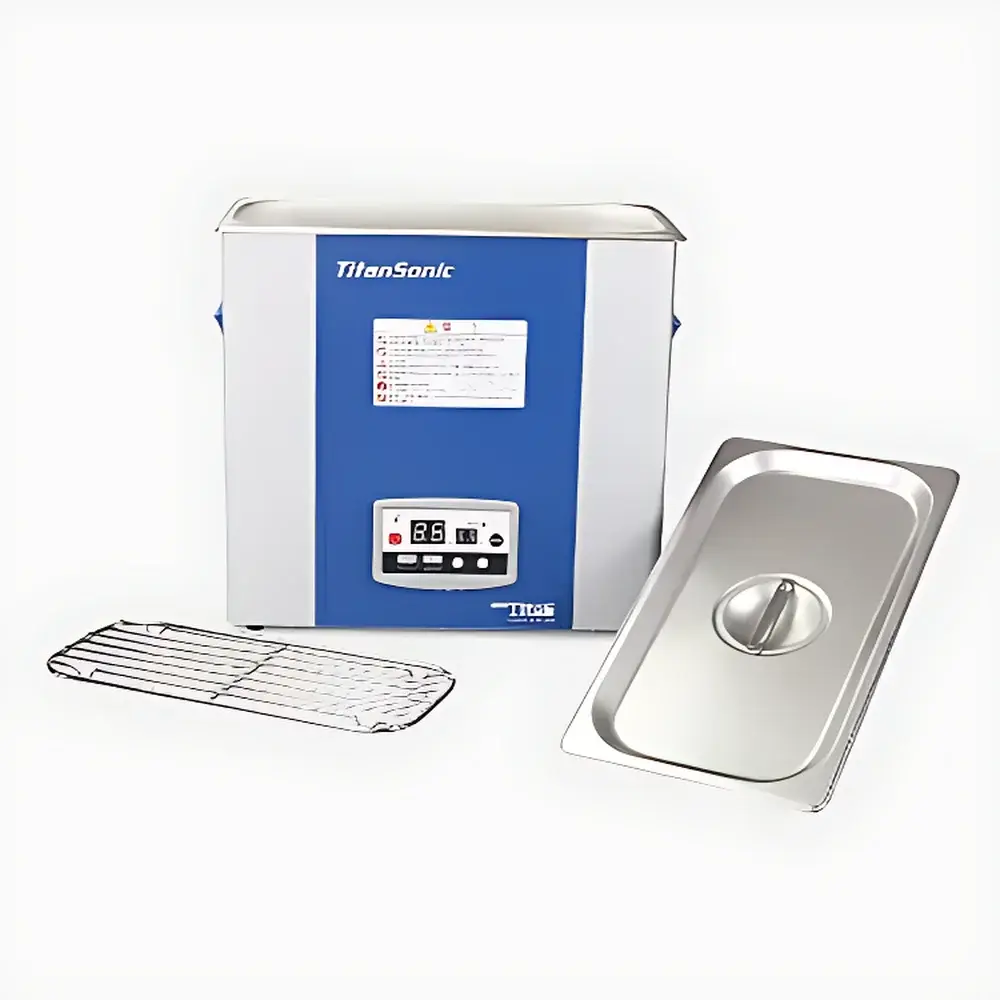

• Integrated sound-dampening lid with safety interlock—reduces ambient noise to ≤55 dB(A) at 1 m distance and prevents solvent evaporation during heated operation.
• Over-temperature and dry-run protection circuits ensure operational safety and extend transducer service life under variable load conditions.
• Compact footprint (300 × 240 × 320 mm) with non-slip rubber feet—designed for integration into ISO Class 5–7 clean benches or shared lab workstations.

Sample Compatibility & Compliance

The UC-6H accommodates standard laboratory vessels up to 150 mm in height and 120 mm in diameter. Compatible sample types include borosilicate glassware, stainless-steel tools, anodized aluminum fixtures, and polymer substrates rated for continuous exposure to 70 °C. The unit meets IEC 61000-6-3 (EMC emission limits) and IEC 61010-1 (safety requirements for electrical equipment for measurement, control, and laboratory use). While not certified for sterile processing per ISO 17664 or AAMI ST79, it supports GLP-compliant cleaning validation when paired with documented SOPs, calibrated thermometers, and traceable time/temperature logs.

Software & Data Management

The UC-6H operates via embedded firmware with no external software dependency. All operating parameters are stored in non-volatile memory and retained after power cycling. For audit readiness in regulated environments (e.g., pharmaceutical QC labs adhering to FDA 21 CFR Part 11), users may implement manual logbooks or integrate the unit into facility-wide electronic lab notebook (ELN) systems via timestamped operator entries. Optional external data loggers (e.g., HOBO UX100 series) can record real-time bath temperature for process verification—though the unit itself does not provide USB/RS232 output or cloud connectivity.

Applications

• Pre-analytical preparation of HPLC vials and autosampler needles to eliminate carryover contamination.
• Cleaning of MEMS sensors and wafer-level packaging substrates prior to metrology or bonding steps.
• Removal of flux residues from PCB assemblies in electronics reliability testing labs.
• Routine decontamination of reusable endoscopic accessories in clinical research settings (non-sterile level).
• Supporting ASTM D2240 (Shore hardness) sample conditioning where surface residue must be eliminated prior to indentation testing.

FAQ

Is the UC-6H suitable for cleaning delicate optics or coated lenses?

Yes—when used with low-surface-tension, non-ionic detergents (e.g., Alconox Liquinox) and temperatures ≤45 °C, the 35 kHz frequency provides sufficient cavitation intensity for particulate removal while minimizing risk of coating erosion.
Can this unit operate continuously for extended cycles?

It is rated for intermittent duty: maximum 30 minutes of ultrasonic activation followed by ≥10 minutes of rest to prevent thermal stress on transducers. Continuous operation beyond 45 minutes requires active cooling or external chiller integration.
Does the heater maintain setpoint accuracy across varying load volumes?

Temperature stability is ±2 °C at full 6 L fill with water; deviation increases to ±3.5 °C at 1 L fill due to reduced thermal mass—users should calibrate setpoints empirically for low-volume applications.
What cleaning solutions are compatible with the UC-6H?

Aqueous alkaline, neutral, and mildly acidic formulations are approved. Avoid halogenated solvents (e.g., chloroform), strong oxidizers (e.g., >5% hydrogen peroxide), and undiluted ethanol—these may degrade seals or accelerate tank pitting.
Is third-party calibration or certification available?

Titan provides factory calibration certificates for temperature and timer functions. NIST-traceable recalibration services are offered through authorized regional service centers upon request—valid for 12 months under normal usage conditions.
