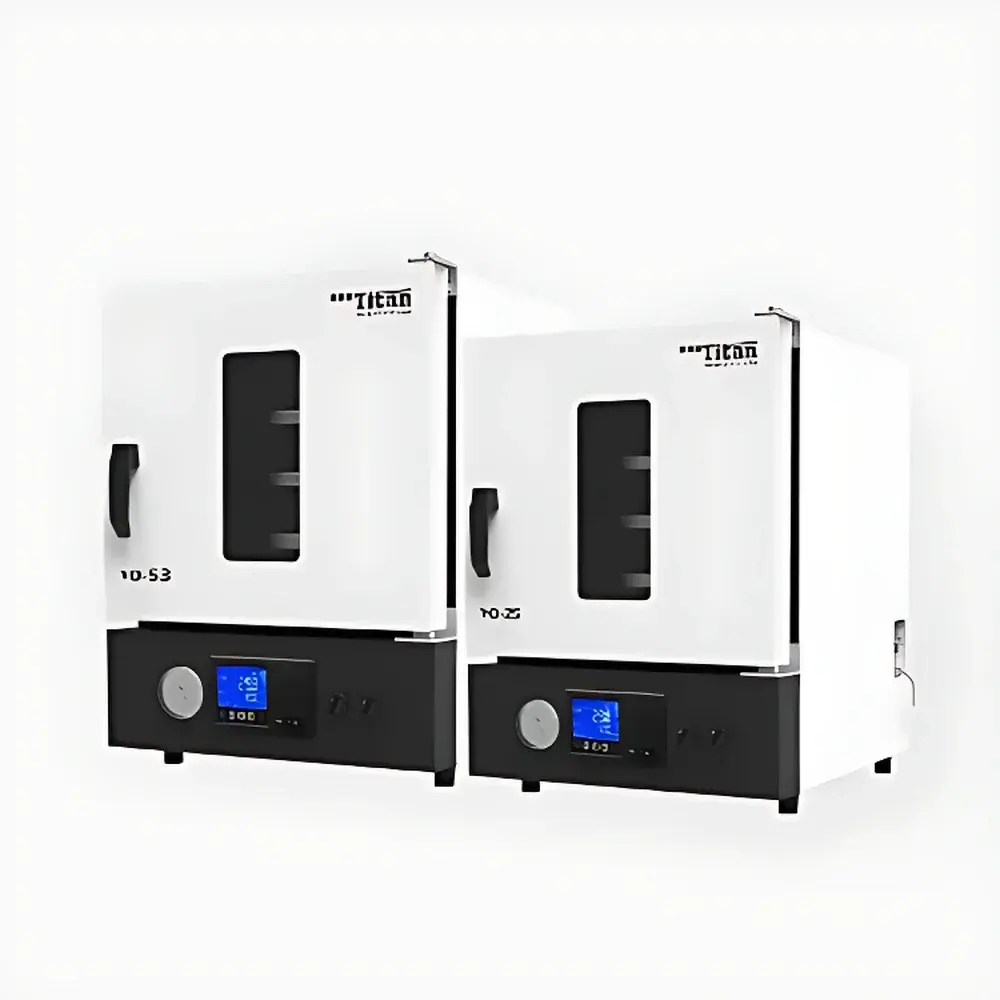

Titan VO-53 Vacuum Oven
| Brand | Titan |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | VO-53 |
| Price | USD 1,980 (FOB Shanghai) |
Overview
The Titan VO-53 Vacuum Oven is an entry-level, benchtop vacuum drying system engineered for precision moisture removal, solvent recovery, and thermal stabilization of heat-sensitive or oxidation-prone samples. It operates on the fundamental principle of reducing ambient pressure inside the chamber to lower the boiling point of volatile substances—enabling drying at significantly lower temperatures than conventional convection ovens. This thermodynamic advantage preserves sample integrity during processing of pharmaceutical intermediates, polymer precursors, lithium battery cathode materials, analytical standards, and biological specimens. The VO-53 features a stainless-steel inner chamber (304 grade), dual-stage mechanical vacuum pump interface (compatible with common 2L/min rotary vane pumps), and PID-controlled heating system with ±1.5 °C temperature uniformity across the working volume (20–250 °C range).
Key Features
- Stainless-steel chamber (304 SS) with reinforced tempered glass viewport and silicone-sealed door for long-term vacuum integrity
- Integrated digital vacuum gauge (0–760 Torr, resolution 1 Torr) with real-time display and manual venting valve
- PID temperature controller with programmable ramp-soak profiles (up to 3 segments), auto-tuning, and over-temperature cutoff (dual independent sensors)
- Benchtop footprint (W450 × D420 × H480 mm) optimized for QC labs and R&D workstations
- Front-panel USB port for firmware updates; RS-485 interface available for optional SCADA integration
- CE-compliant electrical architecture with reinforced insulation and grounded chassis per IEC 61010-1
Sample Compatibility & Compliance
The VO-53 accommodates standard laboratory glassware including weighing bottles (up to Φ120 mm), Petri dishes, and aluminum sample pans. Its maximum chamber volume (53 L) supports batch processing of up to 12 × 100 mL containers simultaneously. The oven meets ISO 5725-2:2019 requirements for repeatability in gravimetric moisture analysis when operated under validated protocols. It supports GLP-compliant workflows through configurable data logging (timestamped temperature/vacuum traces stored internally for ≥30 days) and optional audit trail add-on firmware. While not certified for Class I Div 1 hazardous locations, it complies with ATEX Category 3G guidelines for non-explosive atmospheres when used with approved external vacuum pumps.
Software & Data Management
The VO-53 operates autonomously via its embedded controller but supports optional PC-based monitoring via Titan’s free OvenLink™ software (Windows 10/11, 64-bit). OvenLink enables remote parameter adjustment, real-time graphing of chamber temperature and absolute pressure, CSV export of time-stamped datasets (with UTC timestamps), and generation of PDF reports compliant with FDA 21 CFR Part 11 Annex 11 requirements—including electronic signatures, user access levels (admin/operator), and immutable log history. All internal logs are write-protected and retain metadata such as operator ID, session start/stop, and deviation alerts.
Applications
- Residual solvent determination in APIs per USP <467> using vacuum-assisted desorption
- Drying of hygroscopic reference standards prior to Karl Fischer titration
- Thermal aging studies of encapsulants and dielectric films under inert gas purge (N₂ or Ar inlet port optional)
- Pre-conditioning of electrode slurries for lithium-ion battery R&D
- Moisture content verification in food-grade packaging polymers (ASTM D6400, ISO 15512)
- Stabilization of calibration weights and metrology artifacts in humidity-controlled environments
FAQ
What vacuum level can the VO-53 achieve with a standard 2 L/min pump?
Typical ultimate vacuum is 10–20 Torr (1.3–2.7 kPa) at room temperature after 30 minutes of pumping—sufficient for most low-boiling solvent removal and moisture desorption applications.
Is the chamber pressure calibrated traceable to NIST standards?
The built-in vacuum sensor is factory-calibrated against a NIST-traceable reference transducer; calibration certificate (ISO/IEC 17025 accredited) is available upon request at additional cost.
Can the VO-53 be used for outgassing of ultra-high vacuum components?
No—it is not designed for UHV applications (<10⁻³ Torr). Its architecture targets industrial QC and academic research use cases requiring moderate vacuum performance and thermal stability.
Does Titan provide IQ/OQ documentation for GMP environments?
Yes—validated installation qualification (IQ) and operational qualification (OQ) templates are included with purchase; full protocol execution and third-party certification services are available through authorized Titan validation partners.
