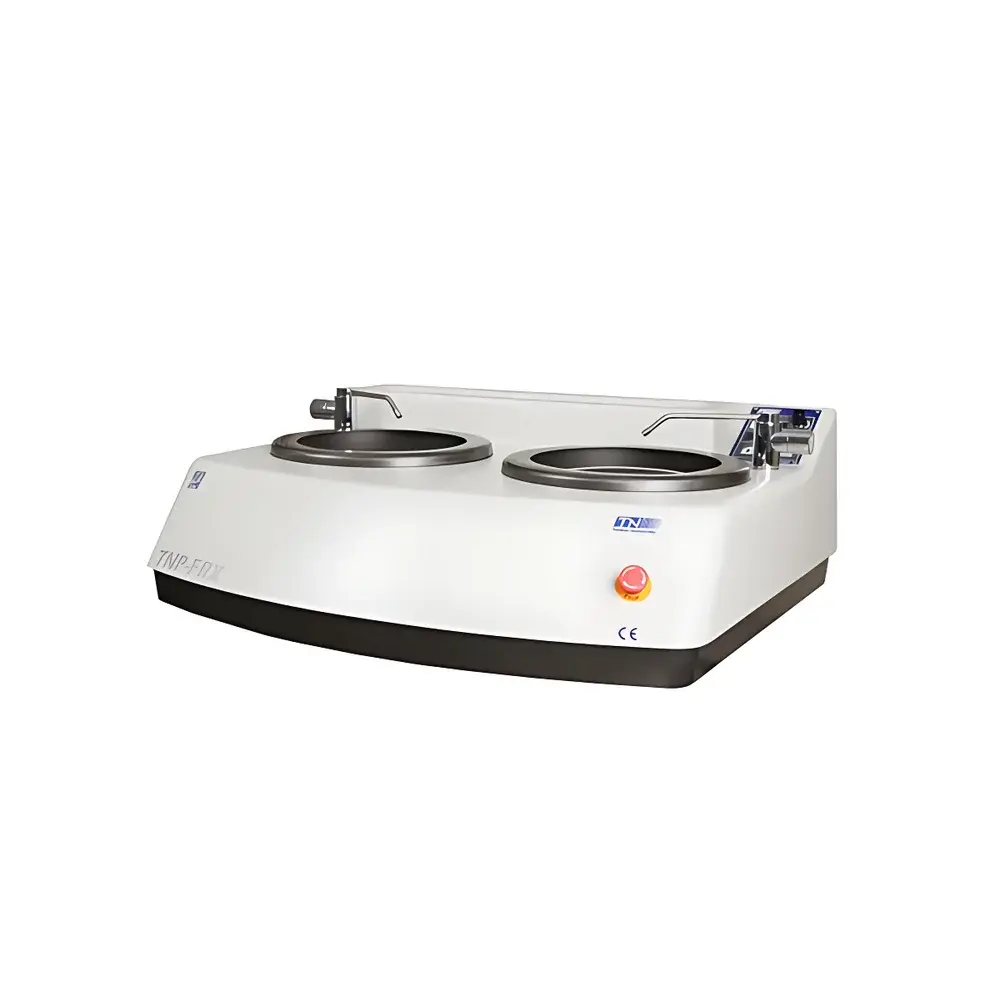

TN Testing TNP-2025FRX Manual Dual-Disc Metallographic Grinding and Polishing Machine

Overview

The TN Testing TNP-2025FRX is a manually operated, dual-disc metallographic grinding and polishing system engineered for precision sample preparation in metallurgical, materials science, and failure analysis laboratories. It employs a fixed-speed, counter-rotating disc configuration—each 200 mm in diameter—operating at a nominal 800 rpm to deliver consistent material removal and surface planarization across diverse metallic, ceramic, and composite specimens. Designed around core principles of mechanical abrasion and hydrodynamic lubrication, the system integrates controlled coolant delivery, vibration-dampening structural architecture, and ergonomic workflow optimization to support reproducible ISO 14723-compliant metallographic sectioning, grinding, and final polishing protocols. Its cast aluminum base provides superior thermal stability and dynamic rigidity compared to conventional cast iron alternatives, minimizing runout and enhancing flatness retention during extended operation.

Key Features

• Robust cast aluminum base with integrated high-efficiency transmission assembly—engineered to absorb operational vibration and improve surface flatness repeatability.
• Dual 200 mm grinding/polishing discs with independent manual control; compatible with standard diamond-impregnated, silicon carbide, and alumina-based consumables via quick-change magnetic adapter plates.
• Triangular-section anti-clogging water channel design using corrosion-resistant stainless steel and ceramic nozzle components—optimized for consistent coolant flow and reduced maintenance downtime.
• Waterproof membrane keypad interface with nine programmable parameter sets, storing disc speed, cycle duration, and stage-specific timing for multi-step preparation workflows.
• FRP (fiberglass-reinforced polymer) enclosure—chemically resistant, non-porous, and easy to decontaminate—reducing cross-contamination risk and simplifying routine cleaning per GLP laboratory hygiene standards.
• Ergonomic tool and specimen storage compartment integrated into the chassis, supporting ISO/IEC 17025-aligned workspace organization and minimizing bench clutter.

Sample Compatibility & Compliance

The TNP-2025FRX accommodates standard metallographic mounts (up to 30 mm diameter), hot-pressed resin-embedded specimens, and unmounted bulk samples requiring edge retention. It supports ASTM E3, ISO 14723, and EN 10365-compliant preparation sequences—including coarse grinding (SiC papers), intermediate lapping (diamond suspensions), and fine polishing (colloidal silica or alumina slurries). The machine’s structural damping and disc concentricity meet requirements for producing specimens suitable for subsequent SEM-EDS, optical microscopy, and microhardness testing. All electrical components comply with IEC 61000-6-2/6-4 EMC standards; optional liner kits facilitate traceability and contamination control in regulated environments subject to FDA 21 CFR Part 11 or ISO 9001 audit requirements.

Software & Data Management

As a manually operated instrument, the TNP-2025FRX does not incorporate embedded firmware or network connectivity. However, its 9-step parameter memory function enables traceable, repeatable process documentation when paired with laboratory information management systems (LIMS) or electronic lab notebooks (ELN). Each stored profile includes disc rotational speed, total active time per stage, and optional operator ID tagging via external logging—supporting ALCOA+ data integrity principles (Attributable, Legible, Contemporaneous, Original, Accurate). The waterproof keypad ensures reliable input registration under humid, wet-bench conditions typical of metallography labs.

Applications

• Preparation of ferrous and non-ferrous alloys for grain structure analysis, inclusion rating (ASTM E45), and phase identification.
• Surface conditioning of additively manufactured (AM) metal parts prior to porosity or defect evaluation.
• Routine QC/QA sample prep in foundries, heat treatment facilities, and aerospace component suppliers.
• Academic research involving intermetallic compounds, refractory metals, and ceramic matrix composites.
• Forensic metallurgy and failure analysis where specimen integrity and edge preservation are critical.

FAQ

Is the TNP-2025FRX compatible with automated force-controlled grinding units?
No—it is a manually operated dual-disc system without motorized load application or closed-loop pressure feedback. Force control must be applied externally by the operator.
Can the water delivery system accommodate abrasive slurries or only deionized water?
The stainless steel/ceramic nozzle and triangular channel design are rated for low-viscosity aqueous slurries (e.g., 0.05–1.0 µm colloidal silica, 3–6 µm diamond suspensions) but not high-solids-content pastes.
What maintenance intervals are recommended for the transmission unit?
Under normal usage (≤4 hrs/day), gear oil inspection is advised every 500 operating hours; full replacement every 2,000 hours per TN Testing service bulletin TB-TNP-2025-03.
Does the removable liner meet USP endotoxin testing requirements?
The optional liner is fabricated from medical-grade polypropylene and is autoclavable; however, endotoxin certification requires third-party validation per individual lab SOPs.
Is CE marking available for export to EU member states?
Yes—the TNP-2025FRX carries CE marking under Machinery Directive 2006/42/EC and RoHS 2011/65/EU compliance, documented in the supplied Declaration of Conformity.
