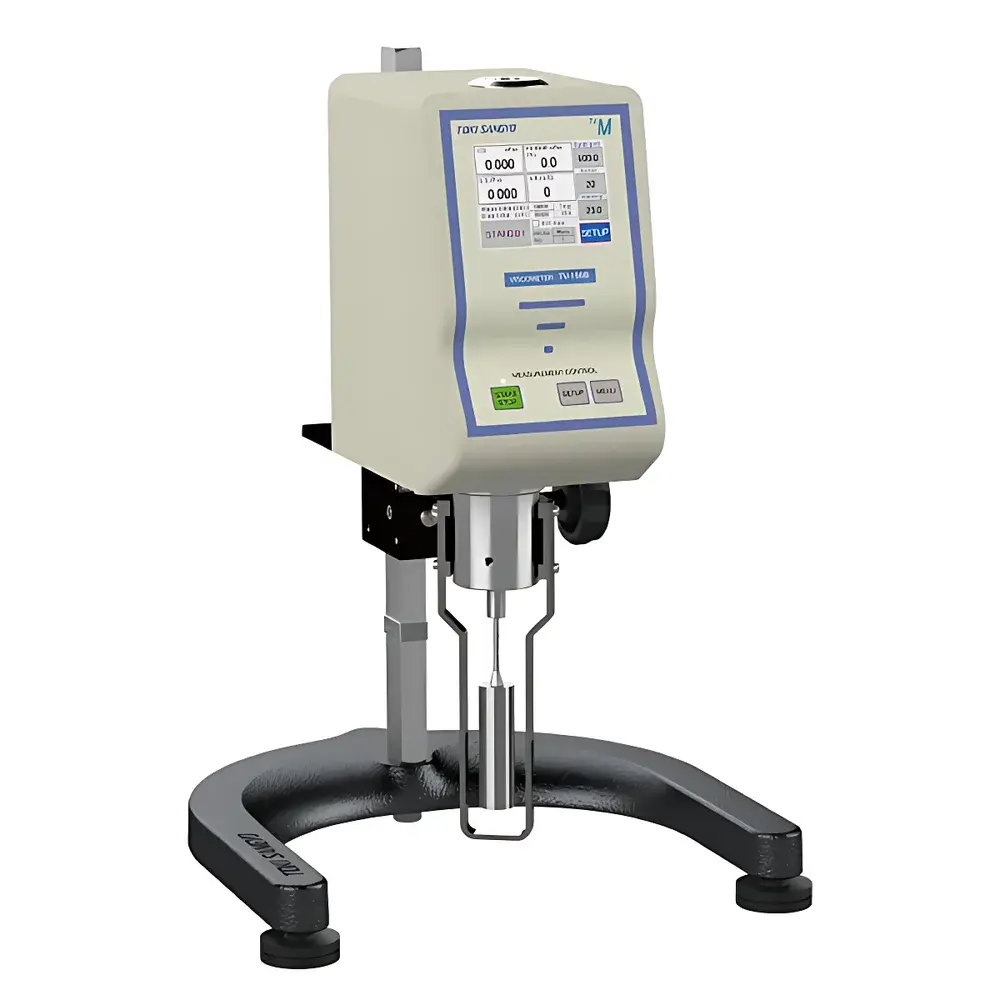

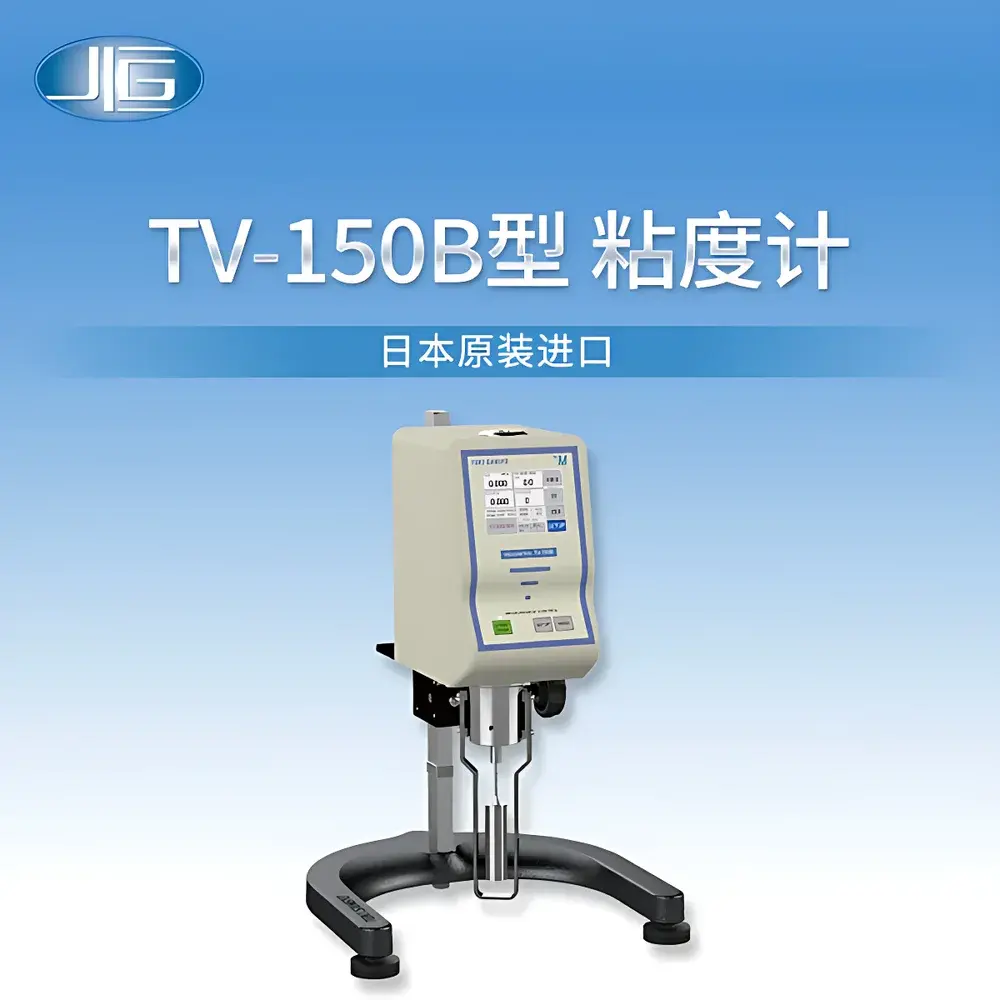

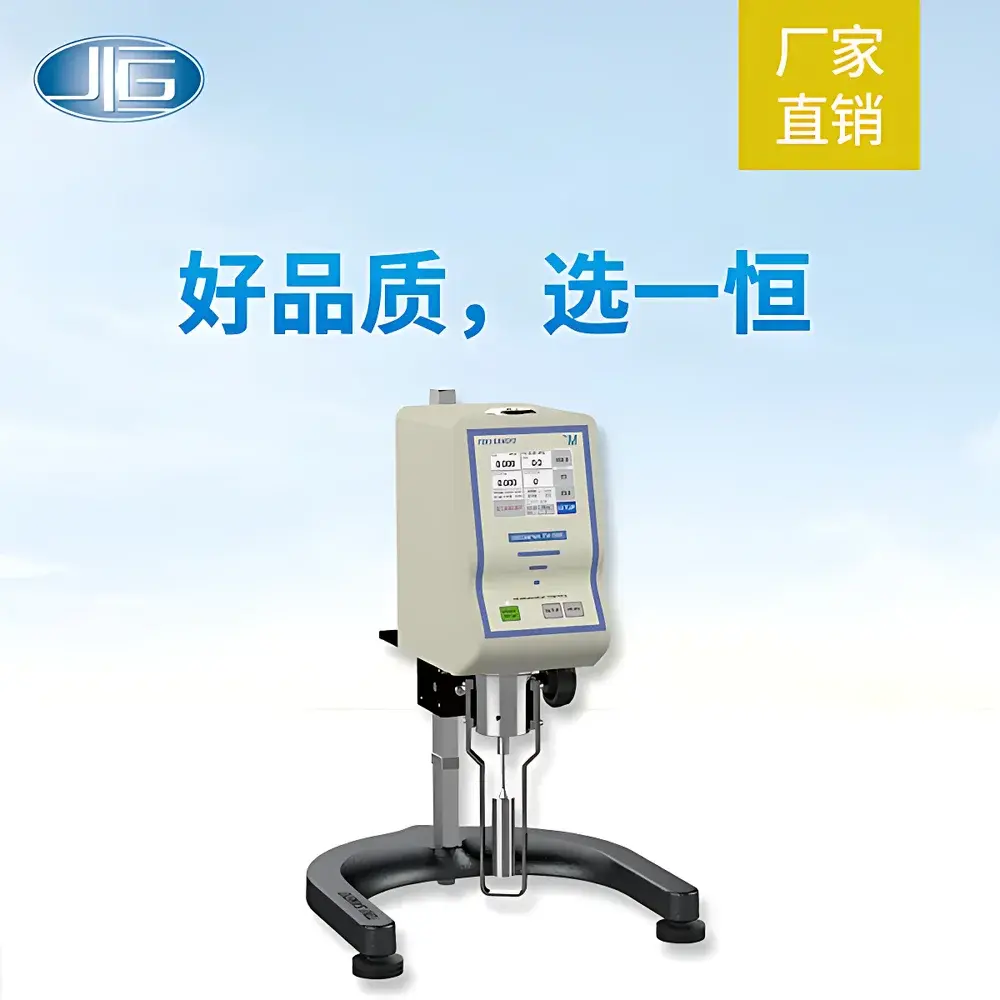

TOKI SANGYO TV-150B Advanced Rotational Viscometer

Overview

The TOKI SANGYO TV-150B is a high-precision benchtop rotational viscometer engineered for long-term stability and metrological reliability in quality control laboratories, R&D facilities, and production environments. It operates on the principle of controlled shear rate measurement via a magnetically suspended rotor system, where torque is detected through a single, fatigue-resistant torsion wire—eliminating mechanical pivot wear and ensuring consistent angular displacement response over tens of thousands of measurement cycles. Unlike conventional viscometers relying on ball or jewel bearings, the TV-150B’s magnetic bearing architecture removes friction-induced hysteresis and drift, preserving calibration integrity across its full 7-decade viscosity range (15 to 3.2 × 10⁸ mPa·s). This design directly supports traceable viscosity determination under standardized test conditions defined in ISO 2555 (aqueous polymer solutions), ASTM D2196 (non-Newtonian fluids), and USP (pharmaceutical dosage forms), making it suitable for GLP-compliant documentation workflows.

Key Features

• Magnetic suspension rotor drive system with single torsion wire transduction—zero mechanical contact, no lubrication, no periodic recalibration due to bearing degradation
• 5-inch high-resolution color LCD touchscreen interface with intuitive icon-based navigation and real-time viscosity curve plotting
• Tool-free rotor attachment via electromagnetic locking mechanism—rotors (spindles) engage/disengage in <1.5 seconds without screws, wrenches, or alignment tools
• Integrated temperature sensor input (optional PT100 probe support) for viscosity-temperature profiling per ASTM D445 requirements
• Auto-ranging torque detection with dual-sensitivity modes (low-torque for gels & pastes; high-torque for bitumen & polymer melts)
• Built-in data logging with timestamped CSV export via USB port—no external PC required for routine QC checks

Sample Compatibility & Compliance

The TV-150B accommodates a broad spectrum of Newtonian and non-Newtonian samples—including paints, adhesives, food emulsions, pharmaceutical suspensions, ceramic slurries, and molten thermoplastics—using interchangeable spindles (L-type, U-type, and cylindrical geometries) and optional small-sample adapters. Its fixed-frame architecture ensures mechanical rigidity during high-torque measurements, minimizing frame deflection artifacts common in portable or articulated designs. The instrument conforms to international viscosity standardization frameworks: calibration traceability follows JIS Z 8803 and ISO/IEC 17025-accredited procedures; software-generated reports include audit trails compliant with FDA 21 CFR Part 11 when paired with TOKI’s optional LabLink Pro software suite. All firmware and calibration constants are digitally signed and version-controlled to support GMP audit readiness.

Software & Data Management

While the TV-150B operates autonomously via its embedded OS, optional connectivity enables advanced data governance. The LabLink Pro software (Windows-compatible) provides remote instrument control, multi-parameter method scripting (shear rate ramp, steady-state hold, thixotropy loop), and automated compliance reporting aligned with ISO 17025 clause 7.7 (result reporting). Raw torque/time datasets are stored with metadata including operator ID, environmental conditions (via optional humidity/temperature module), and calibration certificate expiry dates. Export formats include CSV, PDF (with digital signature), and XML for LIMS integration. Audit logs record all parameter changes, calibration events, and user logins—retained for ≥36 months per internal QA policy templates.

Applications

• Quality assurance of industrial coatings: monitoring Brookfield-type KU units and apparent viscosity at specified spindle speeds per ASTM D562
• Rheological screening of topical pharmaceuticals: yield stress estimation via controlled shear rate sweeps for ointments and gels
• Process validation of inkjet inks: low-shear viscosity stability assessment over 24-hour thermal soak cycles
• Research-grade characterization of nanocomposite suspensions: zero-shear viscosity extrapolation using Cross model fitting
• Regulatory submission support: generating repeatable, auditable viscosity datasets for ANDA filings and CE marking dossiers

FAQ

What spindle types are compatible with the TV-150B series?
Standard spindles include LV (low-viscosity), RV (medium-viscosity), and HA/HB (high-torque) geometries—each certified per ISO 3219 Annex B. Optional geometry kits include cone-plate, vane, and ultra-low-volume (1 mL) sample cups.
Does the TV-150B support continuous shear rate scanning?
Yes—via programmable ramp mode with user-defined start/end shear rates, dwell times, and logarithmic or linear increment profiles. Data acquisition resolution is 10 Hz minimum.
Is temperature control integrated into the base unit?
No—temperature regulation requires an external circulating bath or Peltier stage; however, the TV-150B features a dedicated analog input for third-party PT100 or thermocouple sensors to log ambient/sample temperature synchronously with viscosity data.
How often does the instrument require recalibration?
Under normal use (≤4 hrs/day, clean environment), annual verification against NIST-traceable silicone oil standards is recommended. The magnetic bearing system eliminates need for pivot replacement or torque sensor drift compensation between verifications.
Can the TV-150B be used in hazardous locations?
No—the unit is rated for general laboratory use only (IEC 61010-1 Class I, Pollution Degree 2). Explosion-proof enclosures or intrinsically safe variants are not available in this series.
