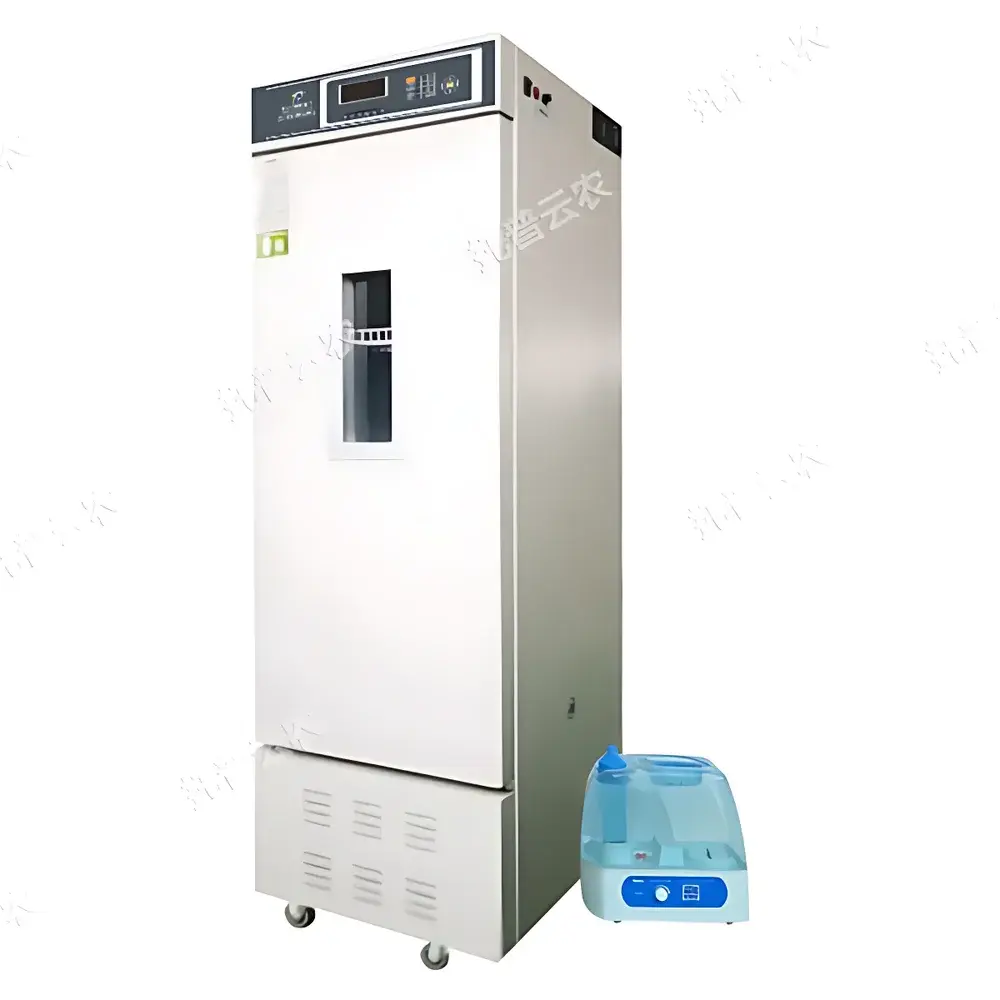

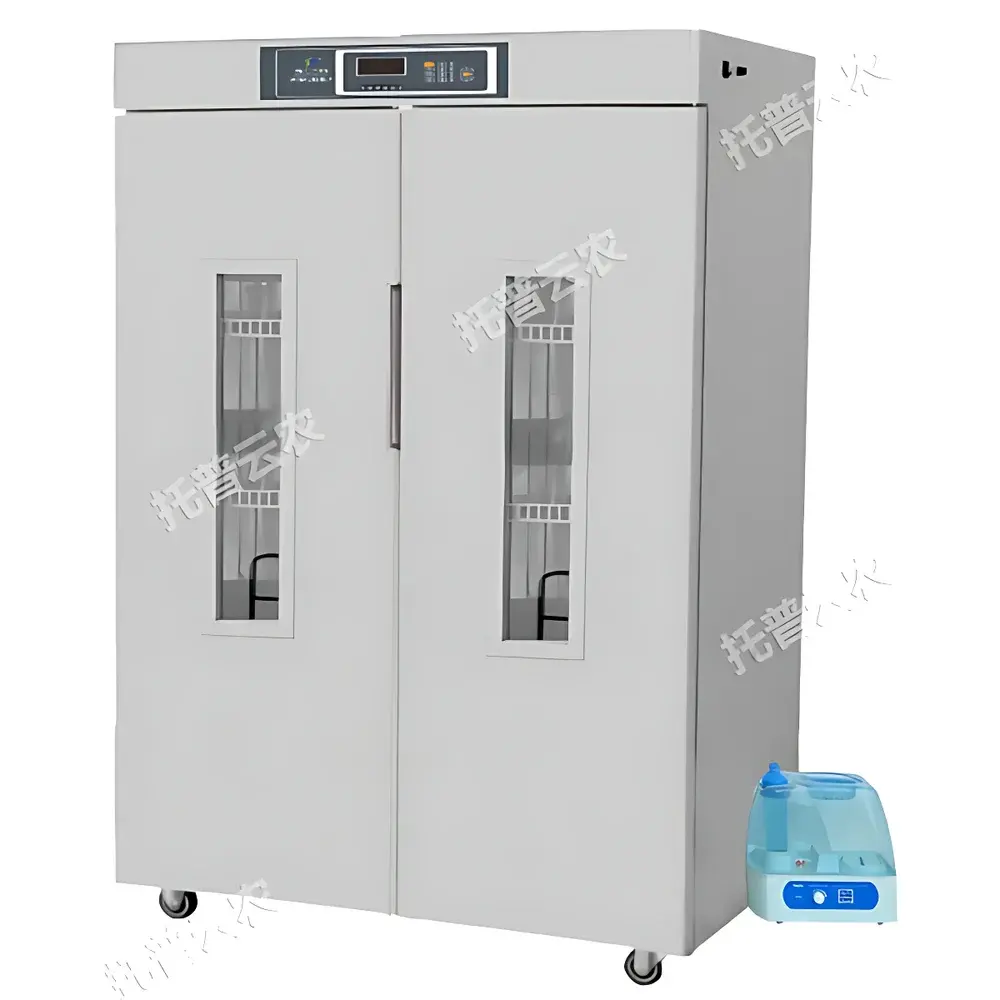

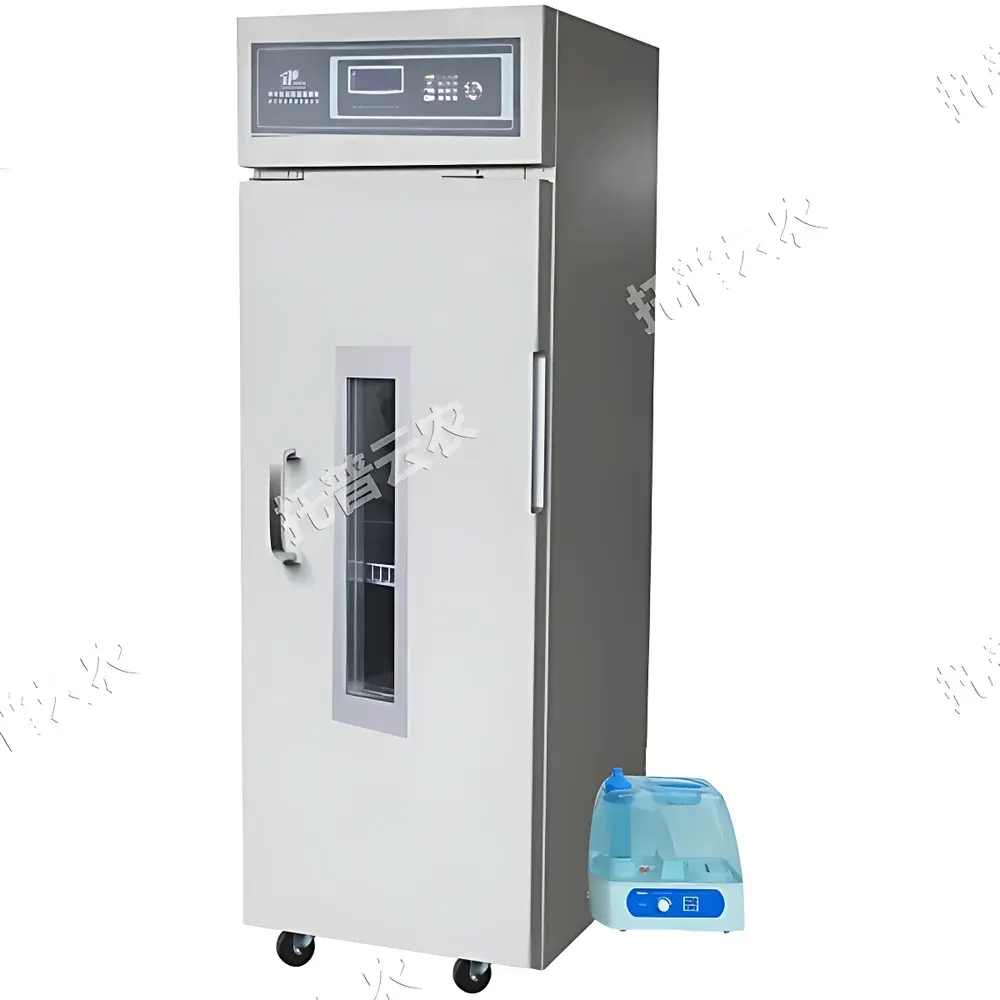

Top Cloud-agri RTOP-Y Series Artificial Climate Incubator

Overview

The Top Cloud-agri RTOP-Y Series Artificial Climate Incubator is a precision-engineered environmental control system designed for reproducible, long-term biological experimentation under tightly regulated temperature, humidity, and photoperiod conditions. Based on closed-loop PID control architecture with dual-sensor redundancy, it maintains stable climatic parameters essential for plant germination, tissue culture, microbial propagation, insect rearing, and BOD incubation. Unlike standard thermal incubators, the RTOP-Y integrates active humidification (via ultrasonic misting or steam injection), programmable spectral-white LED illumination, and multi-stage environmental ramping—enabling simulation of diurnal cycles, seasonal transitions, or stress-response protocols. Its chamber design complies with ISO 14644-1 Class 8 cleanroom-compatible airflow principles, minimizing cross-contamination risk during sensitive biological assays.

Key Features

• High-resolution 7-inch TFT LCD interface with Chinese/English bilingual navigation, real-time display of chamber temperature, ambient temperature, relative humidity, illumination level, segment countdown, and system clock.
• Polished mirror-finish stainless-steel interior (AISI 304), fully removable adjustable shelves without tools, facilitating autoclave-compatible cleaning and ISO 13485-aligned decontamination workflows.
• 99-segment programmable controller supporting independent ramp/soak profiles for temperature, humidity, and light intensity—each segment configurable from 1 to 99 hours, enabling complex growth-stage simulations (e.g., vernalization → photoperiod induction → flowering).
• Dual safety architecture: hardware-based overtemperature cutoff (activated at user-defined threshold above setpoint) and software-monitored sensor fault detection, both triggering immediate power isolation per IEC 61000-4-5 surge immunity standards.
• Integrated UV-C germicidal cycle (optional timer-based activation), validated for ≥3-log reduction of common airborne microbes (Aspergillus niger, Bacillus subtilis spores) per ISO 15714:2018 guidelines.
• LED lighting system optimized for photosynthetically active radiation (PAR: 400–700 nm), delivering uniform irradiance distribution (±5% spatial variation across working volume) with 10-step intensity control and selectable photoperiod scheduling.
• Power-loss recovery function with non-volatile memory retains all active program states, timestamps, and sensor logs; automatic resumption upon grid restoration without manual reinitialization.

Sample Compatibility & Compliance

The RTOP-Y accommodates standard microbiological vessels (Petri dishes, Erlenmeyer flasks, multi-well plates), plant tissue culture containers (Magenta boxes, glass jars), and small-animal caging systems (up to 20 cm height). Its humidity control system meets ASTM E104-20 requirements for saturated salt solution calibration traceability. All models support GLP-compliant operation when equipped with optional data-logging modules: timestamped sensor records include digital signatures, operator ID fields, and immutable audit trails aligned with FDA 21 CFR Part 11 Annex 11 expectations. Chamber materials comply with USP Class VI biocompatibility testing; no volatile organic compound (VOC) emissions detected per ISO 16000-9:2019 indoor air quality certification.

Software & Data Management

The optional IoT-enabled configuration integrates a dual-protocol communication module (RS485 Modbus RTU + Wi-Fi 802.11n) for seamless connectivity to the Top Cloud-agri Instrument Cloud Platform—a secure, ISO/IEC 27001-certified C/S architecture hosted on AWS GovCloud infrastructure. Web-based dashboards provide real-time visualization of multi-parameter trends, deviation alerts (configurable thresholds), and automated PDF report generation. Mobile applications (iOS/Android) support push notifications for critical events (e.g., door open >30 s, humidity drift >10% RH). All historical datasets are stored with SHA-256 hashing for integrity verification; raw CSV exports include metadata headers compliant with MIAME and MIAPE reporting standards. Firmware updates deploy via signed OTA packages with rollback capability.

Applications

This incubator serves as a core platform in regulated and academic life science laboratories for: seed viability testing per ISTA Rule 5; callus induction and shoot regeneration in Agrobacterium-mediated transformation pipelines; filamentous fungal cultivation under controlled hyphal branching conditions; aquatic toxicity screening (OECD 201/210); vaccine stability studies requiring WHO cold-chain deviation logging; and circadian rhythm analysis in Drosophila melanogaster using synchronized light-dark cycling. Its extended temperature range (0–50 °C) supports thermotolerance assays in crop breeding programs, while the high-humidity capability enables mycotoxin production studies under Aspergillus flavus-inducing conditions (≥85% RH, 25–30 °C).

FAQ

What regulatory standards does the RTOP-Y Series comply with?
It adheres to IEC 61010-1 (safety), IEC 61326-1 (EMC), and ISO 14644-1 (cleanliness classification). Optional configurations meet FDA 21 CFR Part 11 requirements for electronic records.
Can the illumination spectrum be customized beyond white LED?
Standard units deliver full-spectrum white LEDs (CCT 6500 K, CRI >90). Custom narrow-band R:FR ratio modules (660 nm / 730 nm) are available under OEM agreement.
Is remote validation support available for IQ/OQ protocols?
Yes—Top Cloud-agri provides vendor-qualified validation templates (URS, DQ/IQ/OQ/PQ), calibrated NIST-traceable sensor certificates, and on-site protocol execution services.
How is humidity controlled below 10 °C?
Humidity regulation is intentionally disabled below 10 °C to prevent condensation-induced corrosion and sensor drift; users may operate in dry-cold mode for chilling-acclimation studies.
What is the maximum allowable load weight per shelf?
Each adjustable shelf supports up to 15 kg uniformly distributed load; total chamber loading must not obstruct rear air circulation baffles.
