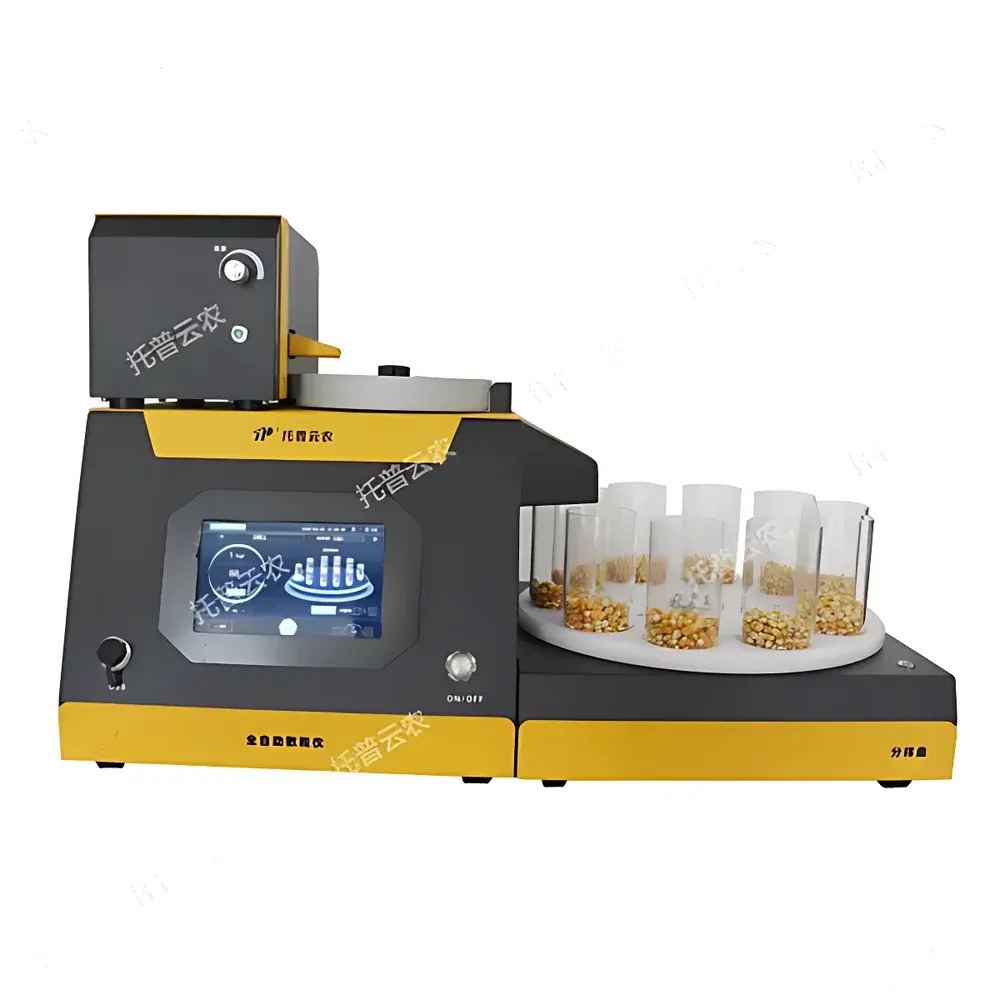

Top Cloud-agri SLY-F Automatic Seed Counter with Sample Division Function

Overview

The Top Cloud-agri SLY-F Automatic Seed Counter with Sample Division Function is an industrial-grade, vision-aided seed counting and partitioning system engineered specifically for agricultural research laboratories, seed certification agencies, breeding programs, and quality control departments in agribusiness. Unlike manual or basic optical counters, the SLY-F employs a calibrated vibration-assisted feed mechanism combined with high-contrast seed detection logic and real-time rotational position tracking of a 10-cup indexing turntable. Its core operational principle relies on controlled gravitational flow, synchronized disc rotation, and threshold-based optical interruption sensing—optimized for morphologically diverse agricultural seeds ranging from small-seeded species (e.g., sesame, lettuce) to larger grains (e.g., maize, peanut). The instrument fulfills a critical metrological need in seed science: accurate, repeatable, and auditable determination of thousand-seed weight (TSW), which is standardized under ISO 6554, ISTA Rules, and GB/T 3543.3–1995. By automating both enumeration and proportional sample division, the SLY-F eliminates human fatigue-induced errors and supports GLP-aligned workflows in regulatory seed testing environments.

Key Features

• 10-position indexed sample cup carousel enabling parallel batch partitioning without operator intervention
• Infinitely variable rotational speed control of the counting disc to accommodate varying seed size, density, and flow characteristics
• Intelligent deceleration algorithm that reduces disc velocity during final 5–10% of preset count, minimizing overshoot due to inertia
• 7-inch capacitive color touchscreen with intuitive icon-driven interface, supporting multilingual menu navigation (English default)
• Integrated thermal label printer producing adhesive-backed data tags compliant with ISO/IEC 15415-compliant barcode readability standards
• Full audit trail: timestamped records include cultivar name, total count, cup-wise distribution, start/stop time, operator ID (optional), and firmware version
• Acoustic feedback protocol: single tone per completed cup; sustained tone upon full sequence termination; six-tone error signal for jam, sensor blockage, or power anomaly
• Modular mechanical architecture permitting field-upgradable components (e.g., feed chute, cup holder, optical sensor array) without recalibration
• No-tool, six-step mechanical assembly validated per IEC 61000-6-2 for electrostatic discharge immunity during setup

Sample Compatibility & Compliance

The SLY-F accommodates seeds with nominal lengths between 1 mm and 23 mm—including but not limited to Oryza sativa (rice), Triticum aestivum (wheat), Zea mays (maize), Brassica napus (oilseed rape), Arachis hypogaea (peanut), Sesamum indicum (sesame), and ornamental species such as Tagetes erecta and Celosia argentea. It meets electromagnetic compatibility requirements per CISPR 11 Group 1 Class B and operates reliably within ambient conditions specified by ISO 17025 Clause 5.3.1 (temperature: −10 °C to +50 °C; relative humidity <85% non-condensing). All counting data outputs are traceable to internal RTC (real-time clock) and support export via USB mass storage in CSV format for integration into LIMS platforms compliant with 21 CFR Part 11 Annex 11 requirements when paired with user-defined electronic signature protocols.

Software & Data Management

Firmware v3.2.1 implements deterministic finite-state machine logic for process sequencing, ensuring deterministic behavior across power cycles and thermal transients. Data persistence is guaranteed via dual-layer storage: volatile RAM cache for active session buffering and non-volatile flash memory (128 MB) retaining ≥10,000 test records with cyclic overwrite protection. Exported CSV files contain ISO 8601 timestamps, UTF-8 encoded cultivar names, and SI-unit–consistent metadata (e.g., “Count”, “Cup_ID”, “Timestamp_UTC”, “Operator_ID”). Optional RS-232 or USB-C serial interface enables bidirectional communication with external laboratory information management systems (LIMS) or statistical analysis software (e.g., JMP, R, Python pandas). Audit logs record all parameter modifications, calibration events, and firmware updates—retained for minimum 36 months unless manually purged under documented SOP.

Applications

• Thousand-seed weight (TSW) determination per ISO 6554:2021 and ISTA Handbook Section 5.2
• Seed lot sub-sampling for germination testing, purity analysis, and genetic uniformity assessment
• Pre-planting seed calibration for precision air seeder and vacuum metering systems
• Quality assurance in certified seed production facilities operating under national seed certification schemes (e.g., USDA APHIS, China National Crop Variety Certification Center)
• Phenotypic screening in breeding programs requiring rapid enumeration of segregating populations (e.g., F₂, BC₁F₁)
• Teaching laboratories in agronomy and plant science curricula requiring reproducible, hands-on metrology training

FAQ

What seed size ranges does the SLY-F support?
The instrument is validated for seeds measuring 1–23 mm in maximum dimension. Performance optimization requires selecting appropriate feed tray inserts and adjusting vibration amplitude per seed morphology.
Does the SLY-F comply with international seed testing standards?
Yes—it supports execution of procedures defined in ISO 6554, ISTA Rules (Section 5), and GB/T 3543.3–1995. Counting accuracy (±2‰) satisfies repeatability thresholds required for official variety registration trials.
Can raw count data be exported to third-party statistical software?
Yes. All measurements export as UTF-8 CSV via USB port, including timestamps, cup identifiers, cultivar labels, and operator metadata—compatible with R, Python, JMP, and SAS ingestion pipelines.
Is calibration required before first use?
No factory calibration is needed. However, users must perform a one-time geometric alignment check using included reference spacers and validate counting accuracy against a known standard (e.g., 1000-count reference sample) prior to regulated use.
How is instrument uptime maintained during extended operation?
Thermal management includes passive aluminum heat sinking of motor drivers and duty-cycle–limited stepper actuation. Continuous operation ≥8 hours has been verified at 25 °C ambient with no performance drift.
