Top Instruments WSZ-710 Cast Iron Square Cross-Section Optical Rail Bench

Overview

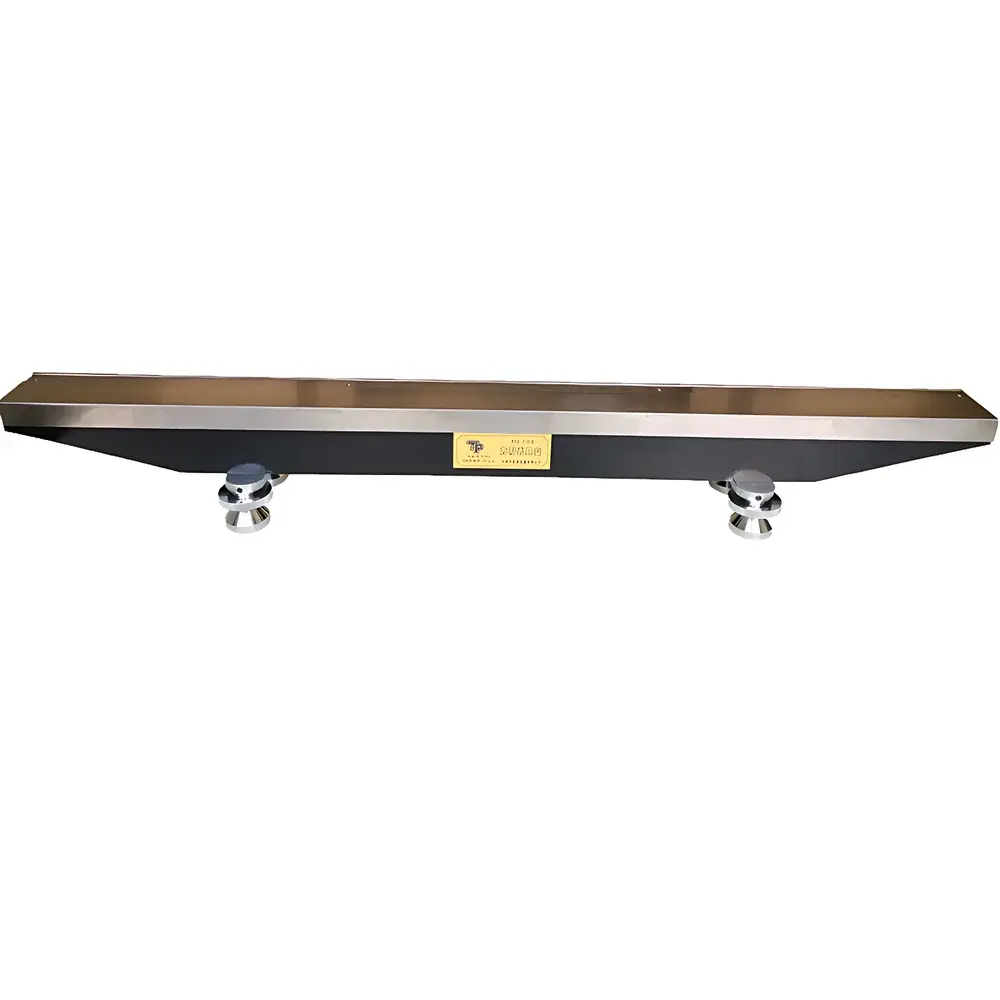

The Top Instruments WSZ-710 Cast Iron Square Cross-Section Optical Rail Bench is a precision-engineered foundational platform designed for undergraduate and graduate-level optics laboratories in universities and technical colleges. Built on classical optical bench principles, it provides a rigid, thermally stable mechanical reference frame for aligning and securing optical components—lenses, mirrors, apertures, interferometric elements, polarization optics, and spatial filters—along a defined optical axis. Its square-section cast iron construction ensures minimal flexure under load and low thermal expansion drift, critical for repeatable alignment in experiments involving interference, diffraction, imaging, and Fourier optics. Unlike extruded aluminum rails with inherent dimensional instability, the WSZ-710’s monolithic cast iron structure delivers long-term geometric fidelity, supporting both qualitative observation and quantitative measurement protocols consistent with standard university physics curricula.

Key Features

• Structural integrity: 1000 mm length rail fabricated from high-grade gray cast iron (HT250), heat-stabilized and precision surface-finished to ensure flatness ≤ 0.05 mm/m and parallelism < 0.1 mm over full length.
• Square cross-section geometry (80 mm × 80 mm) enhances torsional rigidity and facilitates orthogonal mounting via standardized T-slots on all four faces—enabling simultaneous X-, Y-, and Z-axis component positioning without reconfiguration.
• Optical axis height fixed at 270 mm above base plane—compatible with industry-standard optical height conventions used in TH70-series carriers and adjustable mounts (e.g., TH70, TH70Z, TH70YZ).
• Vertical (Y-axis) adjustability range of 1–30 mm via calibrated micrometer-driven lift stages, allowing precise axial elevation control for beam height matching across multi-component systems.

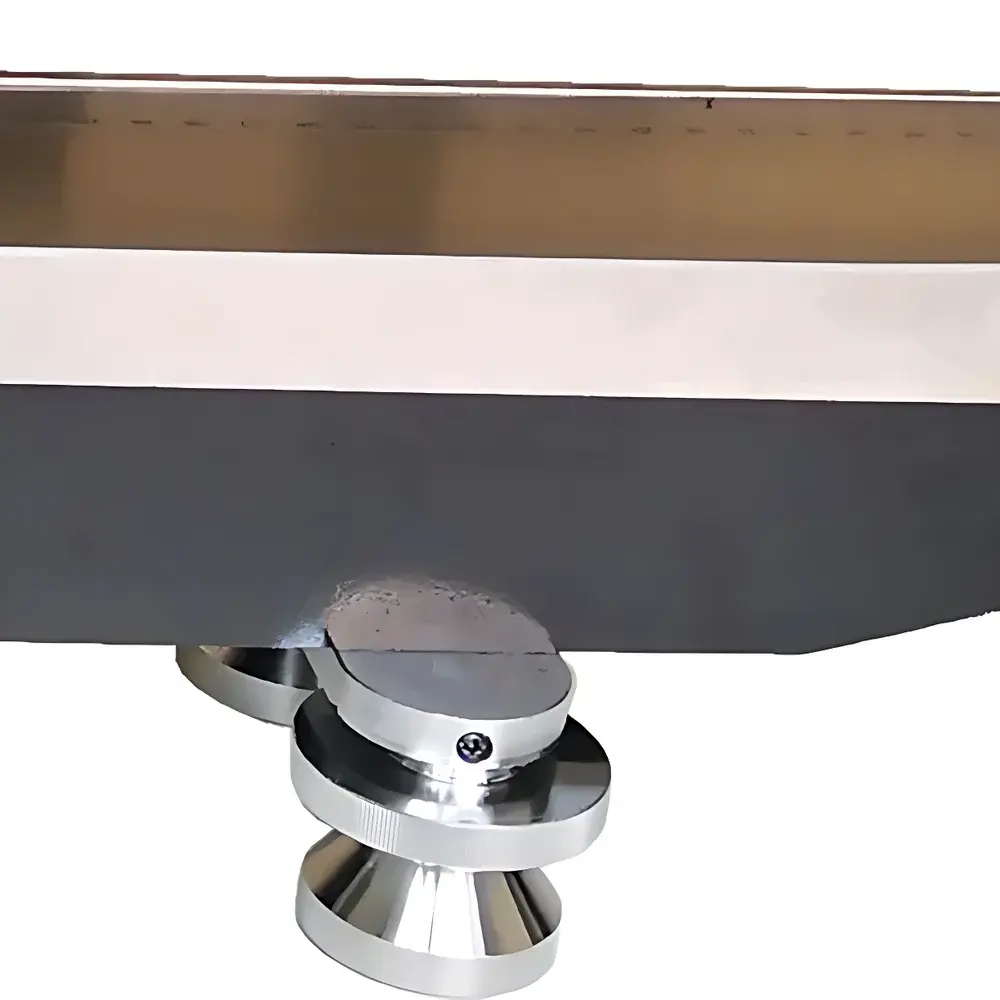

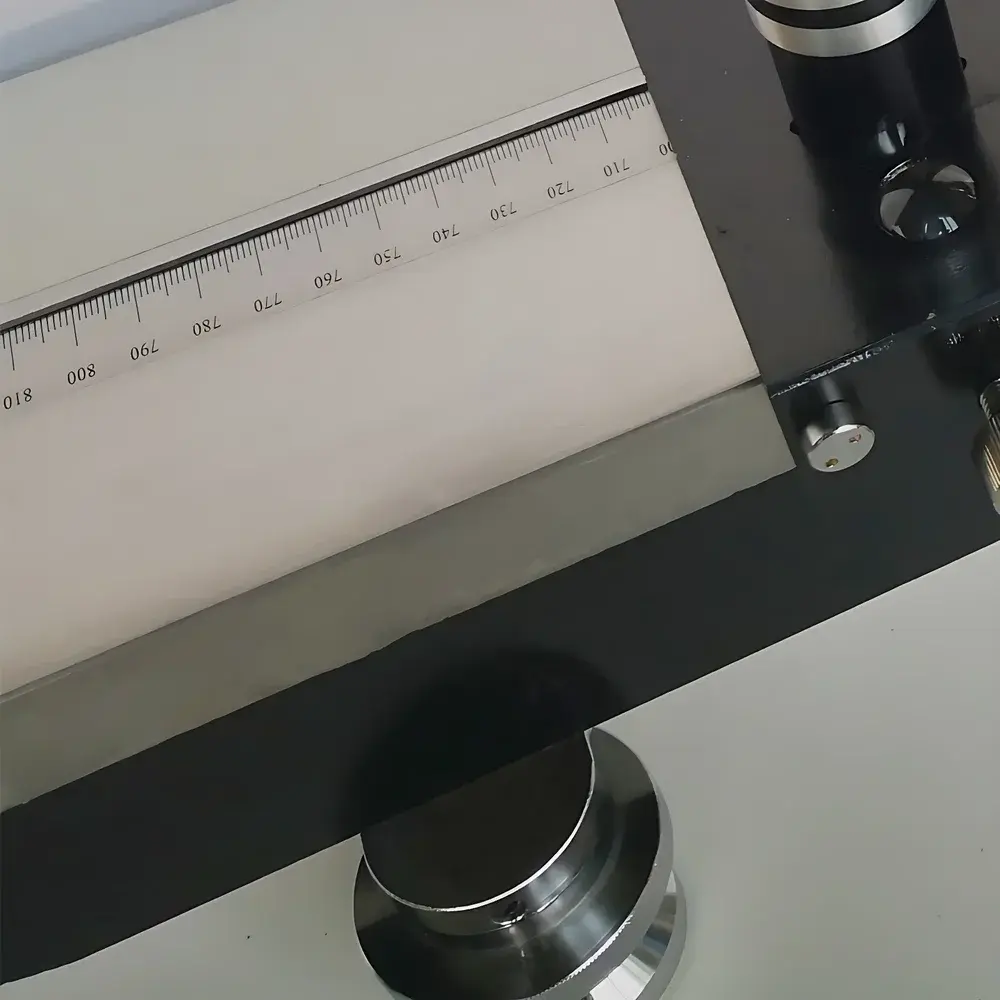

• Integrated metric scale (0–1000 mm) engraved directly onto the top rail surface with ±0.2 mm graduation accuracy, enabling direct distance measurement between mounted elements without auxiliary rulers.
• Designed for modularity: accepts ISO-standard M6 threaded holes (pitch = 25 mm) along the top and side rails, ensuring compatibility with international optical carriers, kinematic mounts, and translation stages.

Sample Compatibility & Compliance

The WSZ-710 accommodates standard optical components ranging from Ø12.7 mm to Ø75 mm diameter lenses, mirrors, and filters; supports slit widths from 0.02 mm to 2 mm; and interfaces seamlessly with He–Ne lasers (632.8 nm), diode lasers (405–850 nm), and broadband white-light sources. All mounting interfaces comply with ISO 10110-7 (optical element mounting tolerances) and ANSI/OEOSC OP1.002 (optical bench dimensional standards). While not certified to ISO/IEC 17025, the bench’s dimensional stability and repeatability support GLP-aligned experimental workflows. It serves as a validated platform for labs conducting instruction aligned with AAPT-recommended optics experiments and conforms to ASTM E2849-22 (Standard Guide for Undergraduate Optics Laboratory Instruction).

Software & Data Management

As a passive mechanical platform, the WSZ-710 does not incorporate embedded electronics or firmware. However, it is fully interoperable with third-party data acquisition systems—including Thorlabs Kinesis, Newport Motion Control software, and MATLAB-based image analysis pipelines—for synchronized stage positioning and CCD/CMOS sensor readout during quantitative measurements (e.g., fringe spacing in Young’s double-slit, ring diameters in Newton’s rings, or intensity profiles in Fraunhofer diffraction). Experimental metadata (component positions, source parameters, environmental conditions) can be logged in CSV or HDF5 format, satisfying traceability requirements under institutional GLP documentation policies.

Applications

• Geometrical optics: focal length determination (autocollimation, displacement, object-image distance methods), nodal point mapping, microscope/telescope assembly and magnification calibration.
• Wave optics: Young’s double-slit, Fresnel biprism, Newton’s rings, single-slit/circular-aperture Fraunhofer and Fresnel diffraction, straight-edge diffraction.
• Polarization studies: Malus’ law verification, quarter-wave plate characterization, stress-induced birefringence analysis.
• Fourier optics: Abbe imaging theory validation, spatial frequency filtering, theta modulation, pseudocolor encoding using amplitude masks and phase plates.
• Laser beam manipulation: collimation, focusing, beam expansion, and interferometric alignment (Michelson, Mach–Zehnder configurations).

FAQ

Is the WSZ-710 compatible with non-Top Instruments optical mounts?
Yes—its 25-mm-pitch M6 tapped holes and standardized rail dimensions conform to ISO 10110-7 and are mechanically interoperable with mounts from Thorlabs, Newport, and Edmund Optics.
What is the maximum load capacity per mounting position?
Each M6 thread supports up to 5 kg static load; total distributed load across the full 1000 mm rail should not exceed 30 kg to maintain specified flatness tolerance.
Can the rail be cut or modified for custom lengths?
No—cast iron rails must retain original heat treatment and dimensional integrity; cutting invalidates mechanical specifications and voids warranty.
Does the bench include vibration isolation feet?
No—vibration isolation is implemented externally via optical tables or active/passive damping platforms per lab-specific acoustic noise and floor vibration profiles.
Are calibration certificates provided?
Dimensional certification (length, flatness, parallelism) is available upon request as an optional service, traceable to CNAS-accredited metrology labs in Tianjin.
