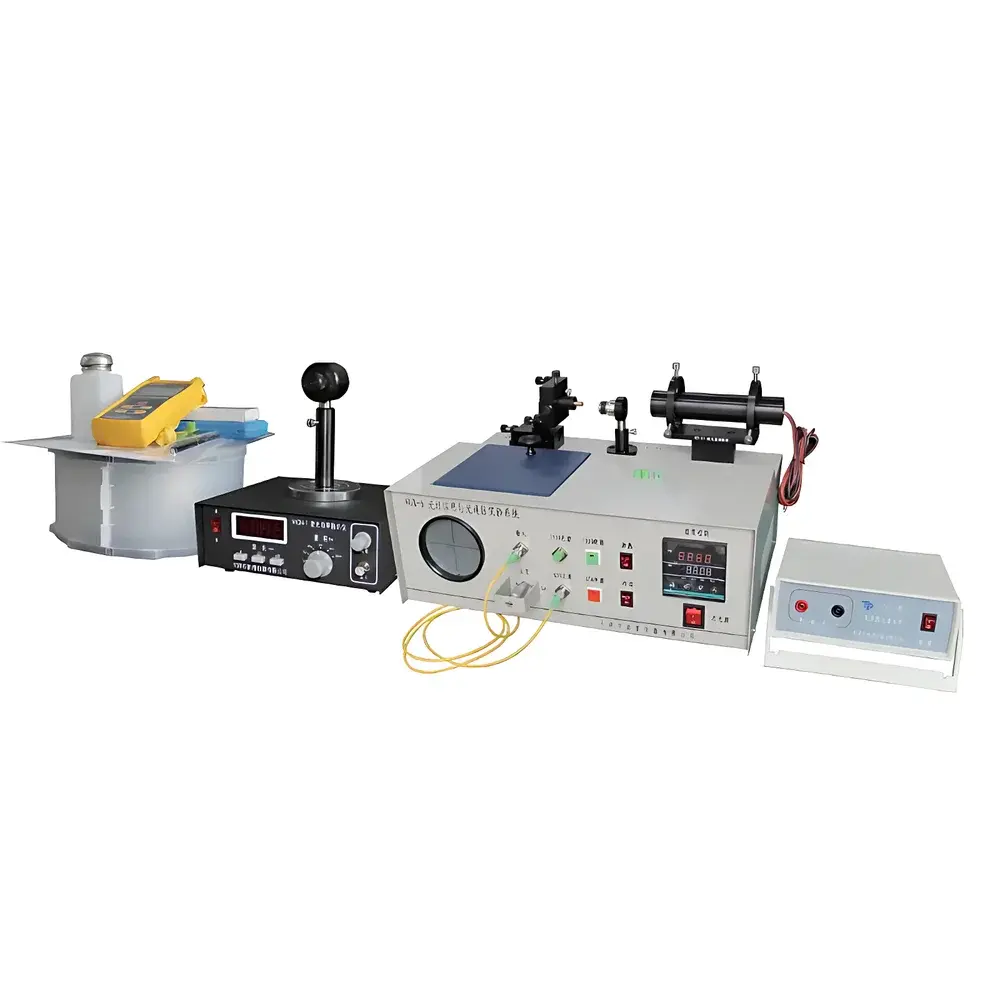

Topo WGX-6 Fiber Optics and Optical Communications Educational System

Overview

The Topo WGX-6 Fiber Optics and Optical Communications Educational System is a modular, benchtop-integrated platform engineered for undergraduate and graduate-level instruction in fiber optics, photonic sensing, and optical communication fundamentals. It operates on the core principles of guided-wave photonics—leveraging total internal reflection within silica-based optical fibers to transmit, modulate, split, attenuate, isolate, and interfere light signals across multiple wavelengths. Designed explicitly for pedagogical rigor and experimental repeatability, the system enables hands-on verification of theoretical concepts including numerical aperture (NA), insertion loss, polarization-dependent loss (PDL), extinction ratio, and interferometric phase sensitivity. Its architecture supports both intensity-based and interference-based measurement paradigms, making it suitable for foundational labs in optoelectronics, photonics engineering, and sensor physics curricula.

Key Features

• Integrated mainframe housing all primary optical modules—including three independently switchable laser sources (632.8 nm He–Ne, 650 nm red diode, and 1550 nm infrared DFB diode)—mounted on a rigid aluminum optical rail with precision kinematic mounts.
• Multi-functional fiber coupling station with XYZ-adjustable stages and real-time power monitoring via integrated photodetector and digital display.
• Dedicated fiber pressure and temperature sensing modules using standard single-mode or multimode patch cords, enabling quantitative correlation between mechanical/thermal perturbations and output optical intensity or phase shift.
• Expandable optical path configuration supporting Mach–Zehnder interferometry, free-space coupling, collimation, beam profiling, and spatial filtering via interchangeable components (lenses, apertures, polarizers).
• Modular design compliant with ANSI Z80.10 and ISO/IEC 11801 educational equipment guidelines, facilitating safe, repeatable, and standards-aligned laboratory instruction.

Sample Compatibility & Compliance

The WGX-6 system accommodates standard telecom-grade SMF-28e+ and OM1/OM2 multimode fibers (core diameters: 8.2 µm and 50/62.5 µm, respectively), as well as custom-cut fiber segments with FC/PC or SMA connectors. All optical components meet IEC 61300-2-1 (mechanical endurance) and IEC 61300-2-4 (tensile load) specifications. The system’s optical safety design complies with IEC 60825-1:2014 Class 3R laser product requirements; each wavelength source includes interlocked shutters and beam containment features. Documentation includes traceable calibration certificates for all laser output power measurements, aligned with NIST-traceable reference standards. The platform supports GLP-aligned lab recordkeeping when used with optional data logging accessories.

Software & Data Management

While the base WGX-6 operates as a hardware-dominant teaching platform, it is fully compatible with third-party data acquisition systems (e.g., National Instruments DAQmx, Thorlabs Kinesis) via analog voltage outputs (0–5 V) from integrated photodetectors and thermistor/strain gauge interfaces. Optional Python- and MATLAB-compatible API libraries are available for automated experiment sequencing, real-time parameter sweeps (e.g., wavelength-dependent loss mapping), and FFT-based analysis of interferometric fringe patterns. All acquired datasets adhere to HDF5 format conventions, ensuring interoperability with institutional LIMS and learning management systems (LMS). Audit trails for experimental configurations can be generated manually or via timestamped CSV export—supporting compliance with academic accreditation frameworks requiring demonstrable assessment continuity.

Applications

• Undergraduate laboratories in fiber optics, photonics, and telecommunications engineering.
• Capstone design projects involving fiber-optic sensor development (e.g., distributed temperature/strain monitoring prototypes).
• Graduate-level demonstrations of coherence length measurement, modal dispersion characterization, and polarization-maintaining fiber alignment.
• Teacher training workshops focused on NGSS-aligned STEM pedagogy and inquiry-based optics instruction.
• Research preparatory labs validating fiber component specifications prior to integration into larger optical testbeds (e.g., DWDM transceiver evaluation, LiDAR subsystem prototyping).

FAQ

Is the WGX-6 compatible with industry-standard fiber optic test equipment (e.g., OTDRs, optical spectrum analyzers)?

Yes—the system uses FC/PC and SMA receptacles conforming to IEC 61754-2 and IEC 61754-16, enabling direct interfacing with commercial test instruments for cross-validation of loss, return loss, and spectral response.
Can students perform quantitative NA and attenuation coefficient calculations using built-in instrumentation?

Yes—calibrated photodetectors with ±3% linearity over 40 dB dynamic range support direct calculation of NA via far-field pattern imaging and attenuation coefficients via cut-back or insertion-loss methods per ITU-T G.650.1 Annex A.
Does the system include curriculum materials or lab manuals?

A comprehensive English-language instructor’s manual (PDF + editable Word) is provided, containing theory background, step-by-step procedures, pre-lab questions, error analysis guidance, and alignment troubleshooting protocols for all 10 listed experiments.
What safety certifications apply to the laser sources?

Each laser module is certified to IEC 60825-1:2014 Class 3R, with maximum accessible emission limits (AEL) verified by an accredited third-party laboratory; full certification reports are included in the shipping documentation.
Is OEM customization available for university-specific branding or additional wavelength options?

Yes—Topo offers OEM integration services including custom firmware overlays, branded front panels, and optional 1310 nm or tunable laser add-ons under NDA-bound development agreements.
