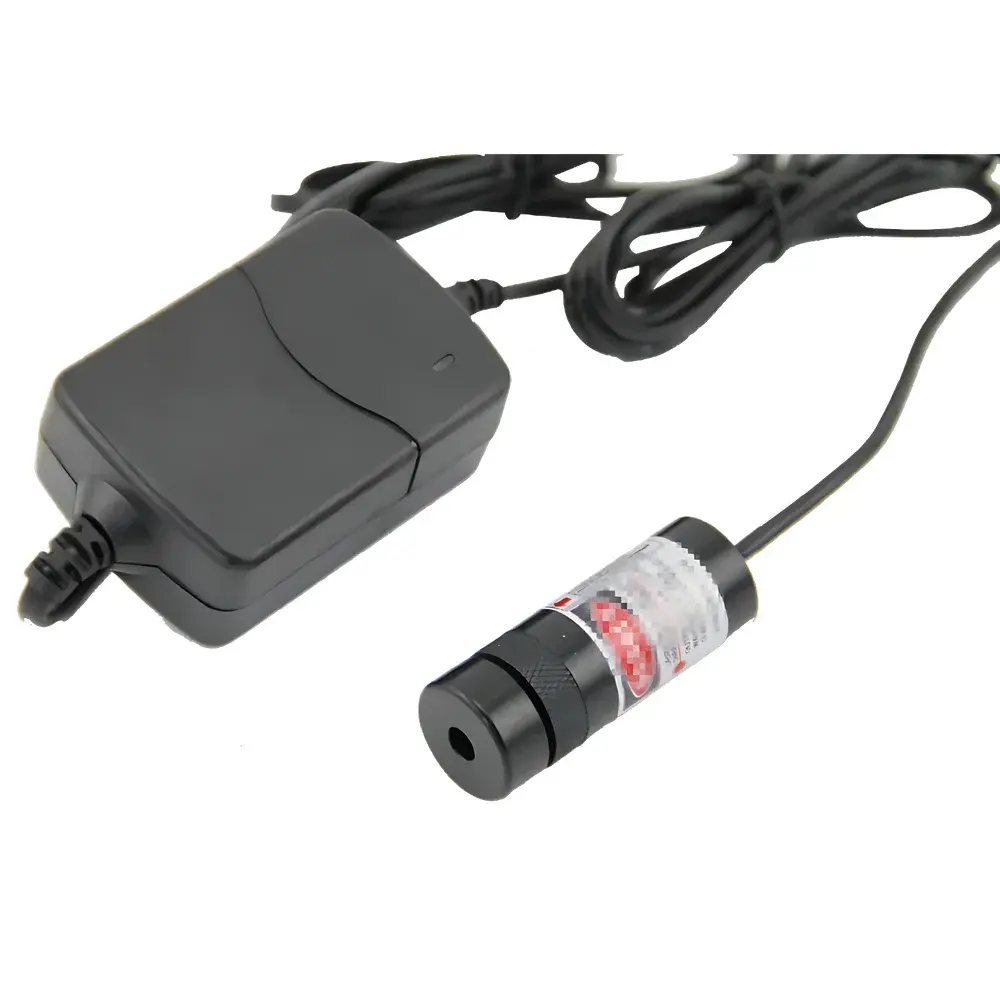

TopOptics GY-12 Semiconductor Laser Series
| Brand | TopOptics |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Classification | Domestic (China) |
| Model | GY-12 |
| Pricing | Available Upon Request |
Overview
The TopOptics GY-12 Semiconductor Laser Series is a precision-engineered family of continuous-wave (CW) diode lasers designed for fundamental and applied optics education and research. Operating on the principle of stimulated emission in semiconductor gain media—typically GaAlAs or InGaAsP heterostructures—the GY-12 series delivers stable, narrow-linewidth output in the visible to near-infrared spectrum (commonly 405 nm, 532 nm, 635 nm, 650 nm, or 780 nm variants, configurable per application). Its collimated beam profile, low spatial mode noise, and high pointing stability make it ideal for controlled optical path experiments requiring reproducible coherence properties. Unlike broadband sources or pulsed lasers, the GY-12 provides deterministic wavelength selection and intensity linearity essential for quantitative analysis in geometric optics alignment, interference fringe characterization, diffraction pattern quantification, and polarization state manipulation.
Key Features
- Monolithic semiconductor architecture with hermetically sealed TO-can or butterfly packaging for long-term operational stability
- Integrated thermoelectric cooler (TEC) and precision current driver enabling ±0.01 nm wavelength stability over 8-hour continuous operation
- Beam divergence < 1.5 mrad (full angle), M² < 1.1, facilitating accurate ray tracing and minimal spot size expansion over standard lab distances (0.5–2 m)
- Adjustable output power range: 1–50 mW (model-dependent), calibrated via NIST-traceable photodiode monitoring
- Modulation-ready design supporting TTL/analog input (up to 10 kHz) for time-resolved optical experiments
- Compliant with IEC 60825-1:2014 Class 3R laser safety requirements; includes key-switch interlock and emission indicator
Sample Compatibility & Compliance
The GY-12 series interfaces seamlessly with standard optical benches (e.g., Thorlabs, Newport), kinematic mounts, polarizers, waveplates, diffraction gratings, Michelson/Mach–Zehnder interferometer kits, and Fourier optics test platforms. All units are manufactured under ISO 9001-certified quality management systems. While not classified as medical or industrial process control equipment, the GY-12 meets general laboratory safety and electromagnetic compatibility (EMC) requirements per EN 61326-1 for measurement and laboratory equipment. Documentation includes full Declaration of Conformity (DoC), RoHS-compliant material declarations, and laser classification reports aligned with ANSI Z136.1 and IEC 60825-1 frameworks.
Software & Data Management
The GY-12 operates as a stand-alone instrument but supports optional USB/RS-232 interface modules for remote control via SCPI command set. Compatible software environments include LabVIEW™ (with provided VI libraries), Python (pySerial + custom drivers), and MATLAB® (Instrument Control Toolbox). All firmware logs operational parameters—including drive current, TEC voltage, case temperature, and runtime hours—with timestamped records exportable as CSV. Audit trails comply with GLP principles for academic and pre-regulatory research use; however, the system does not implement FDA 21 CFR Part 11 electronic signature functionality, as it is not intended for regulated pharmaceutical or clinical manufacturing environments.
Applications
- Geometric optics: Real-time verification of Snell’s law, lens focal length determination, and aberration analysis using calibrated targets
- Interference metrology: High-contrast fringe generation in Young’s double-slit, Lloyd’s mirror, and thin-film interference setups
- Diffractive optics: Quantitative measurement of slit width, grating period, and Babinet’s principle validation
- Polarization studies: Stokes parameter reconstruction via rotating analyzer method and quarter-wave plate calibration
- Undergraduate and graduate teaching labs: Modular integration into physics curricula aligned with AAPT-recommended learning outcomes
- Research prototyping: Seed source for optical parametric amplifiers, cavity ring-down spectroscopy platforms, and optomechanical feedback loops
FAQ
Is the GY-12 suitable for undergraduate teaching laboratories?
Yes—its plug-and-play operation, integrated safety features, and compatibility with common educational optics kits make it well-suited for introductory and advanced undergraduate optics courses.
Can output wavelength be customized beyond standard options?
Yes—TopOptics offers OEM wavelength configuration within the 405–1550 nm range subject to minimum order quantity and lead time confirmation.
Does the GY-12 include beam profiling capability?
No—the unit delivers a collimated Gaussian beam; beam profiling requires external instrumentation such as a CCD-based profiler or scanning slit system.
What is the typical warm-up time to achieve spectral stability?
Less than 15 minutes under ambient lab conditions (20–25°C); thermal stabilization is accelerated by active TEC control.
Are calibration certificates traceable to national standards?
Yes—optical power calibration is performed using a NIST-traceable thermal sensor; wavelength calibration references an iodine-stabilized HeNe laser standard.
