TQC CURVE-X2 Multi-Point Furnace Temperature Data Logger

Overview

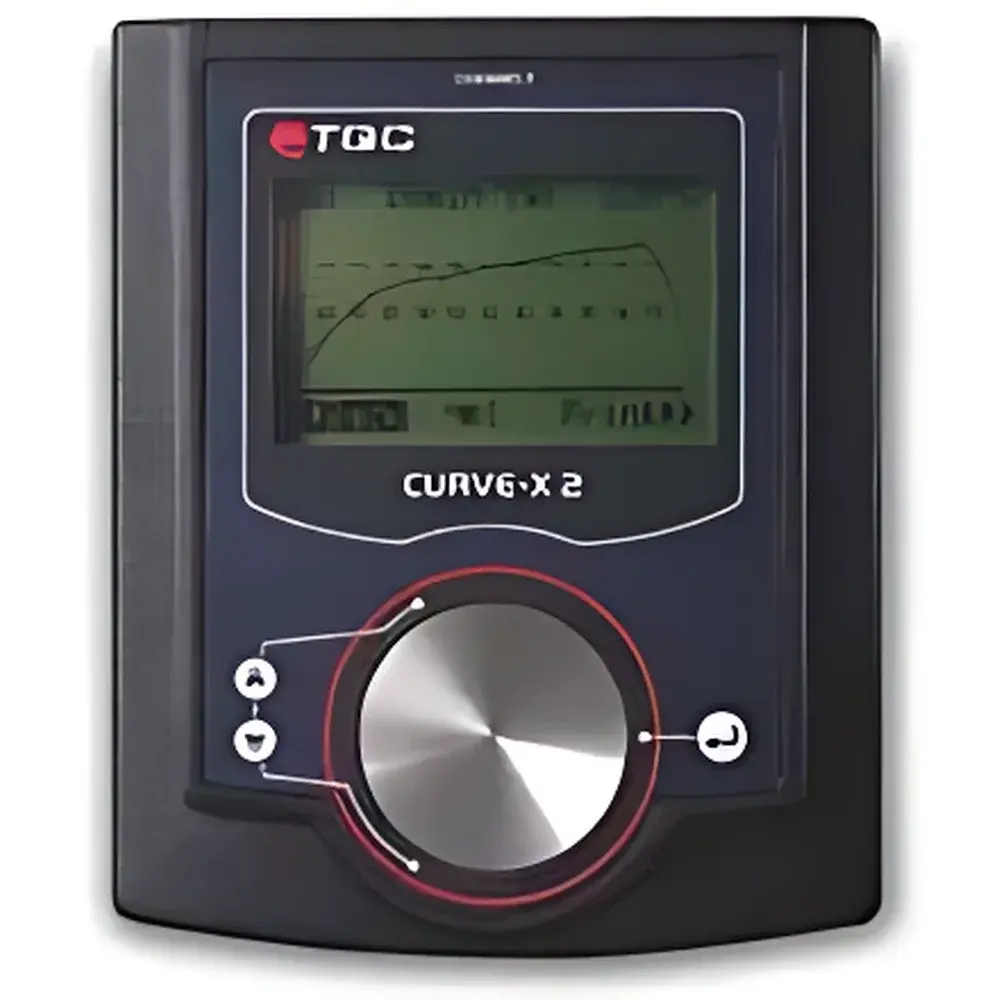

The TQC CURVE-X2 Multi-Point Furnace Temperature Data Logger is an industrial-grade, standalone thermal profiling instrument engineered for precise, high-fidelity temperature mapping during thermal processing cycles—particularly in coating curing, powder coating ovens, paint drying tunnels, and heat treatment furnaces. Utilizing calibrated Type K (NiCr–Ni) thermocouples, the CURVE-X2 captures synchronized, time-stamped temperature data across up to 12 spatially distributed measurement points. Its core architecture implements a robust analog-to-digital conversion system with cold-junction compensation, ensuring traceable accuracy of ±0.3 °C over its full operational range of –50 °C to 1200 °C. Unlike PC-dependent loggers, the CURVE-X2 operates autonomously: all configuration, real-time monitoring, and on-device reporting are executed via its integrated graphical LCD interface—eliminating dependency on external hardware during critical process validation runs.

Key Features

• Standalone operation with intuitive menu-driven navigation—no laptop or driver installation required for setup or readout
• Configurable auto-start/stop logic: triggered by absolute time/date or dynamic temperature thresholds (e.g., begin logging at 80 °C, stop when cooling below 40 °C)
• Built-in Curve-Index calculation algorithm compliant with ISO 2808 and ASTM D7091 for quantitative assessment of thermal profile symmetry, dwell time, and peak temperature consistency
• 10 independent memory groups (25,000 points each), enabling segmented logging for multi-zone furnaces or sequential batch validation
• Backlit high-contrast graphical LCD supporting real-time waveform visualization, channel-by-channel min/max tracking, and instant access to stored profiles
• Extended battery life: 3 × AA alkaline cells support up to 1200 hours of continuous sampling at 10-second intervals—suitable for extended oven qualification cycles
• Integrated insulation enclosure (66 × 192 × 145 mm) rated for transient exposure up to 1200 °C, designed to maintain logger integrity while enabling direct insertion into high-temperature zones

Sample Compatibility & Compliance

The CURVE-X2 accommodates standard miniature Type K thermocouples with industry-standard mini-connectors, supporting probe diameters from 0.5 mm to 3.2 mm. Its 6–12 channel input architecture permits flexible spatial deployment—ideal for mapping conveyor belt cross-sections, multi-zone oven walls, or stacked rack configurations. All firmware and calibration procedures adhere to ISO/IEC 17025 principles for measurement uncertainty management. The device supports GLP-compliant audit trails when used with Ideal Finish™ software, including user authentication, electronic signatures, and immutable timestamped records. While not FDA 21 CFR Part 11–certified out-of-the-box, its data export structure (CSV, XML) enables integration into validated LIMS or MES platforms meeting pharmaceutical or aerospace thermal process validation requirements (e.g., AMS2750E, NADCAP AC7102/2).

Software & Data Management

Ideal Finish™ software—supplied standard with every CURVE-X2—is a Windows-based analytical suite designed specifically for thermal profile interpretation in industrial finishing applications. It imports raw binary logs via USB and reconstructs synchronized multi-channel timelines with sub-second temporal alignment. Key capabilities include 3D thermal surface rendering, comparative overlay of multiple runs (with statistical deviation heatmaps), automatic dwell-time quantification above user-defined cure temperatures, and automated Curve-Index generation per ISO 2808 Annex B. Export options include PDF reports with embedded metadata (operator ID, furnace ID, date/time, probe calibration IDs), CSV for statistical process control (SPC) tools, and XML for enterprise data lakes. All processed files retain original acquisition timestamps and channel-specific calibration coefficients—ensuring full data lineage for internal audits or regulatory review.

Applications

• Validation and routine monitoring of convection, infrared, and UV-cure ovens in automotive and appliance coating lines
• Thermal mapping of powder coating curing cycles to verify compliance with AAMA 2604/2605 specifications
• Process qualification for aerospace composite autoclave cycles per Boeing D6-17487 or Airbus AITM 1-0003
• Root-cause analysis of paint defects (e.g., orange peel, blistering) linked to localized under- or over-curing
• Calibration verification of fixed oven thermocouples using mobile reference probes
• Energy efficiency studies—correlating temperature uniformity with power consumption profiles

FAQ

Does the CURVE-X2 require external power during logging?
No—the device operates exclusively on three AA alkaline batteries, supporting uninterrupted logging for up to 1200 hours. External power is only needed for data download or firmware updates.
Can I use non-Type K thermocouples with this logger?
No—the CURVE-X2 is hardware-calibrated for Type K (NiCr–Ni) thermocouples only. Using other types will invalidate accuracy specifications and void calibration traceability.
Is the insulation box included with every unit?
Yes—the 1600 g high-density ceramic-fiber insulation enclosure is supplied as standard equipment and is mechanically keyed to the logger housing for repeatable positioning.
How is measurement uncertainty determined for the CURVE-X2 system?
Total uncertainty is calculated per GUM (JCGM 100:2008) as the root-sum-square of probe calibration uncertainty (±0.2 °C at 200 °C), logger electronics uncertainty (±0.1 °C), and cold-junction compensation error (±0.1 °C), yielding a combined standard uncertainty of ±0.24 °C (k=2).
Can Ideal Finish™ generate reports compliant with ISO 9001 clause 8.5.1?
Yes—the software exports timestamped, version-controlled PDF reports containing operator name, equipment IDs, environmental conditions, pass/fail criteria, and Curve-Index metrics—fully traceable for quality management system documentation.
