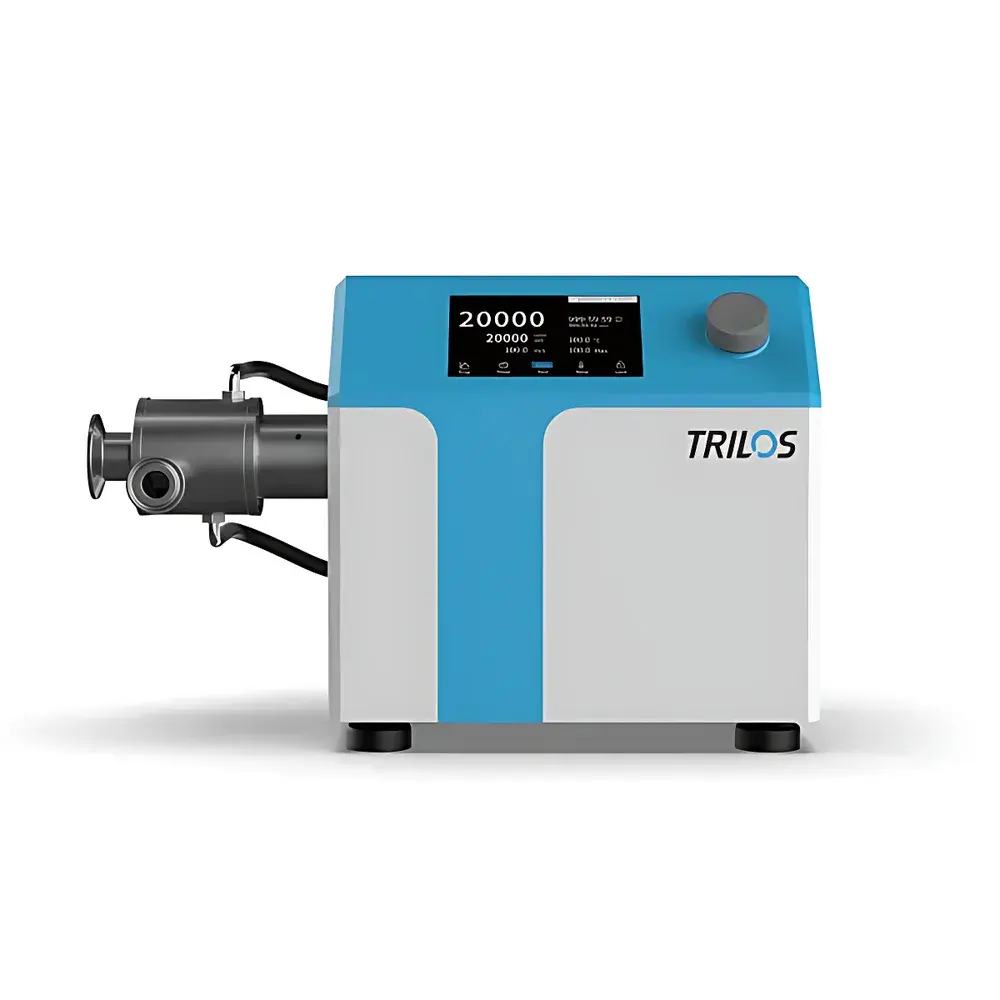

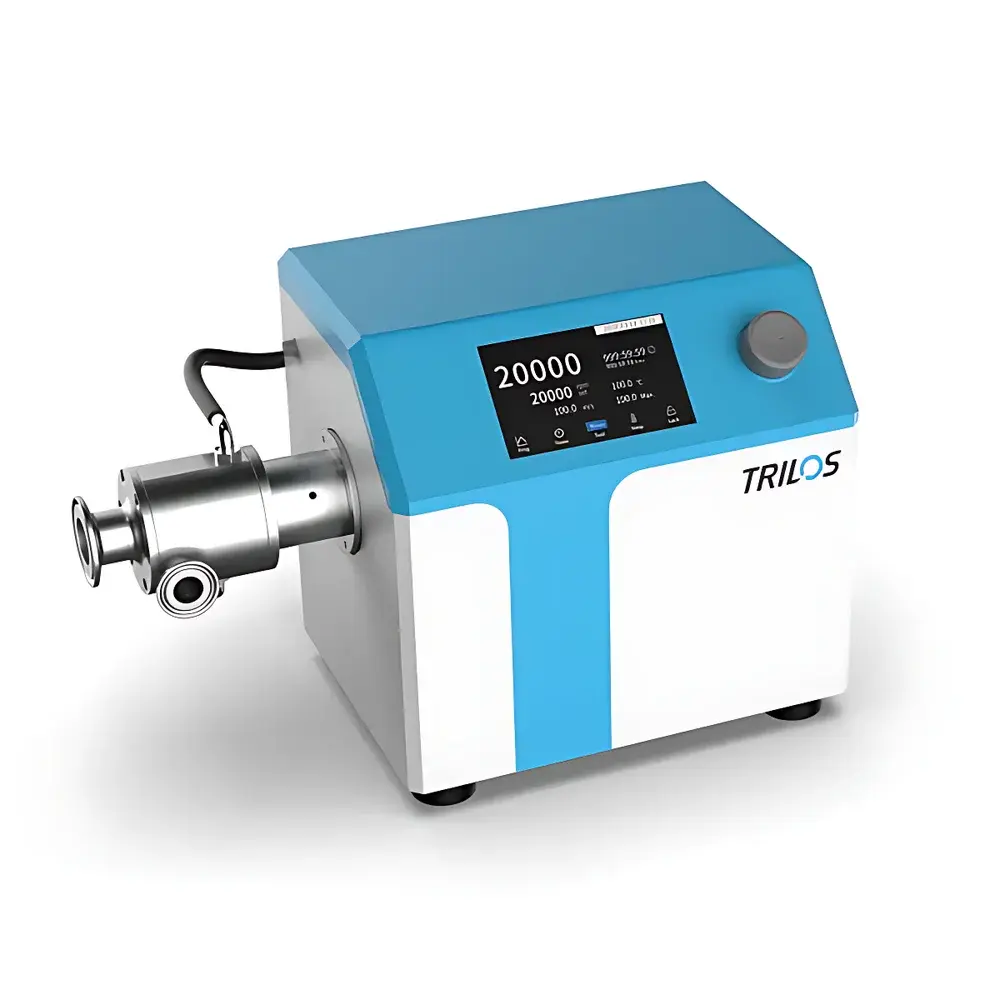

TRILOS Continuous Dispersion Homogenizer DV-1200

Overview

The TRILOS DV-1200 Continuous Dispersion Homogenizer is an engineered benchtop solution for high-shear, continuous-phase dispersion of low-viscosity suspensions in research and development laboratories. Based on Couette–Taylor flow principles, the system employs a precision-machined rotor-stator geometry with sub-millimeter clearance to generate controlled hydrodynamic shear rates exceeding 10⁵ s⁻¹ at maximum rotational speed. This architecture enables effective deagglomeration of nanoscale and submicron ceramic particles—such as yttria-stabilized zirconia (YSZ) or nickel oxide powders—within solvent-based slurry systems used in solid oxide fuel cell (SOFC) tape casting. Unlike batch homogenizers, the DV-1200 operates in true continuous mode: samples are pumped through the dispersion chamber in a single pass, minimizing thermal accumulation and ensuring reproducible particle size distribution (PSD) profiles across repeated runs. Its compact footprint and modular chamber interface support integration into inert-atmosphere gloveboxes or ISO Class 5 cleanrooms.

Key Features

• Brushless DC motor delivering stable torque across the full 3,000–25,000 rpm operating range, with <±0.5% speed regulation under load
• Interchangeable dispersion chambers with standardized 18 mL active volume—available in stainless steel 316L, PTFE-lined, or quartz variants for chemical compatibility assessment
• Hermetically sealed chamber assembly compliant with ISO 14644-1 Class 5 particulate control requirements when coupled with certified filtration inlet/outlet lines
• Tool-free chamber mounting mechanism enabling rapid changeover between material compatibility configurations in under 90 seconds
• Integrated thermal monitoring via embedded PT100 sensor at the stator housing surface, with optional analog output for external data logging
• CE-marked power supply with overcurrent, overtemperature, and phase-loss protection circuits meeting IEC 61000-6-2/6-4 immunity standards

Sample Compatibility & Compliance

The DV-1200 is validated for aqueous and organic-based slurries with dynamic viscosities ranging from 1 to 50 mPa·s and solid loadings up to 45 wt%. It demonstrates consistent performance with abrasive ceramic precursors (e.g., Al₂O₃, BaTiO₃), conductive additives (carbon black, silver flakes), and polymeric binders (PVB, PMMA). All wetted surfaces meet USP Class VI biocompatibility requirements when specified with fluoropolymer coatings. The system supports audit-ready operation: electronic speed logs with timestamping and user ID tagging comply with ALCOA+ data integrity principles. While not FDA-registered as a medical device, its design aligns with ASTM D7110–22 (Standard Practice for Dispersion of Nanomaterials in Liquids) and ISO 13320:2020 (Laser diffraction particle size analysis—sample preparation guidance).

Software & Data Management

The DV-1200 operates in standalone mode without proprietary software dependency. Speed setpoints are configured via front-panel rotary encoder with LED feedback; all operational parameters—including runtime, cumulative revolutions, and peak temperature—are stored in non-volatile memory for retrieval via RS-485 Modbus RTU protocol. Optional analog 4–20 mA output enables connection to SCADA or LIMS platforms for traceable process recording. Audit trails retain last 1,024 operational events with UTC timestamps, supporting GLP documentation workflows. No cloud connectivity or firmware updates are implemented—ensuring deterministic behavior required for regulated R&D environments.

Applications

• Preparation of homogeneous anode/electrolyte slurries for SOFC and Li-ion battery electrode tape casting
• Dispersion stabilization of quantum dot inks for printed electronics R&D
• Deagglomeration of metal-organic framework (MOF) nanoparticles in ethanol or DMF suspensions
• Homogenization of enzyme-loaded liposomal formulations prior to extrusion or freeze-drying
• Quality control of pigment dispersion stability in UV-curable inkjet formulations
• Process development for ceramic additive manufacturing feedstocks requiring narrow PSD (<D90 < 200 nm)

FAQ

What is the minimum recommended sample volume for stable continuous operation?
The system requires a minimum net throughput of 15 mL per minute to maintain laminar flow conditions within the dispersion gap; lower flow rates risk cavitation and inconsistent shear history.
Can the DV-1200 be integrated with peristaltic or syringe pump feed systems?
Yes—standard 1/4″-28 UNF inlet/outlet ports accept Swagelok SS-400 fittings; maximum backpressure tolerance is 3 bar at 25,000 rpm.
Is rotor-stator replacement considered routine maintenance?
Under normal use with non-abrasive slurries, rotor and stator assemblies maintain dimensional integrity for ≥500 hours; wear inspection is advised every 200 operational hours when processing >30 wt% SiC or AlN suspensions.
Does the unit support ATEX-certified operation for solvent-based processes?
Not natively—however, explosion-proof motor variants (ATEX II 2G Ex db IIB T4 Gb) are available under custom order with extended lead time and modified chamber sealing specifications.
