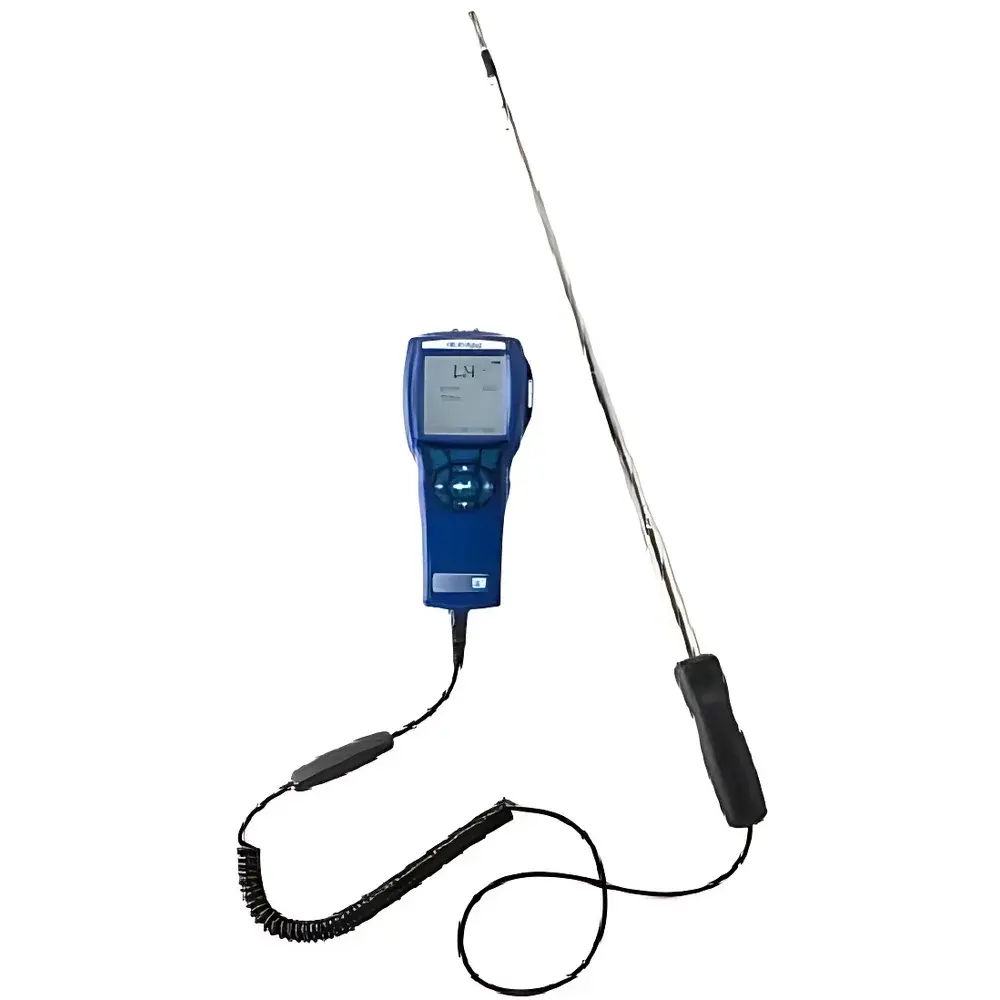

TSI 9565A Multi-Parameter Ventilation Meter

Overview

The TSI 9565A Multi-Parameter Ventilation Meter is a field-deployable, handheld instrument engineered for comprehensive HVAC system commissioning, indoor air quality (IAQ) assessment, and ventilation performance verification. It operates on dual measurement principles: thermal anemometry for air velocity quantification and capacitive sensing for relative humidity, complemented by precision thermistor-based temperature detection and piezoresistive differential pressure transduction. Its architecture supports both direct volumetric airflow calculation (via cross-sectional area input and real-time velocity integration) and indirect flow determination using pitot tube methodology—enabling compliance with ASHRAE Standard 111, ISO 7726 (Ergonomics of the thermal environment), and China’s GB/T 18204.1–2013 for public building ventilation rate evaluation. The device is calibrated traceably to NIST standards and features built-in environmental compensation algorithms to maintain accuracy across variable ambient conditions.

Key Features

• Modular hot-swappable probe system compatible with TSI’s 966-series thermal anemometer/hygrometer probes—featuring 90° bendable shafts, telescoping rods with millimeter-scale刻度 markings for repeatable duct traverse positioning
• Ceramic-encapsulated velocity sensor element providing enhanced mechanical robustness against particulate abrasion and thermal shock in high-dust or high-cycle HVAC environments
• Backlit graphical LCD supporting dual-language operation (English and Simplified Chinese) with simultaneous display of up to five parameters: velocity, volumetric flow, temperature, relative humidity, and differential pressure
• Onboard statistical engine delivering real-time min/max/average/peak hold values, plus time-weighted averaging for thermal comfort analysis per ISO 7730
• Internal memory capacity of 26,500 data points distributed across 100 user-defined test groups, each timestamped with date, time, and operator ID
• USB-C interface with included TSI TrakPro™ Lite software for post-acquisition data export, trend visualization, report generation, and CSV/Excel-compatible output

Sample Compatibility & Compliance

The 9565A interfaces seamlessly with multiple TSI-certified probe configurations—including 966 (velocity + temp + RH), 962 (velocity + temp), 995 (vane anemometer + temp), and 980-series air quality probes (CO₂, CO, VOC). Its physical design conforms to IP54 ingress protection rating for dust and splash resistance during field use. The instrument meets electromagnetic compatibility requirements per IEC 61326-1 and is validated for GLP-aligned workflows through audit-trail-enabled firmware logging. All calibration certificates are issued with uncertainty budgets aligned to ISO/IEC 17025:2017 requirements. For regulatory submissions involving HVAC commissioning or IAQ validation, the device supports configurable data export formats compliant with FDA 21 CFR Part 11 electronic record integrity protocols when used with TrakPro™’s optional signature module.

Software & Data Management

TrakPro™ Lite software provides intuitive project-based data management, enabling users to define duct geometries (rectangular, round, or irregular), assign probe calibration IDs, and auto-calculate volumetric flow rates using industry-standard traverse methods (e.g., log-Tchebycheff or equal-area). Raw datasets include metadata such as probe serial number, calibration expiration date, atmospheric pressure, and user-entered notes. Export options include PDF summary reports with embedded graphs, tabular CSV exports for statistical analysis in MATLAB or Python, and XML files for integration into BMS or CMMS platforms. Firmware updates are delivered via secure HTTPS download and verified using SHA-256 checksums.

Applications

• HVAC system balancing and TAB (Testing, Adjusting, and Balancing) per NEBB and AABC guidelines
• New air intake verification in centralized air handling units (AHUs) and rooftop units (RTUs)
• Containment validation for biosafety cabinets (BSCs) and fume hoods per NSF/ANSI 49 and EN 14175
• Thermal comfort surveys supporting LEED IEQ Credit 7.1 and WELL Building Standard V02
• Occupant exposure assessments in schools, hospitals, and office buildings under ASHRAE 62.1 ventilation rate procedure
• Post-renovation IAQ baseline studies and mold investigation support via correlated temperature/RH/dew point profiling

FAQ

Does the 9565A require annual recalibration?
Yes—TSI recommends annual factory recalibration to maintain traceability to NIST standards; field verification using certified zero and span checks is advised prior to critical measurements.
Can the 9565A calculate airflow in non-rectangular ducts?
Yes—users may define custom duct shapes via TrakPro™ Lite by entering coordinate vertices or selecting from predefined polygon templates, enabling accurate integration over irregular cross-sections.
Is the Chinese UI language pack pre-installed or optional?
The bilingual interface is firmware-native and requires no additional license; language selection is performed directly on-device via Settings > System > Language.
What is the maximum allowable operating altitude for the 9565A?
The instrument is rated for continuous operation up to 3,000 meters above sea level, with automatic barometric pressure compensation applied to all volumetric flow calculations.
Are probe calibration certificates included with purchase?
Each probe ships with a TSI-issued certificate of calibration valid for 12 months, listing as-found/as-left data, measurement uncertainties, and environmental test conditions.
