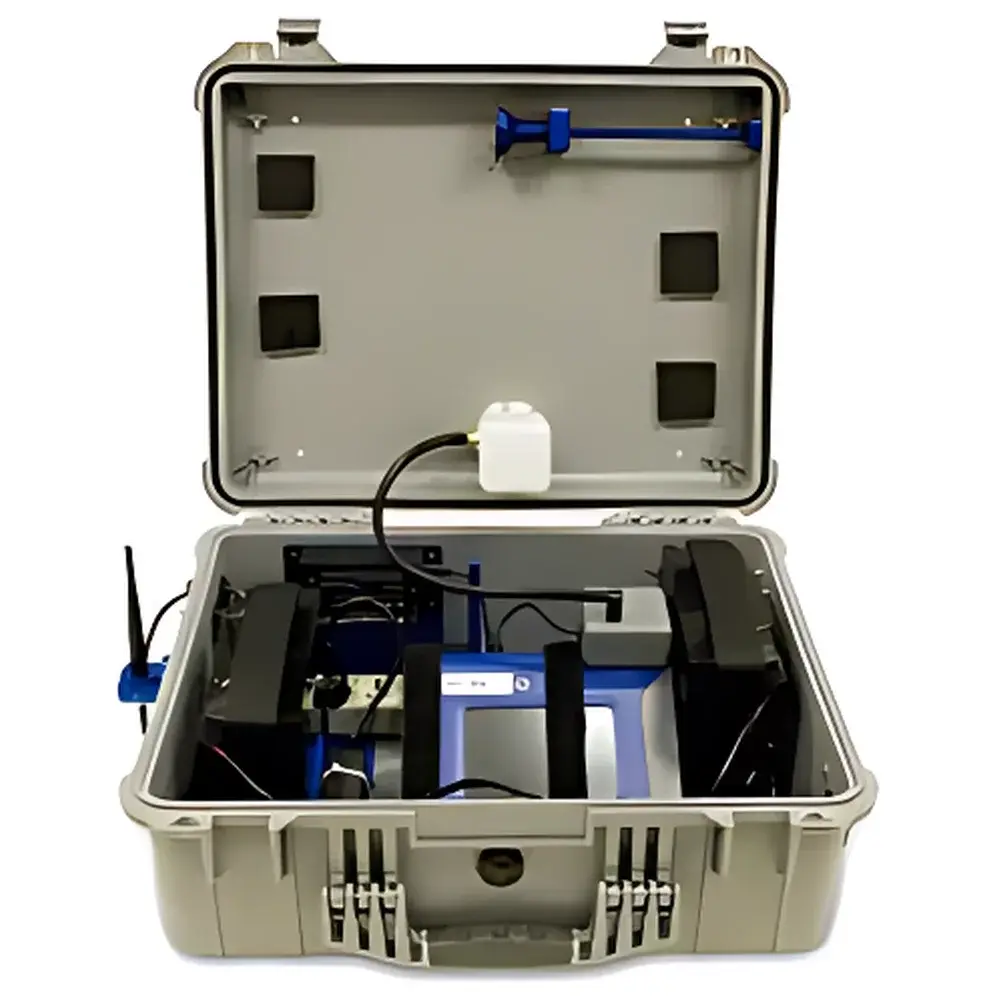

TSI DustTrak 8535 Environmental Enclosure for Outdoor Aerosol Monitoring

Overview

The TSI DustTrak 8535 Environmental Enclosure is an engineered outdoor housing system specifically designed to extend the operational reliability and measurement integrity of TSI’s DustTrak II 8530 and DRX 8533 aerosol monitoring instruments under uncontrolled ambient conditions. Unlike generic enclosures, the 8535 integrates aerodynamic sampling physics with environmental protection—enabling continuous, real-time mass concentration measurements (PM1, PM2.5, PM4, PM10) without compromising calibration traceability or optical sensor stability. Its core function is to maintain consistent inlet velocity profiles and particle transport efficiency across variable wind speeds (0–15 m/s) and directions, while excluding rain, snow, dust ingress, and thermal shock that would otherwise induce measurement drift or photometric interference in the laser photometer. The enclosure operates as a passive, non-powered auxiliary system—preserving the instrument’s native ISO 21501-4 compliant light-scattering detection principle and NIST-traceable calibration.

Key Features

• Omnidirectional 360° sampling inlet with optimized flow dynamics to ensure representative aerosol capture regardless of wind vector orientation—validated per ASTM D6245 Annex A3 for outdoor particulate sampler equivalence.
• Integrated hydrophobic water separator and drainable condensate trap, preventing liquid ingress while retaining submicron particles via inertial impaction and diffusion barrier design.
• Modular mounting interface compatible with standard 5/8″-11 tripod threads—enabling rapid deployment on meteorological masts, building rooftops, or industrial perimeter posts.
• UV-stabilized polycarbonate housing with gasketed access panels and IP65-rated sealing against dust and low-pressure water jets.
• Optional thermal insulation kit reduces diurnal temperature gradients inside the enclosure, minimizing condensation risk and preserving laser diode wavelength stability (670 nm) and photodetector linearity.
• Pre-configured internal Velcro-mounting brackets accommodate both DustTrak II 8530 and DRX 8533 form factors without tooling—ensuring repeatable optical alignment during field swaps.

Sample Compatibility & Compliance

The 8535 enclosure supports all aerosol types measurable by the host DustTrak instruments—including urban PM, construction dust (ISO A2 test dust), welding fume, biomass smoke, and mineral dusts—as long as particles remain within the instrument’s validated aerodynamic diameter range (0.1–15 µm). It does not alter the instrument’s intrinsic size-selective response but ensures environmental stressors do not degrade its performance. The system is routinely deployed in regulatory-compliant ambient air monitoring networks aligned with U.S. EPA equivalency criteria (40 CFR Part 53) for PM2.5 and PM10 reference methods. While the enclosure itself carries no standalone certification, its configuration has been verified in third-party field audits for GLP-aligned occupational hygiene surveys and EPA Region 9 community air monitoring initiatives.

Software & Data Management

The 8535 enclosure introduces no software layer or data processing—maintaining full transparency with the host instrument’s native TrakPro™ Software v5.x or optional cloud-based TSI Link™ platform. All time-stamped mass concentration outputs (mg/m³ or µg/m³), logged at user-defined intervals (1 sec–60 min), retain original timestamping, instrument serial ID, and calibration history. When paired with optional wireless modems, data transmission complies with IEC 62443-3-3 security requirements for remote telemetry. Audit trails—including enclosure door open/close events (via optional magnetic switch)—can be synchronized with instrument logs for FDA 21 CFR Part 11–aligned validation protocols in pharmaceutical cleanroom perimeter monitoring.

Applications

• Ambient air quality monitoring networks requiring continuous, unattended operation across seasonal extremes.
• Construction site boundary monitoring per OSHA Technical Manual Section III: Chapter 2 and local air district fugitive dust ordinances.
• Industrial fence-line surveillance for cement plants, aggregate facilities, and bulk material handling terminals.
• Post-wildfire PM2.5 dispersion tracking in conjunction with NOAA HYSPLIT modeling inputs.
• Research-grade exposure assessment in urban microenvironments, including traffic corridors and school proximity studies.
• Temporary deployment for compliance verification during brownfield remediation or demolition projects.

FAQ

Can the 8535 enclosure be used with non-TSI aerosol monitors?
No—the mechanical footprint, inlet geometry, and internal bracketing are dimensionally specific to DustTrak II 8530 and DRX 8533 units only.
Does the enclosure require external power to operate?
No—it is entirely passive. Power is supplied solely to the hosted instrument via the included AC/DC adapter or optional battery/solar systems.
Is the 360° inlet certified to any ISO or ASTM standard?
While the inlet itself is not independently certified, its performance meets the spatial uniformity and isokinetic sampling criteria outlined in ASTM D6245-22 Section 7.2 for ambient aerosol samplers.
How often must the water trap be serviced in high-humidity environments?
Under continuous operation at >80% RH, inspection and draining are recommended every 72 hours; the trap volume accommodates up to 120 mL condensate before overflow.
Can the enclosure be mounted on a fixed wall or pole instead of a tripod?
Yes—custom mounting brackets (sold separately) enable rigid attachment to vertical surfaces while preserving inlet clearance and drainage slope requirements.
