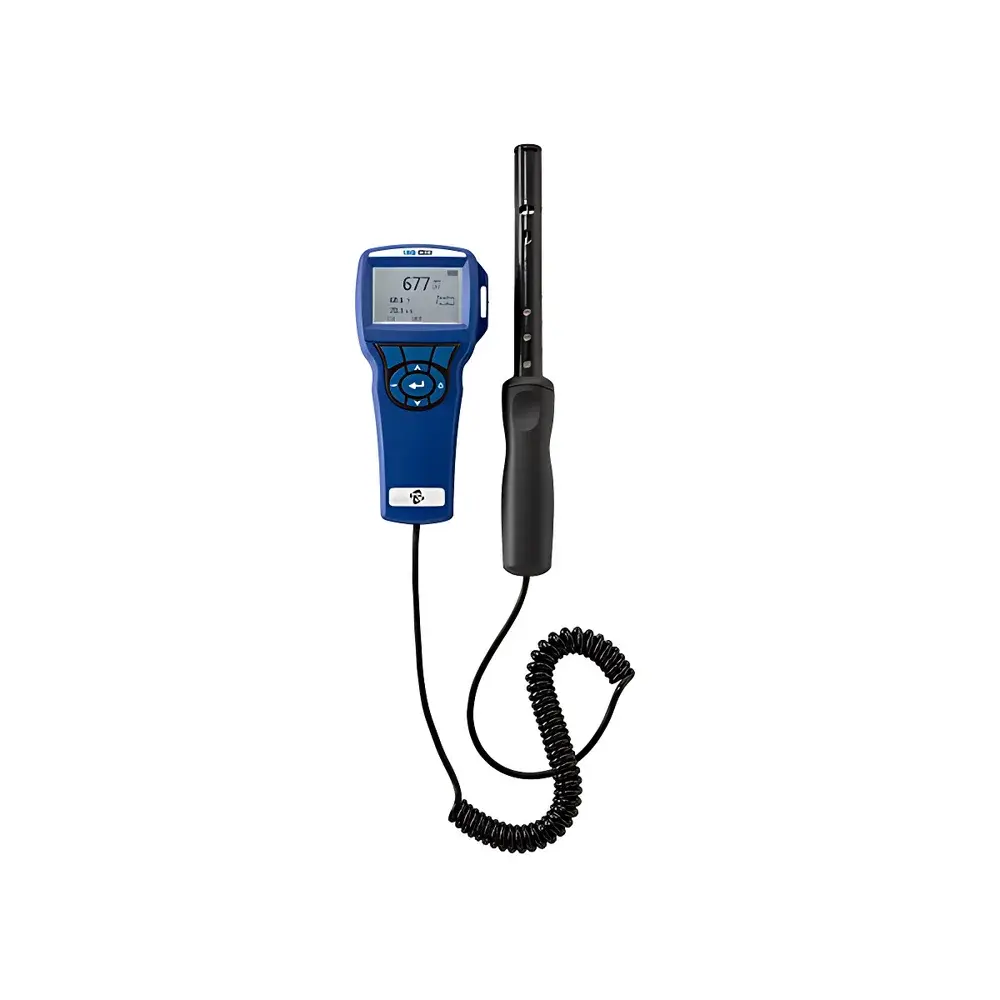

TSI Model 7525 Indoor Air Quality Monitor

Overview

The TSI Model 7525 Indoor Air Quality (IAQ) Monitor is a portable, handheld instrument engineered for real-time, multi-parameter assessment of indoor environmental conditions in commercial, institutional, and laboratory settings. It operates on established physical measurement principles: dual-wavelength non-dispersive infrared (NDIR) spectroscopy for CO₂ quantification, precision thermistor-based temperature sensing, and thin-film capacitive technology for relative humidity (RH) determination. These core sensors are integrated within a single compact chassis and calibrated traceably to NIST standards. The device computes secondary thermal comfort and ventilation metrics—including dew point temperature, wet-bulb temperature, and outdoor air percentage—using industry-accepted psychrometric algorithms (ASHRAE Fundamentals Handbook, Chapter 1). Designed for field-deployable reliability, the Model 7525 supports continuous logging and spot-check verification without requiring external software during operation, making it suitable for HVAC commissioning, post-occupancy evaluations, and routine IAQ audits under ISO 16814 (Indoor Air Quality — General Principles), ASHRAE Standard 62.1 (Ventilation for Acceptable Indoor Air Quality), and OSHA-recommended exposure guidelines.

Key Features

• Dual-wavelength NDIR CO₂ sensor with low drift characteristics (<±20 ppm/year baseline shift), enabling stable long-term monitoring without frequent recalibration.
• Simultaneous real-time acquisition of CO₂ concentration, ambient temperature, and relative humidity—all displayed concurrently on a high-contrast LCD screen (up to three parameters visible at once).
• Onboard psychrometric engine calculating dew point, wet-bulb temperature, and outdoor air percentage using either CO₂ differential or temperature-based dilution models per ANSI/ASHRAE Guideline 12–2020.
• Ergonomic overmolded housing with integrated probe port and tactile button layout optimized for one-handed operation in confined spaces (e.g., ceiling plenums, ductwork access points).
• User-configurable time constants (1–30 s) and logging intervals (1 s to 1 hr), supporting both transient event capture and extended trend analysis.
• Internal memory stores up to 30,300 timestamped records across all measured parameters, with automatic rollover and UTC-synchronized timestamps when connected to PC via USB.

Sample Compatibility & Compliance

The Model 7525 is designed for gaseous sampling in ambient indoor air environments at atmospheric pressure (±10 kPa) and typical indoor particulate loadings (95 %RH sustained >1 hr). The instrument complies with electromagnetic compatibility requirements per FCC Part 15 Class B and CE EN 61326-1:2013. Its CO₂ measurement methodology aligns with ISO 8573-1 Annex C (for compressed air applications) and supports documentation required for LEED v4.1 EQ Credit: Indoor Air Quality Assessment and WELL Building Standard™ Feature 01 (Air). Calibration certificates include traceability to NIST SRM 1971 (CO₂ in nitrogen) and NIST SRM 2710a (temperature/humidity reference standards).

Software & Data Management

Data export is supported via USB interface using TSI’s TrakPro™ Lite software (v5.0+), which enables visualization of time-series plots, statistical summaries (min/max/mean/stdev), and export to CSV or PDF formats. The software enforces audit-trail functionality—including user login, parameter change logs, and data modification timestamps—to support GLP-compliant workflows. While the instrument itself does not implement FDA 21 CFR Part 11 electronic signature controls, its raw data files (.tdf) contain immutable metadata headers (instrument ID, firmware version, calibration date, operator ID if entered), facilitating integration into validated LIMS or QMS platforms where full Part 11 compliance is managed at the enterprise level.

Applications

• Verification of HVAC system performance against design specifications, including ventilation rate validation via CO₂ decay or steady-state methods per ASHRAE RP-1671.
• Occupant thermal comfort assessment per ISO 7730 and ASHRAE 55, using concurrent temperature, RH, and calculated dew point/wet-bulb outputs.
• Baseline IAQ surveys prior to occupancy and periodic re-evaluation for facilities subject to state or local indoor air regulations (e.g., California Code of Regulations Title 8 §5141.1).
• Supporting root-cause analysis of occupant complaints related to stuffiness, fatigue, or respiratory irritation through correlation of CO₂ trends with occupancy schedules and outdoor air intake settings.
• Field calibration verification of fixed-mount CO₂ transmitters in building automation systems (BAS) using side-by-side comparison protocols.

FAQ

What is the recommended calibration interval for the Model 7525?
TSI recommends annual factory calibration for applications requiring regulatory compliance; however, field zero checks using certified zero-air (N₂ or synthetic air <10 ppm CO₂) can be performed quarterly to verify baseline stability.
Can the instrument measure CO (carbon monoxide)?
No—the Model 7525 is specifically configured for CO₂, temperature, and RH only. For combined CO/CO₂ monitoring, consider the TSI Q-Trak™ IAQ Monitor series (e.g., Model 8554) with electrochemical CO sensor options.
Is the probe interchangeable or serviceable in the field?
The integrated probe is permanently attached and not user-replaceable; however, the entire sensor module is serviced as a single unit at authorized TSI service centers.
Does the device meet requirements for LEED or WELL certification documentation?
Yes—when used in accordance with ASHRAE Standard 62.1 and documented with calibration certificates and measurement protocols, its data is accepted by GBCI and IWBI for credit submittals.
How is outdoor air percentage calculated?
Using the two-point dilution method: %OA = [(C_indoor − C_outdoor) / (C_supply − C_outdoor)] × 100, where C_outdoor is user-entered (default 400 ppm) and C_supply is estimated from mixed-air assumptions or measured separately.
