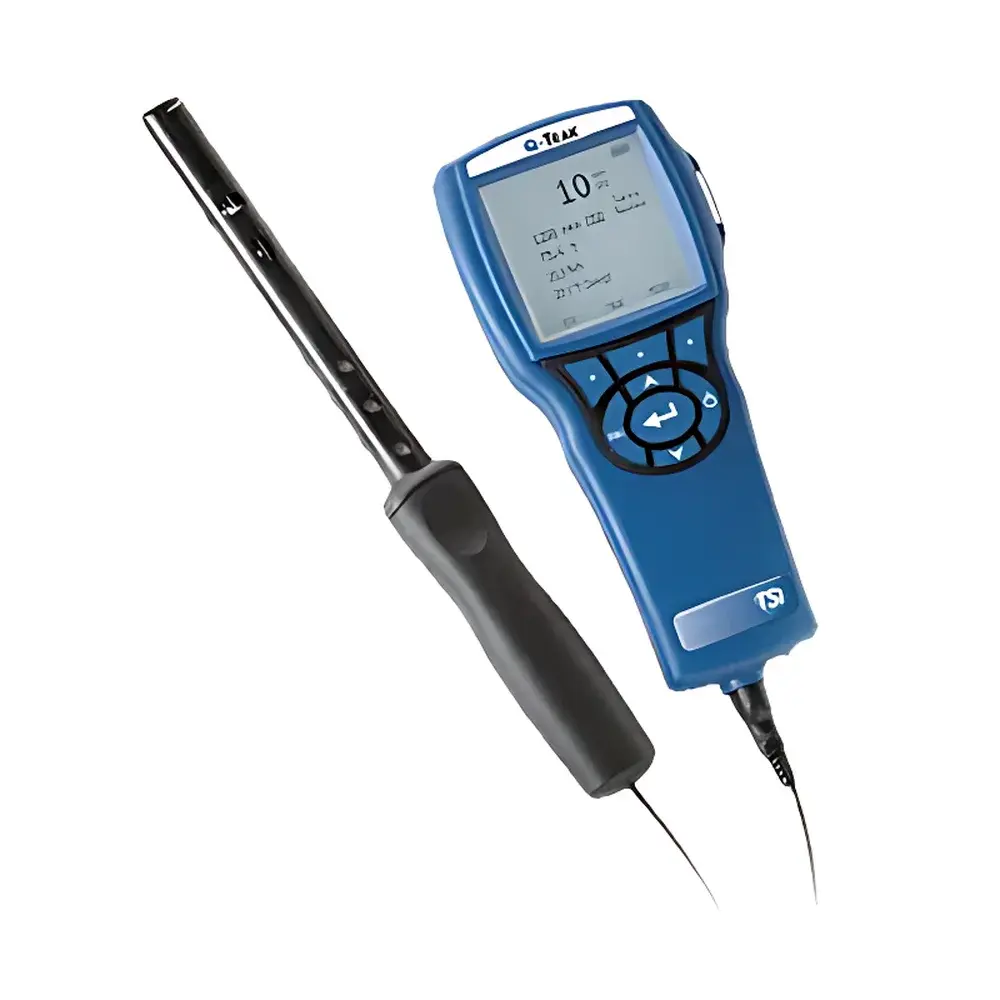

TSI Model 7575 Indoor Air Quality Monitor

Overview

The TSI Model 7575 Indoor Air Quality (IAQ) Monitor is a handheld, multi-parameter environmental measurement instrument engineered for precision field assessment of building ventilation performance and occupant exposure conditions. It operates on the fundamental principles of non-dispersive infrared (NDIR) spectroscopy for CO₂ quantification, electrochemical detection for CO, photoionization detection (PID) for volatile organic compounds (VOCs), capacitive sensing for relative humidity, thermistor-based temperature measurement, and thermal anemometry for air velocity—each calibrated traceably to NIST standards. Designed for compliance-driven environments—including LEED-certified buildings, healthcare facilities, schools, and office complexes—the 7575 delivers real-time, validated metrics aligned with ASHRAE Standard 62.1, ISO 16814 (Indoor air quality — Guidelines for the assessment of indoor air), and ASTM D6245 (Standard Guide for Using Indoor Carbon Dioxide Concentrations to Evaluate Indoor Air Quality and Ventilation). Its deployment at Beijing 2008 Olympic venues underscores its robustness under high-stakes operational auditing.

Key Features

• Modular probe architecture enabling rapid field-swapping between IAQ, VOC, velocity, and pressure configurations without recalibration
• Integrated calculation engine computing dew point, wet-bulb temperature, and outdoor air percentage (OAP%) using ANSI/ASHRAE Fundamentals-derived psychrometric algorithms
• Backlit graphical LCD with intuitive menu navigation supporting 12 languages—including full Chinese localization—optimized for technician-level operation
• On-device data logging capacity of up to 39 days at user-selectable intervals (1 min to 24 h), with timestamped records stored in non-volatile memory
• Bluetooth 4.0 Class 2 wireless interface compliant with RFCOMM and SPP profiles for secure data export to Windows/macOS platforms
• Keyboard lock function preventing inadvertent parameter modification during active measurement cycles
• CPA certification (China Metrology Accreditation No. 2007F109-31) confirming metrological traceability per JJG 879–2002 (CO₂ meters) and JJG 695–2019 (toxic gas detectors)

Sample Compatibility & Compliance

The Model 7575 accommodates a defined set of interchangeable probes certified to specific metrological scopes: the 980/982 IAQ probes (CO₂, CO, RH, temperature), 984–987 VOC modules (ppb- to ppm-range PID response), and 960–966/995 velocity-humidity-temperature assemblies. All sensors undergo factory calibration against primary standards with documented uncertainty budgets per ISO/IEC 17025 requirements. The instrument meets electromagnetic compatibility (EMC) criteria per IEC 61326-1:2013 and safety requirements per IEC 61010-1:2010. For regulated environments, audit trails generated via TrakPro™ Lite software satisfy FDA 21 CFR Part 11 electronic record integrity provisions when used with appropriate administrative controls.

Software & Data Management

TrakPro™ Lite v5.1 (Windows-compatible) serves as the official data analysis and configuration utility. It enables: (1) extraction of time-series datasets with metadata tagging (probe ID, operator ID, location code); (2) generation of ASHRAE-compliant IAQ summary reports including OAP% trend charts and CO₂ excursion alerts; (3) visualization of cross-parameter correlations (e.g., CO₂ vs. occupancy proxy, VOC vs. temperature); and (4) firmware updates and sensor zero/span verification logs. Raw CSV exports support integration into LIMS or BMS platforms via standard ODBC drivers. Data files include embedded checksums and digital signatures to ensure chain-of-custody integrity.

Applications

• Baseline IAQ surveys prior to LEED EBOM recertification or WELL Building Standard v2 documentation
• Occupancy-based ventilation rate validation in K–12 classrooms per CDC/ASHRAE guidance on airborne pathogen mitigation
• Post-renovation VOC screening in healthcare settings adhering to USP and ISO 14644-8 cleanroom air classification protocols
• Industrial hygiene assessments in manufacturing plants requiring OSHA PEL and ACGIH TLV® verification for CO and organic vapors
• Commissioning and retrocommissioning of HVAC systems per ASHRAE Guideline 0–2019 and BCxA Best Practices

FAQ

Does the Model 7575 require annual recalibration?
Yes—TSI recommends annual full-system verification using certified gas standards and NIST-traceable reference instruments, particularly for CO and VOC channels where sensor drift may exceed ±5% of reading over 12 months.
Can the 7575 be used in outdoor ambient air monitoring?
No—it is designed exclusively for indoor or semi-enclosed space applications; its humidity and CO₂ algorithms assume indoor psychrometric conditions and lack weatherproofing for sustained outdoor exposure.
Is the Bluetooth interface compatible with iOS devices?
No—TrakPro Lite communicates only with Windows PCs via Bluetooth serial port profile (SPP); iOS connectivity requires third-party BLE-to-USB adapters and custom scripting not supported by TSI.
What is the certified measurement uncertainty for CO₂ at 1000 ppm?
±(3% of reading or ±50 ppm), whichever is greater, as validated per CPA certificate and stated in TSI Technical Bulletin TB-7575-02 Rev. D.
How does the instrument handle sensor cross-sensitivity in mixed-gas environments?
The 982 probe applies proprietary compensation algorithms for CO interference in CO₂ NDIR channels, while VOC measurements use humidity- and temperature-corrected PID response curves per IUPAC Technical Report TR-2021-04.
