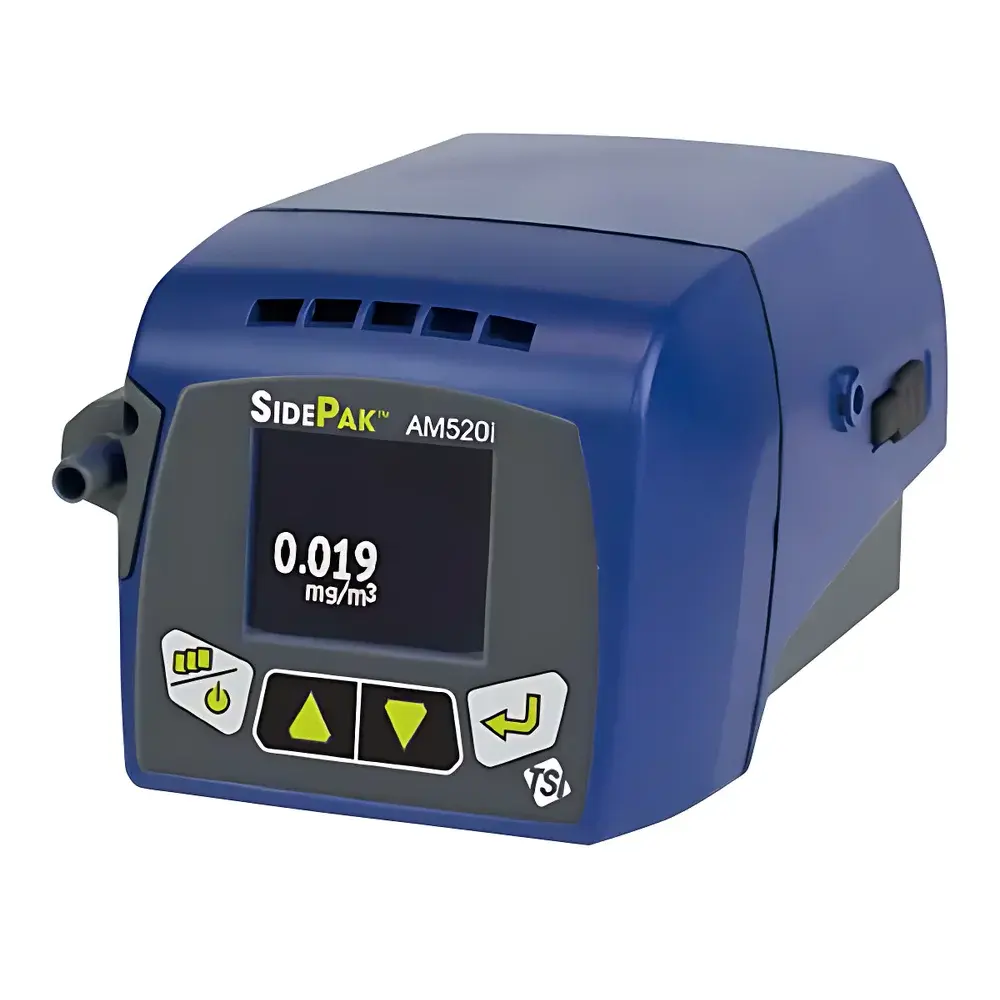

TSI SidePak AM520i Intrinsically Safe Personal Aerosol Monitor

Overview

The TSI SidePak AM520i Intrinsically Safe Personal Aerosol Monitor is a rigorously certified, real-time direct-reading instrument engineered for continuous personal exposure assessment in hazardous locations where flammable gases, vapors, or combustible dusts may be present. Based on the well-established principle of near-forward light scattering (Nephelometry), the AM520i quantifies airborne particulate mass concentration (e.g., respirable dust, silica, diesel particulate matter) and particle number concentration in real time—without requiring filter collection or laboratory analysis. Its intrinsically safe (IS) architecture ensures that no spark or thermal effect generated under normal or fault conditions can ignite an explosive atmosphere, making it suitable for deployment in Zone 0 (IEC), Class I Division 1 (UL/CSA), and ATEX Category 1G environments. Designed specifically for occupational hygiene professionals, safety officers, and industrial hygienists working in high-risk sectors—including oil & gas refineries, underground mining, chemical processing plants, pharmaceutical manufacturing cleanrooms with solvent use, and confined-space maintenance—the AM520i delivers traceable, auditable exposure data aligned with OSHA PELs, ACGIH TLVs®, and ISO 7706-compliant sampling protocols.

Key Features

• Intrinsically safe design certified to multiple global standards: IECEx SIR 18.0043X, ATEX 2014/34/EU (Ex ia IIC T4 Ga), CSA C22.2 No. 258 (Class I Div 1 Groups A–D; Class II Div 1 Groups E–G), and UL 913 (Class I, Div 1; Class II, Div 1).
• Compact, lightweight form factor (≤ 240 g) optimized for full-shift wearability—mounted on lapel, shoulder strap, or belt without compromising worker mobility or comfort.
• Real-time measurement output: simultaneous display of mass concentration (mg/m³) and particle number concentration (particles/cm³), updated every second.
• Integrated data logger with non-volatile memory capable of storing >100,000 time-stamped records (including date/time, concentration, battery status, pump flow rate, and alarm flags).
• Configurable audible and visual alarms triggered by user-defined exposure thresholds—supporting immediate intervention during exceedance events.
• Rechargeable lithium-ion battery providing up to 12 hours of continuous operation at nominal flow (1.7 L/min), with external 12 Vdc SELV power input option for extended stationary monitoring.

Sample Compatibility & Compliance

The AM520i is calibrated and validated for aerosols commonly encountered in industrial settings, including but not limited to coal dust, crystalline silica (quartz), cement dust, metal fumes, carbon black, and diesel exhaust particles (DEP). While optical response varies by particle morphology and refractive index, the device employs TSI’s proprietary calibration algorithm optimized for respirable fraction (PM₄) and inhalable fraction (PM₁₀) approximations per ISO 7706 and EN 481 definitions. It meets functional requirements outlined in ASTM D6245 (Standard Guide for Using Indoor Air Quality Investigation Strategies), ISO 16000-27 (Indoor air — Part 27: Determination of airborne particles), and supports GLP-aligned documentation workflows when used with TrakPro™ 5.0. All certifications are issued by accredited third-party bodies (Sira, UL, CSA), and test reports are available upon request for regulatory audit purposes.

Software & Data Management

TrakPro™ 5.0 software enables secure, structured post-processing of logged AM520i datasets. The application supports batch download via USB interface, automatic time synchronization, and configurable reporting templates compliant with OSHA 1910.1200 (Hazard Communication), MSHA Part 46/48, and EU REACH Annex XVII recordkeeping obligations. Users can generate annotated time-series plots, exposure duration histograms, TWA and STEL calculations, and comparative cohort analyses across multiple monitors. Audit-trail functionality logs all user actions—including parameter changes, calibration events, and report exports—with timestamps and operator ID (when integrated with enterprise authentication systems). Data export formats include CSV, PDF, and XML, facilitating import into LIMS or EHS platforms such as Intelex, ETQ Reliance, or Sphera EHS.

Applications

• Real-time exposure mapping during hot work, tank entry, or catalyst handling in petrochemical facilities.
• Respirable crystalline silica monitoring in sandblasting, concrete cutting, and quarry operations—supporting OSHA Silica Standard 29 CFR 1926.1153 compliance.
• Diesel particulate matter (DPM) assessment in underground mining ventilation studies and fleet maintenance bays.
• Pharmaceutical powder handling process validation under GMP Annex 1 (2022) environmental control requirements.
• Confined space entry pre-screening and continuous atmospheric monitoring per NFPA 350 and OSHA 1910.146.
• Engineering control verification—e.g., evaluating local exhaust ventilation (LEV) effectiveness before and after modifications.

FAQ

What does “intrinsically safe” mean for the AM520i?
Intrinsic safety refers to a protection technique that limits electrical and thermal energy within the device to levels incapable of causing ignition in hazardous atmospheres—even under fault conditions. The AM520i complies with IEC 60079-11 and UL 913, permitting its use in Zone 0 (continuous hazard presence) and Class I Division 1 locations.
Can the AM520i replace gravimetric sampling entirely?
No—it complements, rather than replaces, filter-based gravimetric methods required for definitive regulatory compliance (e.g., NIOSH 0600, ISO 7706). However, its real-time data enables rapid exposure identification, task-based risk prioritization, and engineering control optimization prior to formal compliance sampling.
Is calibration traceable to NIST standards?
Yes—TSI provides factory calibration using polydisperse PSL and ammonium sulfate aerosols traceable to NIST SRM 1963 and ISO 29463 reference filters. Field verification kits and zero-air checks are supported through optional accessories.
Does the AM520i meet FDA 21 CFR Part 11 requirements?
TrakPro™ 5.0 supports electronic signatures, audit trails, and role-based access control—enabling implementation of Part 11–compliant workflows when deployed within validated IT infrastructure and documented SOPs.
How is pump flow verified during field use?
The AM520i incorporates a built-in thermal mass flow sensor with automatic compensation for temperature and pressure variations. Flow accuracy is maintained at ±5% of reading across its operating range (1.5–2.0 L/min), with diagnostic alerts for filter clogging or pump degradation.
