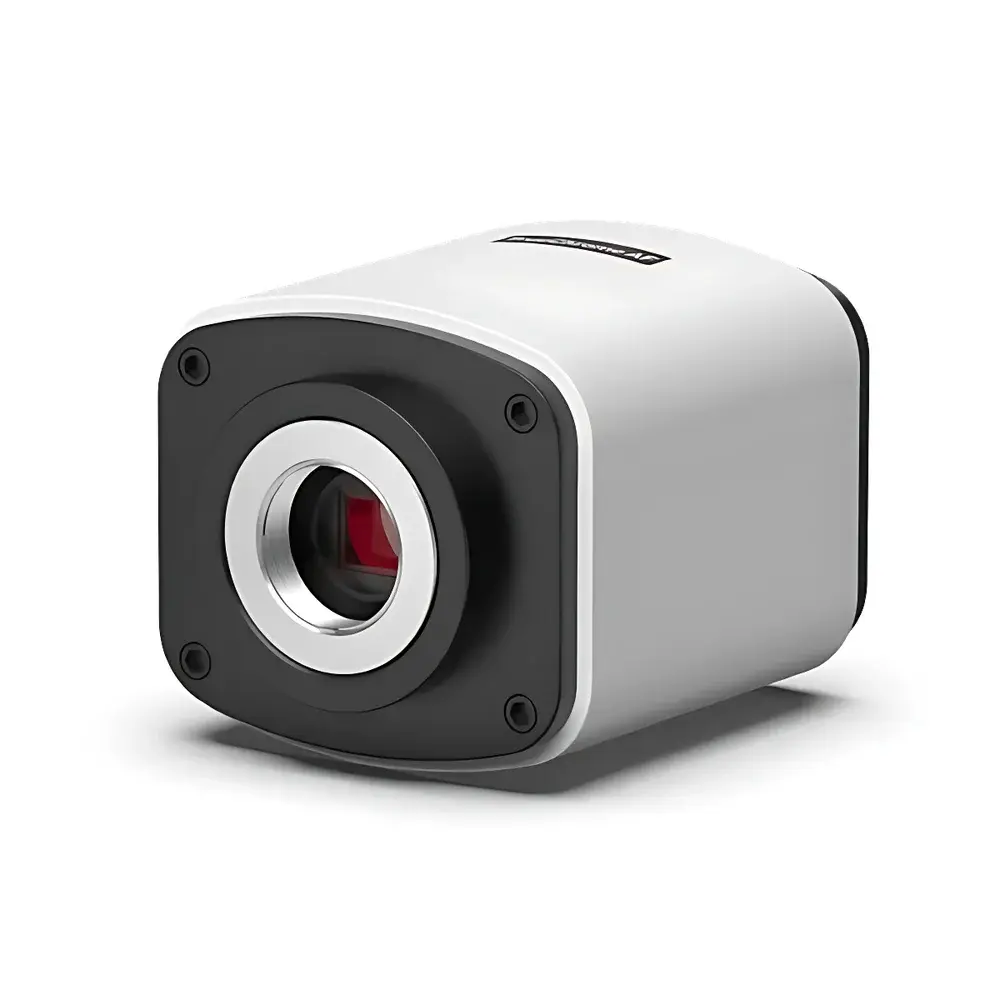

Tucsen TrueChrome 4K Pro CMOS Microscopy Camera

Overview

The Tucsen TrueChrome 4K Pro is a high-performance, multi-modal CMOS microscopy camera engineered for demanding optical imaging applications across fluorescence, brightfield, polarized light, metallurgical, and stereo microscopy workflows. Built around the Sony IMX183C global-shutter CMOS sensor, it delivers native 4K UHD resolution (3840 × 2160) with precise 2.9 µm pixel pitch—optimized to exceed the Nyquist sampling requirement for standard microscope optical systems using objectives from 4× to 100×. Unlike legacy 1080p sensors—whose effective sampling resolution (~4.6 µm at 2/3″ field coverage)—falls short of resolving fine structural details under high-magnification objectives, the TrueChrome 4K Pro achieves an effective spatial sampling of ~2.3 µm, ensuring full utilization of objective-limited resolution without aliasing or undersampling artifacts. Its dual-path architecture supports simultaneous HDMI real-time display (30 fps @ 4K), USB 3.0 host-controlled acquisition (25 fps @ full resolution), and Gigabit Ethernet streaming (30 fps @ 4K), enabling flexible integration into both standalone observation stations and networked laboratory environments.

Key Features

• Native 4K UHD imaging (3840 × 2160) with Sony IMX183C CMOS sensor for high-fidelity morphological and quantitative analysis
• Optimized pixel geometry (2.9 µm × 2.9 µm) supporting diffraction-limited sampling across common objective magnifications (4×–100×) per ISO 19038 and ASTM E2821 guidelines
• Dual-output interface architecture: HDMI 2.0 (real-time 4K display), USB 3.0 (host-controlled acquisition with full parameter access), and Gigabit Ethernet (low-latency network streaming)
• Integrated 4K ISP engine enabling accurate auto-exposure in complex illumination conditions—including low-signal fluorescence and multi-channel spectral setups—and faithful reproduction of challenging hues (e.g., DAPI, Cy5, FITC, and custom fluorophore blends)
• Embedded firmware with three advanced operational modules: Auto-Mosaic (stage-based tile stitching), Extended Depth of Field (EDF) synthesis via focus stacking, and real-time remote control via LAN
• Compliant with DICOM Part 10 standards for medical-grade image export; supports JPG, PNG, TIFF, and DICOM formats across all interfaces

Sample Compatibility & Compliance

The TrueChrome 4K Pro is compatible with all standard C-mount microscopes—including inverted, upright, and stereoscopic platforms—and supports fluorescence filter cube sets (e.g., FITC, TRITC, DAPI, Cy5), polarizing optics, and reflected-light metallurgical configurations. Its dynamic range (≥64 dB), quantum efficiency (>75% peak at 520 nm), and low read noise (<2.5 e⁻ RMS) ensure reliable signal capture from weakly fluorescent specimens and high-contrast reflective samples. The device meets CE, FCC, and RoHS directives. Firmware and Mosaic V2 software support audit trails, user authentication, and configurable metadata tagging—enabling alignment with GLP/GMP documentation requirements and FDA 21 CFR Part 11 electronic record integrity standards when deployed in regulated QC/QA or clinical pathology labs.

Software & Data Management

Bundled with Mosaic V2—a modular, cross-platform (Windows/macOS/Linux) analysis suite—the TrueChrome 4K Pro enables complete image lifecycle management: acquisition, annotation, measurement (linear, angular, area, intensity profiling), report generation (PDF/HTML), and batch processing. Key capabilities include:

• Hardware-accelerated auto-mosaic stitching with sub-pixel registration accuracy, supporting arbitrary stage motion paths and multi-objective tiling
• Focus-stack EDF reconstruction with Z-step synchronization via motorized focus drives or manual encoder input
• Remote operation over TCP/IP: full camera control—including exposure, gain, white balance, ROI selection, and live streaming—from any networked workstation without latency degradation
• Live streaming compatibility with RTSP/ONVIF-compliant infrastructure and third-party platforms (e.g., Zoom, Microsoft Teams, OBS Studio) via standardized H.264/H.265 encoding
• Export compliance: DICOM-conformant metadata embedding (including acquisition parameters, objective ID, magnification, and calibration scale)

Applications

The TrueChrome 4K Pro serves as a primary imaging engine in academic research laboratories (cell biology, neuroscience, materials science), industrial quality assurance (PCB inspection, weld seam analysis, coating thickness assessment), clinical cytology (blood smear digitization, Pap test imaging), and educational settings requiring scalable, future-proof digital microscopy infrastructure. Its combination of resolution, speed, and interoperability makes it suitable for time-lapse fluorescence imaging, automated histopathology slide scanning pre-processing, real-time surgical consultation, and collaborative remote diagnostics where visual fidelity and data traceability are critical.

FAQ

Does the TrueChrome 4K Pro support hardware triggering for synchronized multi-camera or stage-control acquisition?
Yes—it features a TTL-compatible trigger input/output port for external synchronization with motorized stages, light sources, or auxiliary sensors.
Can Mosaic V2 perform quantitative fluorescence intensity measurements with background subtraction and region-of-interest normalization?
Yes—Mosaic V2 includes calibrated intensity profiling tools compliant with ISO 17025 traceable workflows, supporting flat-field correction, channel-specific gamma adjustment, and statistical reporting per ROI.
Is the Ethernet interface capable of simultaneous bidirectional communication (e.g., command + video + metadata)?
Yes—the Gigabit Ethernet interface implements a proprietary lightweight protocol that multiplexes control commands, compressed video streams (H.264), and structured metadata (JSON/XML) over a single TCP connection.
What is the maximum cable length supported for USB 3.0 operation at full 4K resolution and 25 fps?
Up to 3 meters using certified passive USB 3.1 Gen 1 cables; active extension solutions (optical or powered repeaters) extend reach to 10+ meters without frame drop.
Does the camera support GenICam-compliant configuration for integration into machine vision frameworks?
No—TrueChrome 4K Pro uses Tucsen’s native SDK and Mosaic V2 API; however, third-party wrappers (e.g., OpenCV bindings, HALCON drivers) are available upon request for enterprise integration projects.
