Tuofeng BW-20 Thermal Insulation Materials Testing Machine

Overview

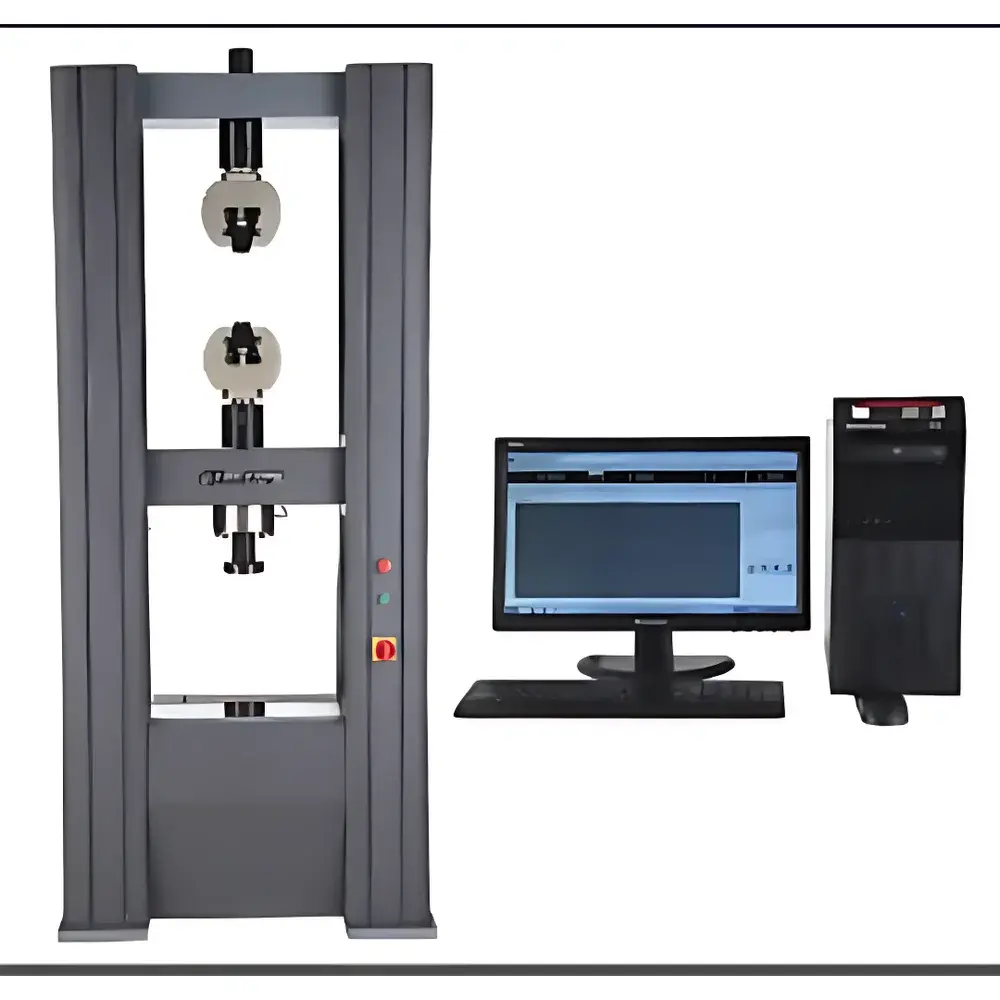

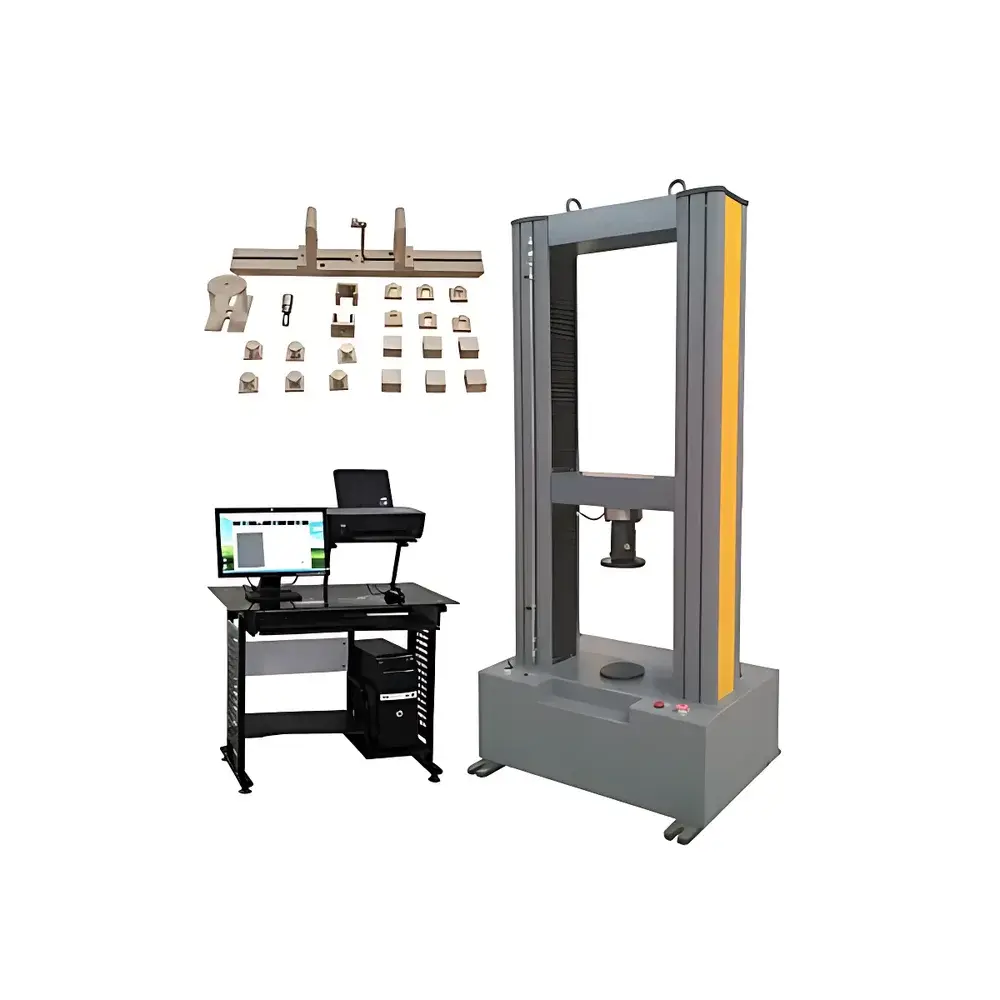

The Tuofeng BW-20 Thermal Insulation Materials Testing Machine is a precision-engineered electromechanical tensile testing system designed specifically for mechanical performance evaluation of building thermal insulation materials and associated bonding systems. It operates on the principle of controlled uniaxial force application under programmable displacement or load control, enabling quantitative assessment of tensile strength, bond strength, elongation at break, modulus of elasticity, and adhesion performance in accordance with standardized test protocols. The machine complies with key Chinese industry standards governing exterior insulation finishing systems (EIFS), including JC/T 992–2006 (adhesives for expanded polystyrene boards), JC/T 993–2006 (rendering mortars), JG 149–2003 (EPS-based thin-coat EIFS), and JG 158–2004 (glue-powder EPS particle systems). Its rigid dual-column portal architecture ensures high structural stiffness and minimal deflection during high-load testing, supporting reproducible results across repeated cycles.

Key Features

• High-accuracy load measurement system calibrated to ±0.5% of reading across 0.2–100% of full-scale range (20 kN), traceable to national metrological standards
• Ultra-fine displacement resolution of 0.0001 mm, coupled with crosshead position accuracy of ±0.5% of reading, enabling precise strain quantification for low-deformation materials
• Wide speed regulation range (0.01–500 mm/min) with closed-loop servo control, suitable for both quasi-static bond strength tests and creep/relaxation studies
• Dual-column portal frame constructed from high-rigidity steel, minimizing frame compliance and ensuring stable load transmission during high-force tensile and peel tests
• 800 mm vertical travel capacity and 400 mm internal width accommodate standard-sized insulation panels, mortar coupons, and multi-layer composite specimens per JC and JG specifications
• Integrated overload protection and emergency stop circuitry compliant with IEC 61800-5-2 safety requirements for industrial testing equipment

Sample Compatibility & Compliance

The BW-20 supports standardized specimen geometries defined in JC/T 992–2006 (100 mm × 100 mm adhesive-bonded EPS blocks), JC/T 993–2006 (50 mm × 50 mm mortar-to-EPS shear specimens), and JG 149–2003 (bond strength testing of base coating layers). It accommodates rigid foam boards (EPS, XPS, PU), mineral wool composites, autoclaved aerated concrete (AAC) mortar interfaces, and flexible waterproof putties as specified in DBJ/T 01-50–2002. All test methods align with ISO 13007-3 (ceramic tile adhesives), ASTM C2126 (bond strength of EIFS components), and EN 13499 (thermal insulation products for buildings), facilitating international technical equivalence. The system’s mechanical design and calibration protocol support GLP-compliant documentation when integrated with validated software.

Software & Data Management

The BW-20 operates with Tuofeng’s proprietary PC-based control and analysis software, supporting real-time load-displacement curve acquisition, automatic yield point detection, and multi-curve overlay for comparative analysis. Raw data export is available in CSV and XML formats compatible with LIMS integration. Software features include user-defined test templates aligned with JC/T and JG standards, audit trail logging (user ID, timestamp, parameter changes), and electronic signature capability compliant with FDA 21 CFR Part 11 requirements when configured with optional validation packages. Calibration certificates are digitally embedded and linked to hardware serial numbers to ensure traceability.

Applications

• Tensile bond strength testing of polymer-modified cementitious adhesives to EPS/XPS substrates
• Shear strength evaluation of rendering mortars applied on insulation boards per JC/T 993–2006
• Interfacial adhesion testing between AAC masonry units and specialized jointing mortars (JC 890–2001)
• Mechanical characterization of interface treatment agents on concrete substrates (JC/T 907–2002)
• Peel resistance assessment of flexible waterproof coatings used in roof insulation systems
• Quality assurance testing for factory production control (FPC) under GB/T 19001–2016 (ISO 9001)

FAQ

What standards does the BW-20 directly support out-of-the-box?

The system includes preloaded test methods for JC/T 992–2006, JC/T 993–2006, JG 149–2003, and JG 158–2004, with automatic calculation of pass/fail criteria based on minimum bond strength thresholds.
Can the BW-20 perform compression tests on rigid insulation boards?

Yes — with optional flat platens and alignment fixtures, it supports compressive strength testing per GB/T 10801.1–2021 and ISO 844 for rigid cellular plastics.
Is third-party calibration certification available?

Tuofeng provides NIST-traceable calibration certificates issued by CNAS-accredited laboratories upon request, with annual recalibration intervals recommended per ISO/IEC 17025 guidelines.
Does the system meet requirements for accredited laboratory use?

When operated with validated software, documented maintenance logs, and certified calibration records, the BW-20 satisfies technical requirements for CNAS accreditation under CL01:2018 (ISO/IEC 17025) for mechanical testing of construction materials.
What is the warranty coverage and service response time?

Standard warranty covers parts and labor for 24 months; on-site technical support is available within 72 business hours in Tier-1 Chinese cities, with remote diagnostics and firmware updates provided globally.
