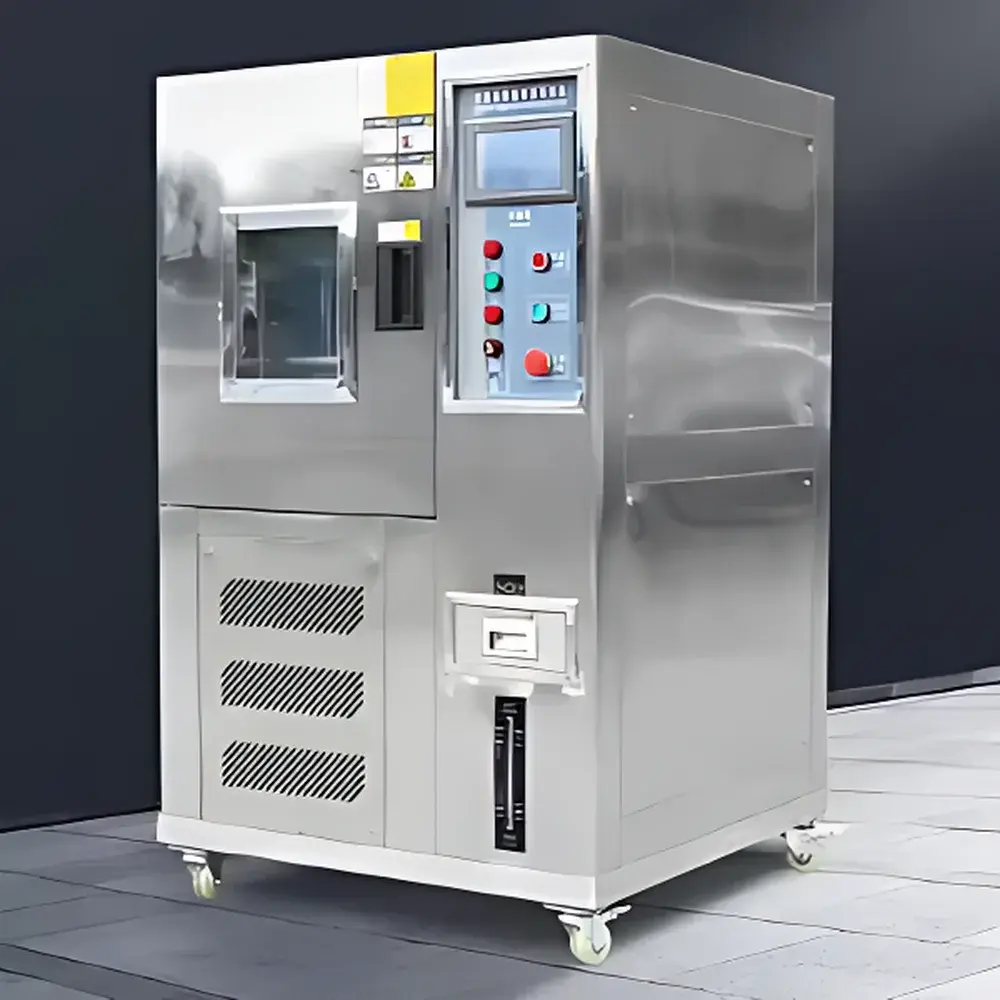

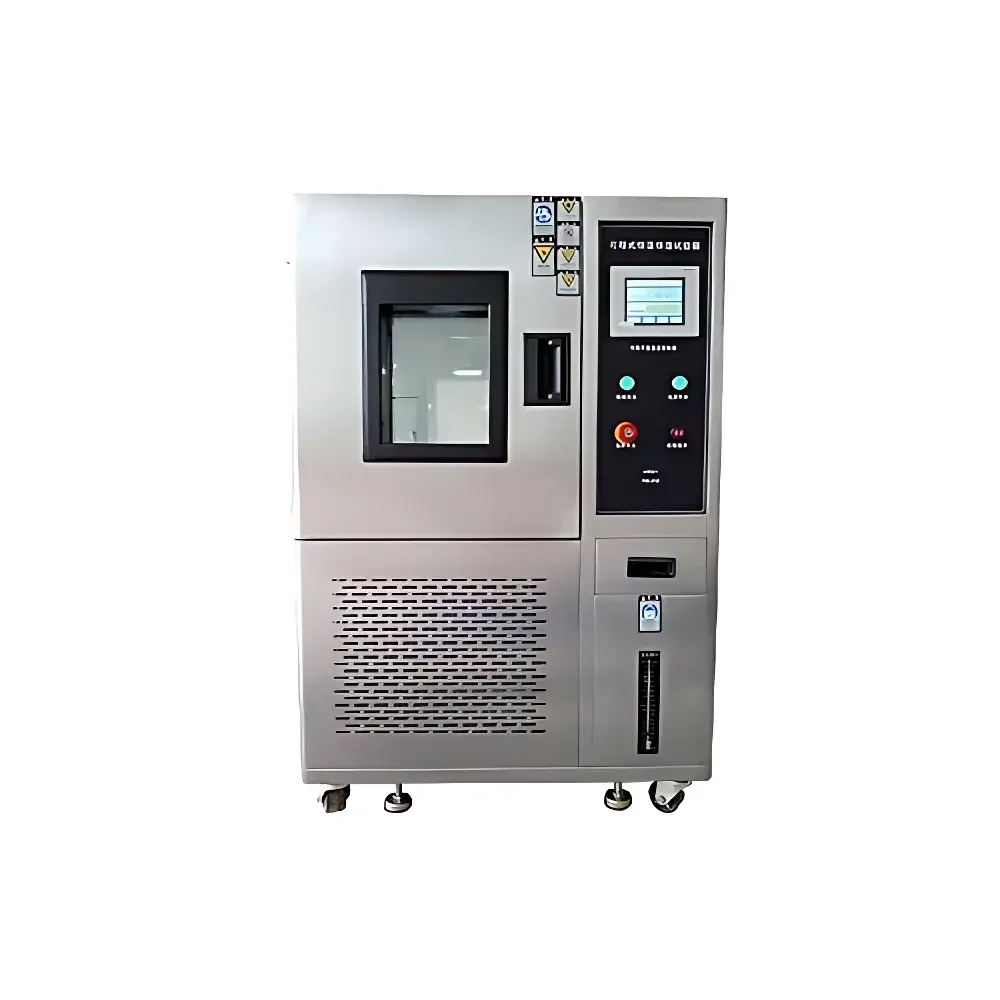

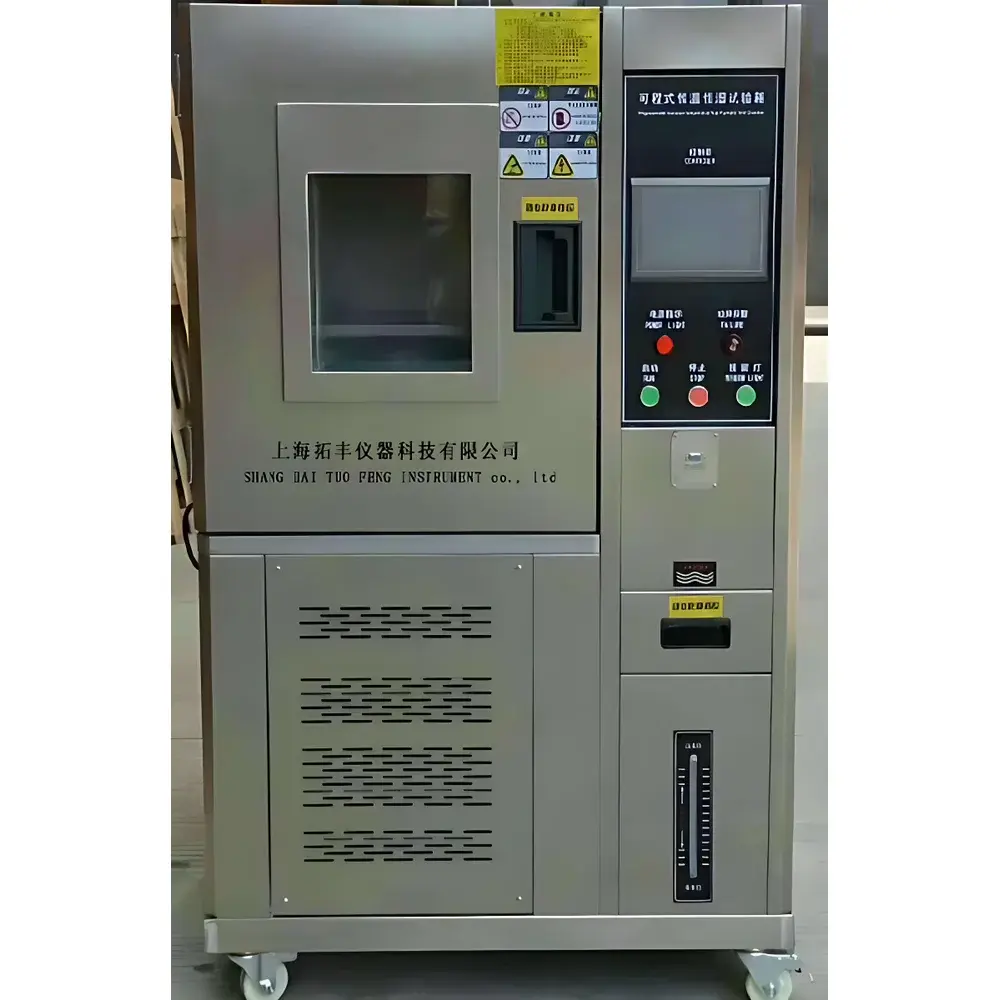

Tuofeng TF-320A-80L Environmental Stress Screening Chamber – Temperature & Humidity Cycling Test System

Overview

The Tuofeng TF-320A-80L Environmental Stress Screening Chamber is a precision-engineered temperature and humidity cycling test system designed for accelerated reliability validation of electronic components, automotive modules, aerospace hardware, medical devices, and polymer-based materials. It operates on the principle of controlled thermal and hygrometric stress application—employing dual-stage compression refrigeration, PID-controlled steam humidification, and forced-air convection to replicate real-world environmental extremes. Unlike static climate chambers, the TF-320A series supports programmable ramp-and-soak profiles with seamless transitions between sub-zero cryogenic conditions (-70 °C), high-temperature exposure (+150 °C), and dynamic humidity cycles (20–98% RH). Its architecture meets the physical and operational requirements defined in IEC 60068-2 series, MIL-STD-810H, and GJB 150A for environmental stress screening (ESS) and HALT/HASS pre-screening protocols.

Key Features

• High-fidelity thermal control: ±0.1 °C uniformity and deviation across the 80 L test volume, validated per ISO 16750-4 Annex A and ASTM E145 Class B specifications.
• Dual-stage refrigeration system with French Tecumseh compressors ensures stable low-temperature performance down to -70 °C without nitrogen assist or cascade limitations.
• TEMI 990 programmable controller with 30 programmable segments, 999 cycles, and real-time profile monitoring—including ramp rate definition (°C/min), dwell time, and humidity coupling logic.
• SUS304 stainless steel chamber interior and exterior surfaces resist corrosion from condensate, salt mist, and organic solvent vapors during extended testing.
• Integrated safety architecture: redundant over-temperature sensors, refrigerant high/low pressure interlocks, automatic humidity cutoff at 98% RH, and audible/visual fault alerts with relay-driven shutdown.
• Energy-optimized insulation using high-density chlorinated ethyl carbamate polyurethane foam (thermal conductivity ≤0.022 W/m·K at 25 °C) minimizes heat leakage and improves ramp repeatability.

Sample Compatibility & Compliance

The TF-320A-80L accommodates test specimens up to 450 × 650 × 500 mm (W×H×D), with load capacity optimized for PCB assemblies, sensor housings, battery packs, and sealed optical enclosures. It complies with mandatory test standards including GB/T 2423.1–2423.4 (IEC 60068-2-1/2/3/14 equivalents), GB/T 10586 (wet heat stability), GJB 150.3/4/9 (military environmental testing), and ISO 16750-4 (road vehicle climatic loads). Optional calibration documentation includes NIST-traceable certificates for temperature and humidity sensors, supporting GLP/GMP audit readiness and FDA 21 CFR Part 11-compliant data integrity when paired with TEMI’s optional Ethernet logging module.

Software & Data Management

The TEMI 990 controller supports RS485 Modbus RTU communication and optional Ethernet/IP interface for integration into centralized lab management systems (e.g., LabVantage, Thermo Fisher SampleManager). Real-time data logging records temperature, humidity, setpoint, ramp status, and alarm events at user-defined intervals (1–60 sec). Export formats include CSV and PDF reports with digital signatures. Audit trail functionality logs all parameter changes, user logins, and system resets—enabling full traceability required under ISO/IEC 17025 Clause 7.7 and EU Annex 11 for regulated environments.

Applications

• Electronics: Thermal cycling validation of solder joints (IPC-9701), conformal coating adhesion, and MEMS package hermeticity.
• Automotive: ECUs, ADAS sensors, and infotainment units per ISO 16750-4 and LV-124 qualification protocols.
• Aerospace: Component-level ESS per MIL-STD-810H Method 502.7 (temperature shock) and Method 507.6 (humidity).
• Medical Devices: Accelerated aging of polymer housings and sterilization packaging per ISO 11607-1.
• Materials Science: Hygrothermal degradation studies of composites, adhesives, and elastomers per ASTM D5229/D570.

FAQ

What is the maximum allowable specimen weight inside the TF-320A-80L chamber?

The internal load capacity is rated for ≤15 kg to maintain airflow uniformity and thermal response fidelity. Exceeding this may degrade temperature uniformity beyond ±0.1 °C specification.

Does the system support automated test sequencing across multiple environmental profiles?

Yes—the TEMI 990 controller allows nested program structures with up to 999 cycles per profile, conditional branching (e.g., “if T > 85 °C, hold for 120 min”), and external trigger inputs via dry-contact I/O.

Is third-party calibration certification available upon delivery?

Tuofeng provides factory calibration reports traceable to CNAS-accredited laboratories. NIST-traceable certificates are available as an add-on service with documented uncertainty budgets.

Can the chamber operate continuously at -70 °C with 98% RH?

No—simultaneous extreme low temperature and high humidity is physically constrained by dew point limitations. The controller enforces safe operating boundaries; at -40 °C, max RH is capped at ~10% to prevent ice accumulation on sensors and evaporators.

What maintenance intervals are recommended for long-term reliability?

Compressor oil and refrigerant checks every 12 months; condenser coil cleaning every 3 months in dusty environments; humidity sensor recalibration every 6 months; full system verification per ISO/IEC 17025 annually.
