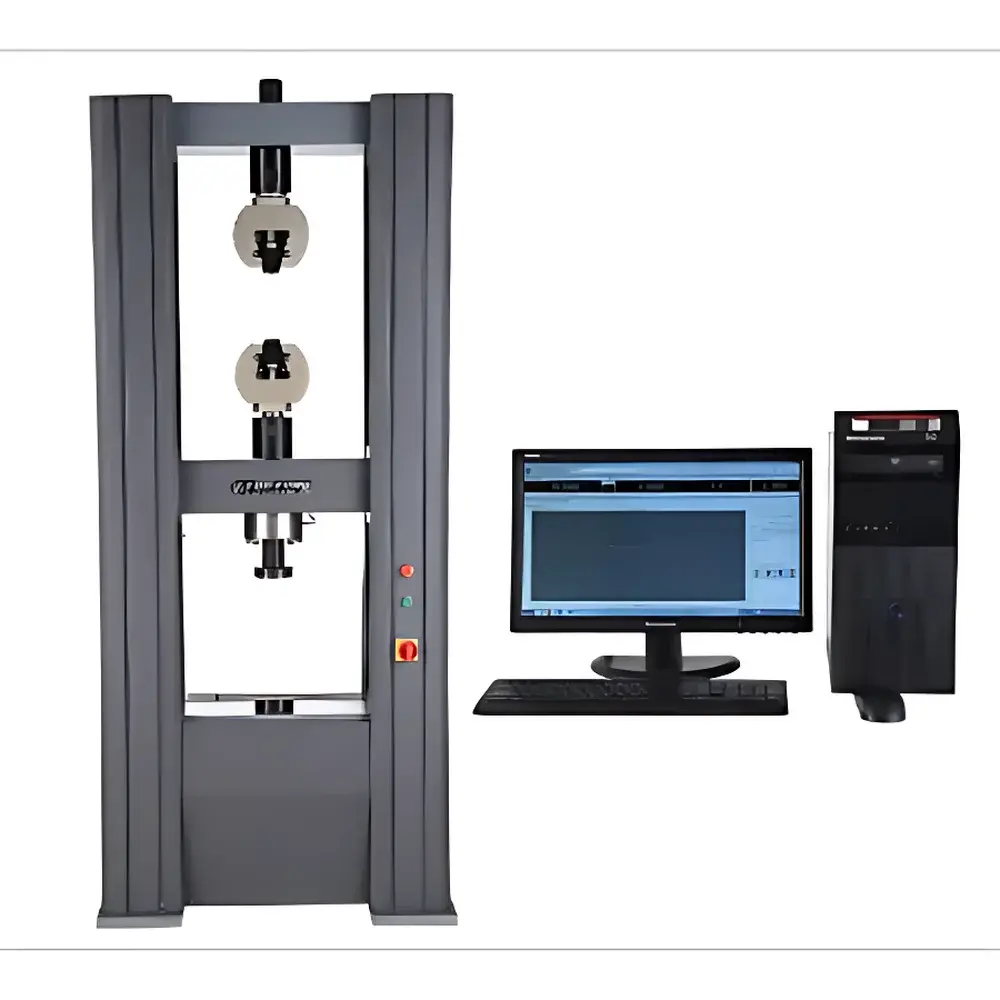

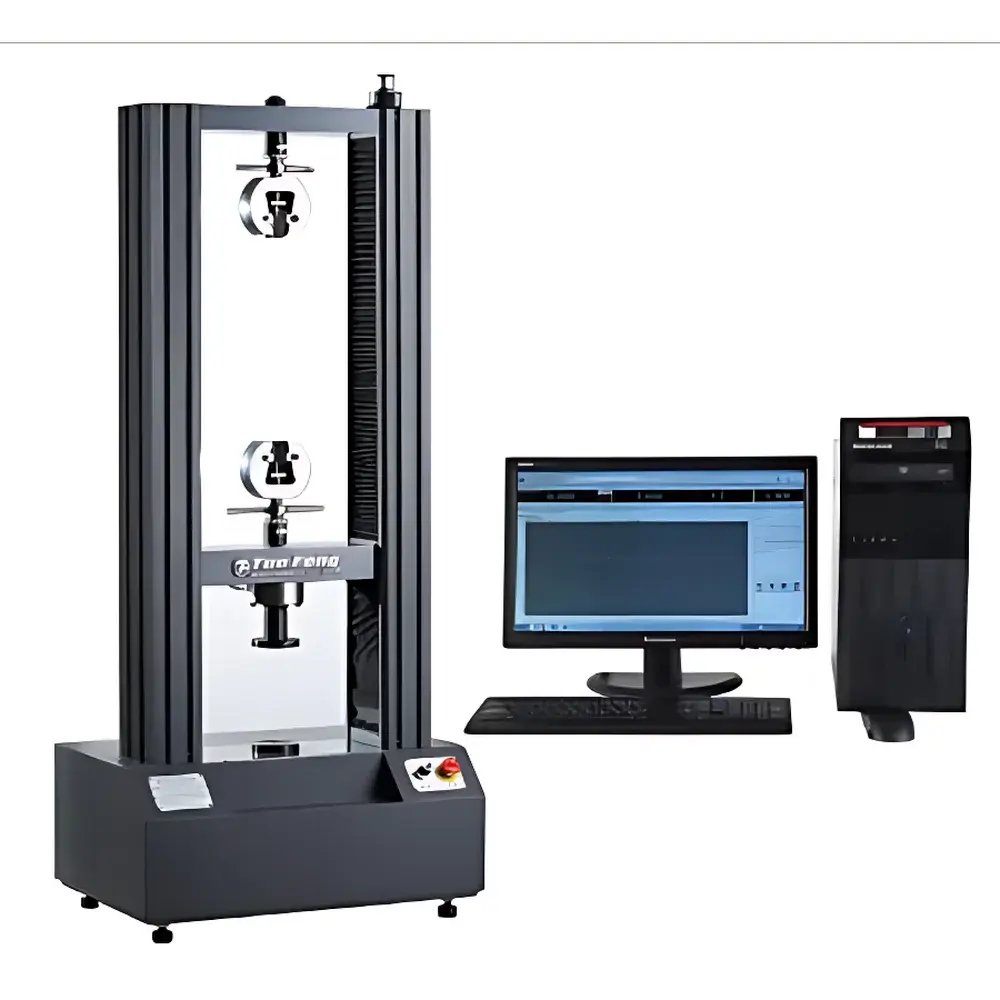

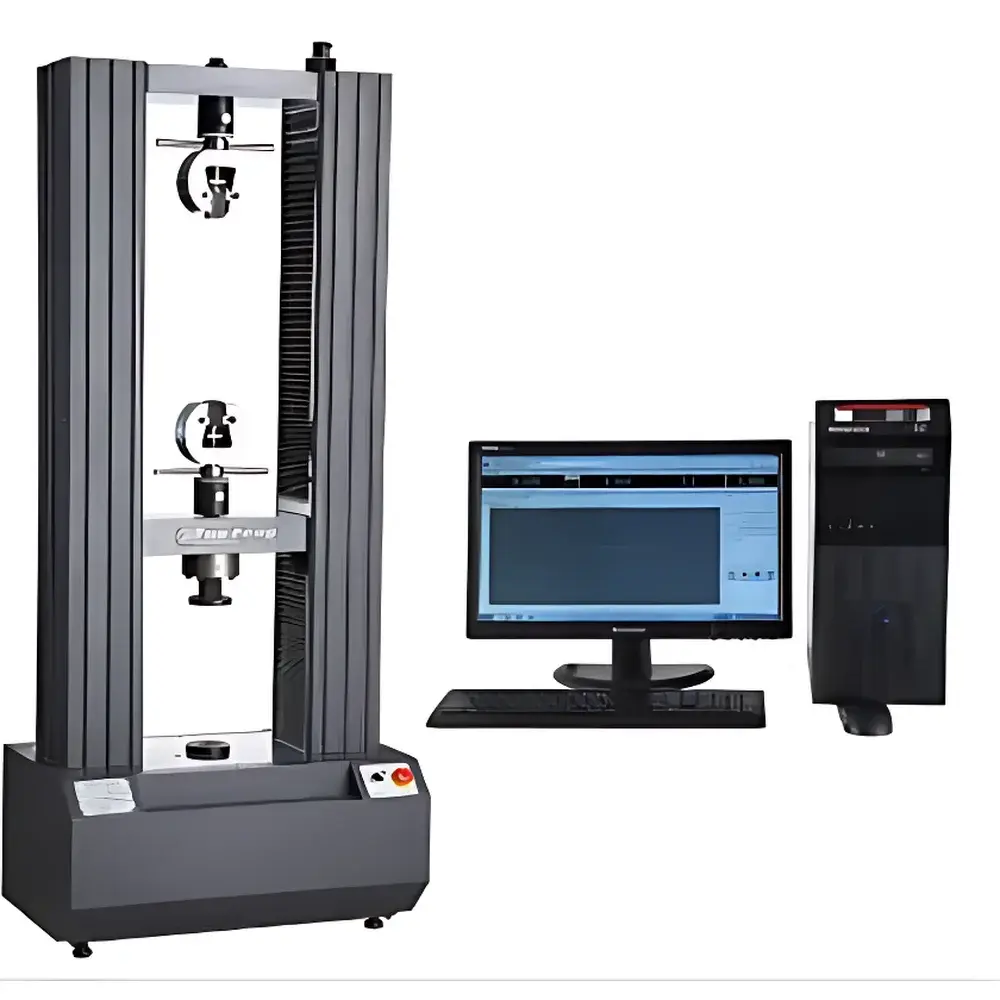

Tuofeng TFW-146 Microcomputer-Controlled Servo Universal Testing Machine

Overview

The Tuofeng TFW-146 Microcomputer-Controlled Servo Universal Testing Machine is an electromechanical static testing system engineered for high-fidelity mechanical property characterization of metallic, polymeric, composite, and ceramic materials. It operates on the principle of controlled displacement or load application via a closed-loop servo-controlled actuation system, enabling precise execution of uniaxial tensile, compression, flexural, shear, peel, tear, and puncture tests. The machine integrates a high-rigidity dual-column frame, preloaded ball-screw transmission, and a calibrated load cell with sub-micron displacement feedback—ensuring traceable force and deformation data under ISO/IEC 17025-aligned laboratory conditions. Designed to meet international metrological standards including GB/T 16491–2008 and JJG 475–2008, the TFW-146 delivers Class 0.5 accuracy per ISO 7500-1, supporting accredited materials testing laboratories in achieving GLP-compliant reporting and audit-ready test records.

Key Features

• Class 0.5 force measurement accuracy with ±0.005% reading uncertainty across the full 0.2–100% force range—validated per ASTM E4 calibration protocols
• Constant-resolution load acquisition at 1:500,000 full-scale counts, eliminating range-switching artifacts and ensuring linearity integrity from low-force polymer testing to high-load structural metal evaluation
• Dual-mode control architecture supporting both load-controlled (e.g., creep hold, stress relaxation) and displacement-controlled (e.g., quasi-static tensile, compression) test profiles
• Motorized crosshead with programmable fast/slow speeds and jog functionality for rapid specimen alignment and repeatable positioning
• Integrated safety suite: hardware-based emergency stop, dual electronic travel limits, mechanical overload cut-off at 110% capacity, and real-time torque monitoring
• Modular fixture interface compliant with ASTM E1012 alignment tolerances, accommodating standardized grips (e.g., wedge, pneumatic, hydraulic) and custom tooling for non-standard geometries

Sample Compatibility & Compliance

The TFW-146 accommodates specimens ranging from thin films (0.05 mm thick) to structural steel coupons (up to 100 mm wide × 30 mm thick), with adjustable test width (standard 600 mm, extendable to 1100 mm) and vertical travel (800 mm base, expandable). It supports standard test methods including ASTM D638 (tensile plastics), ASTM D790 (flexural rigidity), ISO 6892-1 (metal tensile), ISO 178 (flexural strength), and GB/T 228.1 (metallic materials). All hardware and firmware comply with electromagnetic compatibility (EMC) directives IEC 61326-1 and safety standard IEC 61000-6-2. Calibration certificates are provided with NIST-traceable reference standards, and the system supports 21 CFR Part 11-compliant audit trails when configured with optional electronic signature modules.

Software & Data Management

The Windows-based TFW-TestSuite v4.x software provides full test method scripting, real-time multi-curve visualization (load–time, stress–strain, displacement–time), and automated parameter derivation—including ultimate tensile strength, yield offset (0.2%), Young’s modulus, elongation at break, compressive yield, flexural modulus, peel adhesion, and tear resistance. Units are freely convertible between SI, imperial, and legacy systems (e.g., MPa/kpsi, mm/in, N/lbf). Raw data exports to CSV, XML, and PDF formats include embedded metadata (operator ID, timestamp, environmental conditions, calibration expiry). The software supports batch processing, curve superposition analysis, statistical summary (mean, min, max, CV%), and configurable report templates aligned with ISO/IEC 17025 clause 7.8. Firmware updates and method libraries are delivered remotely with version-controlled changelogs and backward-compatible data migration.

Applications

This system serves as a primary mechanical characterization platform in R&D labs and QC departments across aerospace (e.g., titanium alloy tensile validation per AMS 2304), automotive (composite bumper impact simulation support), medical device manufacturing (polymer suture tensile verification per ISO 10993-12), construction materials (rebar yield testing per ASTM A615), and battery component development (separator tensile strength per UL 1642). Its programmable hold functions enable long-term creep and stress relaxation studies required for thermoplastic and elastomeric material modeling, while high-speed capability (500 mm/min) supports dynamic modulus estimation in viscoelastic regimes. Universities utilize it for undergraduate mechanics labs and graduate-level fracture mechanics research due to its open API and third-party integration readiness (LabVIEW, MATLAB via TCP/IP).

FAQ

What standards does the TFW-146 support out-of-the-box?
It includes preloaded test methods for ASTM E8, ASTM D638, ISO 6892-1, ISO 178, GB/T 228.1, and GB/T 1040—fully editable for lab-specific deviations.
Can the system be integrated into an existing LIMS or MES environment?
Yes—via OPC UA or RESTful API interfaces; full documentation and driver SDK are supplied with enterprise licensing.
Is third-party calibration certification available?
Tuofeng partners with CNAS-accredited calibration labs; certificates include uncertainty budgets per ISO/IEC 17025 Annex A.3.
What is the warranty coverage and service response time?
Standard 24-month parts-and-labor warranty; priority on-site technical support within 72 business hours in Tier-1 cities across APAC and EU.
Does the software support FDA 21 CFR Part 11 compliance?
Yes—optional Part 11 module enables electronic signatures, audit trail logging, role-based access control, and data integrity validation per ALCOA+ principles.
