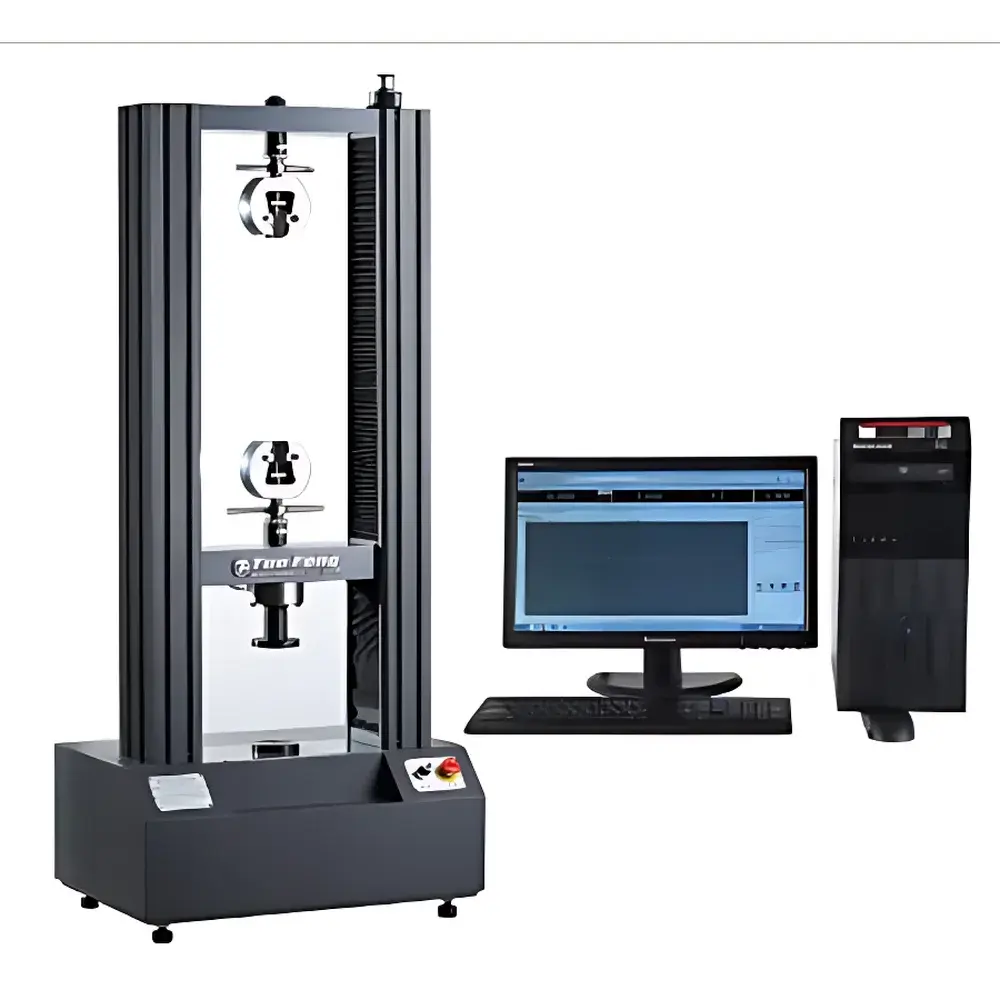

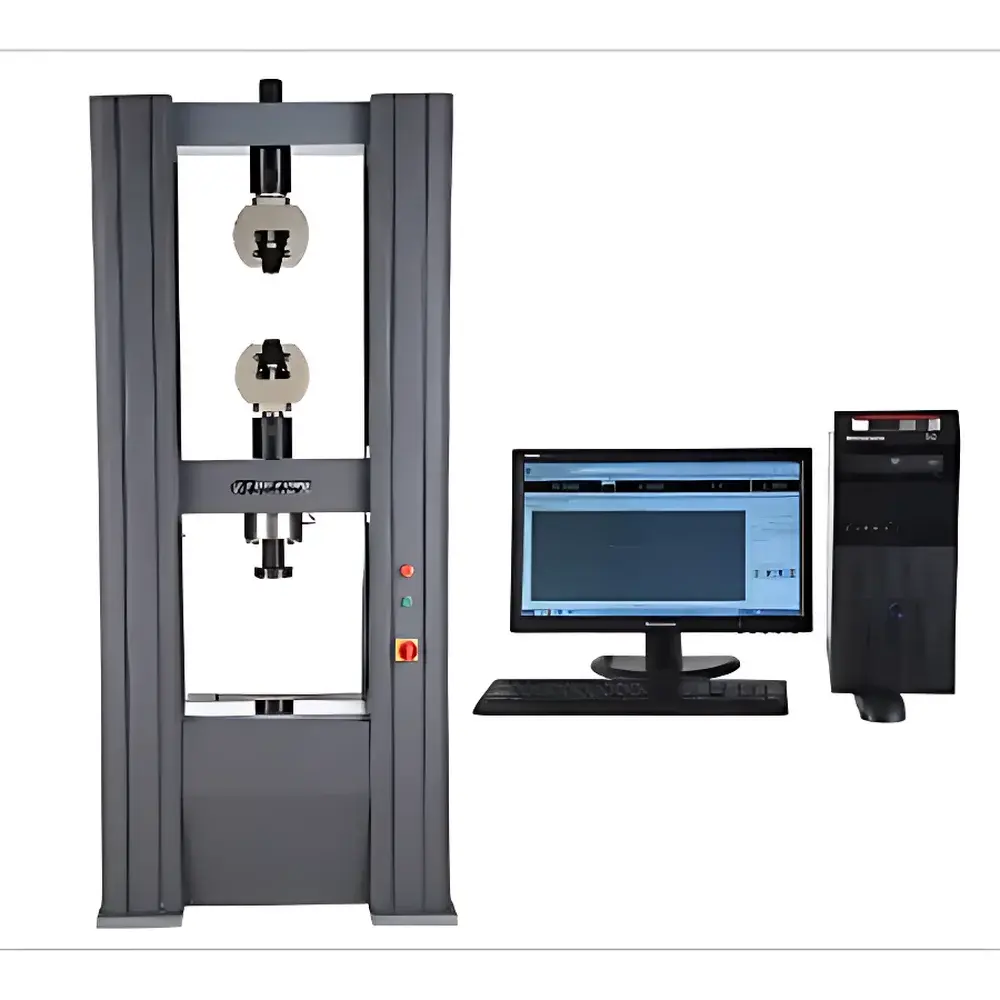

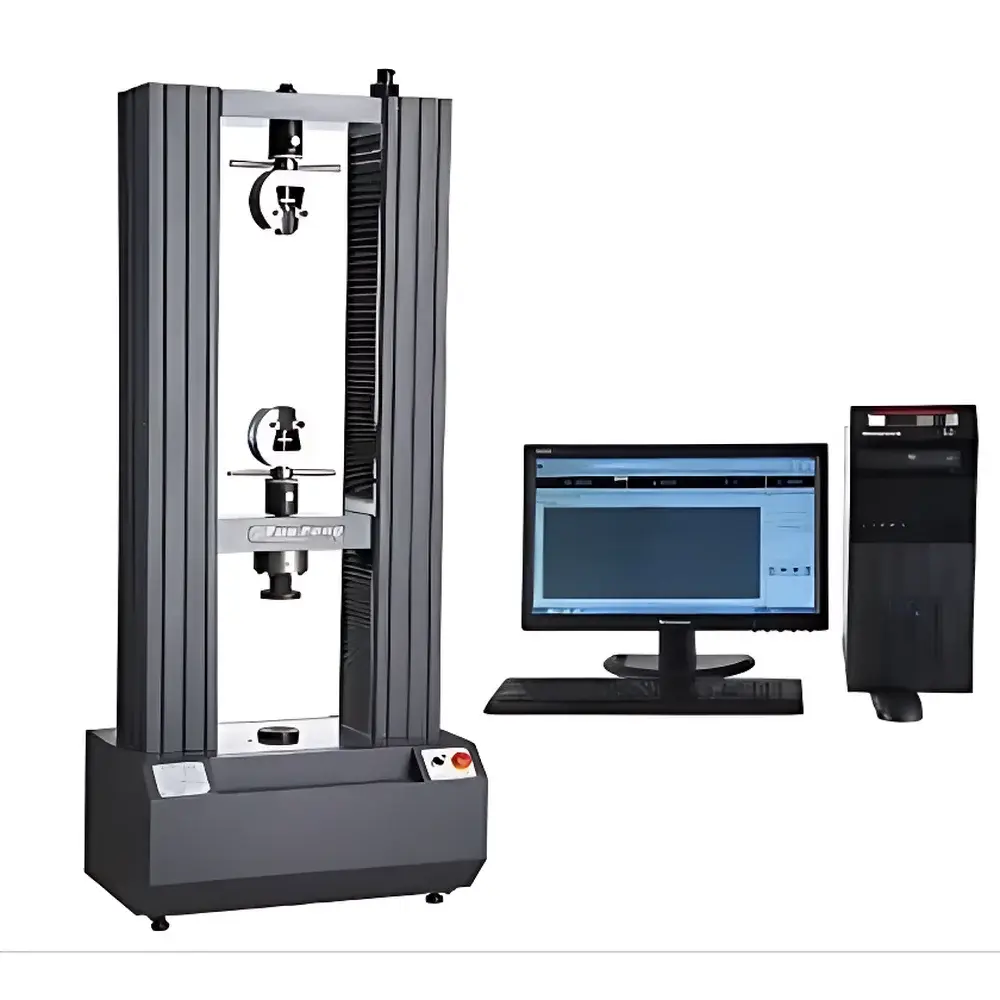

Tuofeng TFW-150 Intelligent Electromechanical Universal Testing Machine

Overview

The Tuofeng TFW-150 Intelligent Electromechanical Universal Testing Machine is a high-precision, microprocessor-controlled static mechanical testing system engineered for rigorous tensile, compressive, flexural, shear, tear, peel, and burst testing of metallic, polymeric, composite, and ceramic materials. Built upon a rigid, low-resonance frame and driven by a high-torque imported servo motor coupled with a backlash-free worm gear reducer and preloaded ball screw transmission, the TFW-150 delivers exceptional force linearity, positional repeatability, and long-term stability under dynamic load cycling. Its measurement architecture complies with ISO 7500-1:2018 (static calibration of force-proving instruments), ASTM E4 (load verification), and GB/T 16491–2008 (Chinese national standard for electromechanical UTM design and performance). The system’s closed-loop digital control enables precise execution of displacement-, load-, or strain-controlled test protocols—including hold-to-load, hold-to-strain, and ramp-and-hold sequences—essential for evaluating viscoelastic behavior, creep response, and yield characteristics per ASTM D638, ISO 527, ASTM C39, ISO 178, and ASTM D882.

Key Features

• Class 0.5 force accuracy certified per ISO 7500-1, ensuring traceable metrological reliability across the full 0.2–100% measurement range
• True single-range force transducer with 1:500,000 internal resolution—no manual range switching required, eliminating step errors during transition
• Dual-speed motorized crosshead with programmable jog functionality and automatic return-to-start positioning post-test
• Integrated safety architecture: hardware-based electronic limit switches, redundant emergency stop circuitry, and real-time overload cutoff at 110% of rated capacity
• Modular extensometry support: compatibility with both clip-on axial extensometers (for modulus and yield determination) and non-contact video extensometers (for brittle or high-temperature applications)
• Thermally stable structural frame with reinforced base and column assembly to minimize thermal drift and vibration coupling during low-speed, high-resolution testing

Sample Compatibility & Compliance

The TFW-150 accommodates specimens ranging from thin polymer films (<0.1 mm thickness) to structural steel coupons (up to 60 mm diameter), with customizable fixture sets for ASTM D638 Type I–V, ISO 527-2, ASTM D790, ISO 178, ASTM D1876 (T-peel), and ISO 8510-2 configurations. All mechanical components—including grips, bending fixtures, and compression platens—are machined to ISO 2768-mK tolerances and surface-hardened for wear resistance. The system meets essential regulatory requirements for quality-critical environments: it supports 21 CFR Part 11-compliant electronic signatures and audit trails when configured with optional software validation packages; fully aligns with GLP and GMP documentation workflows; and provides certificate-of-conformance documentation traceable to CNAS-accredited calibration laboratories (equivalent to ILAC-MRA signatory labs).

Software & Data Management

The proprietary Windows-based TestMaster Pro software offers full test method scripting, real-time multi-curve visualization (load–time, stress–strain, displacement–time, load–extension), and automated parameter extraction per ISO 527-2 Annex A and ASTM E8/E8M. Users may define custom calculation routines—including tangent modulus, secant modulus, offset yield (0.2%), elongation at break, and Poisson’s ratio estimation—and export results directly to CSV, PDF, or XML formats for LIMS integration. The software includes built-in compliance modules for ASTM, ISO, GB, JIS, DIN, and BS standards, with editable test templates that enforce mandatory reporting fields (e.g., specimen geometry, environmental conditions, operator ID). All data entries, parameter changes, and test executions are timestamped and logged in an immutable audit trail meeting FDA 21 CFR Part 11 requirements when enabled.

Applications

The TFW-150 serves as a primary mechanical characterization platform in R&D laboratories and QC departments across aerospace (e.g., titanium alloy tensile qualification per AMS 2300), automotive (composite bumper impact simulation support), medical device manufacturing (polymer suture strength per ISO 10993-12), construction materials (concrete compressive strength per ASTM C39), and battery component development (electrode foil tensile integrity assessment). Its versatility extends to advanced material research—such as shape-memory alloy hysteresis loop analysis, hydrogel swelling mechanics under constrained compression, and fiber-reinforced thermoplastic interlaminar shear evaluation using short-beam shear fixtures.

FAQ

What international standards does the TFW-150 support out of the box?

The system includes preloaded test methods and reporting templates for ASTM D638, D790, D882, E8, C39; ISO 527, 178, 6892-1, 7500-1; GB/T 1040, 1043, 16491; JIS K7113; DIN 53455; and BS EN ISO 527-2.

Can the TFW-150 be integrated into an existing LIMS or MES environment?

Yes—via configurable ODBC drivers and RESTful API endpoints (available as optional module), enabling bidirectional data exchange with LabWare LIMS, Thermo Fisher SampleManager, and Siemens Opcenter Execution.

Is third-party calibration certification available?

Tuofeng provides factory calibration certificates traceable to NIM (National Institute of Metrology, China) and offers optional on-site calibration services by CNAS-accredited field engineers.

Does the system support high-temperature or environmental chamber integration?

The TFW-150 frame and load train are compatible with commercially available environmental chambers (−70°C to +300°C); extensometer and grip modifications are recommended for extreme thermal conditions.

What is the warranty and service coverage?

Standard coverage includes 24-month parts-and-labor warranty, remote diagnostics support, and lifetime software updates; extended service contracts with on-site response SLAs are available upon request.
