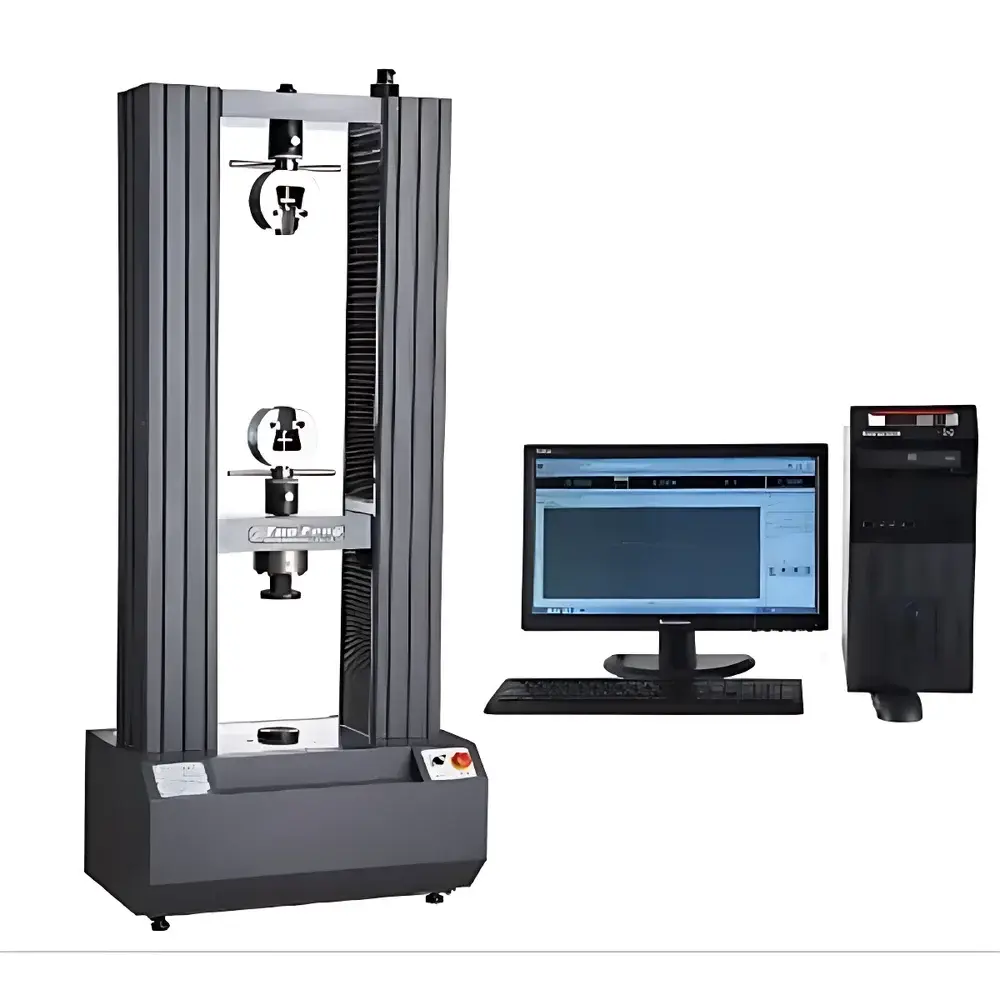

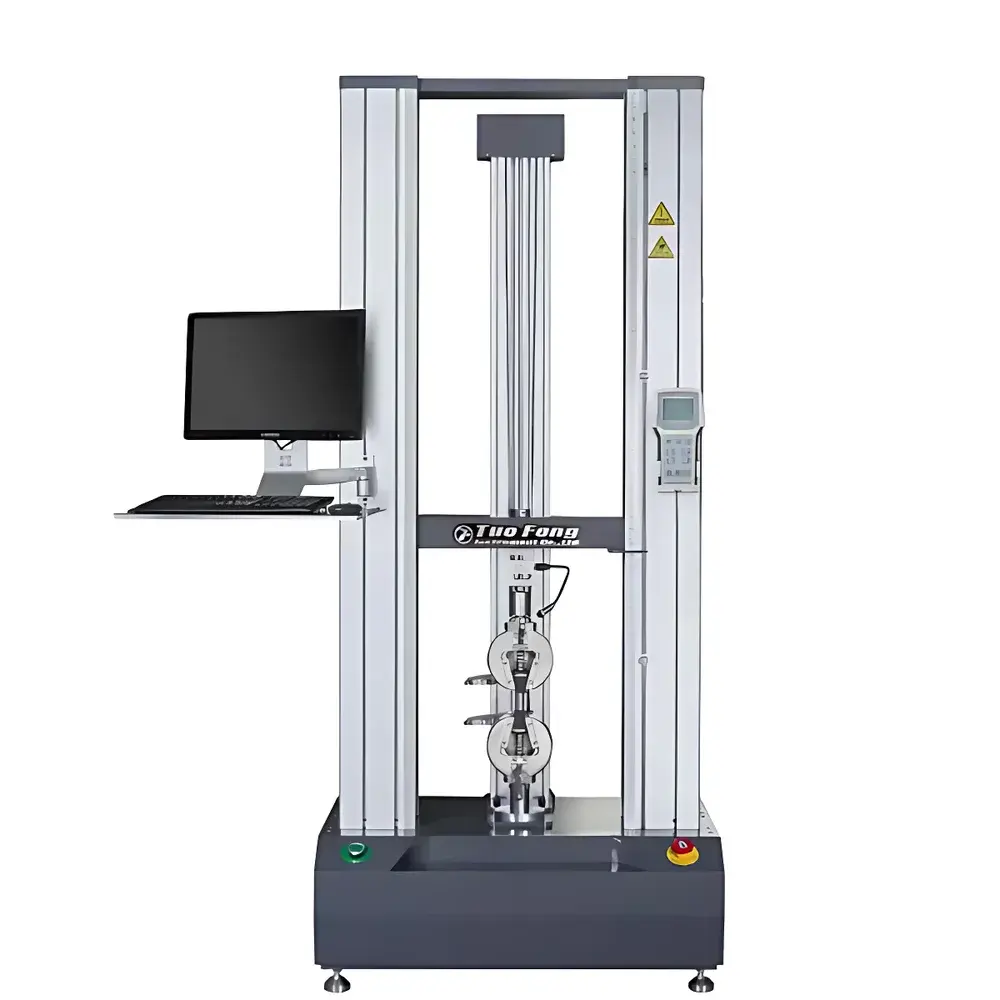

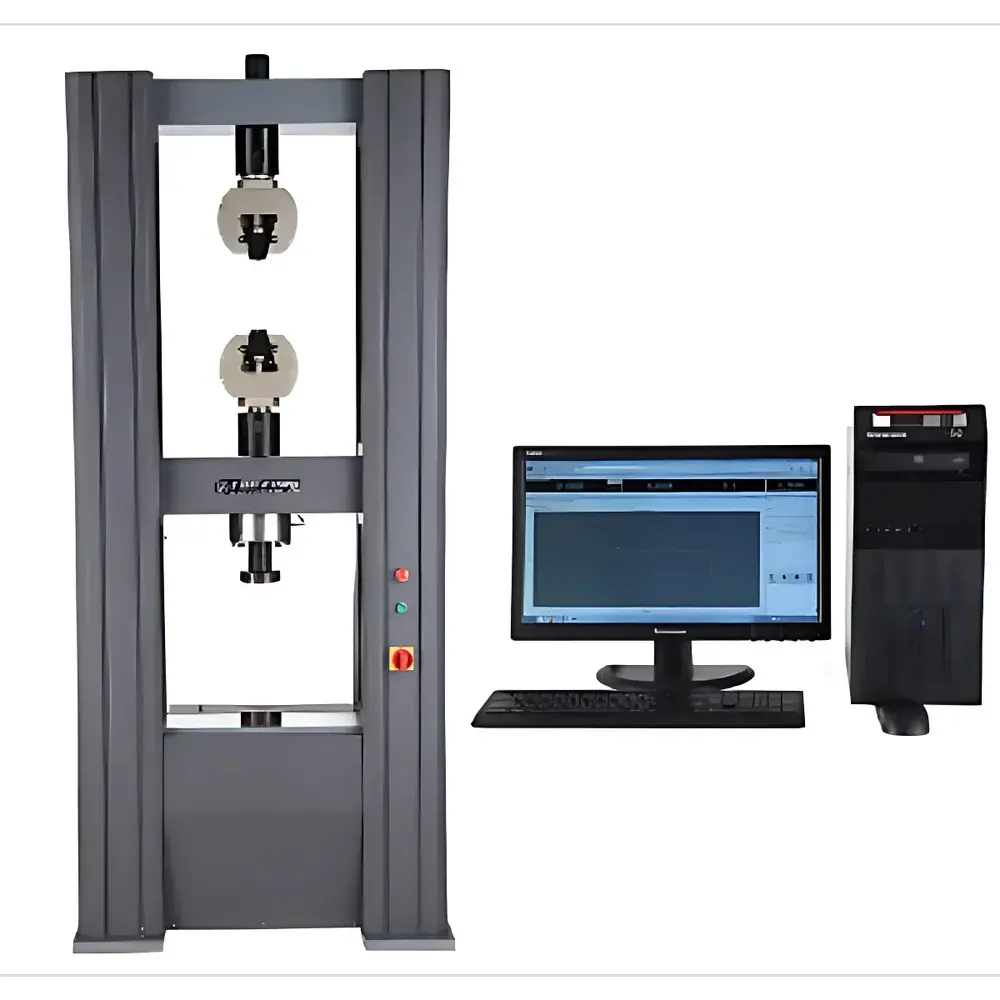

Tuofeng TFW-272 Microcomputer-Controlled Electronic Universal Testing Machine

Overview

The Tuofeng TFW-272 is a high-precision, microcomputer-controlled electromechanical universal testing machine engineered for static mechanical property characterization of metallic, polymeric, composite, and ceramic materials. Based on the fundamental principle of controlled uniaxial force application through servo-driven displacement of a rigid crosshead, the system delivers traceable, repeatable load–displacement data under standardized quasi-static conditions. Its modular architecture supports tensile, compression, bending, shear, peel, tear, and puncture testing—enabling full mechanical profiling per international material standards. Designed for laboratories requiring metrological integrity and long-term operational stability, the TFW-272 conforms to ISO/IEC 17025-relevant performance criteria and integrates seamlessly into GLP-compliant quality assurance workflows.

Key Features

• 0.5-class accuracy certified per GB/T 16491–2008 and ISO 7500-1:2018, ensuring traceability to national metrology institutes.
• Full-scale force resolution of 1 part in ±500,000 counts—maintained across the entire 0.2–100% test range without range switching or recalibration.
• High-rigidity dual-column frame with precision-ground ball screws and preloaded linear guides, minimizing deflection and axial play during high-load testing.
• Imported industrial-grade servo motor coupled with a low-backlash worm gear reducer, enabling smooth, noise-free motion control from 0.001 mm/min to 500 mm/min.
• Dual-mode crosshead positioning: rapid coarse adjustment (up to 200 mm/min) and fine-step jog control (<0.01 mm increments) for precise specimen alignment.
• Multi-layer safety architecture including hardware-based emergency stop, software-monitored overload cutoff (triggered at ≥110% of rated capacity), and redundant electronic limit switches.
• Modular extensometry support: compatibility with both contact-type clip-on extensometers (for strain measurement down to 0.001% resolution) and non-contact digital image correlation (DIC) systems (optional).

Sample Compatibility & Compliance

The TFW-272 accommodates specimens ranging from thin films (≥0.05 mm thickness) to structural steel coupons (up to 60 mm diameter), with customizable grips—including wedge-action tensile jaws, compression platens, 3-/4-point bend fixtures, pneumatic peel clamps, and custom-designed shear adapters. All mechanical configurations comply with standard specimen geometries defined in ASTM E8/E8M (tension), ASTM D695 (compression), ASTM D790 (flexure), ISO 6892-1 (metallic tensile), and ISO 527-1 (plastics). The system meets regulatory requirements for instrument qualification under FDA 21 CFR Part 11 when configured with audit-trail-enabled software and user-access controls. Calibration certificates are issued per ISO/IEC 17025-accredited procedures, with as-found/as-left data documented for each verification cycle.

Software & Data Management

Tuofeng’s proprietary WinTest Pro v5.2 software operates natively on Windows 10/11 (64-bit) and supports multilingual UI switching (English, Simplified Chinese, Traditional Chinese, German, Japanese). It implements ASTM E1392-compliant test method templates and allows creation of custom protocols with up to 12 independent control segments (e.g., ramp-hold-ramp cycles). Real-time visualization includes synchronized dual-axis plots: force–time, stress–strain, displacement–time, and extension–load. All raw data—including analog sensor outputs, encoder pulses, and thermal drift compensation logs—are stored in HDF5 format with embedded metadata (operator ID, calibration date, environmental conditions). Export options include CSV, XML, PDF reports (with configurable headers, footers, and company branding), and direct integration with LIMS via ODBC drivers. Audit trails record all user actions, parameter modifications, and result exports—meeting ALCOA+ data integrity principles.

Applications

The TFW-272 serves as a primary mechanical characterization platform across R&D, QC, and certification labs. In aerospace, it validates titanium alloy fastener yield behavior under simulated service loads; in automotive, it quantifies weld joint strength and polymer bumper impact resistance; in medical device manufacturing, it verifies tensile properties of nitinol stents per ISO 15625. Construction labs use it for rebar tensile grading (GB/T 1499.2), while battery developers assess separator film puncture resistance (ASTM D5748). Universities employ its programmable hold functionality for creep and stress-relaxation studies, and powder metallurgy facilities rely on its high-resolution compression mode for green compact strength analysis (ISO 2738).

FAQ

What standards does the TFW-272 support out-of-the-box?
Preconfigured test methods cover ASTM E8, E9, E21, D638, D695, D790, ISO 6892-1, 7500-1, 527-1, GB/T 228.1, and JIS Z 2241—with automatic calculation of Rp0.2, Rm, A%, E, and other derived parameters.
Can the system be integrated into an existing MES or SAP QA environment?
Yes—via OPC UA server module (optional) or RESTful API interface, enabling bidirectional data exchange for test initiation, real-time status updates, and automated report archiving.
Is third-party calibration and validation support available?
Tuofeng provides IQ/OQ documentation packages and collaborates with ISO/IEC 17025-accredited calibration providers for on-site UKAS-traceable verification.
What is the warranty coverage and service response time?
Standard 24-month parts-and-labor warranty; extended service contracts include quarterly preventive maintenance, remote diagnostics, and <48-hour onsite engineer dispatch for critical failures.
Does the software support 21 CFR Part 11 compliance for pharmaceutical applications?
When deployed with role-based access control, electronic signatures, and immutable audit logs enabled, WinTest Pro satisfies core Part 11 requirements—validated per Annex 11 and aligned with PIC/S GMP guidelines.
