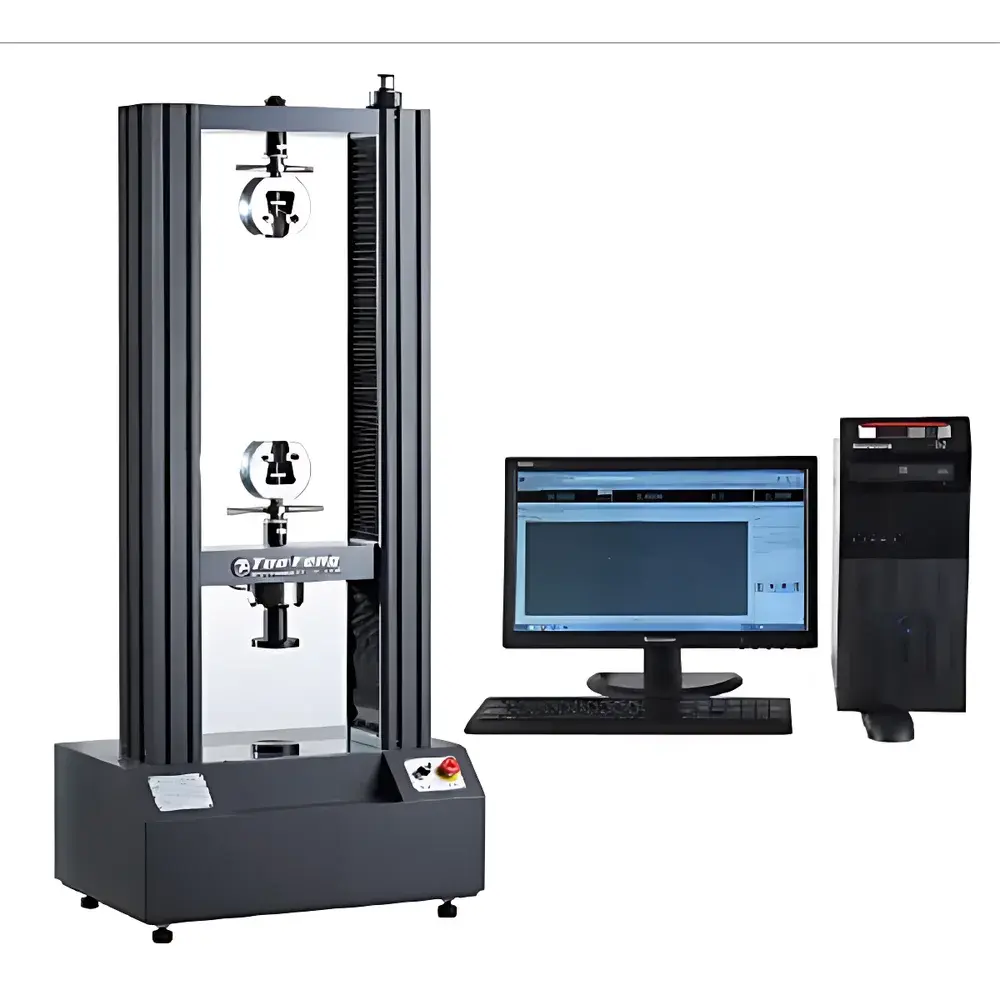

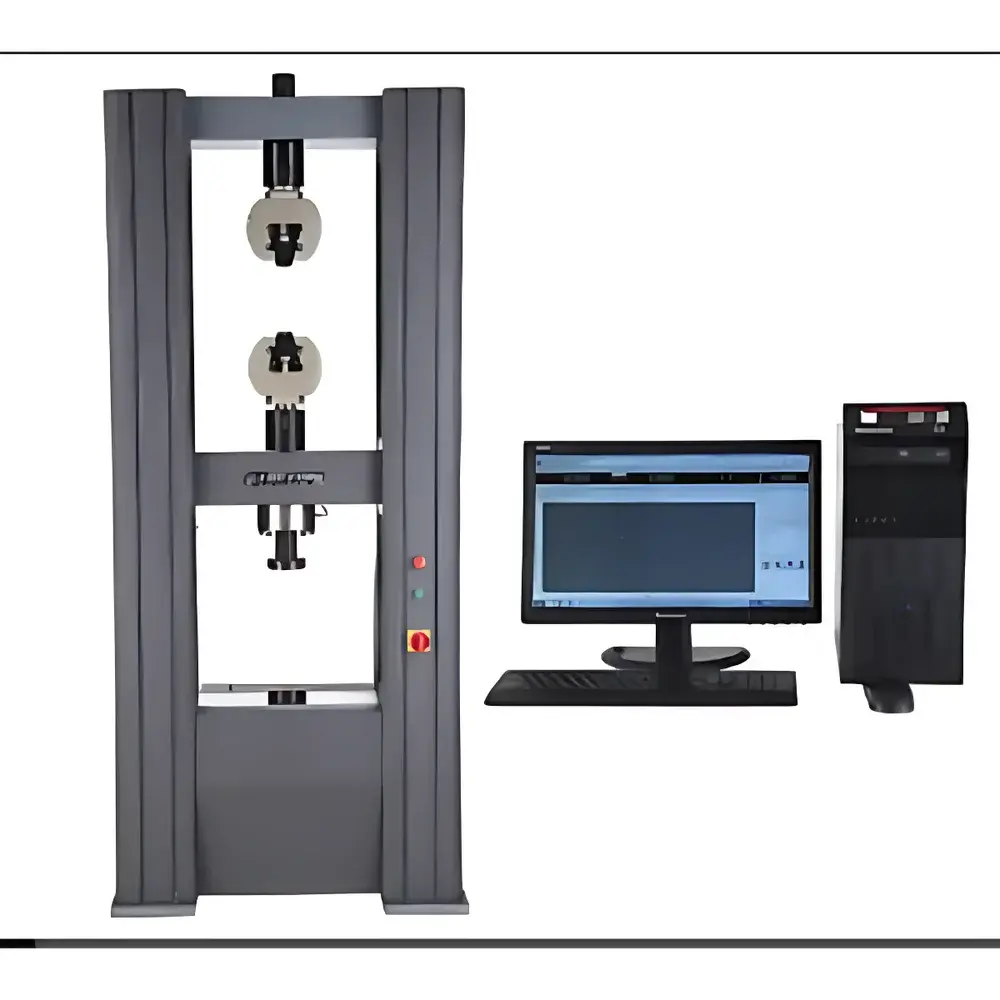

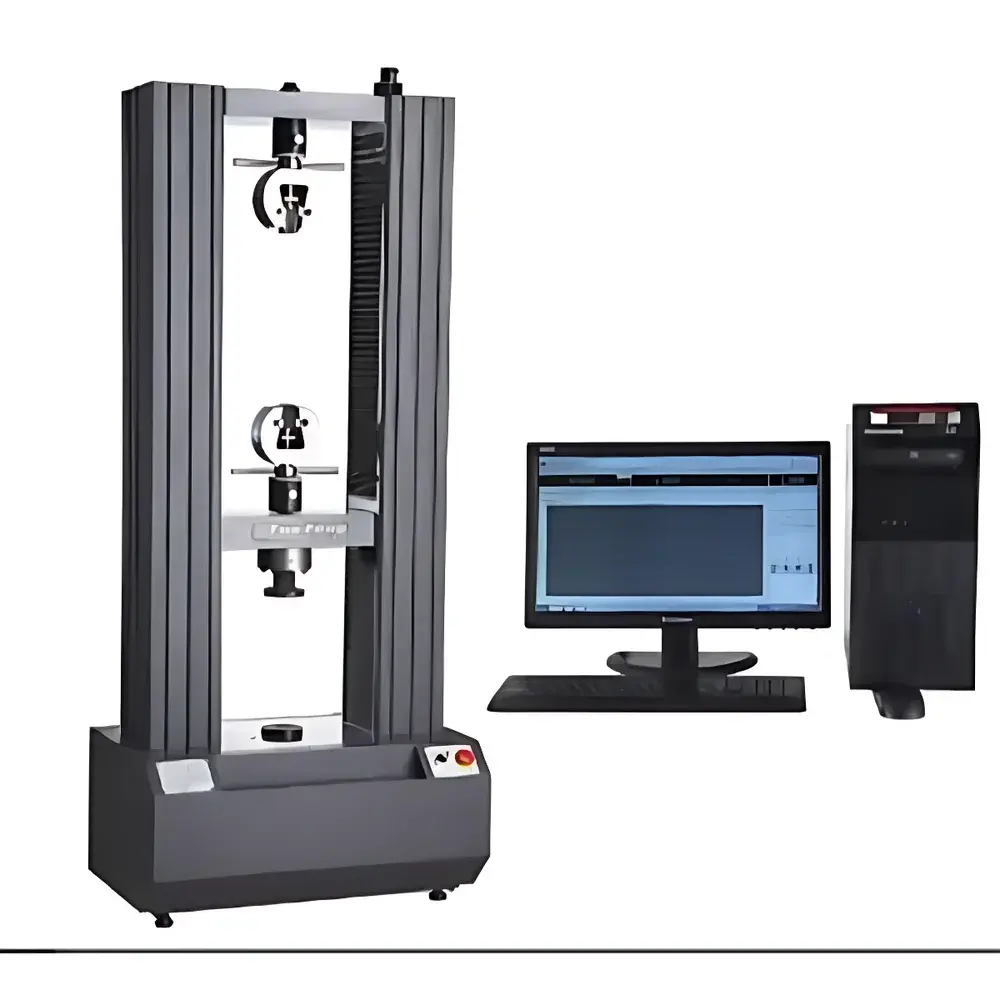

Tuofeng TFW-278 Microcomputer-Controlled Electronic Universal Testing Machine

Overview

The Tuofeng TFW-278 is a high-precision electromechanical universal testing machine engineered for static mechanical characterization of structural materials under tension, compression, bending, shear, peel, tear, and puncture loading conditions. It operates on the principle of closed-loop servo-controlled displacement and load regulation, utilizing a high-rigidity dual-column frame, preloaded ball screw transmission, and a calibrated load cell with sub-micron resolution. Designed to meet stringent metrological requirements, the system complies with GB/T 16491–2008 (Chinese national standard for electronic UTM), JJG 475–2008 (verification regulation), and aligns with international test method frameworks including ASTM E4 (load verification), ISO 7500-1 (static calibration), and ISO 5893 (tensile/compression testing machines). Its 0.5-class accuracy rating ensures traceable force measurement across 0.2%–100% of its 200 kN full-scale capacity — making it suitable for accredited laboratory environments requiring ISO/IEC 17025-compliant validation.

Key Features

• Robust dual-column steel frame with vibration-damped base and precision-machined crosshead guidance for axial alignment stability
• Imported servo motor coupled with a self-locking worm-gear reducer, delivering smooth, low-noise actuation and zero-backlash positioning
• High-resolution optical encoder for displacement feedback (±0.005% of reading), integrated with real-time PID control loop
• Modular extensometry support: compatible with both clip-on axial extensometers (for strain measurement per ISO 9513) and video-based digital image correlation (DIC) systems
• Dual-speed motorized crosshead adjustment (fast/slow modes) with jog functionality and programmable auto-return to preload position
• Comprehensive hardware safety architecture: dual independent electronic limit switches, mechanical emergency stop, and software-enforced overload cutoff at 110% FS
• Thermally stable load cell with hermetic sealing and temperature-compensated signal conditioning

Sample Compatibility & Compliance

The TFW-278 accommodates a broad spectrum of specimen geometries and material classes — from high-strength prestressed steel strands (e.g., ASTM A416 Grade 270) and structural alloys (ASTM B557, ISO 6892-1) to polymer composites (ISO 527-2), elastomers (ISO 37), geotextiles (ASTM D4595), and ceramic matrix laminates. Standard test widths (600 mm) and stroke (800 mm) support full-length tensile evaluation of 1×7 and 1×19 strand configurations per EN 10138-3. Fixture interfaces follow ISO 26203-1 mounting standards, enabling rapid tooling changeover using T-slot crosshead plates and hydraulic wedge grips (optional). The system supports audit-ready compliance for regulated sectors: built-in electronic signature capability, 21 CFR Part 11–compliant audit trail logging, and GLP/GMP-aligned test report templates with embedded metadata (operator ID, calibration certificate IDs, environmental logs).

Software & Data Management

• Windows-native testing platform supporting simultaneous display of up to four real-time plots: load–time, load–displacement, stress–strain, and displacement–time
• Configurable test protocols with multi-step control logic (e.g., preload → ramp → hold → unload → recovery)
• Automated parameter extraction per ISO 527-1: tensile strength, yield point (0.2% offset), modulus of elasticity, elongation at break, Poisson’s ratio (with biaxial extensometry)
• Batch analysis module for statistical comparison across ≥10 specimens, including max/min/mean deviation reporting and Weibull distribution fitting
• Export formats: CSV (raw channel data), PDF (formatted reports with embedded graphs), XML (for LIMS integration), and proprietary .TFS binary archive with checksum verification
• Role-based user access control (administrator/operator/auditor), password-protected method editing, and versioned method library with timestamped revision history

Applications

The TFW-278 serves as a primary mechanical test platform in R&D laboratories and QA/QC departments across industries where mechanical reliability is mission-critical. In civil infrastructure, it validates prestressing tendon performance per EN 10138 and ASTM A416, quantifying ultimate tensile strength, uniform elongation, and relaxation behavior under sustained loads. Aerospace suppliers use it for qualifying titanium alloy fasteners (AMS 4911) and carbon-fiber prepreg laminates (ASTM D3039). Automotive Tier-1 manufacturers deploy it for crash-relevant component testing — e.g., seat belt webbing (ISO 1140), airbag fabric (SAE J2070), and battery enclosure materials (UL 2580). Within medical device manufacturing, it supports mechanical validation of orthopedic implant wires (ASTM F2516) and suture packaging integrity (ASTM F88). Its modularity enables seamless adaptation to emerging standards such as ISO 20795-2 (denture base polymers) and IEC 62368-1 (mechanical stress on power supplies).

FAQ

What standards does the TFW-278 support out-of-the-box?
The system includes preconfigured test methods for ASTM E8/E21, ISO 6892-1, GB/T 228.1, EN ISO 15630-1, and ASTM A416 — all validated against certified reference standards traceable to NIM (China) and NIST (USA).
Can the machine perform constant-rate-of-extension (CRE) and constant-rate-of-loading (CRL) tests?
Yes — the control firmware supports both displacement-controlled (CRE) and load-controlled (CRL) modes with user-defined ramp rates, dwell periods, and conditional branching logic.
Is third-party calibration certification available?
Tuofeng provides factory calibration certificates (traceable to national metrology institutes) and supports on-site verification by ISO/IEC 17025-accredited service providers.
Does the software meet FDA 21 CFR Part 11 requirements?
Yes — audit trail, electronic signatures, role-based permissions, and data immutability are enabled by default; configuration files are digitally signed and tamper-evident.
What is the warranty and service coverage?
Standard 24-month parts-and-labor warranty; extended service plans include annual metrological verification, preventive maintenance, and remote diagnostics with SLA-backed response times.
