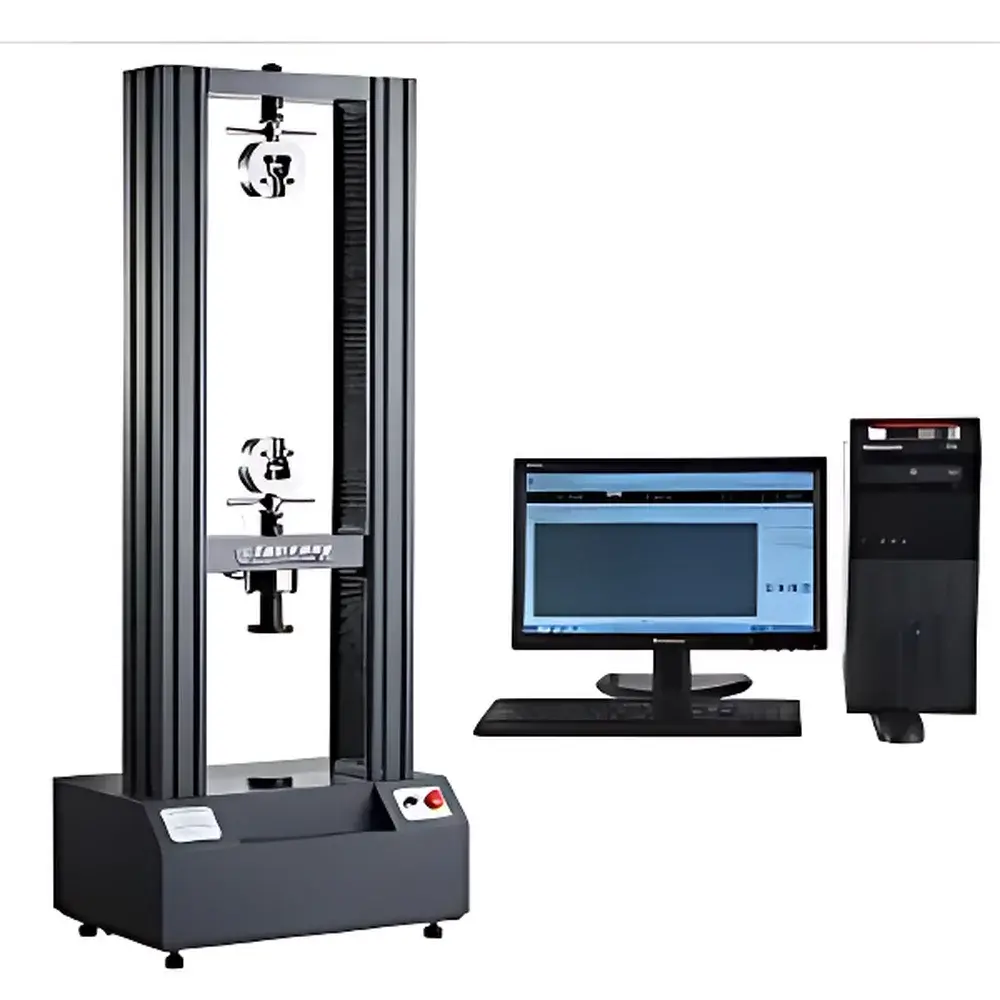

Tuofeng TFW-32 Universal Testing Machine for Fire-Resistant Materials

Overview

The Tuofeng TFW-32 Universal Testing Machine is a high-precision electromechanical system engineered for the mechanical characterization of fire-resistant materials—including intumescent coatings, mineral wool composites, fiber-reinforced cementitious panels, ceramic matrix composites, and flame-retardant polymer laminates. It operates on the principle of controlled uniaxial force application via servo-driven ball-screw actuation, enabling accurate measurement of tensile, compressive, flexural, shear, tear, peel, and puncture responses under standardized loading protocols. Designed to meet the stringent repeatability and traceability requirements of fire performance certification workflows, the TFW-32 delivers Class 0.5 accuracy per ISO 7500-1 and GB/T 16491–2008, with force resolution down to 1/500,000 of full scale—critical for detecting subtle modulus transitions during thermal degradation onset.

Key Features

• Robust dual-column steel frame with reinforced crosshead and precision-ground guide rails ensures minimal deflection (<0.02 mm under 32 kN), preserving alignment integrity across extended thermal aging cycles.
• Imported servo motor coupled with a zero-backlash worm gear reducer provides smooth, low-noise operation and exceptional torque stability—even at ultra-low speeds (0.001 mm/min), essential for creep and stress-relaxation profiling of fire-barrier materials.
• Single-range, high-resolution load cell (32 kN capacity) eliminates range-switching artifacts and maintains consistent sensitivity from 64 N to 32 kN—enabling seamless transition between pre-yield stiffness evaluation and post-fracture residual strength quantification.
• Dual-speed motorized crosshead control supports rapid positioning (up to 500 mm/min) and fine-adjustment modes (<1 mm/min), reducing test cycle time without compromising setup repeatability.
• Integrated electronic limit switches, emergency stop circuitry, and hardware-based overload cutoff (110% F.S.) comply with IEC 61800-5-2 functional safety requirements for laboratory equipment.

Sample Compatibility & Compliance

The TFW-32 accommodates specimens conforming to ASTM E8/E8M (tension), ASTM C36/C36M (flexure of fireproofing boards), ISO 178 (flexural properties), ISO 527-2 (tensile behavior of plastics), GB/T 2408 (horizontal/vertical burn test specimen conditioning), and EN 13501-1 classification support protocols. Fixture adaptability includes wedge-action grips for brittle ceramics, pneumatic clamps for soft intumescent sheets, compression platens with self-aligning spherical seats, and custom-designed cone-and-plate fixtures for firestop sealant extrusion testing. All mechanical and software subsystems are validated against JJG 475–2008 verification procedures and support third-party calibration traceable to NIM (China National Institute of Metrology) or NIST-equivalent national standards.

Software & Data Management

Tuofeng’s proprietary TESTMaster™ v4.2 software runs natively on Windows 10/11 and supports role-based user authentication, configurable audit trails, electronic signatures, and 21 CFR Part 11 compliance modules (optional). It enables multi-mode control—including constant-rate, constant-load, constant-strain, hold-to-failure, and cyclic loading sequences—with real-time visualization of stress–strain, load–displacement, and time-dependent deformation curves. Raw data export is available in CSV, XML, and universal .tdms formats; report templates adhere to ISO/IEC 17025 documentation structure. The software includes built-in calculation engines for tensile strength, yield point (0.2% offset), Young’s modulus, elongation at break, compressive yield stress, flexural modulus, tear propagation resistance, and peel adhesion energy—all automatically derived per selected standard methodology.

Applications

• Quantifying char layer cohesion and crack resistance in intumescent coatings subjected to ASTM E119 furnace exposure simulations.
• Evaluating compressive recovery and permanent set in expanded perlite or vermiculite insulation boards after thermal cycling.
• Measuring interlaminar shear strength of fire-rated sandwich panels under ISO 14129 protocols.
• Assessing tensile retention of aramid or basalt fiber reinforcements embedded in phenolic resins post-UL 94 V-0 conditioning.
• Validating mechanical integrity of silicone-based firestop putties during ASTM E1966 hose-stream impact simulation.
• Supporting UL 1709 rapid-rise fire curve qualification by correlating pre- and post-fire mechanical property decay.

FAQ

Does the TFW-32 support high-temperature testing?
The base configuration operates at ambient temperature; however, it is fully compatible with third-party environmental chambers (−70°C to +300°C) and furnace interfaces (up to 1000°C) when equipped with high-temp extensometers and ceramic-coated fixtures.
Can test data be exported to LIMS or ERP systems?
Yes—TESTMaster™ supports ODBC connectivity, RESTful API integration, and HL7-compliant metadata tagging for direct ingestion into enterprise quality management platforms.
Is calibration documentation included with shipment?
Each unit ships with a factory calibration certificate traceable to national metrology institutes, plus a full uncertainty budget per ISO/IEC 17025 Annex A.
What maintenance intervals are recommended?
Servo drive and encoder calibration every 12 months; ball screw lubrication every 6 months; load cell verification every 6 months under heavy-use conditions (≥500 cycles/week).
Are ASTM or ISO-compliant test methods preloaded in the software?
Yes—over 42 standardized method templates are preconfigured, including ASTM D638, D790, D1876, ISO 527, ISO 178, ISO 6892-1, and GB/T 1040, with editable parameters and pass/fail criteria.
