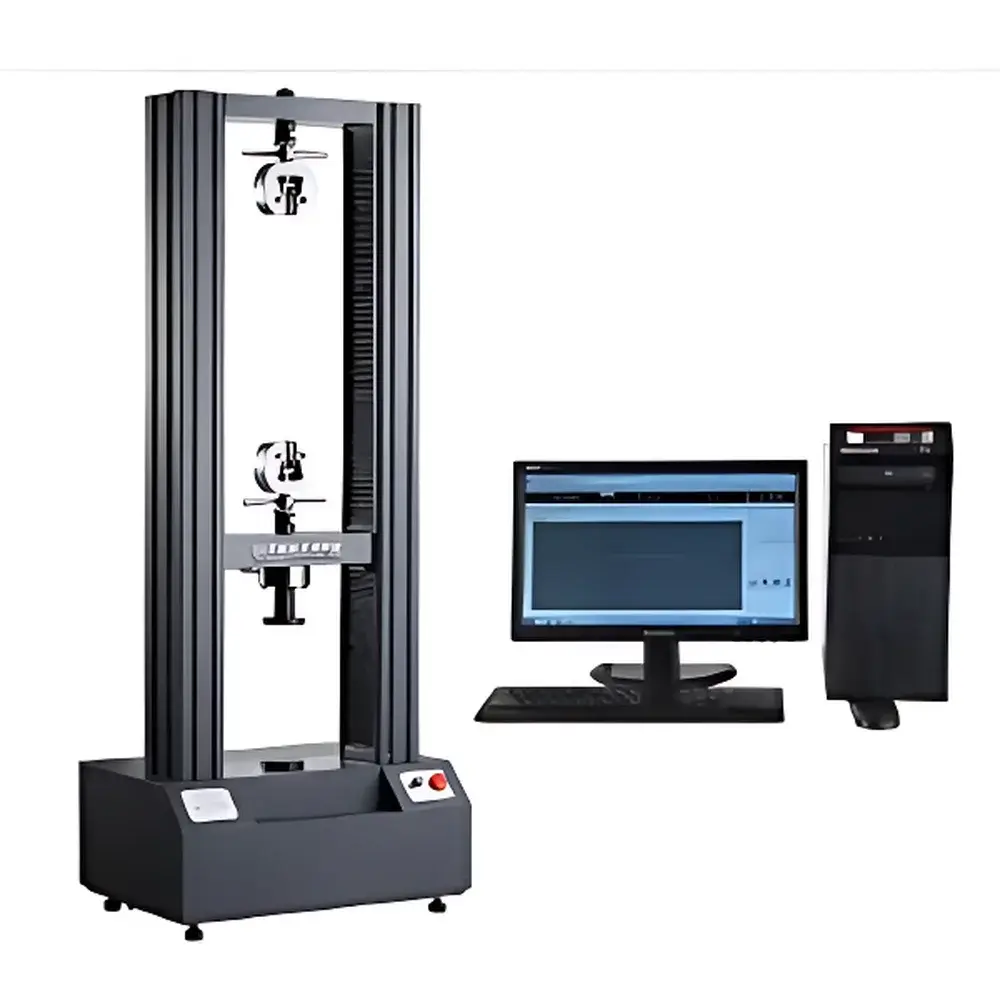

Tuofeng TFW-75 Advanced Microcomputer-Controlled Electromechanical Universal Tensile Testing Machine

Overview

The Tuofeng TFW-75 is a high-performance electromechanical universal testing machine engineered for precision static mechanical property evaluation of metallic, polymeric, composite, and ceramic materials. Based on the fundamental principles of uniaxial force-displacement transduction via calibrated load cell feedback and high-resolution optical encoder-based crosshead positioning, the system delivers traceable, repeatable, and metrologically robust tensile, compression, bending, shear, tear, peel, and puncture measurements. Designed and validated in accordance with ISO 7500-1 (static calibration of force-proving instruments), ASTM E4 (verification of force-measuring systems), and GB/T 16491-2008 (Chinese national standard for electronic universal testing machines), the TFW-75 meets the stringent accuracy requirements of ISO/IEC 17025-accredited laboratories and GMP/GLP-regulated environments. Its rigid dual-column frame, thermally stable load train, and real-time closed-loop control architecture ensure minimal compliance error and high reproducibility across extended test durations and multi-cycle protocols.

Key Features

• Class 0.5 force measurement accuracy per ISO 7500-1 and ASTM E4 — certified over full 0.2%–100% FS range without range switching
• True single-range force resolution of 1:500,000 (full-scale), eliminating interpolation uncertainty associated with auto-ranging systems
• High-stiffness, preloaded ball-screw drive system coupled with imported servo motor and low-backlash worm gear reducer for smooth, silent, and highly linear motion control
• Integrated dual-mode displacement measurement: high-fidelity optical encoder (±0.005% accuracy) + optional extensometer interface (for strain-controlled tests per ASTM E8/E21)
• Programmable multi-step test sequences supporting load-hold, displacement-hold, strain-rate control, and cyclic loading (tension-compression, fatigue-ready with external controller)
• Comprehensive hardware safety suite: programmable electronic end limits, redundant emergency stop circuitry, mechanical overload cutoff, and automatic crosshead return upon test completion
• Modular fixture interface compliant with ISO 26203-1 and ASTM D3574 mounting standards — supports quick-change jaw sets, wedge grips, pneumatic clamps, and environmental chamber integration

Sample Compatibility & Compliance

The TFW-75 accommodates specimens ranging from thin polymer films (≥0.05 mm thickness) to structural steel coupons (up to 60 mm width × 25 mm thickness). Standard configurations include flat-face wedge grips (0–20 mm thickness), pneumatic vise grips (for rubber/elastomers), and compression platens (100 × 100 mm). Optional accessories include video extensometers (for non-contact strain measurement), environmental chambers (−70°C to +300°C), and hydraulic wedge grips for high-force composites testing. The system is fully compliant with major international testing standards including ASTM D638/D790/D1708/D3763, ISO 527-1/6892-1/178, GB/T 228.1–2021, JIS Z2241, DIN 50125, and BS EN 10002-1. Calibration certificates are issued traceable to NIM (National Institute of Metrology, China) or UKAS-accredited labs upon request.

Software & Data Management

The embedded Windows-based TestMaster Pro software provides full audit-trail capability compliant with FDA 21 CFR Part 11 (electronic signatures, user access levels, change history, and data integrity logging). It supports six real-time display modes: load–time, load–displacement, stress–strain, displacement–time, load–extension, and custom XY plots. All curves are mathematically derived using raw sensor data (no interpolation smoothing), with peak detection, yield point identification (0.2% offset method), modulus calculation (secant/tangent), and automatic parameter extraction per ASTM E111/E83. Data export formats include CSV, XLSX, PDF reports (with lab logo, operator ID, calibration date), and XML for LIMS integration. Software modules support statistical batch analysis (mean, SD, CV%), curve overlay comparison, and customizable report templates aligned with ISO/IEC 17025 reporting requirements.

Applications

The TFW-75 serves as a core characterization platform across R&D, QA/QC, and regulatory submission workflows. In aerospace, it validates tensile strength and elongation of carbon fiber prepregs per ASTM D3039. In medical device manufacturing, it verifies peel strength of sterile packaging per ISO 8553 and burst pressure of catheter tubing per ISO 11357. Automotive suppliers use it for tensile testing of injection-molded PP/PA blends (ISO 527), while wire & cable producers assess conductor elongation and insulation tensile properties per IEC 60811. Academic users apply it to nanostructured hydrogels, biodegradable scaffolds, and additive-manufactured metal lattices — all under controlled humidity or temperature conditions when paired with environmental enclosures.

FAQ

What international standards does the TFW-75 comply with for calibration and verification?

It conforms to ISO 7500-1 (force calibration), ASTM E4 (verification of testing machines), GB/T 16491-2008 (Chinese electronic universal testing machine standard), and JJG 475-2008 (national verification regulation).

Can the system be integrated into an existing LIMS or MES environment?

Yes — TestMaster Pro supports ODBC and REST API interfaces for bidirectional data exchange with laboratory information management systems and enterprise manufacturing execution platforms.

Is third-party certification available for ISO/IEC 17025 accreditation purposes?

Certified calibration reports traceable to NIM or UKAS-accredited reference labs can be supplied; on-site verification by accredited bodies is supported upon request.

What is the warranty coverage and service response time?

Standard warranty is 24 months parts-and-labor; extended service contracts include annual metrological verification, remote diagnostics, and priority on-site technician dispatch within 72 business hours in APAC regions.

Does the software support multi-language UI and regulatory audit trails?

Yes — UI supports English, Simplified Chinese, Traditional Chinese, Japanese, Korean, and German. Full 21 CFR Part 11 compliance includes electronic signatures, role-based permissions, immutable audit logs, and data encryption at rest.
