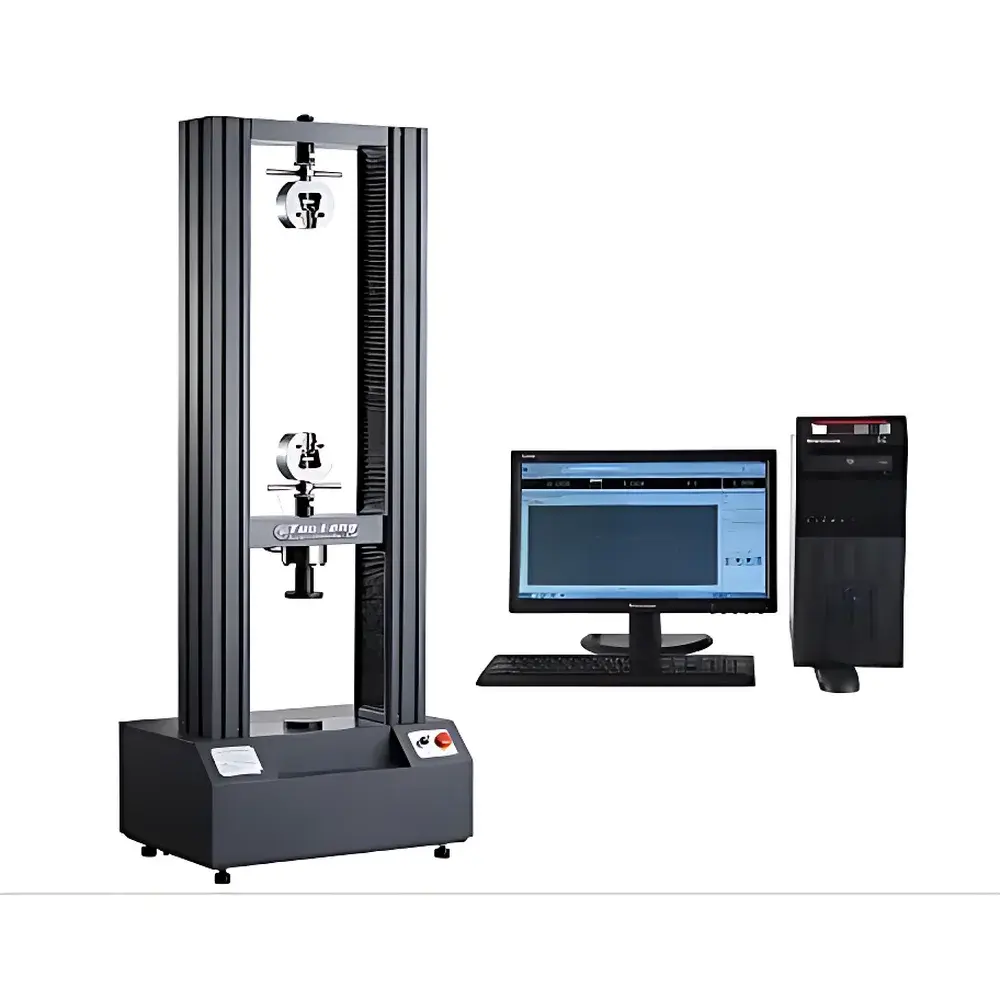

Tuofeng TFW-83 Microcomputer-Controlled Electromechanical Universal Tensile Testing Machine

Overview

The Tuofeng TFW-83 is a high-precision, microcomputer-controlled electromechanical universal testing machine engineered for static mechanical property evaluation of engineering materials under uniaxial loading conditions. Based on the principle of servo-controlled load application and closed-loop displacement feedback, it delivers repeatable, traceable force–displacement data across tension, compression, bending, shear, tear, peel, and puncture modes. Its robust architecture integrates a high-rigidity dual-column frame, precision-ground ball-screw actuation system, and imported AC servo motor with harmonic drive reduction—ensuring minimal backlash, thermal stability, and long-term calibration integrity. Designed for compliance-driven laboratories, the TFW-83 meets international metrological and performance standards including ISO 7500-1 (Class 0.5), ASTM E4 (Verification of Force-Measuring Systems), and GB/T 16491–2008 (Chinese standard for electronic universal testing machines).

Key Features

• Full-scale force capacity of 200 kN with verified accuracy of ±0.5% of reading across 0.2%–100% FS—enabling reliable characterization of structural alloys, geosynthetics, reinforced concrete specimens, and high-strength composites.
• High-resolution displacement measurement system with 0.001 mm resolution and ±0.005% accuracy, coupled with optional extensometer integration (contact or non-contact) for strain-controlled protocols per ASTM E8/E21 and ISO 6892-1.
• Adjustable crosshead travel up to 1000 mm and customizable test width (standard 400 mm, extendable to 600 mm) to accommodate large-format geotextiles, geomembranes, and civil engineering specimens per EN ISO 10319 and ASTM D4595.
• Wide-speed actuation range from 0.001 to 500 mm/min with continuous, stepless regulation—supporting quasi-static creep, relaxation, and rate-dependent modulus mapping in accordance with ASTM D2990 and ISO 1133.
• Dual-mode safety architecture: hardware-based electronic limit switches, emergency stop circuitry, and software-enforced overload protection (auto-halt at 110% of rated load) compliant with IEC 61508 functional safety principles.
• Motorized crosshead with independent fast/slow speed control and programmable return-to-start functionality—reducing operator intervention and enhancing throughput in high-volume QA/QC environments.

Sample Compatibility & Compliance

The TFW-83 accommodates diverse specimen geometries—from ASTM E8 dog-bone tensile bars and ISO 527-2 injection-molded plaques to ASTM D4595 geotextile strips and EN 13249-reinforced soil reinforcement samples. With modular fixture interfaces (M6/M8/M10 tapped holes and T-slot rails), users can mount custom grips for clamping brittle ceramics, flexible elastomers, or layered laminates without slippage. All test configurations adhere to standardized procedures referenced in ASTM D638 (plastics), ASTM D3039 (composites), ISO 13934-1 (fabrics), and GB/T 2792 (adhesive peel). The system supports full audit trail generation—including user ID, timestamp, calibration certificate ID, and raw sensor output—for GLP/GMP-aligned workflows and FDA 21 CFR Part 11-compliant electronic records when paired with validated software configuration.

Software & Data Management

Control and analysis are executed via Tuofeng’s Windows-native TMS (Testing Management Suite) v4.2—validated for multi-language operation (English, Simplified/Traditional Chinese), SI/imperial unit switching, and configurable report templates aligned with ISO/IEC 17025 documentation requirements. The software implements real-time plotting of up to four synchronized axes (e.g., stress–strain, load–time, displacement–time), automatic parameter extraction (UTS, yield point, Young’s modulus, elongation at break, tear propagation energy), and statistical batch reporting with min/max/mean deviation overlays. Raw data exports to CSV, XML, or proprietary .TMD format preserve full 10 kHz sampling fidelity. Optional modules include PID-controlled hold tests (ASTM D2990), cyclic fatigue scripting (ISO 1099), and third-party API integration for LIMS synchronization. Firmware and software updates are provided free-of-charge for the instrument’s operational lifetime.

Applications

• Mechanical validation of geosynthetic reinforcement materials (geogrids, geotextiles, geomembranes) per AASHTO M288 and EN 1047.
• Tensile and compressive strength assessment of construction-grade steel rebar, precast concrete prisms, and fiber-reinforced polymer (FRP) tendons.
• Process qualification of thermoplastic composites used in aerospace secondary structures (ASTM D3410) and automotive lightweighting components.
• Quality conformance testing of rubber compounds (vulcanized elastomers), conveyor belting, and packaging films per ASTM D412/D882.
• Research-grade deformation mapping of shape-memory alloys, hydrogels, and bioresorbable polymers under controlled environmental chambers (optional integration).

FAQ

What standards does the TFW-83 comply with for calibration and verification?
The system conforms to ISO 7500-1 (Class 0.5), ASTM E4, JJG 475–2008, and GB/T 16491–2008. Factory calibration includes NIST-traceable load cell certification and displacement encoder linearity verification.
Can the TFW-83 perform constant-rate-of-travel (CRT) and constant-rate-of-extension (CRE) tests?
Yes—it supports both CRT (crosshead speed control) and CRE (closed-loop strain rate control) modes via optional extensometer feedback, meeting requirements of ISO 527-1 and ASTM D638.
Is remote diagnostics and software support available internationally?
Tuofeng provides web-based remote assistance, firmware update portals, and multilingual technical documentation. On-site service is coordinated through authorized regional partners in North America, EU, and APAC.
How is data integrity ensured during long-duration creep or relaxation tests?
The embedded controller maintains uninterrupted 10 kHz sampling even during 72+ hour tests; all data streams are time-stamped, checksum-verified, and buffered to non-volatile memory to prevent loss during power interruption.
Does the system support automated test sequencing for multi-specimen batches?
Yes—TMS v4.2 enables script-driven batch execution with auto-grip positioning, load ramping profiles, pass/fail logic gates, and consolidated PDF reporting per ISO/IEC 17025 Annex A.5.
