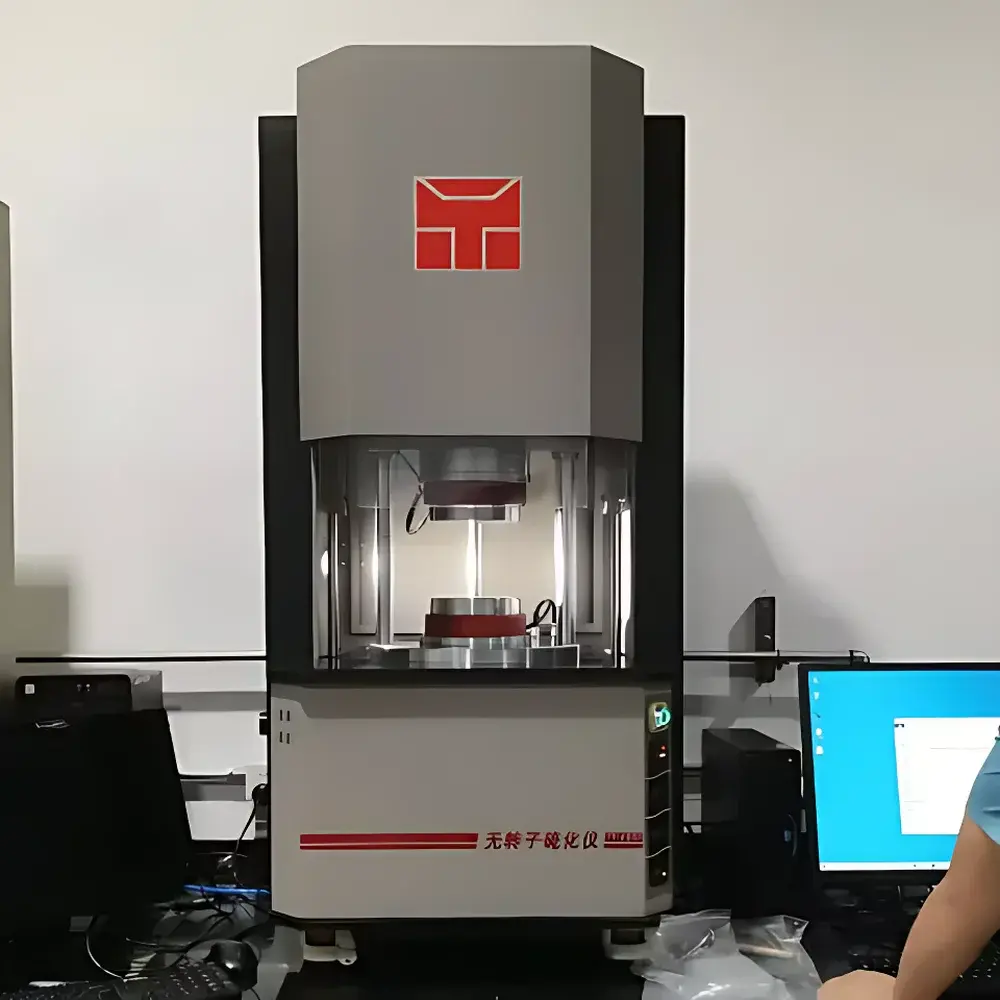

TYTESTER TY-6002A Advanced Oscillating Disc Vulcanizometer

Overview

The TYTESTER TY-6002A is an oscillating disc vulcanizometer engineered for precise, real-time characterization of rubber compound cure kinetics under controlled thermal and mechanical conditions. Operating on the principle of torsional oscillation, the instrument subjects a pre-weighed rubber specimen to sinusoidal shear deformation within a sealed, temperature-regulated cavity while continuously measuring the resulting torque response. As crosslinking progresses during vulcanization, the material’s complex shear modulus (G*) increases proportionally—enabling quantitative derivation of key rheological parameters including scorch time (ts₁, ts₂), optimum cure time (t₉₀), minimum and maximum torque (ML, MH), cure rate index (CRI), and reversion behavior. This measurement methodology conforms strictly to internationally recognized standards—including ASTM D5289, ISO 6502, and GB/T 16584—ensuring data comparability across global R&D, quality control, and production laboratories.

Key Features

• High-fidelity torque sensing system with 0–15 N·m range and 0.001 N·m resolution, calibrated traceable to national metrological standards.
• Dual-control architecture: Integrated industrial-grade touchscreen HMI and dedicated Windows-compatible software (TY CureMeter™) enabling synchronized operation, real-time curve overlay, and multi-test comparative analysis.
• Precision oscillatory drive: Permanent magnet synchronous motor coupled with amplitude-adjustable mechanism, delivering stable 1.7 Hz oscillation at selectable amplitudes (±0.5° or ±1.0°) per ISO-defined test protocols.
• Intelligent thermal management: Multi-channel PID-controlled heating system with adaptive parameter tuning; achieves ≤ ±0.3 °C temperature accuracy across RT–200 °C range and <5 min ramp from ambient to 100 °C.
• Robust cavity design: Hardened Cr6WV tool steel die set ensuring long-term dimensional stability, wear resistance, and minimal thermal hysteresis.
• Automated safety integration: 5 mm acrylic safety shield with position-sensing interlock—mechanically linked to mold actuation and electrically fail-safe (shuts closed upon power loss).
• Integrated LED illumination system activated automatically during mold opening, enhancing visual inspection and operator ergonomics.
• USB 2.0 interface for secure, low-latency data export; supports CSV, XML, and native .tyc binary formats for audit-ready archival.

Sample Compatibility & Compliance

The TY-6002A accommodates standard ASTM D5289/ISO 6502-compliant rubber specimens (typically 3.5–4.5 g, Ø29.5 mm × 12.5 mm). It supports natural rubber (NR), synthetic elastomers (SBR, BR, EPDM, NBR, CR), thermoplastic elastomers (TPE), and filled/unfilled compounds—including those containing carbon black, silica, plasticizers, accelerators, and curatives. All hardware and firmware comply with electromagnetic compatibility (EMC) requirements per IEC 61326-1 and functional safety principles aligned with IEC 61508 SIL1. Test reports generated by TY CureMeter™ software include full metadata (operator ID, timestamp, calibration status, environmental conditions) and support GLP/GMP-aligned audit trails when deployed in regulated environments.

Software & Data Management

TY CureMeter™ is a purpose-built, installable Windows application (compatible with Windows 7 through Windows 11) providing full lifecycle test management. Core capabilities include automated baseline correction, dynamic curve smoothing (Savitzky-Golay filter), customizable pass/fail thresholds per parameter, statistical process control (SPC) charting (X-bar/R), and batch-level summary reporting. Raw torque vs. time datasets are stored with embedded calibration certificates and version-stamped firmware logs. Export functions meet FDA 21 CFR Part 11 readiness requirements—supporting electronic signatures, user access controls, and immutable audit logs for validation documentation. Historical curve comparison tools allow side-by-side overlay of up to eight tests with delta-torque deviation heatmaps.

Applications

The TY-6002A serves as a primary analytical tool in rubber formulation development, incoming raw material verification, batch-to-batch consistency monitoring, and accelerated aging studies. It enables quantitative evaluation of accelerator package efficiency, filler dispersion effects, scorch safety margins in extrusion or calendering processes, and overcure susceptibility in high-temperature curing cycles. In tire manufacturing, it supports tread compound optimization for rolling resistance and wet grip trade-offs. In sealing and automotive NVH applications, it assists in predicting compression set and dynamic stiffness evolution under service-relevant thermal profiles.

FAQ

What standards does the TY-6002A comply with?
ASTM D5289, ISO 6502, and GB/T 16584 for oscillating disc vulcanization testing.
Is the instrument suitable for QC labs requiring regulatory compliance?
Yes—software supports 21 CFR Part 11-compliant workflows including role-based access, electronic signatures, and tamper-evident audit trails.
Can torque data be exported for third-party statistical analysis?
Yes—CSV, XML, and proprietary .tyc formats are supported, all preserving full time-series resolution and metadata.
What maintenance is required for long-term torque accuracy?
Annual recalibration of the torque transducer and thermal sensor is recommended; factory-certified calibration kits and traceable certificates are available.
Does the system support automated test sequencing?
Yes—batch mode allows pre-programmed multi-step tests with variable temperature ramps, dwell times, and amplitude switching without manual intervention.
