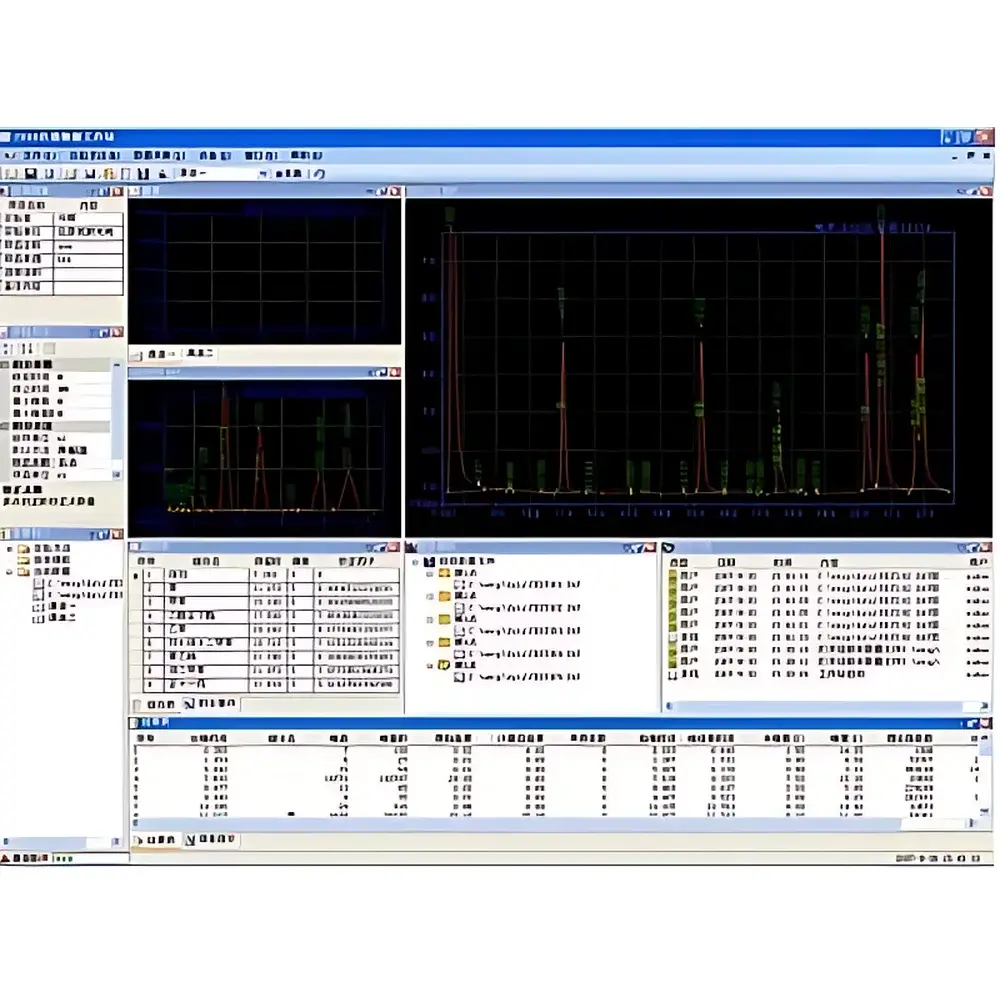

UC-3269 Ultra-Controlled HPLC Workstation by Youlian Optoelectronics

Overview

The UC-3269 Ultra-Controlled HPLC Workstation is a fully integrated chromatographic data system engineered for precision liquid chromatography operation and analysis. Designed to serve as the central command interface for modern HPLC platforms, it implements bidirectional real-time communication with pumps, autosamplers, column ovens, and detectors—including UV-Vis, fluorescence, and conductivity modules—enabling full hardware parameter synchronization, method execution, and dynamic feedback control. Its architecture adheres to the core principles of chromatographic data integrity: deterministic acquisition timing, lossless raw signal retention, and traceable instrument-state logging. The workstation operates on a deterministic Windows-based OS environment and supports both isocratic and gradient elution workflows with sub-millisecond timing resolution, ensuring compliance with routine QC/QA laboratory requirements in pharmaceutical, environmental, and academic settings.

Key Features

• Intelligent Peak Detection Engine: Employs adaptive baseline modeling and multi-threshold derivative algorithms to resolve overlapping, tailing, or fronting peaks without manual intervention; supports user-defined sensitivity tuning and retention time window validation.
• Guided Workflow Interface: Context-sensitive wizards assist in method creation, calibration sequence setup, system suitability testing (SST), and report generation—reducing operator training time and minimizing procedural variability.
• Modular UI Layout: Drag-and-drop workspace configuration allows users to position instrument status panels, chromatogram viewers, peak tables, and method editors according to ergonomic preferences—mirroring physical lab workflow logic.
• Unified Instrument Control Console: Consolidates real-time monitoring of pressure, flow rate, detector absorbance, column temperature, and valve positions into a single dashboard with color-coded status indicators and configurable alarm thresholds.
• Secure Remote Operation: Implements TLS 1.2–encrypted HTTP/HTTPS communication over local networks or VPN tunnels; supports role-based access control (RBAC) and session timeout enforcement per GLP/GMP best practices.
• Unbounded Data Capture: Acquires and stores raw analog/digital detector signals continuously for >72 hours at 20 Hz sampling rate; maintains full metadata linkage between chromatograms, audit trails, and instrument logs.
• Regulatory-Ready Reporting: Generates customizable reports compliant with internal SOPs; exports final outputs directly to editable Microsoft Word (.docx) and archival PDF/A-1b formats with embedded digital signatures and timestamped revision history.

Sample Compatibility & Compliance

The UC-3269 workstation is compatible with standard HPLC configurations operating under reversed-phase, normal-phase, ion-exchange, and size-exclusion modes. It supports common mobile phase solvents (acetonitrile, methanol, water, buffer systems up to pH 12), and accommodates columns ranging from 2.1 mm to 4.6 mm ID with lengths up to 250 mm. The software conforms to fundamental data integrity expectations outlined in FDA 21 CFR Part 11 (electronic records and signatures), including audit trail activation, user authentication, and immutable log archiving. While not pre-certified for specific ISO or ASTM standards, its design facilitates alignment with ISO/IEC 17025 (testing laboratories) and USP (analytical instrument qualification) frameworks when deployed within validated laboratory environments.

Software & Data Management

Built on a relational database architecture (Microsoft SQL Server Express or compatible), the UC-3269 software ensures ACID-compliant transaction handling for method storage, sample queue management, and result archiving. All user actions—including method edits, integration parameter adjustments, and report exports—are captured in an encrypted, tamper-evident audit trail with timestamps, operator IDs, and before/after value comparisons. Raw chromatographic data is stored in vendor-neutral .CDF (Common Data Format) containers, enabling third-party reprocessing via open-source tools such as OpenChrom or commercial platforms like Chromeleon or Empower. Backup policies support scheduled automated exports to network drives or NAS devices with SHA-256 hash verification.

Applications

This workstation serves critical roles across regulated and research-intensive domains: stability-indicating assay development for small-molecule APIs; residual solvent quantification per ICH Q3C guidelines; impurity profiling in generic drug submissions; pesticide residue screening in food matrices (AOAC 2007.01); and polymer additive analysis using SEC-HPLC. Its robust peak deconvolution capability also supports method transfer between labs and instruments, while long-duration acquisition enables kinetic studies of degradation pathways or column aging effects under accelerated conditions.

FAQ

Does the UC-3269 support FDA 21 CFR Part 11 compliance out-of-the-box?

Yes—when configured with enabled audit trail, electronic signatures, and secure user authentication, it meets foundational Part 11 requirements; full validation remains the responsibility of the end-user laboratory.
Can the software interface with third-party HPLC hardware from Agilent, Waters, or Shimadzu?

It supports industry-standard RS-232, USB VCP, and Ethernet TCP/IP protocols; OEM-specific drivers are available upon request for select models.
Is raw data export possible in ASCII or CSV format for external statistical analysis?

Yes—peak tables and processed chromatograms can be exported as tab-delimited text files with full metadata headers.
What is the maximum number of simultaneous channels supported for multi-detector configurations?

Up to four independent analog/digital input channels, each assignable to distinct detectors with individual gain and filter settings.
How frequently are software updates released, and are they included in the initial license?

Minor version updates (bug fixes, security patches) are provided free for 24 months post-purchase; major version upgrades require a maintenance agreement.
